Radius Arms & Links ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016)

View All

Land Rover Defender (2007-2016) - Radius Arms & Links ((V) FROM7A000001)

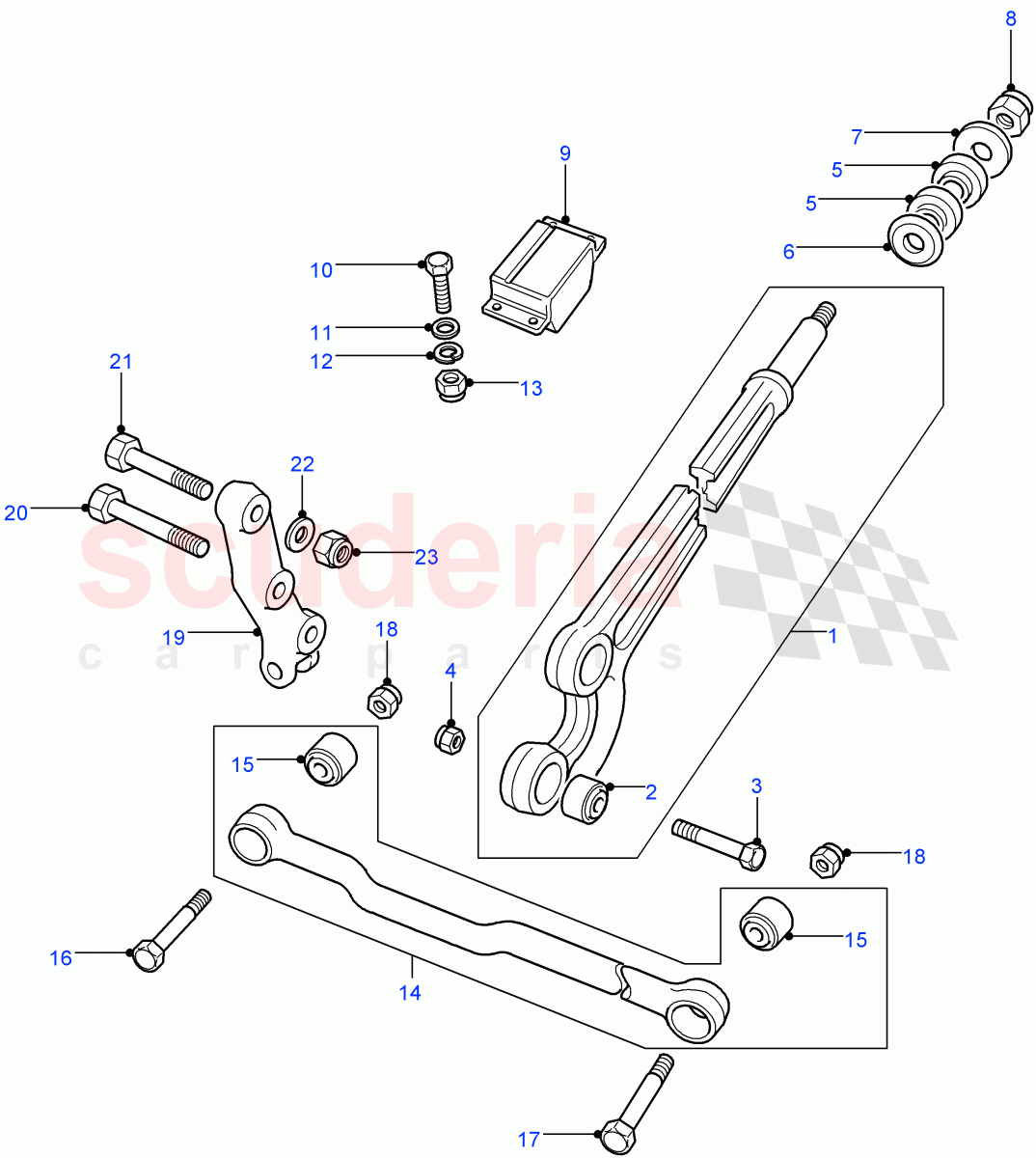

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	NTC7331	ARM - FRONT SUSPENSION	Enquire	To Order
	LR041266	ARM - FRONT SUSPENSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	NTC6781	BUSH - FRONT SUSPENSION ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG501550	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ANR3140	LOCKNUT	Enquire	To Order
	LR077764	LOCKNUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ANR6971	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYF500270	WASHER - CUP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYF500260	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	NY120046	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ANR4188	BUMP STOP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS108207L	SCREW	Enquire	To Order
	FB108101L	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WA108056	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WA108056	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	NY108041	Nut - Hex.	Enquire	To Order
	FN108046	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RBI100041	ROD - TIE	Enquire	To Order
	RBI100031	ROD - TIE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RBX101340	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG501560	BOLT - FLANGED HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG501560	BOLT - FLANGED HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ANR3140	LOCKNUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RBJ102940	ARM - ADJUSTMENT	Enquire	To Order
	RBJ102950	ARM - ADJUSTMENT	Enquire	To Order
	LR041262	ARM - ADJUSTMENT	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	FC112326	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FC112246	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WC112081L	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FY112056	NUT - HEX.	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	NTC7331	ARM - FRONT SUSPENSION	NTC7331 ARM - FRONT SUSPENSION To: CA422000	-	2	Enquire
1	LR041266	ARM - FRONT SUSPENSION	LR041266 ARM - FRONT SUSPENSION From: CA422001	-	2	Enquire
2	NTC6781	BUSH - FRONT SUSPENSION ARM	NTC6781 BUSH - FRONT SUSPENSION ARM	-	4	Enquire
3	RYG501550	BOLT	RYG501550 BOLT dacromat, M16 x 100MM	-	4	Enquire
4	ANR3140	LOCKNUT	ANR3140 LOCKNUT M16, nyloc / To: EA454691	-	4	Enquire
4	LR077764	LOCKNUT	LR077764 LOCKNUT M16, nyloc / From: EA454692	-	4	Enquire
5	ANR6971	BUSH	ANR6971 BUSH	-	4	Enquire
6	RYF500270	WASHER - CUP	RYF500270 WASHER - CUP	-	2	Enquire
7	RYF500260	WASHER	RYF500260 WASHER	-	2	Enquire
8	NY120046	NUT - HEX.	NY120046 NUT - HEX. M20	-	2	Enquire
9	ANR4188	BUMP STOP	ANR4188 BUMP STOP	-	2	Enquire
10	FS108207L	SCREW	FS108207L SCREW 90" And 110" Wheelbase / Flanged Head, M8 X 20MM	-	4	Enquire
10	FB108101L	BOLT	FB108101L BOLT 130" Wheelbase / Flanged Head, M8 X 50	-	4	Enquire
11	WA108056	WASHER	WA108056 WASHER 90" And 110" Wheelbase / 8MM	-	4	Enquire
12	WA108056	WASHER	WA108056 WASHER M8, sprung	-	4	Enquire
13	NY108041	Nut - Hex.	NY108041 Nut - Hex. 90" And 110" Wheelbase / M8, nyloc	-	4	Enquire
13	FN108046	NUT - HEX.	FN108046 NUT - HEX. 130" Wheelbase / Flanged Head, M8	-	4	Enquire
14	RBI100041	ROD - TIE	RBI100041 ROD - TIE RHD	-	1	Enquire
14	RBI100031	ROD - TIE	RBI100031 ROD - TIE LHD	-	1	Enquire
15	RBX101340	BUSH	RBX101340 BUSH	-	2	Enquire
16	RYG501560	BOLT - FLANGED HEX.	RYG501560 BOLT - FLANGED HEX. Flanged Head, M16 x 82	-	1	Enquire
17	RYG501560	BOLT - FLANGED HEX.	RYG501560 BOLT - FLANGED HEX. Flanged Head, M16 x 82	-	1	Enquire
18	ANR3140	LOCKNUT	ANR3140 LOCKNUT Flanged Head, M16, nyloc	-	2	Enquire
19	RBJ102940	ARM - ADJUSTMENT	RBJ102940 ARM - ADJUSTMENT RHD / To: CA422000	-	1	Enquire
19	RBJ102950	ARM - ADJUSTMENT	RBJ102950 ARM - ADJUSTMENT LHD / To: CA422000	-	1	Enquire
19	LR041262	ARM - ADJUSTMENT	LR041262 ARM - ADJUSTMENT LHD / From: CA422001	-	1	Enquire
19	LR041263	ARM - ADJUSTMENT	LR041263 ARM - ADJUSTMENT RHD / From: CA422001	-	1	Enquire
20	FC112326	BOLT	FC112326 BOLT 1/2UNF x 6 1/4	-	1	Enquire
21	FC112246	BOLT	FC112246 BOLT 1/2UNF x 4 3/4	-	1	Enquire
22	WC112081L	WASHER	WC112081L WASHER M12 x 28	-	2	Enquire
23	FY112056	NUT - HEX.	FY112056 NUT - HEX. 1/2UNF, Hexagonal, nyloc	-	2	Enquire
