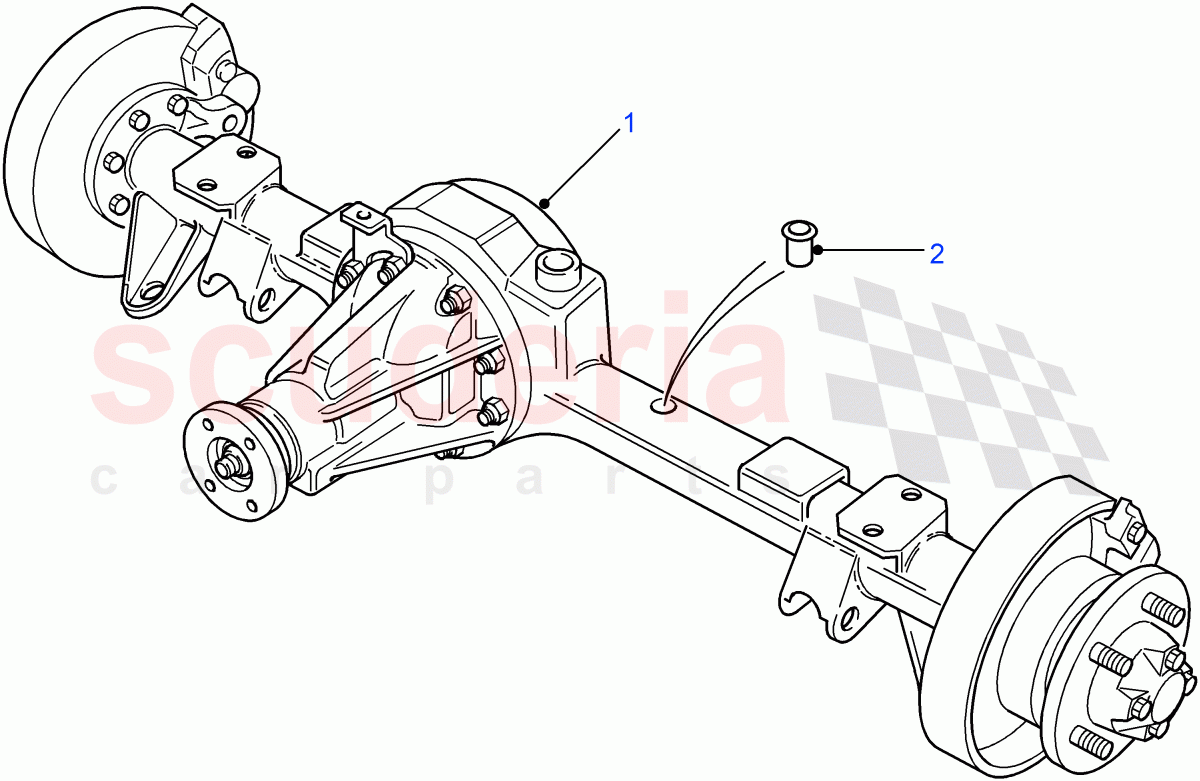

Rear Axle Assembly (110" Wheelbase) ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016)

View All

Land Rover Defender (2007-2016) - Rear Axle Assembly (110" Wheelbase) ((V) FROM7A000001)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	TVK000200	HOUSING - REAR AXLE	Enquire	To Order
	TVK000210	REAR AXLE	Enquire	To Order
	TVK500010	HOUSING - REAR AXLE	Enquire	To Order

...and 14 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	FTC5085	ADAPTOR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	TVK000200	HOUSING - REAR AXLE	TVK000200 HOUSING - REAR AXLE Less Anti-Lock Braking System / To: 7A999999	-	1	Enquire
1	TVK000210	REAR AXLE	TVK000210 REAR AXLE 4 Wheel Anti-Lock Braking System / To: 9A776207	-	1	Enquire
1	TVK500010	HOUSING - REAR AXLE	TVK500010 HOUSING - REAR AXLE Less Anti-Lock Braking System / Heavy Duty / To: 7A999999	-	1	Enquire
1	TVK500020	HOUSING - REAR AXLE	TVK500020 HOUSING - REAR AXLE 4 Wheel Anti-Lock Braking System / Heavy Duty / To: 9A776207	-	1	Enquire
1	LR013014	AXLE - REAR	LR013014 AXLE - REAR 4 Wheel Anti-Lock Braking System, With Engine Traction Control Brake, With Standard Suspension / From: 9A776208 / To: CA444443	-	1	Enquire
1	LR013016	AXLE - REAR	LR013016 AXLE - REAR 4 Wheel Anti-Lock Braking System, With Engine Traction Control Brake, With Heavy Duty Suspension / From: 9A776208 / To: CA444443	-	1	Enquire
1	LR025496	AXLE - REAR	LR025496 AXLE - REAR Less Anti-Lock Braking System, Less Anti-Spin Traction System, With Standard Suspension / From: 8A000001 / To: CA444443	-	1	Enquire
1	LR047355	AXLE - REAR	LR047355 AXLE - REAR Less Anti-Lock Braking System, Less Anti-Spin Traction System, With Standard Suspension / From: DA000001	-	1	Enquire
1	LR041131	AXLE - REAR	LR041131 AXLE - REAR With Engine Traction Control Brake, With Standard Suspension / From: CA444444 / To: CA999999	-	1	Enquire
1	LR025452	AXLE - REAR	LR025452 AXLE - REAR Less Anti-Lock Braking System, Less Anti-Spin Traction System, With Heavy Duty Suspension / From: 8A000001 / To: CA444443	-	1	Enquire
1	LR047357	AXLE - REAR	LR047357 AXLE - REAR Less Anti-Spin Traction System, With Heavy Duty Suspension / From: DA000001	-	1	Enquire
1	LR041133	Axle - Rear	LR041133 Axle - Rear With Engine Traction Control Brake, With Heavy Duty Suspension / From: CA444444 / To: CA999999	-	1	Enquire
1	LR041130	Axle - Rear	LR041130 Axle - Rear Less Anti-Lock Braking System, Less Anti-Spin Traction System, With Standard Suspension / From: CA444444 / To: CA999999	-	1	Enquire
1	LR047356	AXLE - REAR	LR047356 AXLE - REAR With Engine Traction Control Brake, With Standard Suspension / From: DA000001	-	1	Enquire
1	LR041132	Axle - Rear	LR041132 Axle - Rear Less Anti-Spin Traction System, With Heavy Duty Suspension / From: CA444444 / To: CA999999	-	1	Enquire
1	LR047358	AXLE - REAR	LR047358 AXLE - REAR With Engine Traction Control Brake, With Heavy Duty Suspension / From: DA000001 / To: EA999999	-	1	Enquire
1	LR087434	AXLE - REAR	LR087434 AXLE - REAR With Engine Traction Control Brake, With Heavy Duty Suspension / From: FA000001	-	1	Enquire
2	FTC5085	ADAPTOR	FTC5085 ADAPTOR	-	1	Enquire
