Differential Assembly (90" Wheelbase) ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016)

View All

Land Rover Defender (2007-2016) - Differential Assembly (90" Wheelbase) ((V) FROM7A000001)

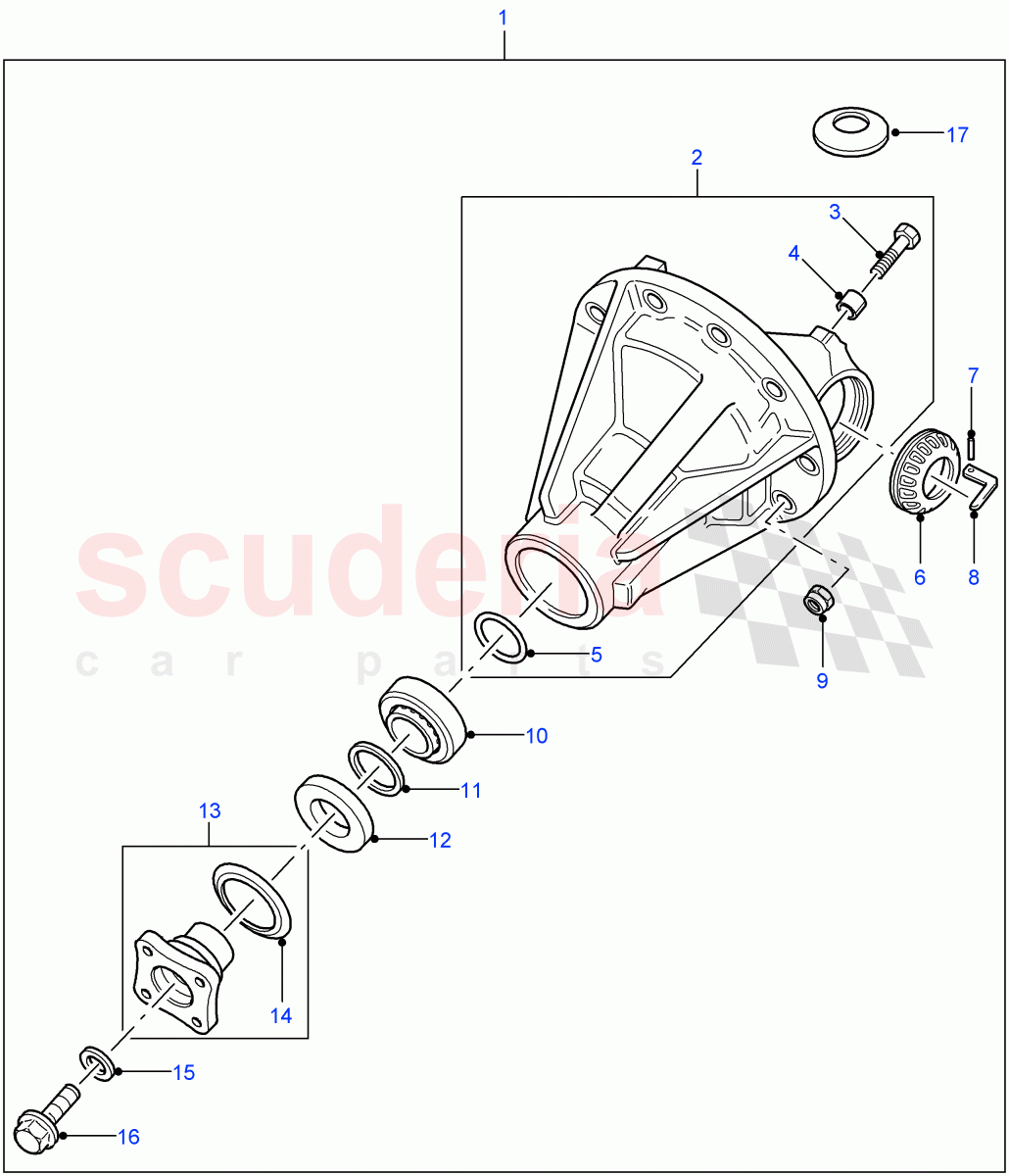

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	TBB000250	DIFFERENTIAL - FRONT	Enquire	To Order
	LR008859	DIFFERENTIAL	Enquire	To Order
	TBB000280	DIFFERENTIAL	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	FRC4112	HOUSING - DIFF. LOCK SHIFT	Enquire	To Order
	FRC4112	HOUSING - DIFF. LOCK SHIFT	Enquire	To Order
	LR049201	HOUSING - DIFF. LOCK SHIFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	UYG500060	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	TYU100110	DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	TYS100870	SHIM	Enquire	To Order
	TYS100900	SHIM	Enquire	To Order
	TYS100940	SHIM	Enquire	To Order

...and 16 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	FTC4210	RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	576159	PIN - ROLL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FRC5661	WASHER - TAB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	NY606042	LOCKNUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	539707	BEARING - ROLLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	539745	SPACER - PINION BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FTC5258	SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	TXW500010	FLANGE - DRIVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	TBA500010	SHIELD	Enquire	To Order
	LR017552	SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FTC5413	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS112306P	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	TCF000410	WASHER - THRUST	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	TBB000250	DIFFERENTIAL - FRONT	TBB000250 DIFFERENTIAL - FRONT Rear Axle Differential - 2 Pin / New Part-Please Check For Reman Version / To: BA822269	-	1	Enquire
1	LR008859	DIFFERENTIAL	LR008859 DIFFERENTIAL Rear Axle Differential - 2 Pin / Remanufactured Part / To: BA822269	-	1	Enquire
1	TBB000280	DIFFERENTIAL	TBB000280 DIFFERENTIAL Less Anti-Lock Braking System, Rear Axle Differential - 4 Pin / New Part-Please Check For Reman Version	-	1	Enquire
1	LR009498	CARRIER - DIFFERENTIAL	LR009498 CARRIER - DIFFERENTIAL Less Anti-Lock Braking System, Rear Axle Differential - 4 Pin / Remanufactured Part	-	1	Enquire
1	LR027943	CARRIER - DIFFERENTIAL	LR027943 CARRIER - DIFFERENTIAL Rear Axle Differential - 2 Pin / New Part-Please Check For Reman Version / From: BA822270	-	1	Enquire
1	LR032352	CARRIER - DIFFERENTIAL	LR032352 CARRIER - DIFFERENTIAL Rear Axle Differential - 2 Pin / Remanufactured Part / From: BA822270	-	1	Enquire
2	FRC4112	HOUSING - DIFF. LOCK SHIFT	FRC4112 HOUSING - DIFF. LOCK SHIFT To: CA999999	-	1	Enquire
2	FRC4112	HOUSING - DIFF. LOCK SHIFT	FRC4112 HOUSING - DIFF. LOCK SHIFT Rear Axle Differential - 2 Pin / From: DA000001	-	1	Enquire
2	LR049201	HOUSING - DIFF. LOCK SHIFT	LR049201 HOUSING - DIFF. LOCK SHIFT Rear Axle Differential - 4 Pin / From: DA000001	-	1	Enquire
3	UYG500060	BOLT	UYG500060 BOLT M12 x 60	-	4	Enquire
4	TYU100110	DOWEL	TYU100110 DOWEL	-	4	Enquire
5	TYS100870	SHIM	TYS100870 SHIM 2.255mm, Inner Diameter 64MM, Metric	-	-	Enquire
5	TYS100900	SHIM	TYS100900 SHIM 2.210mm, Inner Diameter 64MM, Metric	-	-	Enquire
5	TYS100940	SHIM	TYS100940 SHIM 2.150mm, Inner Diameter 64MM, Metric	-	-	Enquire
5	TYS100970	SHIM	TYS100970 SHIM 2.105mm, Inner Diameter 64MM, Metric	-	-	Enquire
5	TYS101000	SHIM	TYS101000 SHIM 2.060mm, Inner Diameter 64MM, Metric	-	-	Enquire
5	TYS101040	SHIM - DIFFERENTIAL DRIVING GR BRG	TYS101040 SHIM - DIFFERENTIAL DRIVING GR BRG 2.155MM, Inner Diameter 32.5MM, Metric	-	-	Enquire
5	TYS101060	SHIM - DIFFERENTIAL DRIVING GR BRG	TYS101060 SHIM - DIFFERENTIAL DRIVING GR BRG 2.105mm, Inner Diameter 32.5MM, Metric	-	-	Enquire
5	TYS101080	SHIM - DIFFERENTIAL DRIVING GR BRG	TYS101080 SHIM - DIFFERENTIAL DRIVING GR BRG 2.055mm, Inner Diameter 32.5MM, Metric	-	-	Enquire
5	TYS101100	SHIM - DIFFERENTIAL DRIVING GR BRG	TYS101100 SHIM - DIFFERENTIAL DRIVING GR BRG 2.005mm, Inner Diameter 32.5MM, Metric	-	-	Enquire
5	TYS101120	SHIM - DIFFERENTIAL DRIVING GR BRG	TYS101120 SHIM - DIFFERENTIAL DRIVING GR BRG 1.955mm, Inner Diameter 32.5MM, Metric	-	-	Enquire
5	TYS101140	SHIM - DIFFERENTIAL DRIVING GR BRG	TYS101140 SHIM - DIFFERENTIAL DRIVING GR BRG 1.905mm, Inner Diameter 32.5MM, Metric	-	-	Enquire
5	TYS101160	SHIM - DIFFERENTIAL DRIVING GR BRG	TYS101160 SHIM - DIFFERENTIAL DRIVING GR BRG 1.855mm, Inner Diameter 32.5MM, Metric	-	-	Enquire
5	TYS101180	SHIM - DIFFERENTIAL DRIVING GR BRG	TYS101180 SHIM - DIFFERENTIAL DRIVING GR BRG 1.805mm, Inner Diameter 32.5MM, Metric	-	-	Enquire
5	TYS101200	SHIM - DIFFERENTIAL DRIVING GR BRG	TYS101200 SHIM - DIFFERENTIAL DRIVING GR BRG 1.755mm, Inner Diameter 32.5MM, Metric	-	-	Enquire
5	TYS101220	SHIM - DIFFERENTIAL DRIVING GR BRG	TYS101220 SHIM - DIFFERENTIAL DRIVING GR BRG 1.705mm, Inner Diameter 32.5MM, Metric	-	-	Enquire
5	TYS101240	SHIM - DIFFERENTIAL DRIVING GR BRG	TYS101240 SHIM - DIFFERENTIAL DRIVING GR BRG 1.655mm, Inner Diameter 32.5MM, Metric	-	-	Enquire
5	TYS101260	SHIM - DIFFERENTIAL DRIVING GR BRG	TYS101260 SHIM - DIFFERENTIAL DRIVING GR BRG 1.605mm, Inner Diameter 32.5MM, Metric	-	-	Enquire
5	TYS101280	SHIM - DIFFERENTIAL DRIVING GR BRG	TYS101280 SHIM - DIFFERENTIAL DRIVING GR BRG 1.555mm, Inner Diameter 32.5MM, Metric	-	-	Enquire
5	TYS101300	SHIM - DIFFERENTIAL DRIVING GR BRG	TYS101300 SHIM - DIFFERENTIAL DRIVING GR BRG 1.505mm, Inner Diameter 32.5MM, Metric	-	-	Enquire
6	FTC4210	RING	FTC4210 RING	-	2	Enquire
7	576159	PIN - ROLL	576159 PIN - ROLL	-	2	Enquire
8	FRC5661	WASHER - TAB	FRC5661 WASHER - TAB	-	2	Enquire
9	NY606042	LOCKNUT	NY606042 LOCKNUT 3/8, Hexagonal Head, nyloc, UNF	-	10	Enquire
10	539707	BEARING - ROLLER	539707 BEARING - ROLLER	-	1	Enquire
11	539745	SPACER - PINION BEARING	539745 SPACER - PINION BEARING	-	1	Enquire
12	FTC5258	SEAL	FTC5258 SEAL	-	1	Enquire
13	TXW500010	FLANGE - DRIVE	TXW500010 FLANGE - DRIVE	-	1	Enquire
14	TBA500010	SHIELD	TBA500010 SHIELD To: 9A777776	-	1	Enquire
14	LR017552	SHIELD	LR017552 SHIELD From: 9A777777	-	1	Enquire
15	FTC5413	WASHER	FTC5413 WASHER	-	1	Enquire
16	FS112306P	BOLT	FS112306P BOLT M12 x 30	-	1	Enquire
17	TCF000410	WASHER - THRUST	TCF000410 WASHER - THRUST	-	4	Enquire
