Swivel Pin Housing ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016)

View All

Land Rover Defender (2007-2016) - Swivel Pin Housing ((V) FROM7A000001)

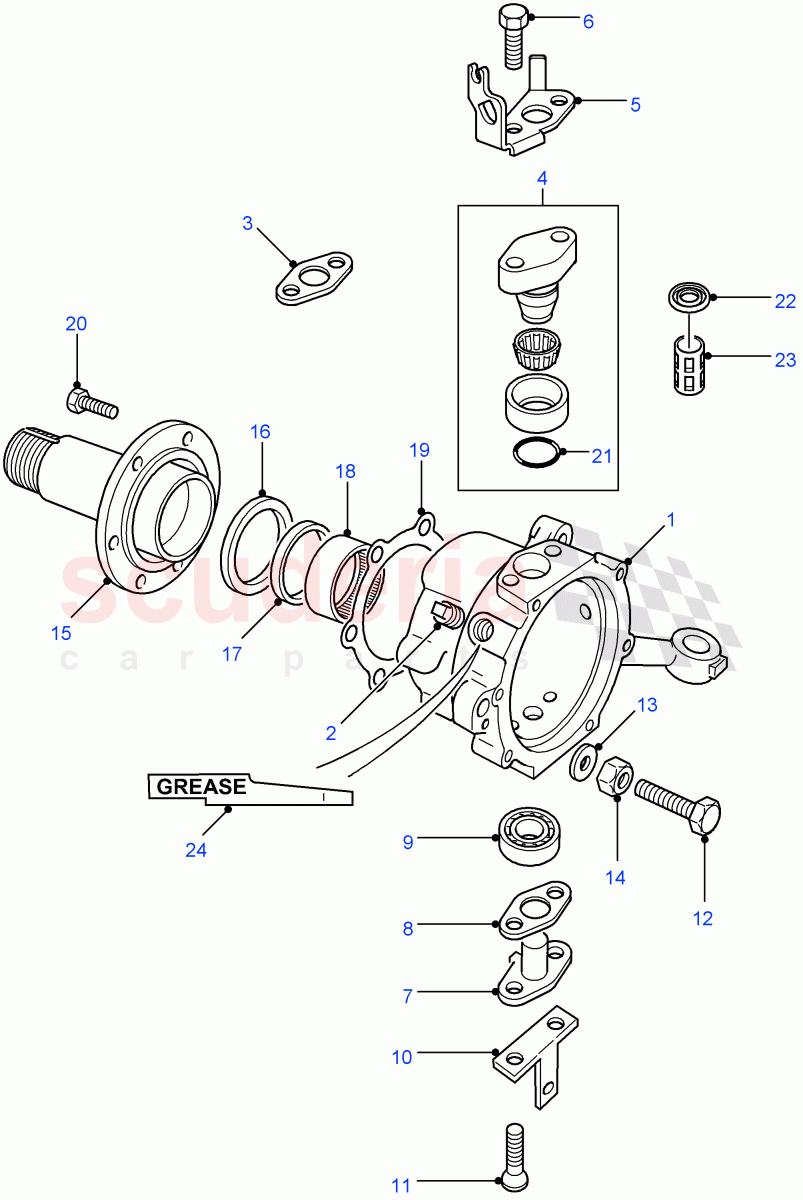

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FTC5297	HOUSING	Enquire	To Order
	FTC5298	HOUSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3292	PLUG - OIL LEVEL INDICATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FRC2883	SHIM	Enquire	To Order
	FRC2884	SHIM	Enquire	To Order
	FRC2885	SHIM	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	TAR100040	KIT - RETAINING PIN	Enquire	To Order
	TAR100050	KIT - RETAINING PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SHU000040	BRACKET	Enquire	To Order
	SHU000050	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BX110071M	BOLT	Enquire	To Order
	BX110076M	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FRC2894	PIN - FASTENING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FTC3647	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	606666	BEARING - ROLLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FRC3725	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS108307L	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SH112505	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WB112081L	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FN112046	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FTC3154	AXLE - FRONT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FTC56	WASHER - THRUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FTC5268	SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FTC861	BEARING - CAMSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FTC3648	GASKET	Enquire	To Order
	FTC3650	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SX110256M	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	TYX100570	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FTC1376	SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR029522	CLIP - WIRING	Enquire	To Order
	LR029522	CLIP - WIRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	STC3435	GREASE - HIGH TEMPERATURE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	FTC5297	HOUSING	FTC5297 HOUSING LH	-	1	Enquire
1	FTC5298	HOUSING	FTC5298 HOUSING RH	-	1	Enquire
2	3292	PLUG - OIL LEVEL INDICATOR	3292 PLUG - OIL LEVEL INDICATOR	-	1	Enquire
3	FRC2883	SHIM	FRC2883 SHIM 0.003"	-	2	Enquire
3	FRC2884	SHIM	FRC2884 SHIM 0.005"	-	2	Enquire
3	FRC2885	SHIM	FRC2885 SHIM 0.01"	-	2	Enquire
3	FRC2886	SHIM	FRC2886 SHIM 0.03"	-	2	Enquire
4	TAR100040	KIT - RETAINING PIN	TAR100040 KIT - RETAINING PIN Less Anti-Lock Braking System	-	2	Enquire
4	TAR100050	KIT - RETAINING PIN	TAR100050 KIT - RETAINING PIN 4 Wheel Anti-Lock Braking System	-	2	Enquire
5	SHU000040	BRACKET	SHU000040 BRACKET RH	-	1	Enquire
5	SHU000050	BRACKET	SHU000050 BRACKET LH	-	1	Enquire
6	BX110071M	BOLT	BX110071M BOLT Hexagonal Head, M10 x 35 / To: 7A999999	-	4	Enquire
6	BX110076M	BOLT	BX110076M BOLT Hexagonal Head, M10 x 35 / From: 8A000001	-	4	Enquire
7	FRC2894	PIN - FASTENING	FRC2894 PIN - FASTENING Lower	-	2	Enquire
8	FTC3647	GASKET	FTC3647 GASKET Asbestos Free	-	2	Enquire
9	606666	BEARING - ROLLER	606666 BEARING - ROLLER Lower	-	4	Enquire
10	FRC3725	BRACKET	FRC3725 BRACKET	-	2	Enquire
11	FS108307L	SCREW	FS108307L SCREW Hexagonal Head, M8	-	4	Enquire
12	SH112505	SCREW	SH112505 SCREW Hexagonal Head, M12 x 50, Shouldered	-	2	Enquire
13	WB112081L	WASHER	WB112081L WASHER M12 x 22	-	2	Enquire
14	FN112046	NUT	FN112046 NUT M12	-	2	Enquire
15	FTC3154	AXLE - FRONT	FTC3154 AXLE - FRONT	-	2	Enquire
16	FTC56	WASHER - THRUST	FTC56 WASHER - THRUST	-	2	Enquire
17	FTC5268	SEAL	FTC5268 SEAL Inner	-	2	Enquire
18	FTC861	BEARING - CAMSHAFT	FTC861 BEARING - CAMSHAFT swivel pin housing	-	2	Enquire
19	FTC3648	GASKET	FTC3648 GASKET Less Anti-Lock Braking System / Asbestos Free	-	2	Enquire
19	FTC3650	GASKET	FTC3650 GASKET 4 Wheel Anti-Lock Braking System / Asbestos Free	-	2	Enquire
20	SX110256M	SCREW	SX110256M SCREW Hexagonal Head, M10 x 25	-	12	Enquire
21	TYX100570	O-RING	TYX100570 O-RING	-	2	Enquire
22	FTC1376	SEAL	FTC1376 SEAL 4 Wheel Anti-Lock Braking System	-	1	Enquire
23	LR029522	CLIP - WIRING	LR029522 CLIP - WIRING 4 Wheel Anti-Lock Braking System / antilock brake system sensor / To: BA888887	-	1	Enquire
23	LR029522	CLIP - WIRING	LR029522 CLIP - WIRING 4 Wheel Anti-Lock Braking System / antilock brake system sensor / From: BA888888	-	1	Enquire
24	STC3435	GREASE - HIGH TEMPERATURE	STC3435 GREASE - HIGH TEMPERATURE 375cc, Can Be Used Instead Of Oil In Swivel Pin Housing, one shot	-	1	Enquire
