Crownwheel And Pinion - 4 Pinion (130" Wheelbase, 110" Wheelbase) ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016)

View All

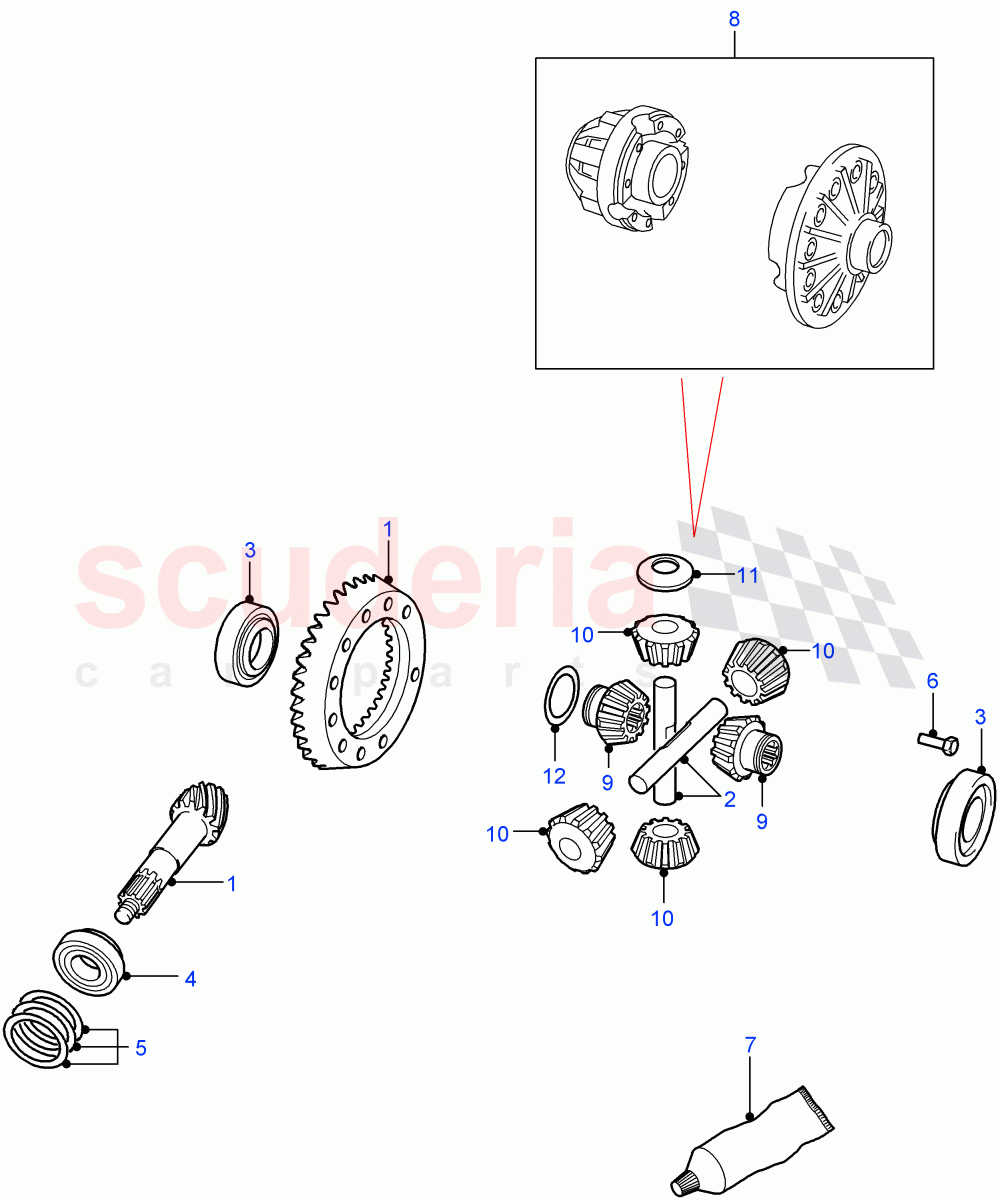

Land Rover Defender (2007-2016) - Crownwheel And Pinion - 4 Pinion (130" Wheelbase, 110" Wheelbase) ((V) FROM7A000001)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	STC3894	GEAR AND PINION - DRIVING	Enquire	To Order
	LR027528	GEAR AND PINION - DRIVING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	TCD100070	SHAFT - DIFFERENTIAL PINION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RTC3095	BEARING - DIFFERENTIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	STC1156	BEARING - ROLLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	TYS100870	SHIM	Enquire	To Order
	TYS100900	SHIM	Enquire	To Order
	TYS100940	SHIM	Enquire	To Order

...and 16 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	FTC5150	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RTC3254	SEALER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	TBF000170	DIFFERENTIAL AND CARRIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FTC3492	GEAR - DIFFERENTIAL SIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	TCB000100	GEAR - DIFFERENTIAL SIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	TCF000410	WASHER - THRUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	TCF000400	WASHER - THRUST	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	STC3894	GEAR AND PINION - DRIVING	STC3894 GEAR AND PINION - DRIVING To: BA823579	-	1	Enquire
1	LR027528	GEAR AND PINION - DRIVING	LR027528 GEAR AND PINION - DRIVING From: BA823580	-	1	Enquire
2	TCD100070	SHAFT - DIFFERENTIAL PINION	TCD100070 SHAFT - DIFFERENTIAL PINION	-	2	Enquire
3	RTC3095	BEARING - DIFFERENTIAL	RTC3095 BEARING - DIFFERENTIAL	-	2	Enquire
4	STC1156	BEARING - ROLLER	STC1156 BEARING - ROLLER	-	1	Enquire
5	TYS100870	SHIM	TYS100870 SHIM 2.255mm, Inner Diameter 64MM, Metric	-	-	Enquire
5	TYS100900	SHIM	TYS100900 SHIM 2.210mm, Inner Diameter 64MM, Metric	-	-	Enquire
5	TYS100940	SHIM	TYS100940 SHIM 2.150mm, Inner Diameter 64MM, Metric	-	-	Enquire
5	TYS100970	SHIM	TYS100970 SHIM 2.105mm, Inner Diameter 64MM, Metric	-	-	Enquire
5	TYS101000	SHIM	TYS101000 SHIM 2.060mm, Inner Diameter 64MM, Metric	-	-	Enquire
5	TYS101040	SHIM - DIFFERENTIAL DRIVING GR BRG	TYS101040 SHIM - DIFFERENTIAL DRIVING GR BRG 2.155MM, Inner Diameter 32.5MM, Metric	-	-	Enquire
5	TYS101060	SHIM - DIFFERENTIAL DRIVING GR BRG	TYS101060 SHIM - DIFFERENTIAL DRIVING GR BRG 2.105mm, Inner Diameter 32.5MM, Metric	-	-	Enquire
5	TYS101080	SHIM - DIFFERENTIAL DRIVING GR BRG	TYS101080 SHIM - DIFFERENTIAL DRIVING GR BRG 2.055mm, Inner Diameter 32.5MM, Metric	-	-	Enquire
5	TYS101100	SHIM - DIFFERENTIAL DRIVING GR BRG	TYS101100 SHIM - DIFFERENTIAL DRIVING GR BRG 2.005mm, Inner Diameter 32.5MM, Metric	-	-	Enquire
5	TYS101120	SHIM - DIFFERENTIAL DRIVING GR BRG	TYS101120 SHIM - DIFFERENTIAL DRIVING GR BRG 1.955mm, Inner Diameter 32.5MM, Metric	-	-	Enquire
5	TYS101140	SHIM - DIFFERENTIAL DRIVING GR BRG	TYS101140 SHIM - DIFFERENTIAL DRIVING GR BRG 1.905mm, Inner Diameter 32.5MM, Metric	-	-	Enquire
5	TYS101160	SHIM - DIFFERENTIAL DRIVING GR BRG	TYS101160 SHIM - DIFFERENTIAL DRIVING GR BRG 1.855mm, Inner Diameter 32.5MM, Metric	-	-	Enquire
5	TYS101180	SHIM - DIFFERENTIAL DRIVING GR BRG	TYS101180 SHIM - DIFFERENTIAL DRIVING GR BRG 1.805mm, Inner Diameter 32.5MM, Metric	-	-	Enquire
5	TYS101200	SHIM - DIFFERENTIAL DRIVING GR BRG	TYS101200 SHIM - DIFFERENTIAL DRIVING GR BRG 1.755mm, Inner Diameter 32.5MM, Metric	-	-	Enquire
5	TYS101220	SHIM - DIFFERENTIAL DRIVING GR BRG	TYS101220 SHIM - DIFFERENTIAL DRIVING GR BRG 1.705mm, Inner Diameter 32.5MM, Metric	-	-	Enquire
5	TYS101240	SHIM - DIFFERENTIAL DRIVING GR BRG	TYS101240 SHIM - DIFFERENTIAL DRIVING GR BRG 1.655mm, Inner Diameter 32.5MM, Metric	-	-	Enquire
5	TYS101260	SHIM - DIFFERENTIAL DRIVING GR BRG	TYS101260 SHIM - DIFFERENTIAL DRIVING GR BRG 1.605mm, Inner Diameter 32.5MM, Metric	-	-	Enquire
5	TYS101280	SHIM - DIFFERENTIAL DRIVING GR BRG	TYS101280 SHIM - DIFFERENTIAL DRIVING GR BRG 1.555mm, Inner Diameter 32.5MM, Metric	-	-	Enquire
5	TYS101300	SHIM - DIFFERENTIAL DRIVING GR BRG	TYS101300 SHIM - DIFFERENTIAL DRIVING GR BRG 1.505mm, Inner Diameter 32.5MM, Metric	-	-	Enquire
6	FTC5150	BOLT	FTC5150 BOLT 3/8UNF	-	10	Enquire
7	RTC3254	SEALER	RTC3254 SEALER	-	-	Enquire
8	TBF000170	DIFFERENTIAL AND CARRIER	TBF000170 DIFFERENTIAL AND CARRIER	-	1	Enquire
9	FTC3492	GEAR - DIFFERENTIAL SIDE	FTC3492 GEAR - DIFFERENTIAL SIDE	-	2	Enquire
10	TCB000100	GEAR - DIFFERENTIAL SIDE	TCB000100 GEAR - DIFFERENTIAL SIDE	-	4	Enquire
11	TCF000410	WASHER - THRUST	TCF000410 WASHER - THRUST	-	4	Enquire
12	TCF000400	WASHER - THRUST	TCF000400 WASHER - THRUST	-	2	Enquire
