Crownwheel And Pinion (Axle Differential - Front 4 Pin) ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016)

View All

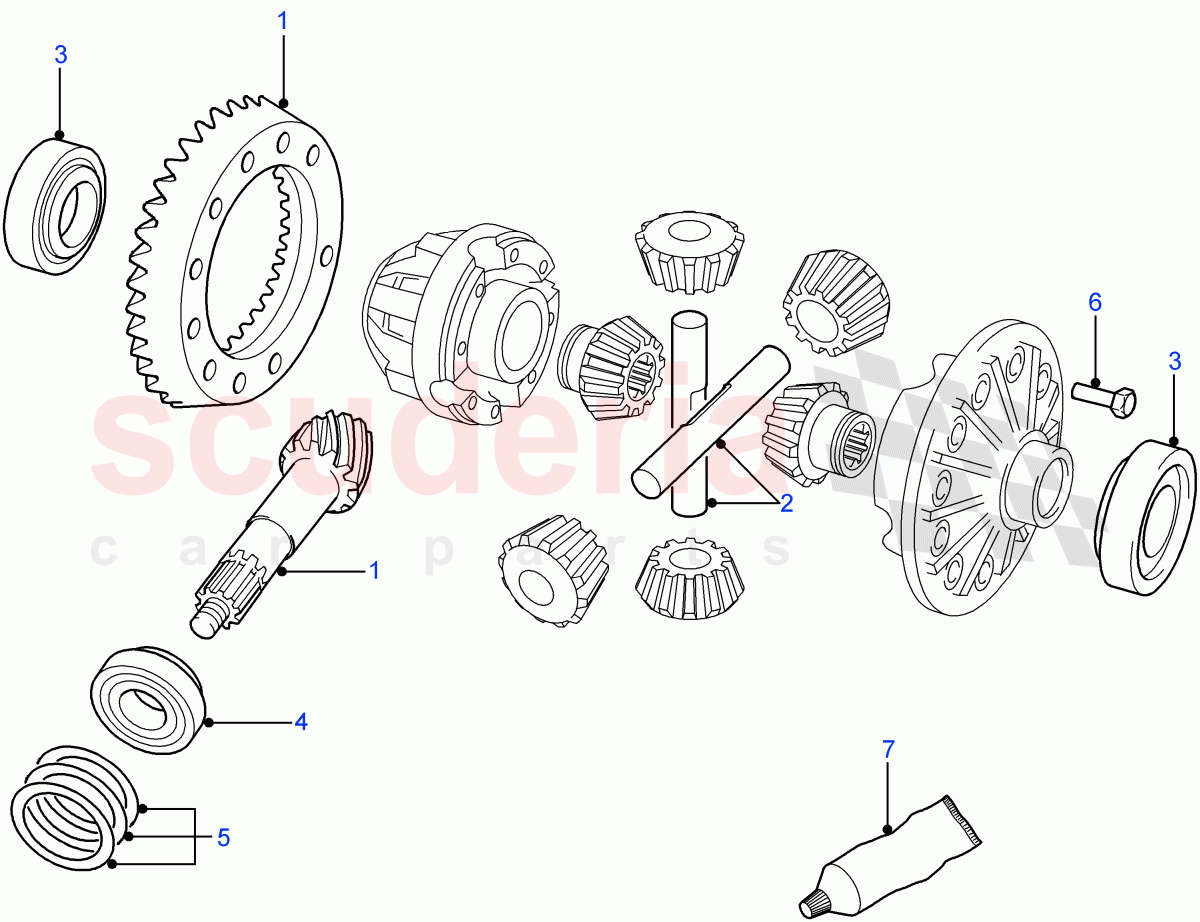

Land Rover Defender (2007-2016) - Crownwheel And Pinion (Axle Differential - Front 4 Pin) ((V) FROM7A000001)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	TBH100050	GEAR AND PINION - DRIVING	TBH100050 GEAR AND PINION - DRIVING To: BA400434	-	1	Enquire
1	LR027529	GEAR AND PINION - DRIVING	LR027529 GEAR AND PINION - DRIVING From: BA400435	-	1	Enquire
2	TCD100070	SHAFT - DIFFERENTIAL PINION	TCD100070 SHAFT - DIFFERENTIAL PINION	-	2	Enquire
3	RTC3095	BEARING - DIFFERENTIAL	RTC3095 BEARING - DIFFERENTIAL	-	2	Enquire
4	539706	BEARING - ROLLER	539706 BEARING - ROLLER	-	1	Enquire
5	TYS100870	SHIM	TYS100870 SHIM 2.255mm, Inner Diameter 64MM, Metric	-	-	Enquire
5	TYS100900	SHIM	TYS100900 SHIM 2.210mm, Inner Diameter 64MM, Metric	-	-	Enquire
5	TYS100940	SHIM	TYS100940 SHIM 2.150mm, Inner Diameter 64MM, Metric	-	-	Enquire
5	TYS100970	SHIM	TYS100970 SHIM 2.105mm, Inner Diameter 64MM, Metric	-	-	Enquire
5	TYS101000	SHIM	TYS101000 SHIM 2.060mm, Inner Diameter 64MM, Metric	-	-	Enquire
5	TYS101040	SHIM - DIFFERENTIAL DRIVING GR BRG	TYS101040 SHIM - DIFFERENTIAL DRIVING GR BRG 2.155MM, Inner Diameter 32.5MM, Metric	-	-	Enquire
5	TYS101060	SHIM - DIFFERENTIAL DRIVING GR BRG	TYS101060 SHIM - DIFFERENTIAL DRIVING GR BRG 2.105mm, Inner Diameter 32.5MM, Metric	-	-	Enquire
5	TYS101080	SHIM - DIFFERENTIAL DRIVING GR BRG	TYS101080 SHIM - DIFFERENTIAL DRIVING GR BRG 2.055mm, Inner Diameter 32.5MM, Metric	-	-	Enquire
5	TYS101100	SHIM - DIFFERENTIAL DRIVING GR BRG	TYS101100 SHIM - DIFFERENTIAL DRIVING GR BRG 2.005mm, Inner Diameter 32.5MM, Metric	-	-	Enquire
5	TYS101120	SHIM - DIFFERENTIAL DRIVING GR BRG	TYS101120 SHIM - DIFFERENTIAL DRIVING GR BRG 1.955mm, Inner Diameter 32.5MM, Metric	-	-	Enquire
5	TYS101140	SHIM - DIFFERENTIAL DRIVING GR BRG	TYS101140 SHIM - DIFFERENTIAL DRIVING GR BRG 1.905mm, Inner Diameter 32.5MM, Metric	-	-	Enquire
5	TYS101160	SHIM - DIFFERENTIAL DRIVING GR BRG	TYS101160 SHIM - DIFFERENTIAL DRIVING GR BRG 1.855mm, Inner Diameter 32.5MM, Metric	-	-	Enquire
5	TYS101180	SHIM - DIFFERENTIAL DRIVING GR BRG	TYS101180 SHIM - DIFFERENTIAL DRIVING GR BRG 1.805mm, Inner Diameter 32.5MM, Metric	-	-	Enquire
5	TYS101200	SHIM - DIFFERENTIAL DRIVING GR BRG	TYS101200 SHIM - DIFFERENTIAL DRIVING GR BRG 1.755mm, Inner Diameter 32.5MM, Metric	-	-	Enquire
5	TYS101220	SHIM - DIFFERENTIAL DRIVING GR BRG	TYS101220 SHIM - DIFFERENTIAL DRIVING GR BRG 1.705mm, Inner Diameter 32.5MM, Metric	-	-	Enquire
5	TYS101240	SHIM - DIFFERENTIAL DRIVING GR BRG	TYS101240 SHIM - DIFFERENTIAL DRIVING GR BRG 1.655mm, Inner Diameter 32.5MM, Metric	-	-	Enquire
5	TYS101260	SHIM - DIFFERENTIAL DRIVING GR BRG	TYS101260 SHIM - DIFFERENTIAL DRIVING GR BRG 1.605mm, Inner Diameter 32.5MM, Metric	-	-	Enquire
5	TYS101280	SHIM - DIFFERENTIAL DRIVING GR BRG	TYS101280 SHIM - DIFFERENTIAL DRIVING GR BRG 1.555mm, Inner Diameter 32.5MM, Metric	-	-	Enquire
5	TYS101300	SHIM - DIFFERENTIAL DRIVING GR BRG	TYS101300 SHIM - DIFFERENTIAL DRIVING GR BRG 1.505mm, Inner Diameter 32.5MM, Metric	-	-	Enquire
6	FTC5150	BOLT	FTC5150 BOLT 3/8UNF	-	10	Enquire
7	RTC3254	SEALER	RTC3254 SEALER	-	-	Enquire
