Front Axle Hub ((V) From7A000001)

Land Rover Defender (2007-2016)

Find Your Part

Land Rover Defender (2007-2016) - Front Axle Hub ((V) FROM7A000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FTC3154 AXLE - FRONT $527.94 To Order
Photo Part No Description Price (each) Stock
FTC4785 SEAL $10.60 To Order
Photo Part No Description Price (each) Stock
STC4382 BEARING - WHEEL HUB $103.47 To Order
Photo Part No Description Price (each) Stock
FTC0942 HUB $299.96 To Order
RUB500240 HUB $347.28 To Order
Photo Part No Description Price (each) Stock
RUF500010 BOLT - WHEEL $4.40 To Order
Photo Part No Description Price (each) Stock
FTC5241 WASHER $4.31 To Order
Photo Part No Description Price (each) Stock
RFD100000 LOCKNUT $10.10 IN STOCK
Photo Part No Description Price (each) Stock
TOF100000 SPACER $22.99 To Order
TOF100010 SPACER $24.45 To Order
TOF100020 SPACER $19.57 To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
571752 GASKET - REAR AXLE SHAFT $2.04 To Order
Photo Part No Description Price (each) Stock
RUC105200 FLANGE - DRIVE $268.35 To Order
Photo Part No Description Price (each) Stock
BX110095M BOLT $2.46 To Order
Photo Part No Description Price (each) Stock
FRC6782 SHIM $7.55 To Order
FRC6783 SHIM $10.99 To Order
FRC6784 SHIM $12.75 To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
549473 CIRCLIP $3.13 To Order
Photo Part No Description Price (each) Stock
FTC5414 CAP $7.40 To Order
Photo Part No Description Price (each) Stock
FRC2310 PLATE - LOCKING $21.29 To Order
FRC2310 PLATE - LOCKING $21.29 To Order
FTC1378 PLATE - LOCKING $82.32 To Order
...and 1 more part variants. See table on right for more details.
View All

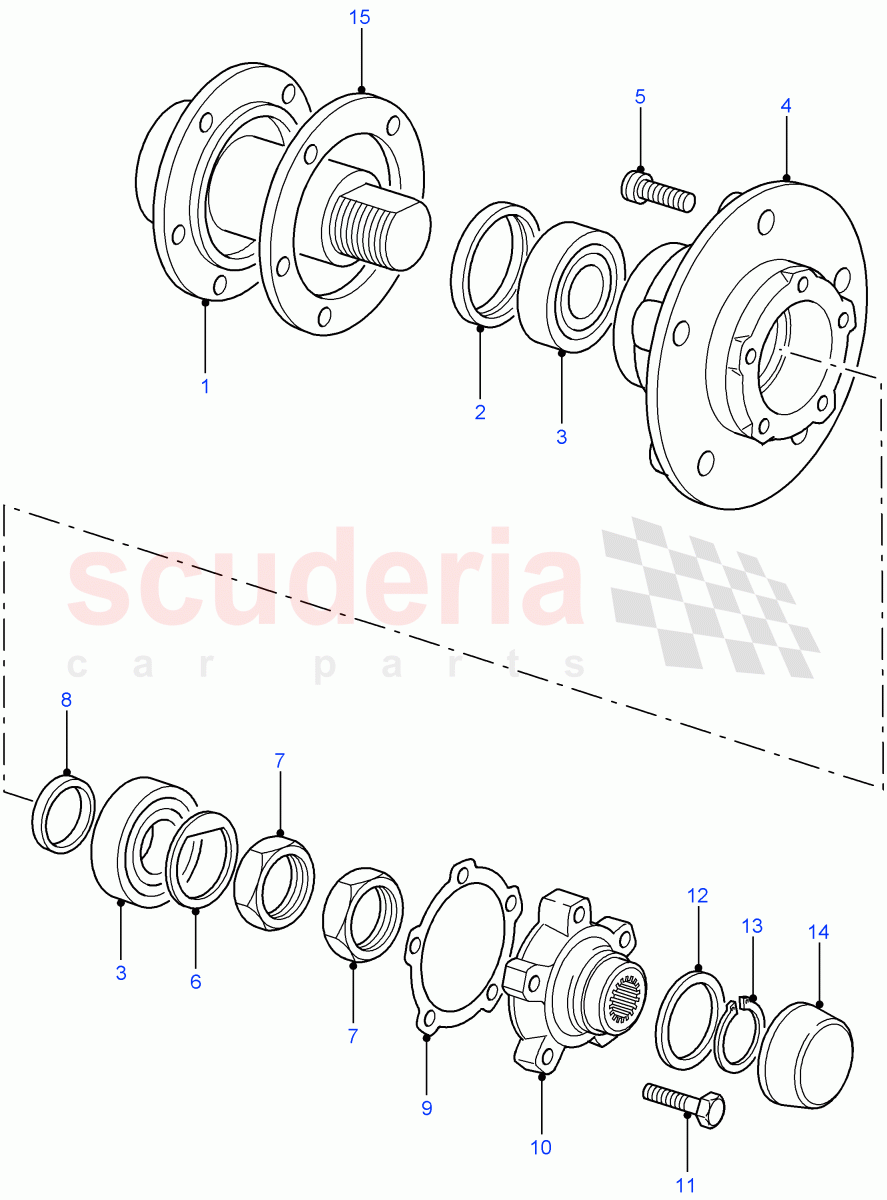

Front Axle Hub ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 FTC3154
AXLE - FRONT 		$527.94 2
2 FTC4785
SEAL
Inner 		$10.60 2
3 STC4382
BEARING - WHEEL HUB 		$103.47 4
4 FTC0942
HUB
To: 7A777665 		$299.96 2
4 RUB500240
HUB
From: 7A777666 		$347.28 2
5 RUF500010
BOLT - WHEEL 		$4.40 10
6 FTC5241
WASHER 		$4.31 2
7 RFD100000
LOCKNUT
Axle Code 10M, Axle Code 11M, Axle Code 12M, Axle Code 13M, Axle Code 14M, Axle Code 15M, Axle Code 16M, Axle Code 17M
IN STOCK 		$10.10 2
8 TOF100000
SPACER
15.5mm, Purple 		$22.99 -
8 TOF100010
SPACER
15.4mm, Yellow 		$24.45 -
8 TOF100020
SPACER
15.3MM, Red 		$19.57 -
8 TOF100030
SPACER
15.2mm, Blue. 		$17.79 -
8 TOF100040
SPACER
15.1mm, Green 		$31.39 -
8 TOF100050
SPACER
15.0mm, Black 		$21.02 -
8 TOF100060
SPACER
14.9mm, White. 		$25.01 -
9 571752
GASKET - REAR AXLE SHAFT 		$2.04 2
10 RUC105200
FLANGE - DRIVE 		$268.35 1
11 BX110095M
BOLT
M10 X 45 		$2.46 10
12 FRC6782
SHIM
0.45MM 		$7.55 2
12 FRC6783
SHIM
0.60MM 		$10.99 2
12 FRC6784
SHIM
0.75MM 		$12.75 2
12 FRC6786
SHIM
1.05MM 		$16.55 2
12 FRC6787
SHIM
1.20MM 		$16.55 2
12 FRC6788
SHIM
1.35MM 		$16.55 2
12 FRC6789
SHIM
1.50MM 		$16.55 2
13 549473
CIRCLIP
axle shaft to hub driving member 		$3.13 2
14 FTC5414
CAP
with Land Rover logo 		$7.40 2
15 FRC2310
PLATE - LOCKING
Less Anti-Lock Braking System / To: 9A999999 		$21.29 2
15 FRC2310
PLATE - LOCKING
Less Anti-Lock Braking System / To: 9A999999 		$21.29 2
15 FTC1378
PLATE - LOCKING
With Engine Traction Control Brake / From: 000001 		$82.32 2
15 FTC1378
PLATE - LOCKING
With Engine Traction Control Brake / From: 000001 		$82.32 2
