Shock Absorbers & Springs ((V) From7A000001)

Land Rover Defender (2007-2016)

Find Your Part

Land Rover Defender (2007-2016) - Shock Absorbers & Springs ((V) FROM7A000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RSC500290 KIT - SHOCK ABSORBER $216.59 To Order
RSC500290 KIT - SHOCK ABSORBER $216.59 To Order
RSC100040 DAMPER $183.26 To Order
Photo Part No Description Price (each) Stock
8510240 BUSH $1.93 To Order
552818 DAMPER $6.85 IN STOCK
Photo Part No Description Price (each) Stock
RYF500240 WASHER $4.96 To Order
Photo Part No Description Price (each) Stock
RYF500200 WASHER $5.29 To Order
Photo Part No Description Price (each) Stock
RYH501080 NUT - HEX. $1.66 To Order
Photo Part No Description Price (each) Stock
RYH501080 NUT - HEX. $1.66 To Order
Photo Part No Description Price (each) Stock
NRC6372 BRACKET - FRONT SUSPENSION STRUT $106.89 To Order
Photo Part No Description Price (each) Stock
RNJ500010 RING - RETAINING $33.36 To Order
Photo Part No Description Price (each) Stock
FX108046 NUT - LOCKING $0.41 IN STOCK
Photo Part No Description Price (each) Stock
REB500200 SPRING - SUSPENSION - FRONT $170.78 To Order
REB500200 SPRING - SUSPENSION - FRONT $170.78 To Order
REB500210 SPRING - SUSPENSION - FRONT $158.07 To Order
...and 9 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
NRC9700 SEAT - SPRING $71.95 To Order
Photo Part No Description Price (each) Stock
FS110256 BOLT - FLANGED HEX. $1.81 To Order
Photo Part No Description Price (each) Stock
WM110001L WASHER - SPRING $0.61 To Order
View All

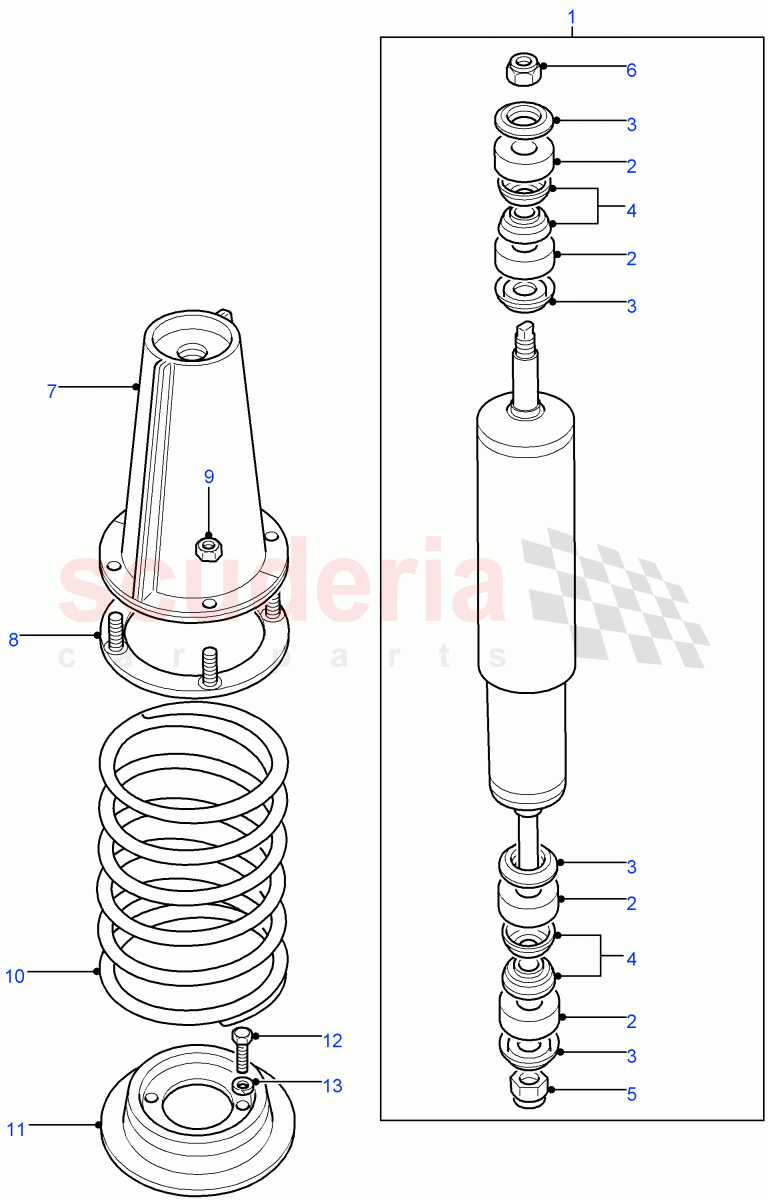

Shock Absorbers & Springs ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 RSC500290
KIT - SHOCK ABSORBER
90" Wheelbase / From: 7A738816 		$216.59 2
1 RSC500290
KIT - SHOCK ABSORBER
110" Wheelbase 		$216.59 2
1 RSC100040
DAMPER
90" Wheelbase / To: 7A738815 		$183.26 2
2 8510240
BUSH
To: 8A999999 		$1.93 8
2 552818
DAMPER
From: 9A000001
IN STOCK 		$6.85 8
3 RYF500240
WASHER 		$4.96 8
4 RYF500200
WASHER 		$5.29 8
5 RYH501080
NUT - HEX.
M12, nyloc 		$1.66 2
6 RYH501080
NUT - HEX.
M12, nyloc 		$1.66 2
7 NRC6372
BRACKET - FRONT SUSPENSION STRUT 		$106.89 2
8 RNJ500010
RING - RETAINING 		$33.36 2
9 FX108046
NUT - LOCKING
Flanged, nyloc
IN STOCK 		$0.41 8
10 REB500200
SPRING - SUSPENSION - FRONT
90" Wheelbase / Driver, Front, Red / Green / White / To: AA798475 		$170.78 1
10 REB500200
SPRING - SUSPENSION - FRONT
90" Wheelbase, LHD / Driver, Front, Red / Green / White / From: AA798476 		$170.78 1
10 REB500210
SPRING - SUSPENSION - FRONT
90" Wheelbase / Blue/Yellow., Front, Passenger / To: 8A762795 		$158.07 1
10 REB500220
SPRING - SUSPENSION - FRONT
90" Wheelbase / Front, Passenger, Red / Green / Orange / From: 8A762795 / To: AA798475 		$169.05 1
10 REB500220
SPRING - SUSPENSION - FRONT
90" Wheelbase, LHD / Front, Passenger, Red / Green / Orange / From: AA798476 		$169.05 1
10 REB500220
SPRING - SUSPENSION - FRONT
90" Wheelbase, RHD / Front, Red / Green / Orange / From: AA798476 		$169.05 2
10 NRC8044
SPRING - COIL
110" Wheelbase, LHD / Driver, Front, White. 		$146.01 1
10 NRC8045
SPRING - COIL
110" Wheelbase, LHD / Front, Passenger, Yellow 		$144.89 1
10 NRC8045
SPRING - COIL
110" Wheelbase, RHD / Front, Yellow 		$144.89 2
10 NRC9448
COIL SPRING
110" Wheelbase / Blue., Driver, Front, HEAVY DUTY SUSPENSION, Red 		$140.35 1
10 NRC9449
SPRING - COIL
110" Wheelbase / Front, HEAVY DUTY SUSPENSION, Passenger, White., Yellow 		$139.15 1
10 NRC9448
COIL SPRING
90" Wheelbase, RHD / Blue., Driver, Front, Red / From: BA000001 		$140.35 1
11 NRC9700
SEAT - SPRING 		$71.95 2
12 FS110256
BOLT - FLANGED HEX.
Hexagonal Head, M10 x 25 		$1.81 4
13 WM110001L
WASHER - SPRING
5/16" 		$0.61 4
