Name: Shock Absorbers & Springs (130" Wheelbase, 110" Wheelbase) ((V) FROM7A000001)
Rating: 4.5 (1 reviews)

Shock Absorbers & Springs (130" Wheelbase, 110" Wheelbase) ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016)

View All

Land Rover Defender (2007-2016) - Shock Absorbers & Springs (130" Wheelbase, 110" Wheelbase) ((V) FROM7A000001)

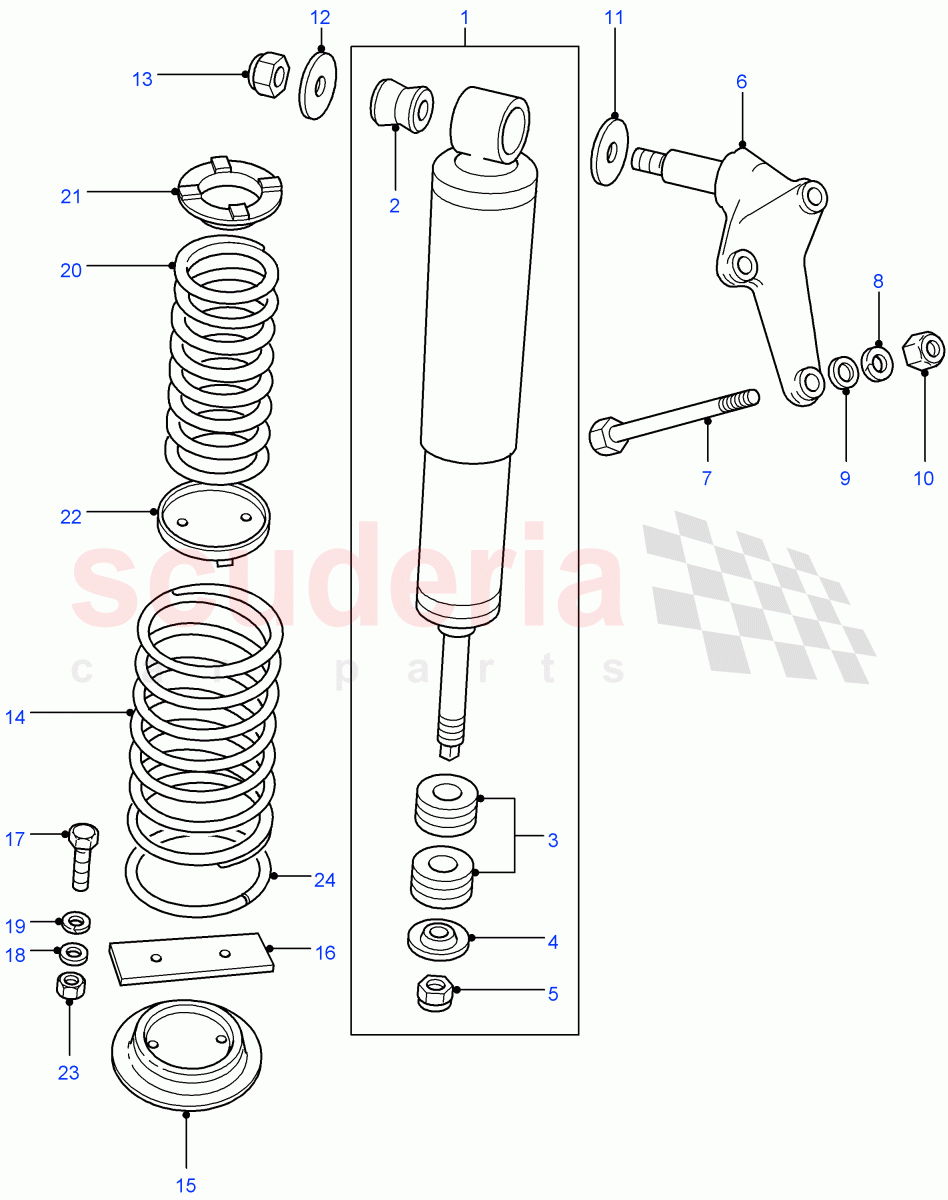

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RPM500320	DAMPER	$195.04	To Order
	LR044348	DAMPER	$162.38	To Order

Photo	Part No	Description	Price (each)	Stock
	NRC5593	DAMPER	$12.53	To Order

Photo	Part No	Description	Price (each)	Stock
	RNF100090L	INSULATOR	$4.74	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYF500230	WASHER	$4.46	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH501080	NUT - HEX.	$1.66	To Order

Photo	Part No	Description	Price (each)	Stock
	NRC7981	BRACKET	$115.46	To Order
	LR041260	BRACKET - DAMPER	$493.35	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP501140	BOLT - HEX.HEAD	$3.81	To Order

Photo	Part No	Description	Price (each)	Stock
	WM110001L	WASHER - SPRING	$0.61	To Order

Photo	Part No	Description	Price (each)	Stock
	WC110066	WASHER	$1.07	To Order

Photo	Part No	Description	Price (each)	Stock
	FN110046	NUT - HEX.	$0.70	To Order

Photo	Part No	Description	Price (each)	Stock
	RYF500210	RETAINER	$10.98	To Order

Photo	Part No	Description	Price (each)	Stock
	RYF500220	RETAINER	$15.25	To Order

Photo	Part No	Description	Price (each)	Stock
	NY112041L	NUT - HEX.	$3.58	To Order

Photo	Part No	Description	Price (each)	Stock
	RKB500300	SPRING - REAR	$159.50	To Order
	RKB101111	SPRING - COIL	$159.26	To Order

Photo	Part No	Description	Price (each)	Stock
	NRC4317	SEAT - SPRING	$35.21	To Order

Photo	Part No	Description	Price (each)	Stock
	NRC4318	RETAINER	$6.15	To Order

Photo	Part No	Description	Price (each)	Stock
	FS110256	BOLT - FLANGED HEX.	$1.81	To Order
	SH110351L	BOLT	$1.67	To Order

Photo	Part No	Description	Price (each)	Stock
	WA110066	RESTRICTOR	$0.69	To Order
	WA110001L	WASHER	$0.61	To Order

Photo	Part No	Description	Price (each)	Stock
	WM110001L	WASHER - SPRING	$0.61	To Order

Photo	Part No	Description	Price (each)	Stock
	RRC3266	SPRING - COIL	$138.85	To Order

Photo	Part No	Description	Price (each)	Stock
	RRC3352	RETAINER	$83.73	To Order

Photo	Part No	Description	Price (each)	Stock
	RRC3355	RETAINER	$72.02	To Order
	LR018027	RETAINER	$163.55	To Order

Photo	Part No	Description	Price (each)	Stock
	NY110041L	NUT - HEX.	$1.53	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	RPM500320	DAMPER	RPM500320 DAMPER To: CA444443	$195.04	2
1	LR044348	DAMPER	LR044348 DAMPER From: CA444444	$162.38	2
2	NRC5593	DAMPER	NRC5593 DAMPER Upper	$12.53	2
3	RNF100090L	INSULATOR IN STOCK	RNF100090L INSULATOR IN STOCK	$4.74	2
4	RYF500230	WASHER	RYF500230 WASHER	$4.46	2
5	RYH501080	NUT - HEX.	RYH501080 NUT - HEX. Hexagonal, M12	$1.66	2
6	NRC7981	BRACKET	NRC7981 BRACKET Upper / To: CA422000	$115.46	2
6	LR041260	BRACKET - DAMPER	LR041260 BRACKET - DAMPER Upper / From: CA422001	$493.35	2
7	RYP501140	BOLT - HEX.HEAD	RYP501140 BOLT - HEX.HEAD M10 x 110	$3.81	6
8	WM110001L	WASHER - SPRING	WM110001L WASHER - SPRING 5/16"	$0.61	6
9	WC110066	WASHER	WC110066 WASHER M10, Plain	$1.07	6
10	FN110046	NUT - HEX.	FN110046 NUT - HEX. Hexagonal Head, M10, nyloc	$0.70	6
11	RYF500210	RETAINER	RYF500210 RETAINER Inner	$10.98	2
12	RYF500220	RETAINER	RYF500220 RETAINER Outer	$15.25	2
13	NY112041L	NUT - HEX.	NY112041L NUT - HEX. M12, nyloc	$3.58	2
14	RKB500300	SPRING - REAR	RKB500300 SPRING - REAR White / Green / Green	$159.50	2
14	RKB101111	SPRING - COIL	RKB101111 SPRING - COIL Station Wagon - 5 Door, With 5 Seat Configuration / Brown, Purple	$159.26	2
15	NRC4317	SEAT - SPRING	NRC4317 SEAT - SPRING	$35.21	2
16	NRC4318	RETAINER	NRC4318 RETAINER	$6.15	2
17	FS110256	BOLT - FLANGED HEX.	FS110256 BOLT - FLANGED HEX. Hexagonal Head, M10 x 25	$1.81	4
17	SH110351L	BOLT	SH110351L BOLT HEAVY DUTY SUSPENSION, M10 x 35	$1.67	4
18	WA110066	RESTRICTOR	WA110066 RESTRICTOR M10	$0.69	8
18	WA110001L	WASHER	WA110001L WASHER HEAVY DUTY SUSPENSION, M10, Plain	$0.61	4
19	WM110001L	WASHER - SPRING	WM110001L WASHER - SPRING 5/16"	$0.61	4
20	RRC3266	SPRING - COIL	RRC3266 SPRING - COIL 110" Wheelbase, With Heavy Duty Suspension / HEAVY DUTY SUSPENSION	$138.85	2
21	RRC3352	RETAINER	RRC3352 RETAINER 110" Wheelbase, With Heavy Duty Suspension / HEAVY DUTY SUSPENSION, Upper	$83.73	2
22	RRC3355	RETAINER	RRC3355 RETAINER 110" Wheelbase / HEAVY DUTY SUSPENSION, Lower / To: 9A777776	$72.02	2
22	LR018027	RETAINER	LR018027 RETAINER 110" Wheelbase, With Heavy Duty Suspension / HEAVY DUTY SUSPENSION, Lower / From: 9A777777	$163.55	2
23	NY110041L	NUT - HEX.	NY110041L NUT - HEX. M10	$1.53	4
24	ANR3060	ISOLATOR	ANR3060 ISOLATOR	$39.79	1
