Windscreen Washer of Land Rover Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10]

View All

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] - Windscreen Washer

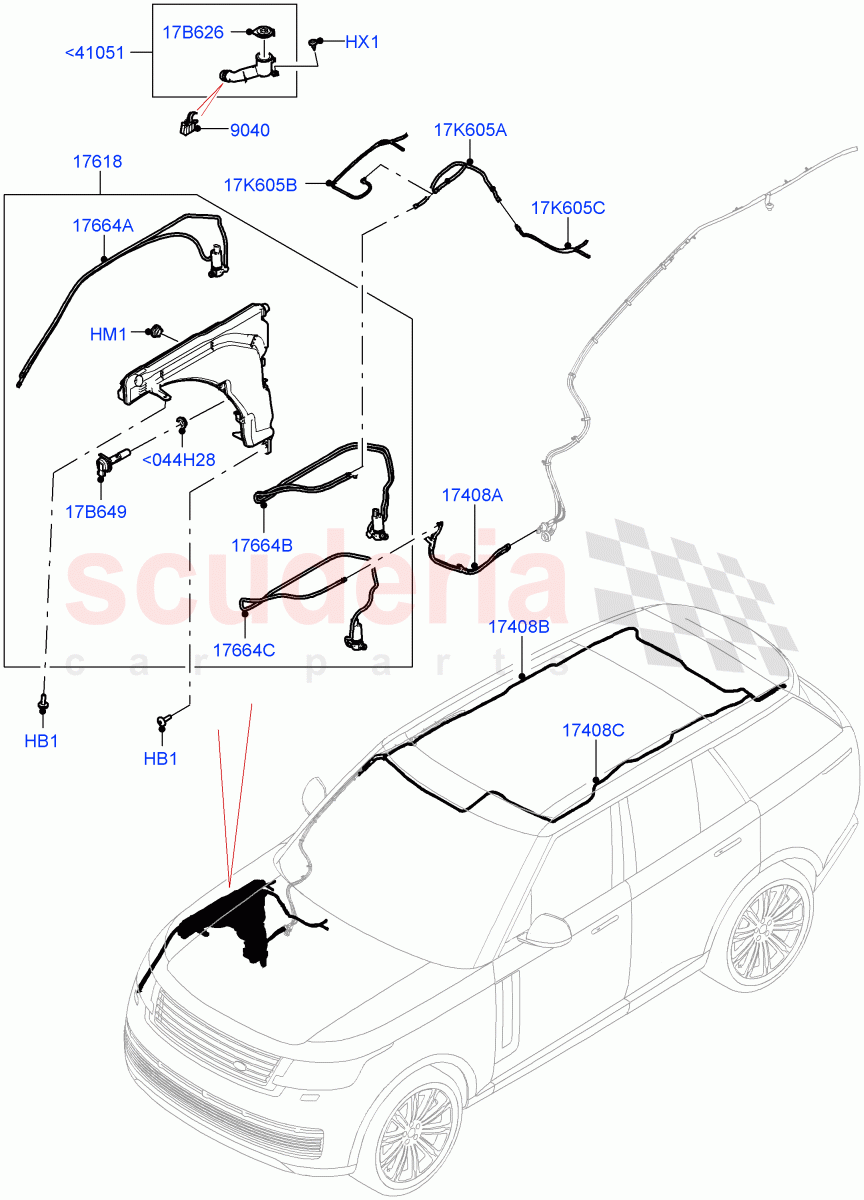

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR166355	Bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027687	GROMMET - WINDSHIELD WASHER PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYQ500070	PIN - RETAINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153579	FILLER - WATER RESERVOIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153574	RESERVOIR - WINDSHIELD WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153576	FILLER - WATER RESERVOIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153548	HOSE - WINDSHIELD WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153549	HOSE - WINDSHIELD WASHER	Enquire	To Order
	LR153554	HOSE - WINDSHIELD WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153583	HOSE - CAMERA WASHER	Enquire	To Order
	LR153586	HOSE - CAMERA WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158230	MOTOR AND PUMP - FRONT/REAR WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158238	MOTOR AND PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158293	WASHER SENSOR - MOTOR AND PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158235	CAP - WASHER RESERVOIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR142260	SENSOR - WASHER FLUID LEVEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095818	GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153503	HOSE - WINDSHIELD WASHER	Enquire	To Order
	LR153504	HOSE - WINDSHIELD WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR166344	WASH HOSE KIT	Enquire	To Order
	LR166346	WASH HOSE KIT	Enquire	To Order
	LR163148	WASH HOSE KIT	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR166345	WASH HOSE KIT	Enquire	To Order
	LR166347	WASH HOSE KIT	Enquire	To Order
	LR163147	WASH HOSE KIT	Enquire	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<044H28	LR095818	GROMMET	LR095818 GROMMET	-	1	Enquire
<41051	LR153576	FILLER - WATER RESERVOIR	LR153576 FILLER - WATER RESERVOIR	-	1	Enquire
HB1	LR166355	Bolt	LR166355 Bolt Bolt And Washer, M6 X 20MM	-	2	Enquire
HM1	LR027687	GROMMET - WINDSHIELD WASHER PUMP	LR027687 GROMMET - WINDSHIELD WASHER PUMP Grommet, Washer Pump	-	3	Enquire
HX1	RYQ500070	PIN - RETAINING	RYQ500070 PIN - RETAINING 6.3 X 22MM, Push Pin	-	1	Enquire
17B626	LR158235	CAP - WASHER RESERVOIR	LR158235 CAP - WASHER RESERVOIR	-	1	Enquire
17B649	LR142260	SENSOR - WASHER FLUID LEVEL	LR142260 SENSOR - WASHER FLUID LEVEL Low Level	-	1	Enquire
17K605A	LR153503	HOSE - WINDSHIELD WASHER	LR153503 HOSE - WINDSHIELD WASHER LHD	-	1	Enquire
17K605A	LR153504	HOSE - WINDSHIELD WASHER	LR153504 HOSE - WINDSHIELD WASHER RHD	-	1	Enquire
17K605B	LR166344	WASH HOSE KIT	LR166344 WASH HOSE KIT Less Heated Washer Jet, RHD / RH	-	1	Enquire
17K605B	LR166346	WASH HOSE KIT	LR166346 WASH HOSE KIT RHD, With Heated Washer Jet / RH	-	1	Enquire
17K605B	LR163148	WASH HOSE KIT	LR163148 WASH HOSE KIT LHD, Less Heated Washer Jet / RH	-	1	Enquire
17K605B	LR163150	WASH HOSE KIT	LR163150 WASH HOSE KIT LHD, With Heated Washer Jet / RH	-	1	Enquire
17K605C	LR166345	WASH HOSE KIT	LR166345 WASH HOSE KIT Less Heated Washer Jet, RHD / LH	-	1	Enquire
17K605C	LR166347	WASH HOSE KIT	LR166347 WASH HOSE KIT RHD, With Heated Washer Jet / LH	-	1	Enquire
17K605C	LR163147	WASH HOSE KIT	LR163147 WASH HOSE KIT LHD, Less Heated Washer Jet / LH	-	1	Enquire
17K605C	LR163149	WASH HOSE KIT	LR163149 WASH HOSE KIT LHD, With Heated Washer Jet / LH	-	1	Enquire
9040	LR153579	FILLER - WATER RESERVOIR	LR153579 FILLER - WATER RESERVOIR	-	1	Enquire
17408A	LR153548	HOSE - WINDSHIELD WASHER	LR153548 HOSE - WINDSHIELD WASHER For Rear Window Washer, Lower	-	1	Enquire
17408B	LR153549	HOSE - WINDSHIELD WASHER	LR153549 HOSE - WINDSHIELD WASHER Standard Wheelbase / For Rear Window Washer, Headlining, Upper	-	1	Enquire
17408B	LR153554	HOSE - WINDSHIELD WASHER	LR153554 HOSE - WINDSHIELD WASHER Long Wheelbase / For Rear Window Washer, Headlining, Upper	-	1	Enquire
17408C	LR153583	HOSE - CAMERA WASHER	LR153583 HOSE - CAMERA WASHER Standard Wheelbase / For Rear Camera Washer, Headlining, Upper	-	1	Enquire
17408C	LR153586	HOSE - CAMERA WASHER	LR153586 HOSE - CAMERA WASHER Long Wheelbase / For Rear Camera Washer, Headlining, Upper	-	1	Enquire
17618	LR153574	RESERVOIR - WINDSHIELD WASHER	LR153574 RESERVOIR - WINDSHIELD WASHER	-	1	Enquire
17664A	LR158230	MOTOR AND PUMP - FRONT/REAR WASHER	LR158230 MOTOR AND PUMP - FRONT/REAR WASHER Headlamp	-	1	Enquire
17664B	LR158238	MOTOR AND PUMP	LR158238 MOTOR AND PUMP Front And Rear, Windshield	-	1	Enquire
17664C	LR158293	WASHER SENSOR - MOTOR AND PUMP	LR158293 WASHER SENSOR - MOTOR AND PUMP Rear Camera	-	1	Enquire
