Name: Rear Window Wiper And Washer
Rating: 4.8 (1 reviews)

View All

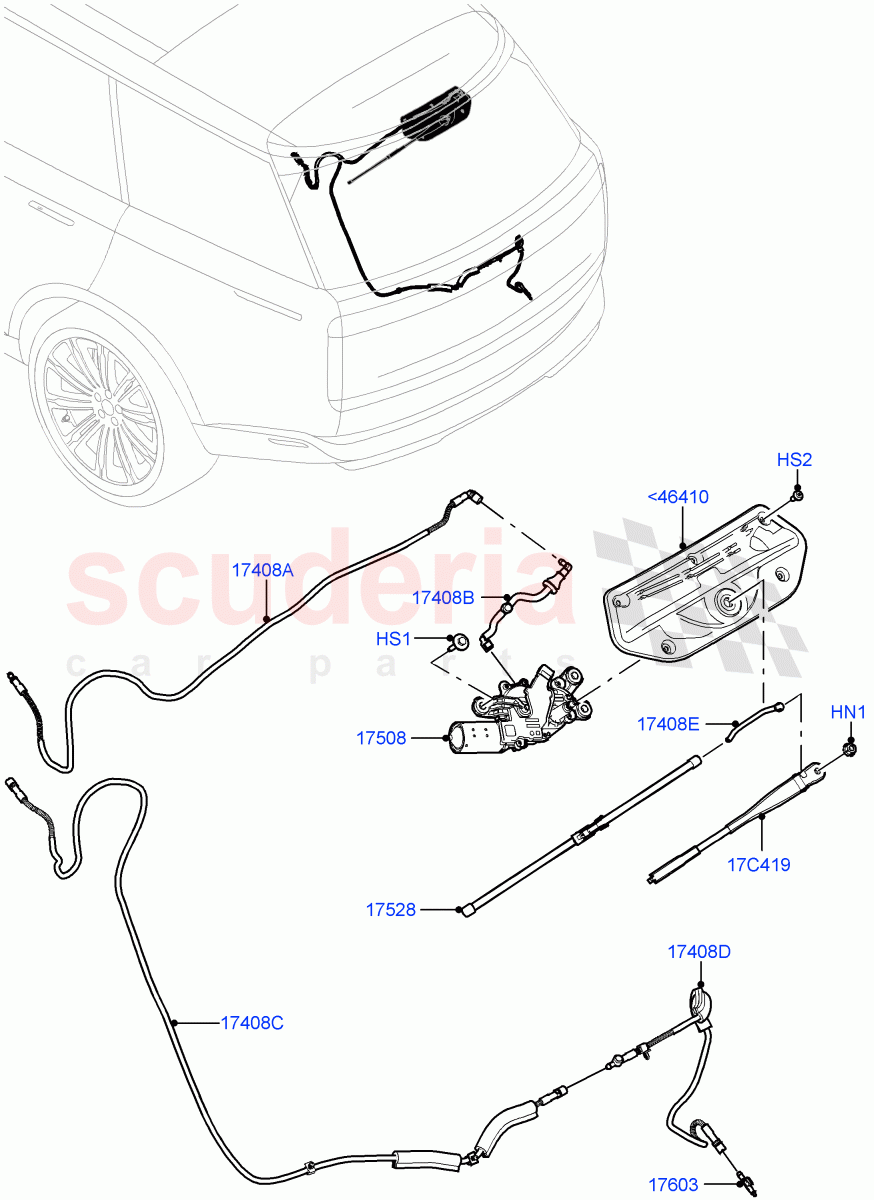

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR019197	NUT - FLANGED	$1.88	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYG500900	SCREW	$4.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027974	SCREW - SELF-TAPPING	$1.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153496	MOTOR - WIPER	$265.24	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159776	BLADE - WIPER	$29.44	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153581	JET - CAMERA WASHER	$28.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153552	HOSE - WINDSHIELD WASHER	$34.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153553	HOSE - WINDSHIELD WASHER	$26.50	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153584	HOSE - CAMERA WASHER	$67.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153585	HOSE - CAMERA WASHER	$60.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR170799	WASH HOSE KIT	$73.64	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159774	ARM - WIPER	$71.00	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<46410	LR151870	COVER - REAR	LR151870 COVER - REAR Wiper Motor / To: NA000675	$11.10	1
<46410	LR173209	Cover	LR173209 Cover Wiper Motor / From: NA000676	$10.64	1
HN1	LR019197	NUT - FLANGED IN STOCK	LR019197 NUT - FLANGED Domed Type, M8, Wiper Arm IN STOCK	$1.88	1
HS1	RYG500900	SCREW	RYG500900 SCREW Attaches Wiper Motor, Bolt And Washer, Hexagonal Head, M6X30	$4.03	3
HS2	LR027974	SCREW - SELF-TAPPING	LR027974 SCREW - SELF-TAPPING Cover, M6X16	$1.23	5
17C419	LR159774	ARM - WIPER	LR159774 ARM - WIPER	$71.00	1
17408A	LR153552	HOSE - WINDSHIELD WASHER	LR153552 HOSE - WINDSHIELD WASHER Tailgate Glass	$34.93	1
17408B	LR153553	HOSE - WINDSHIELD WASHER	LR153553 HOSE - WINDSHIELD WASHER Tailgate Glass	$26.50	1
17408C	LR153584	HOSE - CAMERA WASHER	LR153584 HOSE - CAMERA WASHER Washer hose to rear camera	$67.79	1
17408D	LR153585	HOSE - CAMERA WASHER	LR153585 HOSE - CAMERA WASHER Washer hose to rear camera	$60.63	1
17408E	LR170799	WASH HOSE KIT	LR170799 WASH HOSE KIT Tailgate Glass	$73.64	1
17508	LR153496	MOTOR - WIPER	LR153496 MOTOR - WIPER	$265.24	1
17528	LR159776	BLADE - WIPER	LR159776 BLADE - WIPER	$29.44	1
17603	LR153581	JET - CAMERA WASHER	LR153581 JET - CAMERA WASHER Rear Camera	$28.30	1
