Exterior Rear View Mirror of Land Rover Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10]

View All

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] - Exterior Rear View Mirror

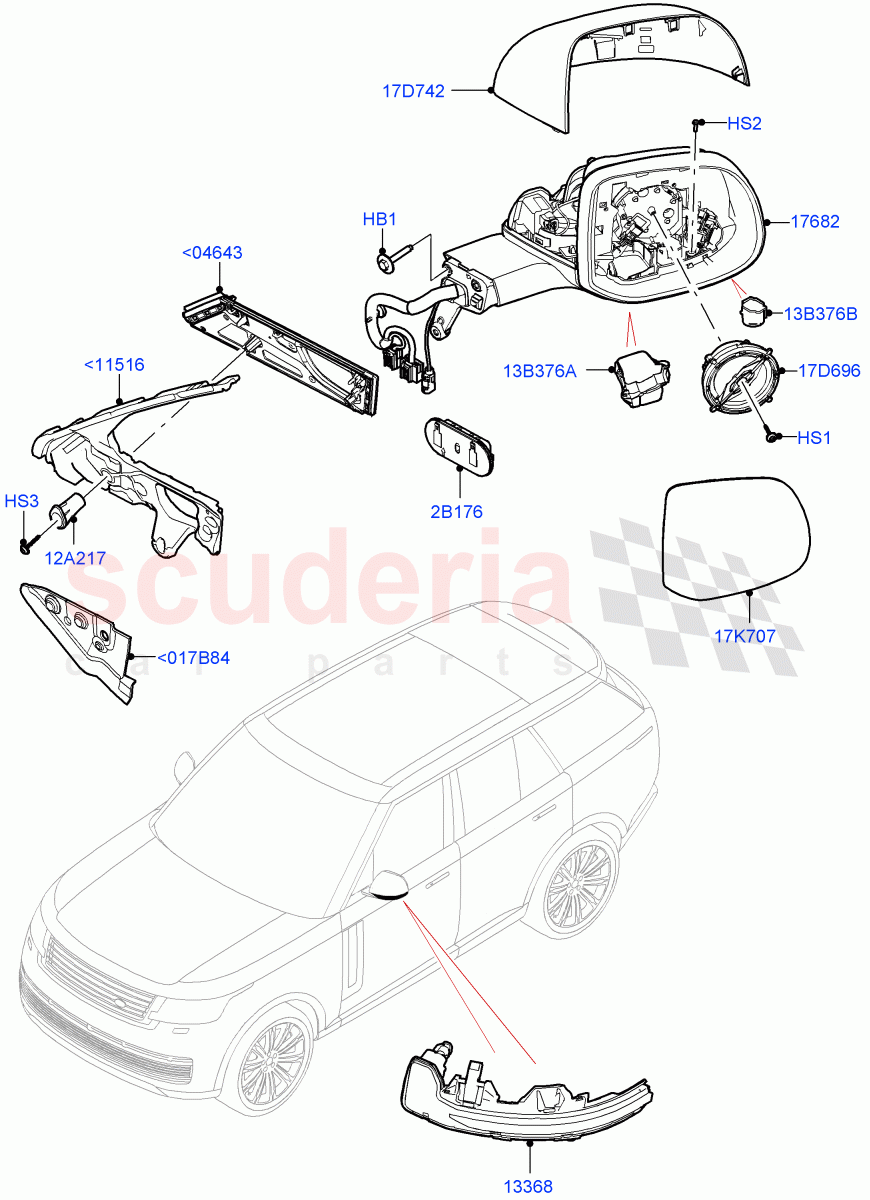

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG500910	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011865	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038616	SCREW - PAN HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034044	SCREW - PAN - TORX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152957	LAMP - SIDE FLASHER	Enquire	To Order
	LR152956	LAMP - SIDE FLASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152958	MIRROR - REAR VIEW - OUTER	Enquire	To Order
	LR152959	MIRROR - REAR VIEW - OUTER	Enquire	To Order
	LR152960	MIRROR - REAR VIEW - OUTER	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR152951	GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR186583	INNER MIRROR FINISHER	Enquire	To Order
	LR154640	FINISHER - MIRROR CHEATER	Enquire	To Order
	LR174266	FINISHER - MIRROR CHEATER	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR152949	INSULATOR - SOUND - DOOR	Enquire	To Order
	LR152950	INSULATOR - SOUND - DOOR	Enquire	To Order
	LR173845	Insulator - Sound	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR161764	ADAPTOR - SIDE MIRRORS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CRP500041	MOTOR - EXTERIOR REAR VIEW MIRROR	Enquire	To Order
	LR015051	MOTOR - EXTERIOR REAR VIEW MIRROR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152952	COVER - MIRROR HOUSING	Enquire	To Order
	LR152953	COVER - MIRROR HOUSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152971	GLASS - REAR VIEW OUTER MIRROR	Enquire	To Order
	LR152973	GLASS - REAR VIEW OUTER MIRROR	Enquire	To Order
	LR152974	GLASS - REAR VIEW OUTER MIRROR	Enquire	To Order

...and 9 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR173181	Pad - Foam	Enquire	To Order
	LR173182	Pad - Foam	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153894	LAMP - EXTERIOR MIRROR	Enquire	To Order
	LR166638	LAMP - EXTERIOR MIRROR	Enquire	To Order
	LR171656	Lamp - Exterior Mirror	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR152954	LAMP - EXTERIOR MIRROR	Enquire	To Order
	LR152955	LAMP - EXTERIOR MIRROR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<017B84	LR173181	Pad - Foam	LR173181 Pad - Foam RH	-	1	Enquire
<017B84	LR173182	Pad - Foam	LR173182 Pad - Foam LH	-	1	Enquire
<04643	LR186583	INNER MIRROR FINISHER	LR186583 INNER MIRROR FINISHER RH / To: NA000675	-	1	Enquire
<04643	LR154640	FINISHER - MIRROR CHEATER	LR154640 FINISHER - MIRROR CHEATER LH / To: NA000675	-	1	Enquire
<04643	LR174266	FINISHER - MIRROR CHEATER	LR174266 FINISHER - MIRROR CHEATER LH / From: NA000676	-	1	Enquire
<04643	LR186583	INNER MIRROR FINISHER	LR186583 INNER MIRROR FINISHER RH / From: NA000676	-	1	Enquire
<11516	LR152949	INSULATOR - SOUND - DOOR	LR152949 INSULATOR - SOUND - DOOR RH / To: NA000675	-	1	Enquire
<11516	LR152950	INSULATOR - SOUND - DOOR	LR152950 INSULATOR - SOUND - DOOR LH / To: NA000675	-	1	Enquire
<11516	LR173845	Insulator - Sound	LR173845 Insulator - Sound RH / From: NA000676	-	1	Enquire
<11516	LR173846	Insulator - Sound	LR173846 Insulator - Sound LH / From: NA000676	-	1	Enquire
HB1	RYG500910	BOLT	RYG500910 BOLT Bolt And Washer, Hexagonal Head, M6 x 35MM	-	6	Enquire
HS1	LR011865	SCREW	LR011865 SCREW M3 X 25MM	-	2	Enquire
HS2	LR038616	SCREW - PAN HEAD	LR038616 SCREW - PAN HEAD 3 x 10	-	2	Enquire
HS3	LR034044	SCREW - PAN - TORX	LR034044 SCREW - PAN - TORX M4 X 23	-	4	Enquire
2B176	LR152951	GROMMET	LR152951 GROMMET	-	2	Enquire
12A217	LR161764	ADAPTOR - SIDE MIRRORS	LR161764 ADAPTOR - SIDE MIRRORS RH And LH	-	2	Enquire
13B376A	LR153894	LAMP - EXTERIOR MIRROR	LR153894 LAMP - EXTERIOR MIRROR Less SV Model Spec, Surround Camera Sys+Water Wade Aid / RH	-	1	Enquire
13B376A	LR166638	LAMP - EXTERIOR MIRROR	LR166638 LAMP - EXTERIOR MIRROR Less SV Model Spec, Surround Camera Sys+Water Wade Aid / LH	-	1	Enquire
13B376A	LR171656	Lamp - Exterior Mirror	LR171656 Lamp - Exterior Mirror SV1 Model Spec, Surround Camera Sys+Water Wade Aid / LH / From: PA000001	-	1	Enquire
13B376A	LR171657	Lamp - Exterior Mirror	LR171657 Lamp - Exterior Mirror SV1 Model Spec, Surround Camera Sys+Water Wade Aid / RH / From: PA000001	-	1	Enquire
13B376B	LR152954	LAMP - EXTERIOR MIRROR	LR152954 LAMP - EXTERIOR MIRROR Rear View Camera-Fixed / RH	-	1	Enquire
13B376B	LR152955	LAMP - EXTERIOR MIRROR	LR152955 LAMP - EXTERIOR MIRROR Rear View Camera-Fixed / LH	-	1	Enquire
17D696	CRP500041	MOTOR - EXTERIOR REAR VIEW MIRROR	CRP500041 MOTOR - EXTERIOR REAR VIEW MIRROR RH, 8 Pin Connector, With Memory	-	1	Enquire
17D696	LR015051	MOTOR - EXTERIOR REAR VIEW MIRROR	LR015051 MOTOR - EXTERIOR REAR VIEW MIRROR LH, 8 Pin Connector, With Memory	-	1	Enquire
17D742	LR152952	COVER - MIRROR HOUSING	LR152952 COVER - MIRROR HOUSING RH, Primed	-	1	Enquire
17D742	LR152953	COVER - MIRROR HOUSING	LR152953 COVER - MIRROR HOUSING LH, Primed	-	1	Enquire
17K707	LR152971	GLASS - REAR VIEW OUTER MIRROR	LR152971 GLASS - REAR VIEW OUTER MIRROR 2 1400MM Convex Mirror, Less Blind Spot Information System / RH, Convex	-	1	Enquire
17K707	LR152973	GLASS - REAR VIEW OUTER MIRROR	LR152973 GLASS - REAR VIEW OUTER MIRROR 2 1400MM Convex Mirror, Less Blind Spot Information System / LH, Convex	-	1	Enquire
17K707	LR152974	GLASS - REAR VIEW OUTER MIRROR	LR152974 GLASS - REAR VIEW OUTER MIRROR 1 Flat / 1 1400MM Convex - NAS, Less Blind Spot Information System / RH, Convex Glass + Script	-	1	Enquire
17K707	LR152976	GLASS - REAR VIEW OUTER MIRROR	LR152976 GLASS - REAR VIEW OUTER MIRROR 1 Flat / 1 1400MM Convex - NAS, Less Blind Spot Information System / LH, Flat Glass	-	1	Enquire
17K707	LR152977	GLASS - REAR VIEW OUTER MIRROR	LR152977 GLASS - REAR VIEW OUTER MIRROR 2 1400MM Convex (SAS) Glass, Less Blind Spot Information System / RH, Arabic Script	-	1	Enquire
17K707	LR152978	GLASS - REAR VIEW OUTER MIRROR	LR152978 GLASS - REAR VIEW OUTER MIRROR 2 1400MM Convex (SAS) Glass, Less Blind Spot Information System / LH, Arabic Script	-	1	Enquire
17K707	LR152979	GLASS - REAR VIEW OUTER MIRROR	LR152979 GLASS - REAR VIEW OUTER MIRROR 1 Flat/1 Convex Glass - Canada, Blind Spot Assist / RH, Convex	-	1	Enquire
17K707	LR152980	GLASS - REAR VIEW OUTER MIRROR	LR152980 GLASS - REAR VIEW OUTER MIRROR 2 1400MM Convex Mirror, Blind Spot Assist / LH, Convex	-	1	Enquire
17K707	LR152982	GLASS - REAR VIEW OUTER MIRROR	LR152982 GLASS - REAR VIEW OUTER MIRROR 1 Flat / 1 1400MM Convex - NAS, Blind Spot Assist / RH, Convex Glass + Script	-	1	Enquire
17K707	LR152983	GLASS - REAR VIEW OUTER MIRROR	LR152983 GLASS - REAR VIEW OUTER MIRROR 1 Flat / 1 1400MM Convex - NAS, Blind Spot Assist / LH, Flat Glass	-	1	Enquire
17K707	LR152984	GLASS - REAR VIEW OUTER MIRROR	LR152984 GLASS - REAR VIEW OUTER MIRROR 2 1400MM Convex (SAS) Glass, Blind Spot Assist / RH, Arabic Script	-	1	Enquire
17K707	LR152985	GLASS - REAR VIEW OUTER MIRROR	LR152985 GLASS - REAR VIEW OUTER MIRROR 2 1400MM Convex (SAS) Glass, Blind Spot Assist / LH, Arabic Script	-	1	Enquire
13368	LR152957	LAMP - SIDE FLASHER	LR152957 LAMP - SIDE FLASHER LH	-	1	Enquire
13368	LR152956	LAMP - SIDE FLASHER	LR152956 LAMP - SIDE FLASHER RH	-	1	Enquire
17682	LR152958	MIRROR - REAR VIEW - OUTER	LR152958 MIRROR - REAR VIEW - OUTER Less Blind Spot Information System, RHD, Rear View Camera-Fixed / RH	-	1	Enquire
17682	LR152959	MIRROR - REAR VIEW - OUTER	LR152959 MIRROR - REAR VIEW - OUTER LHD, Less Blind Spot Information System, Surround Camera Sys+Water Wade Aid / RH	-	1	Enquire
17682	LR152960	MIRROR - REAR VIEW - OUTER	LR152960 MIRROR - REAR VIEW - OUTER Blind Spot Assist, RHD, Rear View Camera-Fixed / RH	-	1	Enquire
17682	LR152961	MIRROR - REAR VIEW - OUTER	LR152961 MIRROR - REAR VIEW - OUTER Blind Spot Assist, LHD, Rear View Camera-Fixed / RH	-	1	Enquire
17682	LR152962	MIRROR - REAR VIEW - OUTER	LR152962 MIRROR - REAR VIEW - OUTER Less Blind Spot Information System, RHD, Surround Camera Sys+Water Wade Aid / LH	-	1	Enquire
17682	LR152963	MIRROR - REAR VIEW - OUTER	LR152963 MIRROR - REAR VIEW - OUTER LHD, Less Blind Spot Information System, Surround Camera Sys+Water Wade Aid / LH	-	1	Enquire
17682	LR152964	MIRROR - REAR VIEW - OUTER	LR152964 MIRROR - REAR VIEW - OUTER Blind Spot Assist, RHD, Rear View Camera-Fixed / LH	-	1	Enquire
17682	LR152965	MIRROR - REAR VIEW - OUTER	LR152965 MIRROR - REAR VIEW - OUTER Blind Spot Assist, LHD, Rear View Camera-Fixed / LH	-	1	Enquire
