Front Door Lock Controls of Land Rover Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10]

View All

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] - Front Door Lock Controls

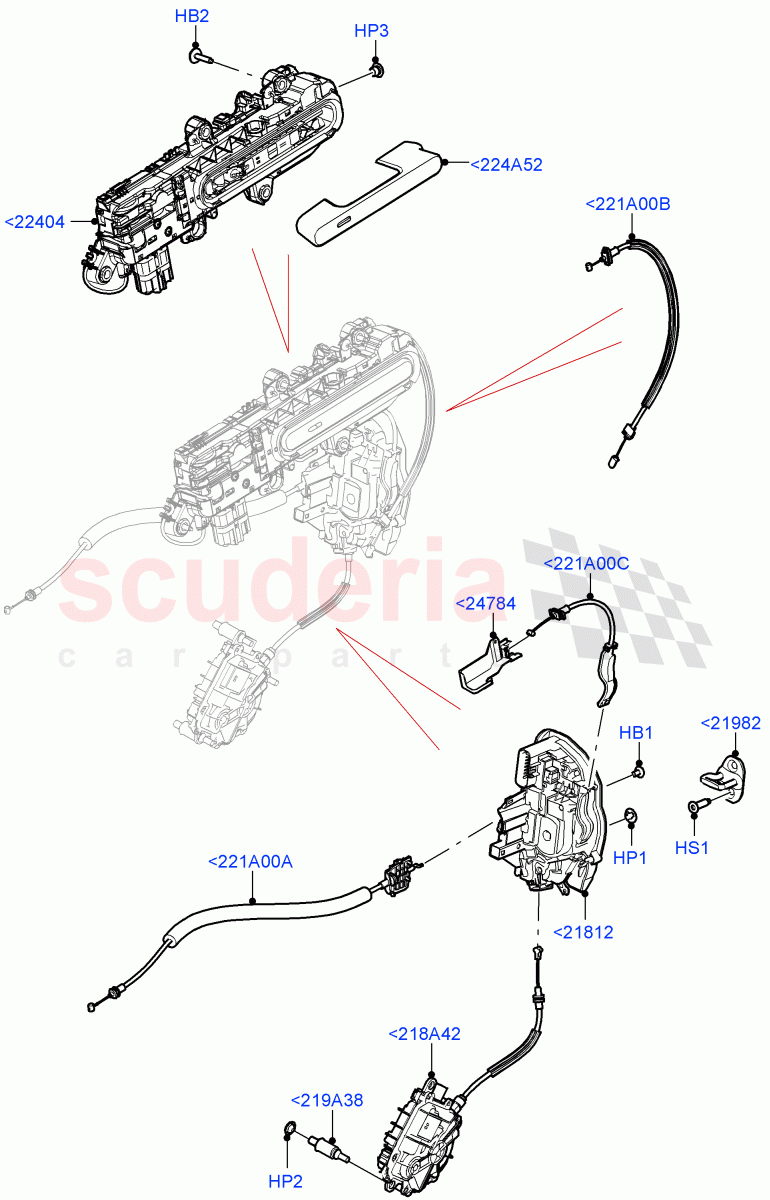

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR038526	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115317	BOLT AND WASHER - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037473	PLUG - BLANKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038527	PLUG - BODY SEALING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR124815	PLUG - BLANKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR042467	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153674	LATCH - FRONT DOOR	Enquire	To Order
	LR153675	LATCH - FRONT DOOR	Enquire	To Order
	LR153676	LATCH - FRONT DOOR	Enquire	To Order

...and 21 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR153748	STRIKER - DOOR LOCKING MECHANISM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153758	HANDLE - DOOR - OUTER	Enquire	To Order
	LR174223	Handle - Door - Outer	Enquire	To Order
	LR153760	HANDLE - DOOR - OUTER	Enquire	To Order

...and 13 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR153754	SHIELD - DOOR LOCK	Enquire	To Order
	LR153755	SHIELD - DOOR LOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153875	ACTUATOR - DOOR LATCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037501	BUFFER - RUBBER MOTOR MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR168006	HANDLE - COVER	Enquire	To Order
	LR168007	HANDLE - COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153757	CABLE	Enquire	To Order
	LR153881	CABLE - DOOR LATCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153756	CABLE - DOOR LATCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153878	CABLE - DOOR LATCH	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<218A42	LR153875	ACTUATOR - DOOR LATCH	LR153875 ACTUATOR - DOOR LATCH Soft Dr Close w/Pwr Rr Opn/Cls / RH/LH	-	2	Enquire
<219A38	LR037501	BUFFER - RUBBER MOTOR MOUNTING	LR037501 BUFFER - RUBBER MOTOR MOUNTING Soft Dr Close w/Pwr Rr Opn/Cls / Rubber	-	6	Enquire
<221A00A	LR153757	CABLE	LR153757 CABLE RH	-	1	Enquire
<221A00A	LR153881	CABLE - DOOR LATCH	LR153881 CABLE - DOOR LATCH LH	-	1	Enquire
<221A00B	LR153756	CABLE - DOOR LATCH	LR153756 CABLE - DOOR LATCH RH/LH	-	2	Enquire
<221A00C	LR153878	CABLE - DOOR LATCH	LR153878 CABLE - DOOR LATCH For Drivers Side, Lock Cylinder To Latch	-	1	Enquire
<224A52	LR168006	HANDLE - COVER	LR168006 HANDLE - COVER RH, Primed	-	1	Enquire
<224A52	LR168007	HANDLE - COVER	LR168007 HANDLE - COVER LH, Primed	-	1	Enquire
<21812	LR153674	LATCH - FRONT DOOR	LR153674 LATCH - FRONT DOOR Double Locking Power Lock Latch, RHD, Soft Dr Close w/Pwr Rr Opn/Cls / RH	-	1	Enquire
<21812	LR153675	LATCH - FRONT DOOR	LR153675 LATCH - FRONT DOOR Central Locking Power Lock Latch, RHD, Soft Dr Close w/Pwr Rr Opn/Cls / RH	-	1	Enquire
<21812	LR153676	LATCH - FRONT DOOR	LR153676 LATCH - FRONT DOOR Double Locking Power Lock Latch, LHD, Soft Dr Close w/Pwr Rr Opn/Cls / RH	-	1	Enquire
<21812	LR153677	LATCH - FRONT DOOR	LR153677 LATCH - FRONT DOOR Central Locking Power Lock Latch, LHD, Soft Dr Close w/Pwr Rr Opn/Cls / RH	-	1	Enquire
<21812	LR153678	LATCH - FRONT DOOR	LR153678 LATCH - FRONT DOOR Double Locking Power Lock Latch, RHD, Soft Door Close / RH	-	1	Enquire
<21812	LR153679	LATCH - FRONT DOOR	LR153679 LATCH - FRONT DOOR Central Locking Power Lock Latch, RHD, Soft Door Close / RH	-	1	Enquire
<21812	LR153681	LATCH - FRONT DOOR	LR153681 LATCH - FRONT DOOR Double Locking Power Lock Latch, LHD, Soft Door Close / RH	-	1	Enquire
<21812	LR153682	LATCH - FRONT DOOR	LR153682 LATCH - FRONT DOOR Central Locking Power Lock Latch, LHD, Soft Door Close / RH	-	1	Enquire
<21812	LR153684	LATCH - FRONT DOOR	LR153684 LATCH - FRONT DOOR Double Locking Power Lock Latch, Less Side Door Power, RHD / RH	-	1	Enquire
<21812	LR153686	LATCH - FRONT DOOR	LR153686 LATCH - FRONT DOOR Central Locking Power Lock Latch, Less Side Door Power, RHD / RH	-	1	Enquire
<21812	LR153687	LATCH - FRONT DOOR	LR153687 LATCH - FRONT DOOR Double Locking Power Lock Latch, LHD, Less Side Door Power / RH	-	1	Enquire
<21812	LR153696	LATCH - FRONT DOOR	LR153696 LATCH - FRONT DOOR Central Locking Power Lock Latch, LHD, Less Side Door Power / RH	-	1	Enquire
<21812	LR153708	LATCH - FRONT DOOR	LR153708 LATCH - FRONT DOOR Double Locking Power Lock Latch, LHD, Soft Dr Close w/Pwr Rr Opn/Cls / LH	-	1	Enquire
<21812	LR153709	LATCH - FRONT DOOR	LR153709 LATCH - FRONT DOOR Central Locking Power Lock Latch, LHD, Soft Dr Close w/Pwr Rr Opn/Cls / LH	-	1	Enquire
<21812	LR153710	LATCH - FRONT DOOR	LR153710 LATCH - FRONT DOOR Double Locking Power Lock Latch, RHD, Soft Dr Close w/Pwr Rr Opn/Cls / LH	-	1	Enquire
<21812	LR153711	LATCH - FRONT DOOR	LR153711 LATCH - FRONT DOOR Central Locking Power Lock Latch, RHD, Soft Dr Close w/Pwr Rr Opn/Cls / LH	-	1	Enquire
<21812	LR153712	LATCH - FRONT DOOR	LR153712 LATCH - FRONT DOOR Double Locking Power Lock Latch, LHD, Soft Door Close / LH	-	1	Enquire
<21812	LR153713	LATCH - FRONT DOOR	LR153713 LATCH - FRONT DOOR Central Locking Power Lock Latch, LHD, Soft Door Close / LH	-	1	Enquire
<21812	LR153715	LATCH - FRONT DOOR	LR153715 LATCH - FRONT DOOR Double Locking Power Lock Latch, RHD, Soft Door Close / LH	-	1	Enquire
<21812	LR153716	LATCH - FRONT DOOR	LR153716 LATCH - FRONT DOOR Central Locking Power Lock Latch, RHD, Soft Door Close / LH	-	1	Enquire
<21812	LR153717	LATCH - FRONT DOOR	LR153717 LATCH - FRONT DOOR Double Locking Power Lock Latch, LHD, Less Side Door Power / LH	-	1	Enquire
<21812	LR153718	LATCH - FRONT DOOR	LR153718 LATCH - FRONT DOOR Central Locking Power Lock Latch, LHD, Less Side Door Power / LH	-	1	Enquire
<21812	LR153719	LATCH - FRONT DOOR	LR153719 LATCH - FRONT DOOR Double Locking Power Lock Latch, Less Side Door Power, RHD / LH	-	1	Enquire
<21812	LR153720	LATCH - FRONT DOOR	LR153720 LATCH - FRONT DOOR Central Locking Power Lock Latch, Less Side Door Power, RHD / LH	-	1	Enquire
<21982	LR153748	STRIKER - DOOR LOCKING MECHANISM	LR153748 STRIKER - DOOR LOCKING MECHANISM RH/LH	-	2	Enquire
<22404	LR153758	HANDLE - DOOR - OUTER	LR153758 HANDLE - DOOR - OUTER Less Side Door Power, RHD / RH / To: NA000675	-	1	Enquire
<22404	LR174223	Handle - Door - Outer	LR174223 Handle - Door - Outer RHD, Soft Dr Close w/Pwr Rr Opn/Cls / RH / To: NA000675	-	1	Enquire
<22404	LR153760	HANDLE - DOOR - OUTER	LR153760 HANDLE - DOOR - OUTER LHD, Soft Door Close / LH / To: NA000675	-	1	Enquire
<22404	535123462	HANDLE - DOOR - OUTER	535123462 HANDLE - DOOR - OUTER LHD, Soft Dr Close w/Pwr Rr Opn/Cls / LH / To: NA000675	-	1	Enquire
<22404	LR153770	HANDLE - DOOR - OUTER	LR153770 HANDLE - DOOR - OUTER LHD, Less Side Door Power / RH / To: NA000675	-	1	Enquire
<22404	535123458	HANDLE - DOOR - OUTER	535123458 HANDLE - DOOR - OUTER LHD, Soft Dr Close w/Pwr Rr Opn/Cls / RH / To: NA000675	-	1	Enquire
<22404	LR153776	HANDLE - DOOR - OUTER	LR153776 HANDLE - DOOR - OUTER RHD, Soft Door Close / LH / To: NA000675	-	1	Enquire
<22404	535123459	HANDLE - DOOR - OUTER	535123459 HANDLE - DOOR - OUTER RHD, Soft Dr Close w/Pwr Rr Opn/Cls / LH / To: NA000675	-	1	Enquire
<22404	LR174229	Handle - Door - Outer	LR174229 Handle - Door - Outer RHD, Soft Door Close / LH / From: NA000676	-	1	Enquire
<22404	LR174230	Handle - Door - Outer	LR174230 Handle - Door - Outer RHD, Soft Dr Close w/Pwr Rr Opn/Cls / LH / From: NA000676	-	1	Enquire
<22404	LR174227	Handle - Door - Outer	LR174227 Handle - Door - Outer LHD, Soft Door Close / RH / From: NA000676	-	1	Enquire
<22404	LR174228	Handle - Door - Outer	LR174228 Handle - Door - Outer LHD, Soft Dr Close w/Pwr Rr Opn/Cls / RH / From: NA000676	-	1	Enquire
<22404	LR174222	Handle - Door - Outer	LR174222 Handle - Door - Outer RHD, Soft Door Close / RH / From: NA000676	-	1	Enquire
<22404	LR174223	Handle - Door - Outer	LR174223 Handle - Door - Outer RHD, Soft Dr Close w/Pwr Rr Opn/Cls / RH / From: NA000676	-	1	Enquire
<22404	LR174225	Handle - Door - Outer	LR174225 Handle - Door - Outer LHD, Soft Door Close / LH / From: NA000676	-	1	Enquire
<22404	LR174226	Handle - Door - Outer	LR174226 Handle - Door - Outer LHD, Soft Dr Close w/Pwr Rr Opn/Cls / LH / From: NA000676	-	1	Enquire
<24784	LR153754	SHIELD - DOOR LOCK	LR153754 SHIELD - DOOR LOCK RHD / RH	-	1	Enquire
<24784	LR153755	SHIELD - DOOR LOCK	LR153755 SHIELD - DOOR LOCK LHD / LH	-	1	Enquire
HB1	LR038526	BOLT	LR038526 BOLT M6 X 11MM, On Door Latch	-	6	Enquire
HB2	LR115317	BOLT AND WASHER - HEX.HEAD	LR115317 BOLT AND WASHER - HEX.HEAD M6x28	-	8	Enquire
HP1	LR037473	PLUG - BLANKING	LR037473 PLUG - BLANKING Access Hole Cover	-	2	Enquire
HP2	LR038527	PLUG - BODY SEALING	LR038527 PLUG - BODY SEALING Less Side Door Power / 10 X 0.8-1.5	-	6	Enquire
HP3	LR124815	PLUG - BLANKING	LR124815 PLUG - BLANKING M11 X 0.7 - 4	-	2	Enquire
HS1	LR042467	BOLT	LR042467 BOLT M8 X 25MM	-	4	Enquire
