Name: Dash Panel And Front Fenders
Rating: 5.0 (1 reviews)

View All

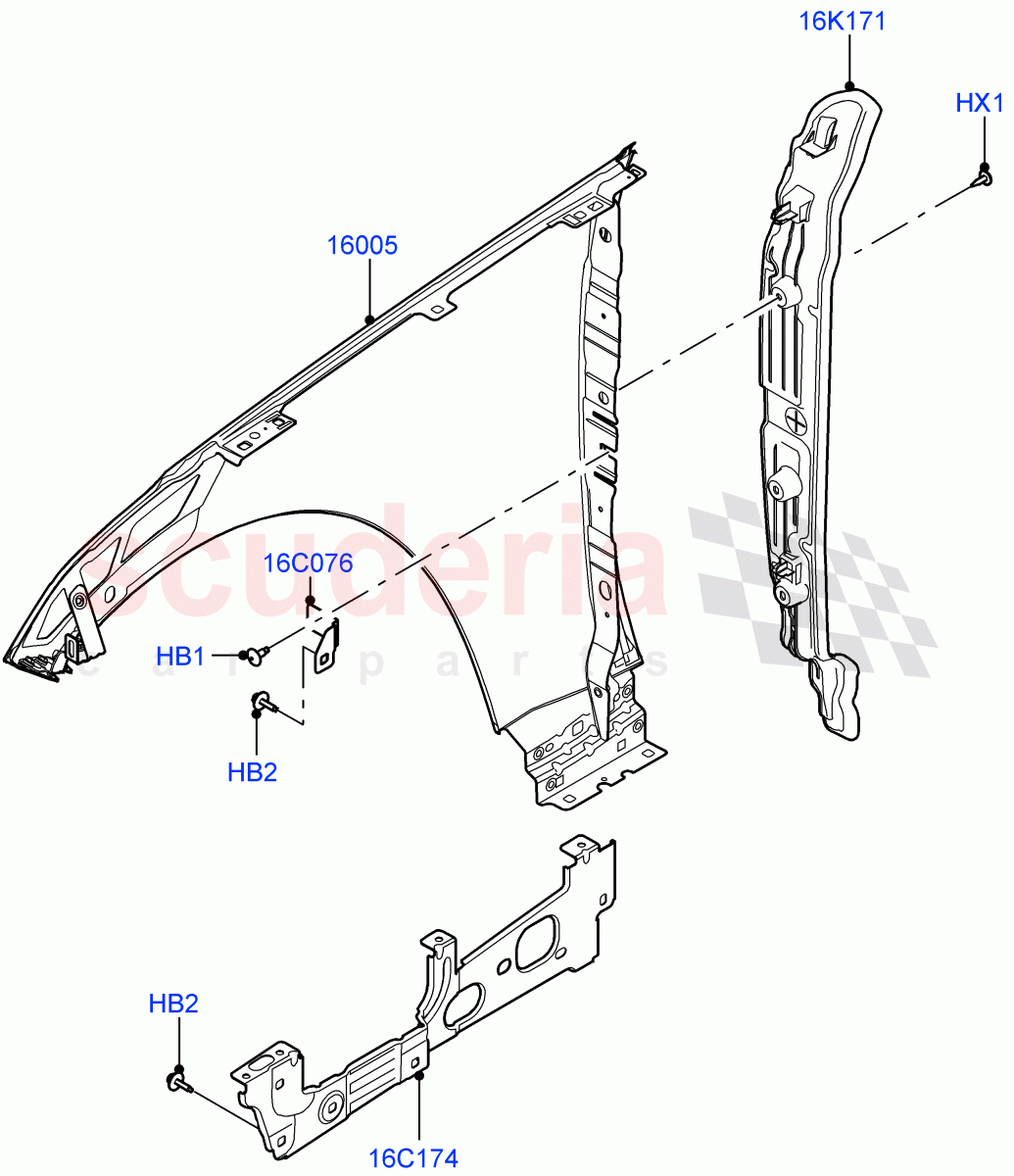

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR127902	BOLT	$1.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR009266	BOLT M6 X 24	$1.40	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYQ500070	PIN - RETAINING	$1.45	IN STOCK

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR127902	BOLT	LR127902 BOLT Bracket, M8 X 15.5	$1.40	2
HB2	LR009266	BOLT M6 X 24 IN STOCK	LR009266 BOLT M6 X 24 Bolt And Washer, Hexagonal Head, M6 X 24MM IN STOCK	$1.40	10
HX1	RYQ500070	PIN - RETAINING IN STOCK	RYQ500070 PIN - RETAINING 6.3 X 22MM, Push Pin IN STOCK	$1.45	6
16C076	LR154630	BRACKET - FENDER MOUNTING	LR154630 BRACKET - FENDER MOUNTING RH, Middle, Rear	$15.45	1
16C076	LR154631	BRACKET - FENDER MOUNTING	LR154631 BRACKET - FENDER MOUNTING LH, Middle, Rear	$15.45	1
16C174	LR151901	BRACKET - FENDER MOUNTING	LR151901 BRACKET - FENDER MOUNTING RH, Category B, Upper	$64.35	1
16C174	LR151902	BRACKET - FENDER MOUNTING	LR151902 BRACKET - FENDER MOUNTING LH, Category B, Upper	$64.35	1
16K171	LR154664	INSULATOR - SOUND - BODY	LR154664 INSULATOR - SOUND - BODY RH, Rear	$116.55	1
16K171	LR154665	INSULATOR - SOUND - BODY	LR154665 INSULATOR - SOUND - BODY LH, Rear	$116.55	1
16005	LR160584	FENDER - FRONT RH	LR160584 FENDER - FRONT RH RH, Category B	$447.38	1
16005	LR160588	FENDER - FRONT LH	LR160588 FENDER - FRONT LH LH, Category B	$447.38	1
