Front Door Glass & Window Controls of Land Rover Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10]

View All

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] - Front Door Glass & Window Controls

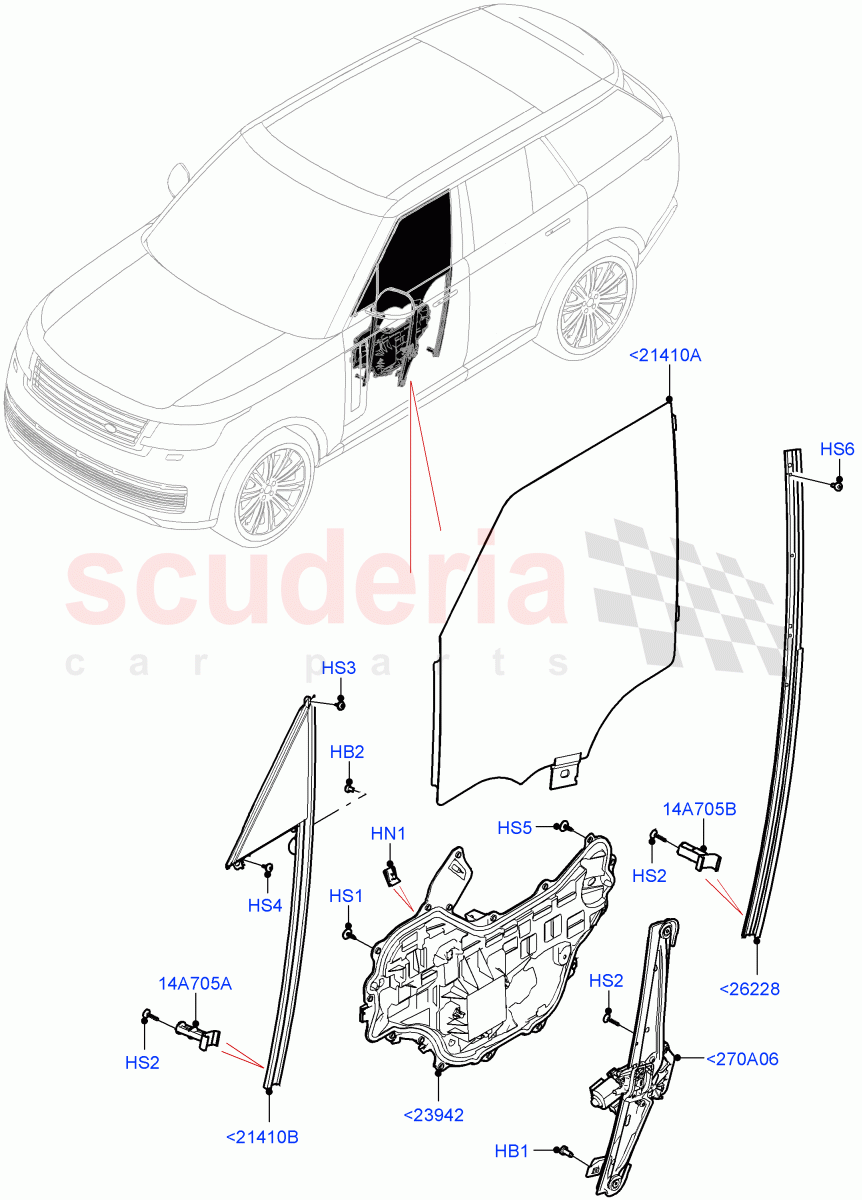

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	XYG500160	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034321	BOLT - PAN - TORX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AYH100790	NUT - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR164873	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049323	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR066376	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034049	SCREW - PAN - TORX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR042471	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR109329	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153059	PANEL - DOOR TRIM	Enquire	To Order
	LR153062	PANEL - DOOR TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154621	PIN - FIXING	Enquire	To Order
	LR154620	PIN - FIXING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154590	GLASS - FRONT DOOR	Enquire	To Order
	LR154591	GLASS - FRONT DOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153896	GLASS - DOOR	Enquire	To Order
	LR153897	GLASS - DOOR	Enquire	To Order
	LR174309	Glass - Door	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR153067	REGULATOR AND MOTOR - WINDOW	Enquire	To Order
	LR153068	REGULATOR AND MOTOR - WINDOW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR155004	BRACKET - DOOR VENT WINDOW - UPPER	Enquire	To Order
	LR155005	BRACKET - DOOR VENT WINDOW - UPPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154735	SHIM	Enquire	To Order
	LR154754	SHIM	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<270A06	LR153067	REGULATOR AND MOTOR - WINDOW	LR153067 REGULATOR AND MOTOR - WINDOW RH	-	1	Enquire
<270A06	LR153068	REGULATOR AND MOTOR - WINDOW	LR153068 REGULATOR AND MOTOR - WINDOW LH	-	1	Enquire
<21410A	LR154590	GLASS - FRONT DOOR	LR154590 GLASS - FRONT DOOR RH	-	1	Enquire
<21410A	LR154591	GLASS - FRONT DOOR	LR154591 GLASS - FRONT DOOR LH	-	1	Enquire
<21410B	LR153896	GLASS - DOOR	LR153896 GLASS - DOOR RH / To: NA000675	-	1	Enquire
<21410B	LR153897	GLASS - DOOR	LR153897 GLASS - DOOR LH / To: NA000675	-	1	Enquire
<21410B	LR174309	Glass - Door	LR174309 Glass - Door LH / From: NA000676	-	1	Enquire
<21410B	LR174308	Glass - Door	LR174308 Glass - Door RH / From: NA000676	-	1	Enquire
<23942	LR153059	PANEL - DOOR TRIM	LR153059 PANEL - DOOR TRIM RH	-	1	Enquire
<23942	LR153062	PANEL - DOOR TRIM	LR153062 PANEL - DOOR TRIM LH	-	1	Enquire
<26228	LR154621	PIN - FIXING	LR154621 PIN - FIXING RH	-	1	Enquire
<26228	LR154620	PIN - FIXING	LR154620 PIN - FIXING LH	-	1	Enquire
HB1	XYG500160	BOLT	XYG500160 BOLT M6 x 12MM, Torx	-	2	Enquire
HB2	LR034321	BOLT - PAN - TORX	LR034321 BOLT - PAN - TORX M5 X 10MM, Torx	-	4	Enquire
HN1	AYH100790	NUT - SPECIAL	AYH100790 NUT - SPECIAL M6 X 0.5-4, Nut "U" Spring	-	8	Enquire
HS1	LR164873	SCREW	LR164873 SCREW M6 X 16MM	-	32	Enquire
HS2	LR049323	SCREW	LR049323 SCREW M5 x 22MM	-	-	Enquire
HS3	LR066376	SCREW	LR066376 SCREW M5 X 12MM	-	2	Enquire
HS4	LR034049	SCREW - PAN - TORX	LR034049 SCREW - PAN - TORX M5 X 12MM	-	2	Enquire
HS5	LR042471	SCREW	LR042471 SCREW M8 X 20MM	-	-	Enquire
HS6	LR109329	SCREW	LR109329 SCREW M5 X 15MM, Torx	-	6	Enquire
14A705A	LR155004	BRACKET - DOOR VENT WINDOW - UPPER	LR155004 BRACKET - DOOR VENT WINDOW - UPPER RH	-	1	Enquire
14A705A	LR155005	BRACKET - DOOR VENT WINDOW - UPPER	LR155005 BRACKET - DOOR VENT WINDOW - UPPER LH	-	1	Enquire
14A705B	LR154735	SHIM	LR154735 SHIM RH	-	1	Enquire
14A705B	LR154754	SHIM	LR154754 SHIM LH	-	1	Enquire
