Rear Door Glass And Window Controls of Land Rover Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10]

View All

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] - Rear Door Glass And Window Controls

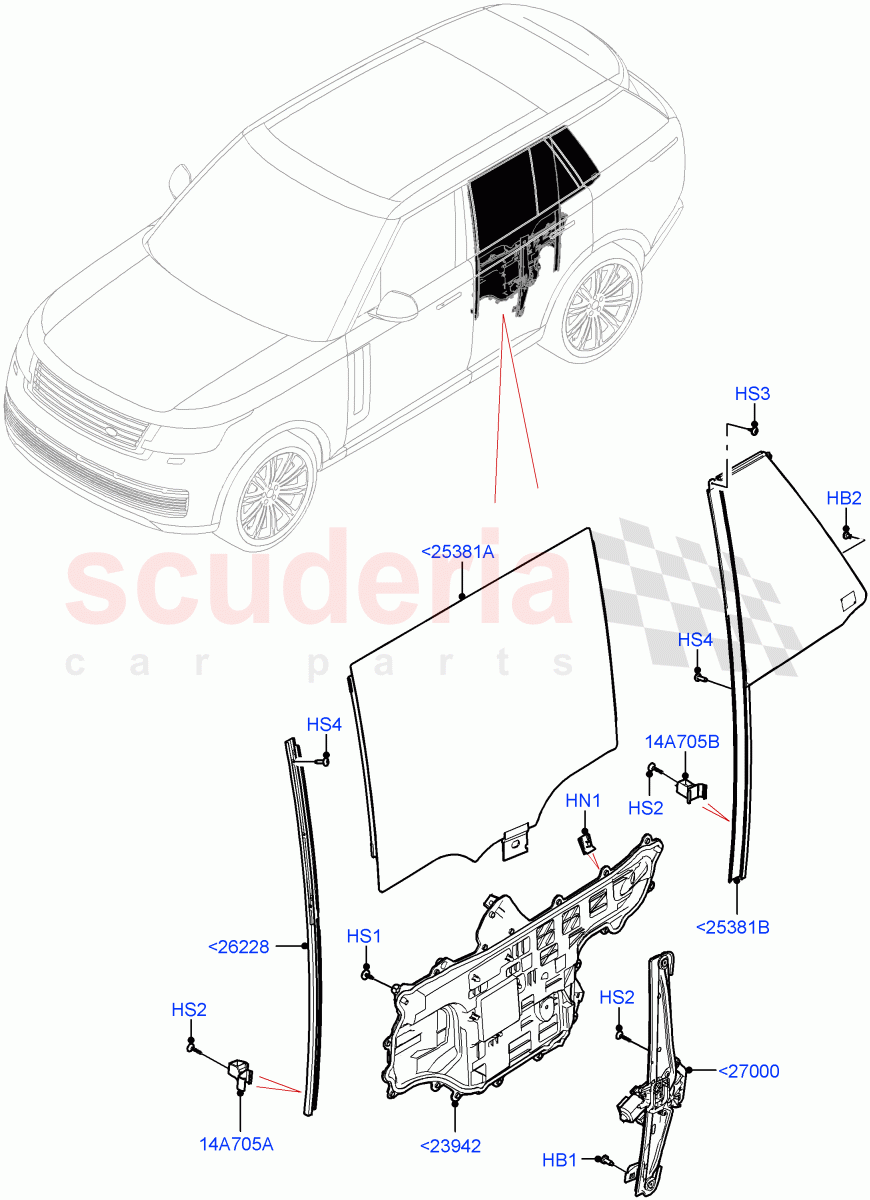

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	XYG500160	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159184	BOLT - PAN - TORX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AYH100790	NUT - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR164873	SCREW	Enquire	To Order
	LR164873	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049323	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR066376	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR109329	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153076	PANEL - DOOR TRIM	Enquire	To Order
	LR153077	PANEL - DOOR TRIM	Enquire	To Order
	LR153074	PANEL - DOOR TRIM	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR154619	GUIDANCE - CHANNEL DROP GLASS	Enquire	To Order
	LR154618	GUIDANCE - CHANNEL DROP GLASS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154578	REGULATOR AND MOTOR - WINDOW	Enquire	To Order
	LR154579	REGULATOR AND MOTOR - WINDOW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153078	GLASS - REAR DOOR	Enquire	To Order
	LR153079	GLASS - REAR DOOR	Enquire	To Order
	LR154589	GLASS - REAR DOOR	Enquire	To Order

...and 9 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR153125	GLASS - DOOR REAR WINDOW - FIXED	Enquire	To Order
	LR153127	GLASS - DOOR REAR WINDOW - FIXED	Enquire	To Order
	LR153129	GLASS - DOOR REAR WINDOW - FIXED	Enquire	To Order

...and 37 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR154759	SUPPORT - DOOR GLASS RUN CHANNEL	Enquire	To Order
	LR154760	SUPPORT - DOOR GLASS RUN CHANNEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153918	BRACKET - DOOR VENT WINDOW - UPPER	Enquire	To Order
	LR153919	BRACKET - DOOR VENT WINDOW - UPPER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<23942	LR153076	PANEL - DOOR TRIM	LR153076 PANEL - DOOR TRIM Standard Wheelbase / LH	-	1	Enquire
<23942	LR153077	PANEL - DOOR TRIM	LR153077 PANEL - DOOR TRIM Long Wheelbase / LH	-	1	Enquire
<23942	LR153074	PANEL - DOOR TRIM	LR153074 PANEL - DOOR TRIM Standard Wheelbase / RH	-	1	Enquire
<23942	LR153075	PANEL - DOOR TRIM	LR153075 PANEL - DOOR TRIM Long Wheelbase / RH	-	1	Enquire
<25381A	LR153078	GLASS - REAR DOOR	LR153078 GLASS - REAR DOOR Frt Lam Acoustic/Rr Toughened Glass, Less Privacy Glass, Standard Wheelbase / RH	-	1	Enquire
<25381A	LR153079	GLASS - REAR DOOR	LR153079 GLASS - REAR DOOR Frt Lam Acoustic/Rr Toughened Glass, Privacy Glass, Standard Wheelbase / RH	-	1	Enquire
<25381A	LR154589	GLASS - REAR DOOR	LR154589 GLASS - REAR DOOR Laminate Front-Toughened Rear, Less Privacy Glass, Standard Wheelbase / RH	-	1	Enquire
<25381A	LR154588	GLASS - REAR DOOR	LR154588 GLASS - REAR DOOR Laminate Front-Toughened Rear, Privacy Glass, Standard Wheelbase / RH	-	1	Enquire
<25381A	LR154587	GLASS - REAR DOOR	LR154587 GLASS - REAR DOOR Laminate Front-Toughened Rear, Less Privacy Glass, Long Wheelbase / RH	-	1	Enquire
<25381A	LR154586	GLASS - REAR DOOR	LR154586 GLASS - REAR DOOR Laminate Front-Toughened Rear, Long Wheelbase, Privacy Glass / RH	-	1	Enquire
<25381A	LR153081	GLASS - REAR DOOR	LR153081 GLASS - REAR DOOR Frt Lam Acoustic/Rr Toughened Glass, Less Privacy Glass, Standard Wheelbase / LH	-	1	Enquire
<25381A	LR153082	GLASS - REAR DOOR	LR153082 GLASS - REAR DOOR Frt Lam Acoustic/Rr Toughened Glass, Privacy Glass, Standard Wheelbase / LH	-	1	Enquire
<25381A	LR154582	GLASS - REAR DOOR	LR154582 GLASS - REAR DOOR Laminate Front-Toughened Rear, Less Privacy Glass, Standard Wheelbase / LH	-	1	Enquire
<25381A	LR154583	GLASS - REAR DOOR	LR154583 GLASS - REAR DOOR Laminate Front-Toughened Rear, Privacy Glass, Standard Wheelbase / LH	-	1	Enquire
<25381A	LR154584	GLASS - REAR DOOR	LR154584 GLASS - REAR DOOR Laminate Front-Toughened Rear, Less Privacy Glass, Long Wheelbase / LH	-	1	Enquire
<25381A	LR154585	GLASS - REAR DOOR	LR154585 GLASS - REAR DOOR Laminate Front-Toughened Rear, Long Wheelbase, Privacy Glass / LH	-	1	Enquire
<25381B	LR153125	GLASS - DOOR REAR WINDOW - FIXED	LR153125 GLASS - DOOR REAR WINDOW - FIXED Frt Lam Acoustic/Rr Toughened Glass, Less Privacy Glass, Less Rear Side Window Blinds, Standard Wheelbase / RH / To: NA000675	-	1	Enquire
<25381B	LR153127	GLASS - DOOR REAR WINDOW - FIXED	LR153127 GLASS - DOOR REAR WINDOW - FIXED Frt Lam Acoustic/Rr Toughened Glass, Less Rear Side Window Blinds, Privacy Glass, Standard Wheelbase / RH / To: NA000675	-	1	Enquire
<25381B	LR153129	GLASS - DOOR REAR WINDOW - FIXED	LR153129 GLASS - DOOR REAR WINDOW - FIXED Laminate Front-Toughened Rear, Less Privacy Glass, Less Rear Side Window Blinds, Standard Wheelbase / RH / To: NA000675	-	1	Enquire
<25381B	LR153131	GLASS - DOOR REAR WINDOW - FIXED	LR153131 GLASS - DOOR REAR WINDOW - FIXED Laminate Front-Toughened Rear, Less Rear Side Window Blinds, Privacy Glass, Standard Wheelbase / RH / To: NA000675	-	1	Enquire
<25381B	LR153132	GLASS - DOOR REAR WINDOW - FIXED	LR153132 GLASS - DOOR REAR WINDOW - FIXED Electric Rear Side Window Blinds, Laminate Front-Toughened Rear, Less Privacy Glass, Standard Wheelbase / RH / To: NA000675	-	1	Enquire
<25381B	LR153134	GLASS - DOOR REAR WINDOW - FIXED	LR153134 GLASS - DOOR REAR WINDOW - FIXED Electric Rear Side Window Blinds, Laminate Front-Toughened Rear, Privacy Glass, Standard Wheelbase / RH / To: NA000675	-	1	Enquire
<25381B	LR153136	GLASS - DOOR REAR WINDOW - FIXED	LR153136 GLASS - DOOR REAR WINDOW - FIXED Electric Rear Side Window Blinds, Frt Lam Acoustic/Rr Toughened Glass, Less Privacy Glass, Standard Wheelbase / RH / To: NA000675	-	1	Enquire
<25381B	LR153137	GLASS - DOOR REAR WINDOW - FIXED	LR153137 GLASS - DOOR REAR WINDOW - FIXED Electric Rear Side Window Blinds, Frt Lam Acoustic/Rr Toughened Glass, Privacy Glass, Standard Wheelbase / RH / To: NA000675	-	1	Enquire
<25381B	LR156773	GLASS - DOOR REAR WINDOW - FIXED	LR156773 GLASS - DOOR REAR WINDOW - FIXED Electric Rear Side Window Blinds, Laminate Front-Toughened Rear, Less Privacy Glass, Long Wheelbase / RH / To: NA000675	-	1	Enquire
<25381B	LR156774	GLASS - DOOR REAR WINDOW - FIXED	LR156774 GLASS - DOOR REAR WINDOW - FIXED Electric Rear Side Window Blinds, Laminate Front-Toughened Rear, Long Wheelbase, Privacy Glass / RH / To: NA000675	-	1	Enquire
<25381B	LR153139	GLASS - DOOR REAR WINDOW - FIXED	LR153139 GLASS - DOOR REAR WINDOW - FIXED Frt Lam Acoustic/Rr Toughened Glass, Less Privacy Glass, Less Rear Side Window Blinds, Standard Wheelbase / LH / To: NA000675	-	1	Enquire
<25381B	LR153140	GLASS - DOOR REAR WINDOW - FIXED	LR153140 GLASS - DOOR REAR WINDOW - FIXED Frt Lam Acoustic/Rr Toughened Glass, Less Rear Side Window Blinds, Privacy Glass, Standard Wheelbase / LH / To: NA000675	-	1	Enquire
<25381B	LR153142	GLASS - DOOR REAR WINDOW - FIXED	LR153142 GLASS - DOOR REAR WINDOW - FIXED Laminate Front-Toughened Rear, Less Privacy Glass, Less Rear Side Window Blinds, Standard Wheelbase / LH / To: NA000675	-	1	Enquire
<25381B	LR153143	GLASS - DOOR REAR WINDOW - FIXED	LR153143 GLASS - DOOR REAR WINDOW - FIXED Laminate Front-Toughened Rear, Less Rear Side Window Blinds, Privacy Glass, Standard Wheelbase / LH / To: NA000675	-	1	Enquire
<25381B	LR153144	GLASS - DOOR REAR WINDOW - FIXED	LR153144 GLASS - DOOR REAR WINDOW - FIXED Electric Rear Side Window Blinds, Laminate Front-Toughened Rear, Less Privacy Glass, Standard Wheelbase / LH / To: NA000675	-	1	Enquire
<25381B	LR153145	GLASS - DOOR REAR WINDOW - FIXED	LR153145 GLASS - DOOR REAR WINDOW - FIXED Electric Rear Side Window Blinds, Laminate Front-Toughened Rear, Privacy Glass, Standard Wheelbase / LH / To: NA000675	-	1	Enquire
<25381B	LR153147	GLASS - DOOR REAR WINDOW - FIXED	LR153147 GLASS - DOOR REAR WINDOW - FIXED Electric Rear Side Window Blinds, Frt Lam Acoustic/Rr Toughened Glass, Less Privacy Glass, Standard Wheelbase / LH / To: NA000675	-	1	Enquire
<25381B	LR153148	GLASS - DOOR REAR WINDOW - FIXED	LR153148 GLASS - DOOR REAR WINDOW - FIXED Electric Rear Side Window Blinds, Frt Lam Acoustic/Rr Toughened Glass, Privacy Glass, Standard Wheelbase / LH / To: NA000675	-	1	Enquire
<25381B	LR156775	GLASS - DOOR REAR WINDOW - FIXED	LR156775 GLASS - DOOR REAR WINDOW - FIXED Electric Rear Side Window Blinds, Laminate Front-Toughened Rear, Less Privacy Glass, Long Wheelbase / LH / To: NA000675	-	1	Enquire
<25381B	LR156776	GLASS - DOOR REAR WINDOW - FIXED	LR156776 GLASS - DOOR REAR WINDOW - FIXED Electric Rear Side Window Blinds, Laminate Front-Toughened Rear, Long Wheelbase, Privacy Glass / LH / To: NA000675	-	1	Enquire
<25381B	LR174286	Glass - Rear Door	LR174286 Glass - Rear Door Frt Lam Acoustic/Rr Toughened Glass, Less Privacy Glass, Less Rear Side Window Blinds, Standard Wheelbase / RH / From: NA000676	-	1	Enquire
<25381B	LR174287	Glass - Rear Door	LR174287 Glass - Rear Door Frt Lam Acoustic/Rr Toughened Glass, Less Rear Side Window Blinds, Privacy Glass, Standard Wheelbase / RH / From: NA000676	-	1	Enquire
<25381B	LR174288	Glass - Rear Door	LR174288 Glass - Rear Door Laminate Front-Toughened Rear, Less Privacy Glass, Less Rear Side Window Blinds, Standard Wheelbase / RH / From: NA000676	-	1	Enquire
<25381B	LR174289	Glass - Rear Door	LR174289 Glass - Rear Door Laminate Front-Toughened Rear, Less Rear Side Window Blinds, Privacy Glass, Standard Wheelbase / RH / From: NA000676	-	1	Enquire
<25381B	LR174290	Glass - Rear Door	LR174290 Glass - Rear Door Electric Rear Side Window Blinds, Laminate Front-Toughened Rear, Less Privacy Glass, Standard Wheelbase / RH / From: NA000676	-	1	Enquire
<25381B	LR174291	GLASS - DOOR REAR WINDOW - FIXED	LR174291 GLASS - DOOR REAR WINDOW - FIXED Electric Rear Side Window Blinds, Laminate Front-Toughened Rear, Privacy Glass, Standard Wheelbase / RH / From: NA000676	-	1	Enquire
<25381B	LR174292	Glass - Rear Door	LR174292 Glass - Rear Door Electric Rear Side Window Blinds, Frt Lam Acoustic/Rr Toughened Glass, Less Privacy Glass, Standard Wheelbase / RH / From: NA000676	-	1	Enquire
<25381B	LR174293	Glass - Rear Door	LR174293 Glass - Rear Door Electric Rear Side Window Blinds, Frt Lam Acoustic/Rr Toughened Glass, Privacy Glass, Standard Wheelbase / RH / From: NA000676	-	1	Enquire
<25381B	LR174294	Glass - Rear Door	LR174294 Glass - Rear Door Electric Rear Side Window Blinds, Laminate Front-Toughened Rear, Less Privacy Glass, Long Wheelbase / RH / From: NA000676	-	1	Enquire
<25381B	LR174295	Glass - Rear Door	LR174295 Glass - Rear Door Electric Rear Side Window Blinds, Laminate Front-Toughened Rear, Long Wheelbase, Privacy Glass / RH / From: NA000676	-	1	Enquire
<25381B	LR174296	Glass - Rear Door	LR174296 Glass - Rear Door Frt Lam Acoustic/Rr Toughened Glass, Less Privacy Glass, Less Rear Side Window Blinds, Standard Wheelbase / LH / From: NA000676	-	1	Enquire
<25381B	LR174297	Glass - Rear Door	LR174297 Glass - Rear Door Frt Lam Acoustic/Rr Toughened Glass, Less Rear Side Window Blinds, Privacy Glass, Standard Wheelbase / LH / From: NA000676	-	1	Enquire
<25381B	LR174298	Glass - Rear Door	LR174298 Glass - Rear Door Laminate Front-Toughened Rear, Less Privacy Glass, Less Rear Side Window Blinds, Standard Wheelbase / LH / From: NA000676	-	1	Enquire
<25381B	LR174299	Glass - Rear Door	LR174299 Glass - Rear Door Laminate Front-Toughened Rear, Less Rear Side Window Blinds, Privacy Glass, Standard Wheelbase / LH / From: NA000676	-	1	Enquire
<25381B	LR174300	Glass - Rear Door	LR174300 Glass - Rear Door Electric Rear Side Window Blinds, Laminate Front-Toughened Rear, Less Privacy Glass, Standard Wheelbase / LH / From: NA000676	-	1	Enquire
<25381B	LR174301	Glass - Rear Door	LR174301 Glass - Rear Door Electric Rear Side Window Blinds, Laminate Front-Toughened Rear, Privacy Glass, Standard Wheelbase / LH / From: NA000676	-	1	Enquire
<25381B	LR174302	Glass - Rear Door	LR174302 Glass - Rear Door Electric Rear Side Window Blinds, Frt Lam Acoustic/Rr Toughened Glass, Less Privacy Glass, Standard Wheelbase / LH / From: NA000676	-	1	Enquire
<25381B	LR174303	Glass - Rear Door	LR174303 Glass - Rear Door Electric Rear Side Window Blinds, Frt Lam Acoustic/Rr Toughened Glass, Privacy Glass, Standard Wheelbase / LH / From: NA000676	-	1	Enquire
<25381B	LR174304	Glass - Rear Door	LR174304 Glass - Rear Door Electric Rear Side Window Blinds, Laminate Front-Toughened Rear, Less Privacy Glass, Long Wheelbase / LH / From: NA000676	-	1	Enquire
<25381B	LR174306	Glass - Rear Door	LR174306 Glass - Rear Door Electric Rear Side Window Blinds, Laminate Front-Toughened Rear, Long Wheelbase, Privacy Glass / LH / From: NA000676	-	1	Enquire
<26228	LR154619	GUIDANCE - CHANNEL DROP GLASS	LR154619 GUIDANCE - CHANNEL DROP GLASS RH	-	1	Enquire
<26228	LR154618	GUIDANCE - CHANNEL DROP GLASS	LR154618 GUIDANCE - CHANNEL DROP GLASS LH	-	1	Enquire
<27000	LR154578	REGULATOR AND MOTOR - WINDOW	LR154578 REGULATOR AND MOTOR - WINDOW LH	-	1	Enquire
<27000	LR154579	REGULATOR AND MOTOR - WINDOW	LR154579 REGULATOR AND MOTOR - WINDOW RH	-	1	Enquire
HB1	XYG500160	BOLT	XYG500160 BOLT M6 x 12MM, Torx	-	2	Enquire
HB2	LR159184	BOLT - PAN - TORX	LR159184 BOLT - PAN - TORX M5 x 8MM, Torx	-	2	Enquire
HN1	AYH100790	NUT - SPECIAL	AYH100790 NUT - SPECIAL M6 X 0.5-4, Nut "U" Spring	-	8	Enquire
HS1	LR164873	SCREW	LR164873 SCREW Standard Wheelbase / M6 X 16MM	-	32	Enquire
HS1	LR164873	SCREW	LR164873 SCREW Long Wheelbase / M6 X 16MM	-	36	Enquire
HS2	LR049323	SCREW	LR049323 SCREW M5 x 22MM	-	-	Enquire
HS3	LR066376	SCREW	LR066376 SCREW M5 X 12MM	-	2	Enquire
HS4	LR109329	SCREW	LR109329 SCREW M5 X 15MM, Torx	-	8	Enquire
14A705A	LR154759	SUPPORT - DOOR GLASS RUN CHANNEL	LR154759 SUPPORT - DOOR GLASS RUN CHANNEL RH	-	1	Enquire
14A705A	LR154760	SUPPORT - DOOR GLASS RUN CHANNEL	LR154760 SUPPORT - DOOR GLASS RUN CHANNEL LH	-	1	Enquire
14A705B	LR153918	BRACKET - DOOR VENT WINDOW - UPPER	LR153918 BRACKET - DOOR VENT WINDOW - UPPER RH	-	1	Enquire
14A705B	LR153919	BRACKET - DOOR VENT WINDOW - UPPER	LR153919 BRACKET - DOOR VENT WINDOW - UPPER LH	-	1	Enquire
