Name: Luggage Compt/Tailgte Lock Controls
Rating: 5.0 (1 reviews)

Luggage Compt/Tailgte Lock Controls of Land Rover Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10]

View All

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] - Luggage Compt/Tailgte Lock Controls

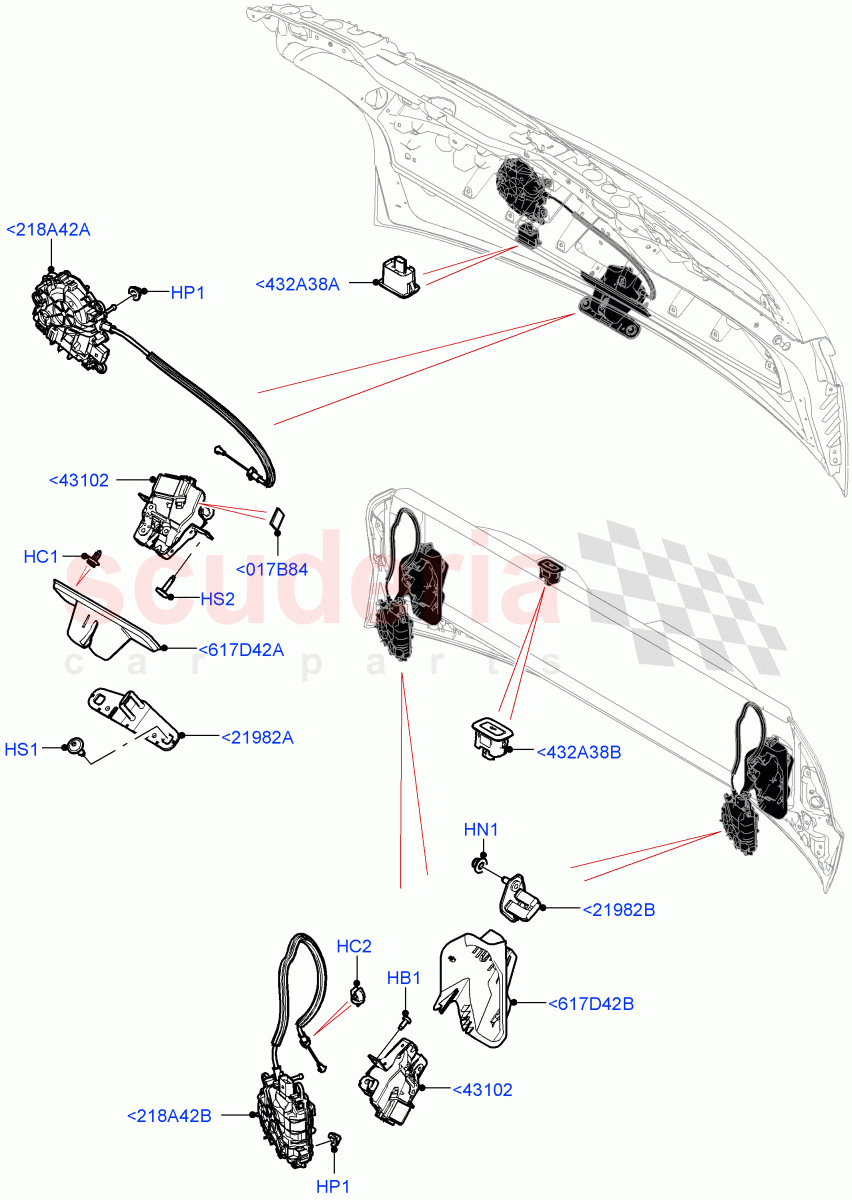

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	XYG500160	BOLT	$0.88	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR094454	CLIP - TRIM	$0.80	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR047326	CLIP - SINGLE	$1.59	To Order

Photo	Part No	Description	Price (each)	Stock
	BYH500060	NUT - FLANGED	$0.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034344	PLUG - BODY SEALING	$2.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR028301	SCREW	$1.19	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117653	SCREW	$2.26	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR153794	LATCH - TAILGATE	$117.85	To Order

Photo	Part No	Description	Price (each)	Stock
	LR161044	FOAM PAD - ENERGY ABSORBING	$6.25	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153800	STRIKER - LATCH	$26.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034346	STRIKER - LATCH	$35.74	To Order
	LR034345	STRIKER - LATCH	$35.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153798	ACTUATOR - DOOR LATCH	$169.90	To Order

Photo	Part No	Description	Price (each)	Stock
	LR164880	ACTUATOR - DOOR LATCH	$166.11	To Order
	LR153799	ACTUATOR - DOOR LATCH	$171.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR107869	SWITCH - TAILGATE	$50.81	To Order

Photo	Part No	Description	Price (each)	Stock
	LR164881	SWITCH - TAILGATE	$66.39	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153793	BEZEL - LATCH	$9.66	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153792	BEZEL - LATCH	$8.64	To Order
	LR153791	BEZEL - LATCH	$8.64	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<017B84	LR161044	FOAM PAD - ENERGY ABSORBING	LR161044 FOAM PAD - ENERGY ABSORBING	$6.25	1
<218A42A	LR153798	ACTUATOR - DOOR LATCH	LR153798 ACTUATOR - DOOR LATCH Upper	$169.90	1
<218A42B	LR164880	ACTUATOR - DOOR LATCH	LR164880 ACTUATOR - DOOR LATCH RH, Lower	$166.11	1
<218A42B	LR153799	ACTUATOR - DOOR LATCH	LR153799 ACTUATOR - DOOR LATCH LH, Lower	$171.20	1
<432A38A	LR107869	SWITCH - TAILGATE	LR107869 SWITCH - TAILGATE Upper Tailgate	$50.81	1
<432A38B	LR164881	SWITCH - TAILGATE	LR164881 SWITCH - TAILGATE Lower Tailgate	$66.39	1
<617D42A	LR153793	BEZEL - LATCH	LR153793 BEZEL - LATCH Upper Tailgate	$9.66	1
<617D42B	LR153792	BEZEL - LATCH	LR153792 BEZEL - LATCH RH	$8.64	1
<617D42B	LR153791	BEZEL - LATCH	LR153791 BEZEL - LATCH LH	$8.64	1
<21982A	LR153800	STRIKER - LATCH	LR153800 STRIKER - LATCH Upper	$26.11	1
<21982B	LR034346	STRIKER - LATCH	LR034346 STRIKER - LATCH LH, Lower	$35.74	1
<21982B	LR034345	STRIKER - LATCH	LR034345 STRIKER - LATCH RH, Lower	$35.74	1
<43102	LR153794	LATCH - TAILGATE	LR153794 LATCH - TAILGATE	$117.85	3
HB1	XYG500160	BOLT IN STOCK	XYG500160 BOLT M6 x 12MM, Torx IN STOCK	$0.88	4
HC1	LR094454	CLIP - TRIM IN STOCK	LR094454 CLIP - TRIM 8.5 X 0.7-8.8+2.7 IN STOCK	$0.80	2
HC2	LR047326	CLIP - SINGLE	LR047326 CLIP - SINGLE RH, Single	$1.59	1
HN1	BYH500060	NUT - FLANGED	BYH500060 NUT - FLANGED M8, Nut And Washer	$0.74	4
HP1	LR034344	PLUG - BODY SEALING	LR034344 PLUG - BODY SEALING 14 X 0.8-2 X 7, Cup Type	$2.40	9
HS1	LR028301	SCREW	LR028301 SCREW M8 X 21MM, Pan Head	$1.19	2
HS2	LR117653	SCREW IN STOCK	LR117653 SCREW M6 x 19MM, Torx IN STOCK	$2.26	2
