Name: Front Doors, Hinges & Weatherstrips (Finishers)
Rating: 5.0 (1 reviews)

Front Doors, Hinges & Weatherstrips (Finishers) of Land Rover Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10]

View All

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] - Front Doors, Hinges & Weatherstrips (Finishers)

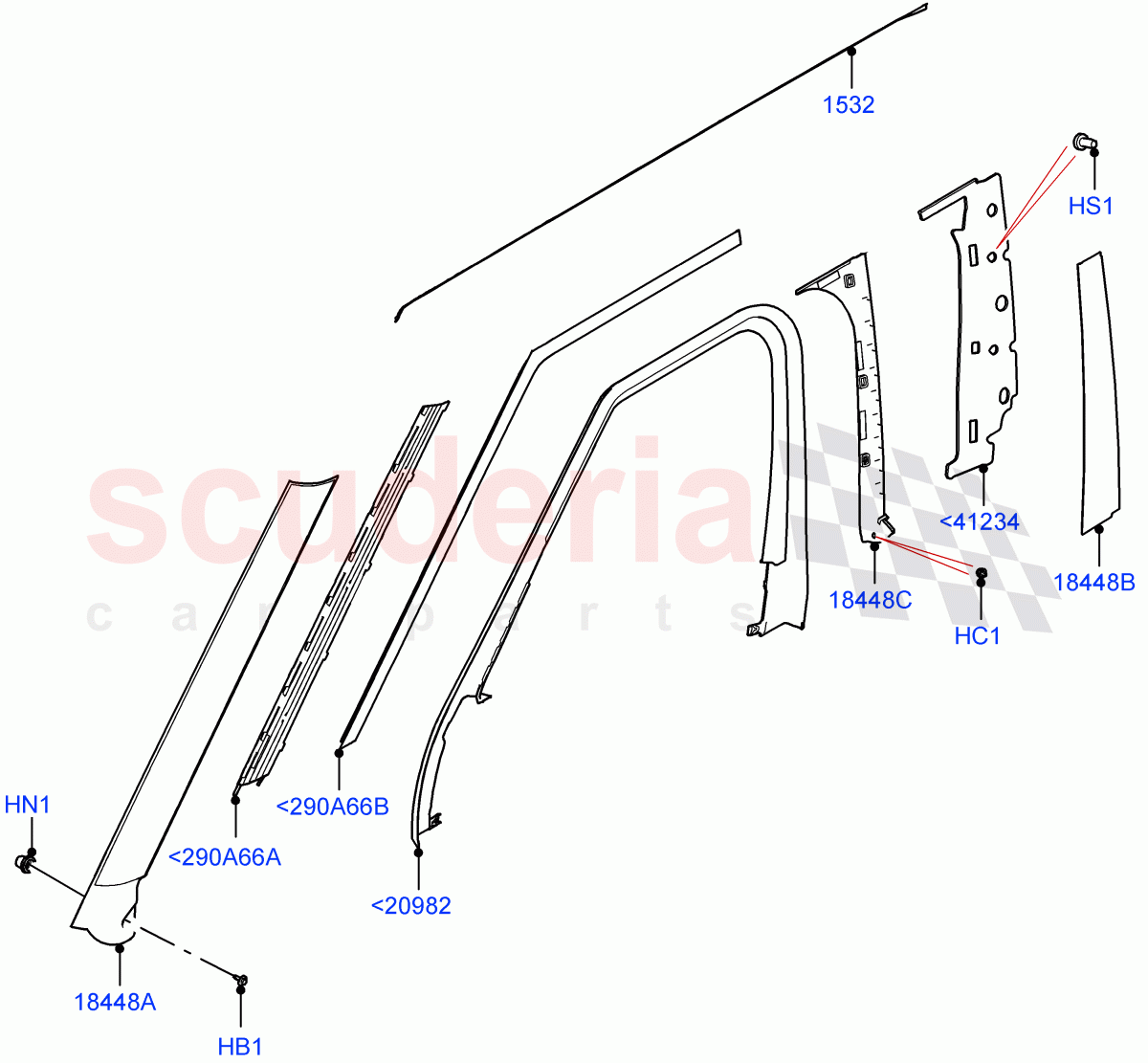

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR154523	BOLT	$1.34	To Order

Photo	Part No	Description	Price (each)	Stock
	BTR2985	CLIP	$1.11	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR171035	NUT - RIVET	$0.80	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYP500250	SCREW	$1.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR160811	FINISHER - OUTER - BODY SIDE	$12.67	To Order
	LR160813	FINISHER - OUTER - BODY SIDE	$12.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151531	MOULDING - DOOR WINDOW FRAME	$104.54	To Order
	LR151533	MOULDING - DOOR WINDOW FRAME	$76.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR156772	INSULATOR - DOOR OUTER PANEL	$109.26	To Order
	LR156771	INSULATOR - DOOR OUTER PANEL	$109.26	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153259	FINISHER - PILLAR	$89.18	To Order
	LR153258	FINISHER - PILLAR	$89.18	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152630	FINISHER - DOOR	$84.24	To Order
	LR152631	FINISHER - DOOR	$84.24	To Order
	LR167793	FINISHER - DOOR	$80.03	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR151536	FINISHER - 'B' PILLAR - OUTER	$67.21	To Order
	LR151538	FINISHER - 'B' PILLAR - OUTER	$67.21	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153261	MOULDING - WINDSHIELD	$36.40	To Order
	LR153260	MOULDING - WINDSHIELD	$36.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152632	MOULDING - DOOR WINDOW FRAME	$127.60	To Order
	LR152633	MOULDING - DOOR WINDOW FRAME	$127.60	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<290A66A	LR153261	MOULDING - WINDSHIELD	LR153261 MOULDING - WINDSHIELD LH, "A" Pillar	$36.40	1
<290A66A	LR153260	MOULDING - WINDSHIELD	LR153260 MOULDING - WINDSHIELD RH, "A" Pillar	$36.40	1
<290A66B	LR152632	MOULDING - DOOR WINDOW FRAME	LR152632 MOULDING - DOOR WINDOW FRAME RH Upper	$127.60	1
<290A66B	LR152633	MOULDING - DOOR WINDOW FRAME	LR152633 MOULDING - DOOR WINDOW FRAME LH Upper	$127.60	1
<20982	LR151531	MOULDING - DOOR WINDOW FRAME	LR151531 MOULDING - DOOR WINDOW FRAME RH	$104.54	1
<20982	LR151533	MOULDING - DOOR WINDOW FRAME	LR151533 MOULDING - DOOR WINDOW FRAME LH	$76.97	1
<41234	LR156772	INSULATOR - DOOR OUTER PANEL	LR156772 INSULATOR - DOOR OUTER PANEL LH, "B" Pillar	$109.26	1
<41234	LR156771	INSULATOR - DOOR OUTER PANEL	LR156771 INSULATOR - DOOR OUTER PANEL RH, "B" Pillar	$109.26	1
HB1	LR154523	BOLT	LR154523 BOLT Bolt And Washer, M6 X 15 Hex	$1.34	2
HC1	BTR2985	CLIP IN STOCK	BTR2985 CLIP 6.5 x 6, Push Pin IN STOCK	$1.11	2
HN1	LR171035	NUT - RIVET IN STOCK	LR171035 NUT - RIVET M6 x 15, Rivet Nut IN STOCK	$0.80	2
HS1	RYP500250	SCREW	RYP500250 SCREW M5 X 10MM, Torx	$1.63	6
1532	LR160811	FINISHER - OUTER - BODY SIDE	LR160811 FINISHER - OUTER - BODY SIDE Corinthian Bronze Contrast Roof, Standard Wheelbase / RH/LH	$12.67	2
1532	LR160813	FINISHER - OUTER - BODY SIDE	LR160813 FINISHER - OUTER - BODY SIDE Black Painted Roof, Long Wheelbase / RH/LH	$12.67	2
18448A	LR153259	FINISHER - PILLAR	LR153259 FINISHER - PILLAR LH, "A" Pillar	$89.18	1
18448A	LR153258	FINISHER - PILLAR	LR153258 FINISHER - PILLAR RH, "A" Pillar	$89.18	1
18448B	LR152630	FINISHER - DOOR	LR152630 FINISHER - DOOR RH, "B" Pillar / To: NA002266	$84.24	1
18448B	LR152631	FINISHER - DOOR	LR152631 FINISHER - DOOR LH, "B" Pillar / To: NA002266	$84.24	1
18448B	LR167793	FINISHER - DOOR	LR167793 FINISHER - DOOR RH, "B" Pillar / From: NA002267	$80.03	1
18448B	LR167794	FINISHER - DOOR	LR167794 FINISHER - DOOR LH, "B" Pillar / From: NA002267	$80.03	1
18448C	LR151536	FINISHER - 'B' PILLAR - OUTER	LR151536 FINISHER - 'B' PILLAR - OUTER RH, "B" Pillar	$67.21	1
18448C	LR151538	FINISHER - 'B' PILLAR - OUTER	LR151538 FINISHER - 'B' PILLAR - OUTER LH, "B" Pillar	$67.21	1
