Air Deflectors of Land Rover Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10]

View All

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] - Air Deflectors

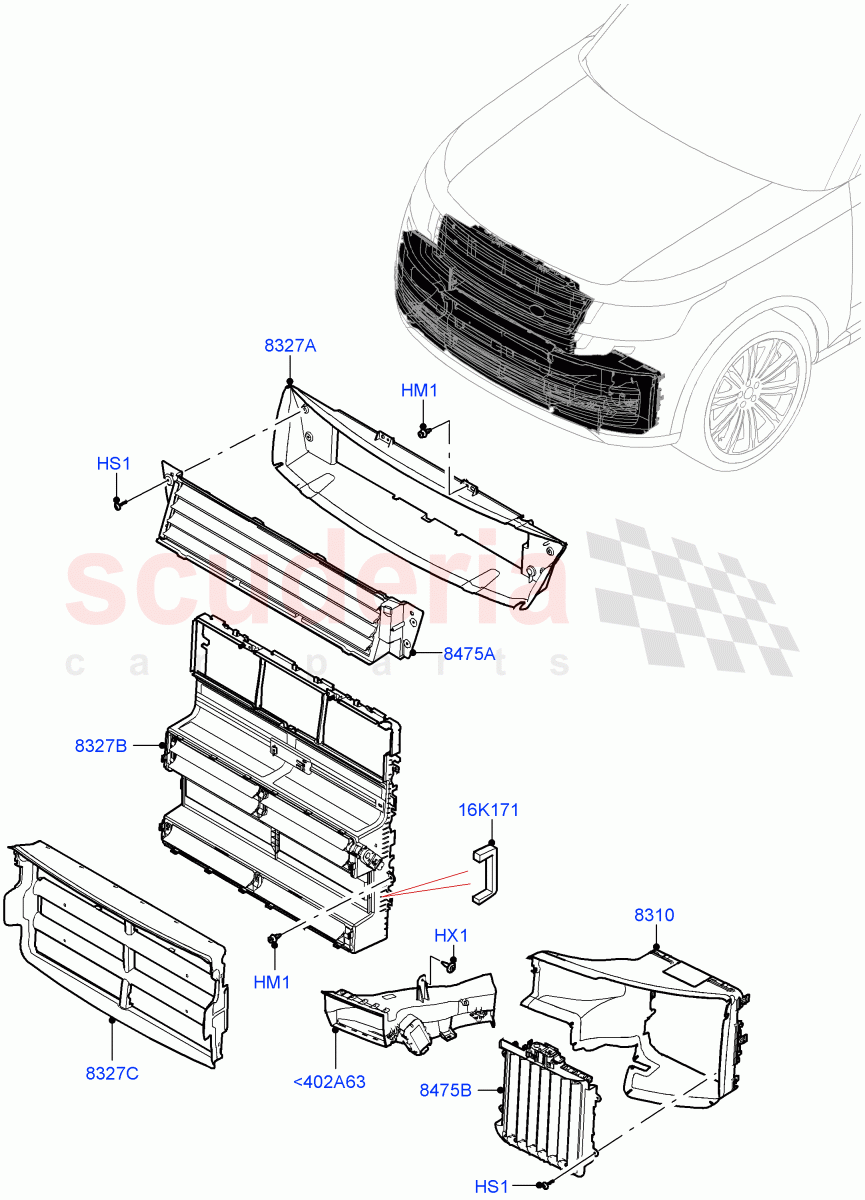

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYQ500040	FASTENER	Enquire	To Order
	RYQ500040	FASTENER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR083297	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYQ500070	PIN - RETAINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152629	DEFLECTOR - AIR	Enquire	To Order
	LR152628	DEFLECTOR - AIR - RADIATOR	Enquire	To Order
	LR165077	DEFLECTOR - AIR - RADIATOR	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR152627	DEFLECTOR - AIR - RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	523123503	SHUTTER - RADIATOR CONTROL	Enquire	To Order
	LR152626	SHUTTER - RADIATOR CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152623	DEFLECTOR - AIR - RADIATOR	Enquire	To Order
	LR152624	DEFLECTOR - AIR - RADIATOR	Enquire	To Order
	LR165075	DEFLECTOR - AIR - RADIATOR	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR152622	SHUTTER - RADIATOR CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR168390	DEFLECTOR - AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR164952	INSULATOR - FENDER APRON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152617	DUCT - BRAKE CALIPER COOLING	Enquire	To Order
	LR152618	DUCT - BRAKE CALIPER COOLING	Enquire	To Order
	LR173211	DUCT - BRAKE CALIPER COOLING	Enquire	To Order

...and 5 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<402A63	LR152617	DUCT - BRAKE CALIPER COOLING	LR152617 DUCT - BRAKE CALIPER COOLING Active Vanes - Upper/Lower / RH	-	1	Enquire
<402A63	LR152618	DUCT - BRAKE CALIPER COOLING	LR152618 DUCT - BRAKE CALIPER COOLING Less Active Grilleshutter, Less SV Model Spec / RH	-	1	Enquire
<402A63	LR173211	DUCT - BRAKE CALIPER COOLING	LR173211 DUCT - BRAKE CALIPER COOLING Active Vanes - Upper/Lower / LH	-	1	Enquire
<402A63	LR152620	DUCT - BRAKE CALIPER COOLING	LR152620 DUCT - BRAKE CALIPER COOLING Less Active Grilleshutter, Less SV Model Spec / LH	-	1	Enquire
<402A63	LR165069	Duct - Brake Caliper Cooling	LR165069 Duct - Brake Caliper Cooling Less Active Grilleshutter, SV1 Model Spec / RH / From: PA000001	-	1	Enquire
<402A63	LR165068	Duct - Brake Caliper Cooling	LR165068 Duct - Brake Caliper Cooling Active Vanes - Upper/Lower, SV1 Model Spec / RH / From: PA000001	-	1	Enquire
<402A63	LR165072	Duct - Brake Caliper Cooling	LR165072 Duct - Brake Caliper Cooling Less Active Grilleshutter, SV1 Model Spec / LH / From: PA000001	-	1	Enquire
<402A63	LR165071	Duct - Brake Caliper Cooling	LR165071 Duct - Brake Caliper Cooling Active Vanes - Upper/Lower, SV1 Model Spec / LH / From: PA000001	-	1	Enquire
HM1	RYQ500040	FASTENER	RYQ500040 FASTENER 6.25 x 1.6/6MM, Air Deflector Upper	-	2	Enquire
HM1	RYQ500040	FASTENER	RYQ500040 FASTENER 6.25 x 1.6/6MM, Air Deflector Support, Centre	-	4	Enquire
HS1	LR083297	SCREW	LR083297 SCREW Active Vanes - Upper/Lower / Centre, M5 x 22MM	-	4	Enquire
HX1	RYQ500070	PIN - RETAINING	RYQ500070 PIN - RETAINING 6.3 X 22MM, Push Pin	-	4	Enquire
16K171	LR164952	INSULATOR - FENDER APRON	LR164952 INSULATOR - FENDER APRON Less Head Impact Crash Criteria	-	2	Enquire
8310	LR152629	DEFLECTOR - AIR	LR152629 DEFLECTOR - AIR With Extra Engine Cooling System / LH	-	1	Enquire
8310	LR152628	DEFLECTOR - AIR - RADIATOR	LR152628 DEFLECTOR - AIR - RADIATOR With Extra Engine Cooling System / RH	-	1	Enquire
8310	LR165077	DEFLECTOR - AIR - RADIATOR	LR165077 DEFLECTOR - AIR - RADIATOR SV1 Model Spec, With Extra Engine Cooling System / RH / From: PA000001	-	1	Enquire
8310	LR165078	DEFLECTOR - AIR	LR165078 DEFLECTOR - AIR SV1 Model Spec, With Extra Engine Cooling System / LH / From: PA000001	-	1	Enquire
8327A	LR152627	DEFLECTOR - AIR - RADIATOR	LR152627 DEFLECTOR - AIR - RADIATOR	-	1	Enquire
8327B	523123503	SHUTTER - RADIATOR CONTROL	523123503 SHUTTER - RADIATOR CONTROL Active Vanes - Upper/Lower	-	1	Enquire
8327B	LR152626	SHUTTER - RADIATOR CONTROL	LR152626 SHUTTER - RADIATOR CONTROL Less Active Grilleshutter	-	1	Enquire
8327C	LR152623	DEFLECTOR - AIR - RADIATOR	LR152623 DEFLECTOR - AIR - RADIATOR Less Head Impact Crash Criteria	-	1	Enquire
8327C	LR152624	DEFLECTOR - AIR - RADIATOR	LR152624 DEFLECTOR - AIR - RADIATOR With Head Impact Crash Criteria	-	1	Enquire
8327C	LR165075	DEFLECTOR - AIR - RADIATOR	LR165075 DEFLECTOR - AIR - RADIATOR Less Head Impact Crash Criteria, SV1 Model Spec / From: PA000001	-	1	Enquire
8327C	LR165076	DEFLECTOR - AIR - RADIATOR	LR165076 DEFLECTOR - AIR - RADIATOR SV1 Model Spec, With Head Impact Crash Criteria / From: PA000001	-	1	Enquire
8475A	LR152622	SHUTTER - RADIATOR CONTROL	LR152622 SHUTTER - RADIATOR CONTROL Active Vanes - Upper/Lower / Centre	-	1	Enquire
8475B	LR168390	DEFLECTOR - AIR	LR168390 DEFLECTOR - AIR Left Outboard Active Vanes / LH Side Only	-	1	Enquire
