Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] - Front Panels, Aprons & Side Members (Reinforcement - Member)

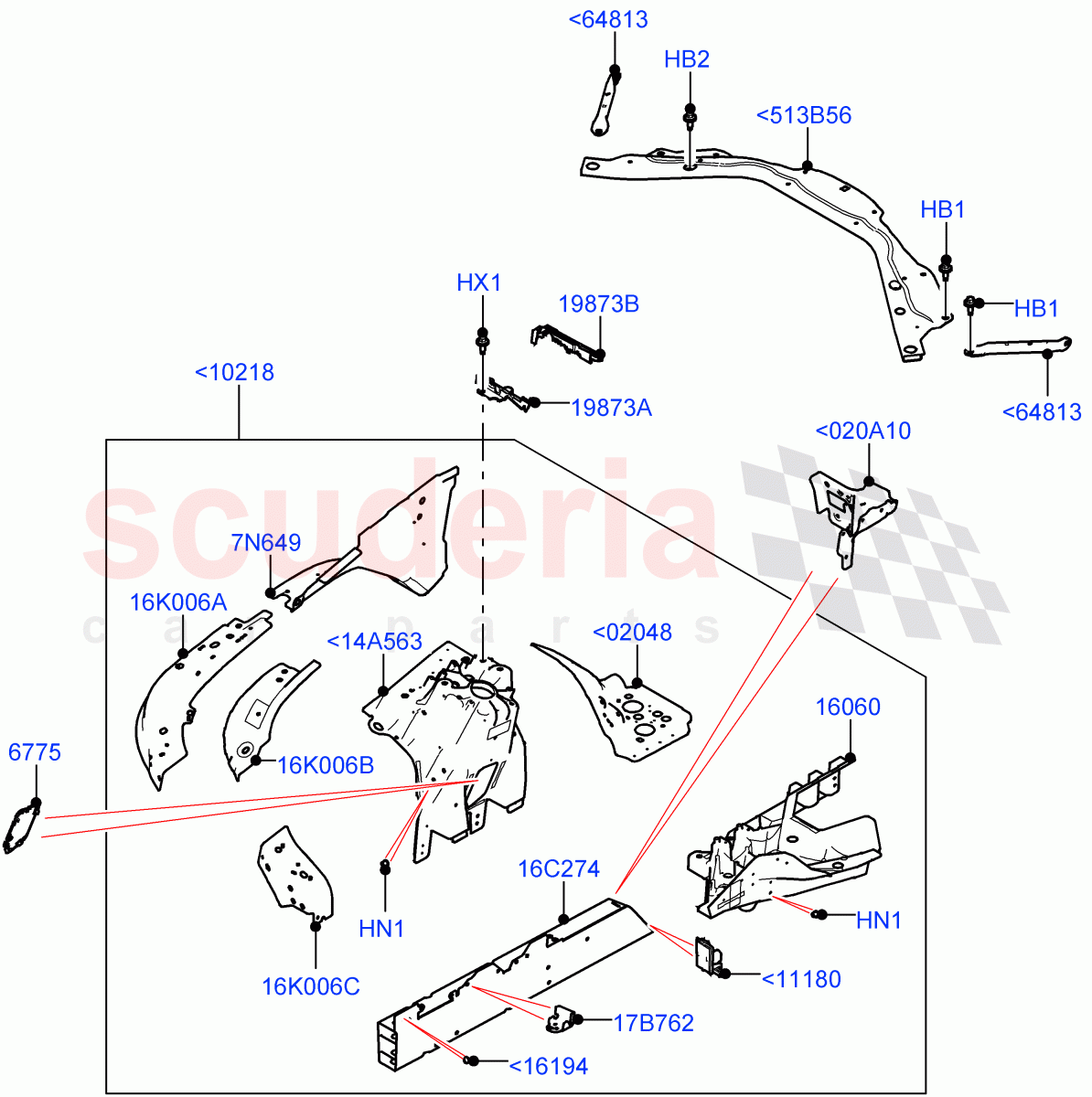

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR037935	BOLT AND WASHER - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR009266	BOLT M6 X 24	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR171035	NUT - RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYQ500070	PIN - RETAINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151506	SHIELD - UNDERBODY - SIDE SILL	Enquire	To Order
	LR151508	SHIELD - SPLASH - WHEELHOUSE	Enquire	To Order
	LR151509	SHIELD - UNDERBODY - SIDE SILL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154694	REINFORCEMENT	Enquire	To Order
	LR154695	REINFORCEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR163252	BRACKET - DASHPANEL	Enquire	To Order
	LR163253	BRACKET - DASHPANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152707	PANEL - WHEELHOUSE - INNER	Enquire	To Order
	LR152708	PANEL - WHEELHOUSE - INNER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR163266	MEMBER - SIDE	Enquire	To Order
	LR163267	MEMBER - SIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154616	INSULATOR - "A" PILLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094293	RIVET - BLIND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152975	STRUT BRACE - FRONT	Enquire	To Order
	LR152997	STRUT BRACE - FRONT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152820	MEMBER - SIDE	Enquire	To Order
	LR152696	MEMBER - SIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154677	BRACKET - BRAKE HOSE SUPPORT	Enquire	To Order
	LR154678	BRACKET - BRAKE HOSE SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153827	ENGINE COMPARTMENT INFILL PANEL	Enquire	To Order
	LR153828	ENGINE COMPARTMENT INFILL PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153829	ENGINE COMPARTMENT INFILL PANEL	Enquire	To Order
	LR153830	ENGINE COMPARTMENT INFILL PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR156165	EXTENSION - DASH PANEL	Enquire	To Order
	LR156164	EXTENSION - DASH PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154510	HOUSING - FRONT SUSPENSION	Enquire	To Order
	LR152754	HOUSING - FRONT SUSPENSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR161108	Brace	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR166527	PANEL	Enquire	To Order
	LR166528	PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154657	BRACKET - FENDER APRON PANEL	Enquire	To Order
	LR154661	BRACKET - FENDER APRON PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR163258	REINFORCEMENT - MEMBER - SIDE	Enquire	To Order
	LR163259	REINFORCEMENT - MEMBER - SIDE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<14A563	LR154510	HOUSING - FRONT SUSPENSION	LR154510 HOUSING - FRONT SUSPENSION RH, Category A	-	1	Enquire
<14A563	LR152754	HOUSING - FRONT SUSPENSION	LR152754 HOUSING - FRONT SUSPENSION LH, Category A	-	1	Enquire
<020A10	LR156165	EXTENSION - DASH PANEL	LR156165 EXTENSION - DASH PANEL LH	-	1	Enquire
<020A10	LR156164	EXTENSION - DASH PANEL	LR156164 EXTENSION - DASH PANEL RH	-	1	Enquire
<513B56	LR161108	Brace	LR161108 Brace	-	1	Enquire
<02048	LR152707	PANEL - WHEELHOUSE - INNER	LR152707 PANEL - WHEELHOUSE - INNER RH	-	1	Enquire
<02048	LR152708	PANEL - WHEELHOUSE - INNER	LR152708 PANEL - WHEELHOUSE - INNER LH	-	1	Enquire
<10218	LR163266	MEMBER - SIDE	LR163266 MEMBER - SIDE RH, Category A	-	1	Enquire
<10218	LR163267	MEMBER - SIDE	LR163267 MEMBER - SIDE LH, Category A	-	1	Enquire
<11180	LR154616	INSULATOR - "A" PILLAR	LR154616 INSULATOR - "A" PILLAR RH/LH	-	2	Enquire
<16194	LR094293	RIVET - BLIND	LR094293 RIVET - BLIND 6.5 X 23.7MM	-	-	Enquire
<64813	LR152975	STRUT BRACE - FRONT	LR152975 STRUT BRACE - FRONT RH	-	1	Enquire
<64813	LR152997	STRUT BRACE - FRONT	LR152997 STRUT BRACE - FRONT LH	-	1	Enquire
HB1	LR037935	BOLT AND WASHER - HEX.HEAD	LR037935 BOLT AND WASHER - HEX.HEAD Brace, Hexagonal Head, M10 X 25MM	-	4	Enquire
HB2	LR009266	BOLT M6 X 24	LR009266 BOLT M6 X 24 Bolt And Washer, Brace, Hexagonal Head, M6 X 24MM	-	2	Enquire
HN1	LR171035	NUT - RIVET	LR171035 NUT - RIVET M6 x 15, Rivet Nut	-	-	Enquire
HX1	RYQ500070	PIN - RETAINING	RYQ500070 PIN - RETAINING 6.3 X 22MM, Push Pin	-	4	Enquire
7N649	LR163252	BRACKET - DASHPANEL	LR163252 BRACKET - DASHPANEL RH	-	1	Enquire
7N649	LR163253	BRACKET - DASHPANEL	LR163253 BRACKET - DASHPANEL LH	-	1	Enquire
16C274	LR152820	MEMBER - SIDE	LR152820 MEMBER - SIDE RH, Front	-	1	Enquire
16C274	LR152696	MEMBER - SIDE	LR152696 MEMBER - SIDE LH, Front	-	1	Enquire
16K006A	LR166527	PANEL	LR166527 PANEL RH, Upper	-	1	Enquire
16K006A	LR166528	PANEL	LR166528 PANEL LH, Upper	-	1	Enquire
16K006B	LR154657	BRACKET - FENDER APRON PANEL	LR154657 BRACKET - FENDER APRON PANEL RH, Lower	-	1	Enquire
16K006B	LR154661	BRACKET - FENDER APRON PANEL	LR154661 BRACKET - FENDER APRON PANEL LH, Lower	-	1	Enquire
16K006C	LR163258	REINFORCEMENT - MEMBER - SIDE	LR163258 REINFORCEMENT - MEMBER - SIDE RH	-	1	Enquire
16K006C	LR163259	REINFORCEMENT - MEMBER - SIDE	LR163259 REINFORCEMENT - MEMBER - SIDE LH	-	1	Enquire
17B762	LR154677	BRACKET - BRAKE HOSE SUPPORT	LR154677 BRACKET - BRAKE HOSE SUPPORT RH	-	1	Enquire
17B762	LR154678	BRACKET - BRAKE HOSE SUPPORT	LR154678 BRACKET - BRAKE HOSE SUPPORT LH	-	1	Enquire
6775	LR151506	SHIELD - UNDERBODY - SIDE SILL	LR151506 SHIELD - UNDERBODY - SIDE SILL 3.0L AJ20P6 Petrol High / RH	-	1	Enquire
6775	LR151508	SHIELD - SPLASH - WHEELHOUSE	LR151508 SHIELD - SPLASH - WHEELHOUSE 3.0L AJ20P6 Petrol High / LH	-	1	Enquire
6775	LR151509	SHIELD - UNDERBODY - SIDE SILL	LR151509 SHIELD - UNDERBODY - SIDE SILL 4.4 V8 Turbo Petrol (NC10) / LH	-	1	Enquire
16060	LR154694	REINFORCEMENT	LR154694 REINFORCEMENT RH, Rear	-	1	Enquire
16060	LR154695	REINFORCEMENT	LR154695 REINFORCEMENT LH, Rear	-	1	Enquire
19873A	LR153827	ENGINE COMPARTMENT INFILL PANEL	LR153827 ENGINE COMPARTMENT INFILL PANEL RH	-	1	Enquire
19873A	LR153828	ENGINE COMPARTMENT INFILL PANEL	LR153828 ENGINE COMPARTMENT INFILL PANEL LH	-	1	Enquire
19873B	LR153829	ENGINE COMPARTMENT INFILL PANEL	LR153829 ENGINE COMPARTMENT INFILL PANEL RH	-	1	Enquire
19873B	LR153830	ENGINE COMPARTMENT INFILL PANEL	LR153830 ENGINE COMPARTMENT INFILL PANEL LH	-	1	Enquire
