Rear Doors, Hinges & Weatherstrips (Weatherstrips And Seals) of Land Rover Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10]

View All

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] - Rear Doors, Hinges & Weatherstrips (Weatherstrips And Seals)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR153198	MOULDING - DOOR WINDOW FRAME	$56.54	To Order
	LR153199	MOULDING - DOOR WINDOW FRAME	$59.70	To Order
	LR153196	MOULDING - DOOR WINDOW FRAME	$56.54	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR161140	SEAL - DOOR FRONT AND REAR	$93.45	To Order
	LR161141	SEAL - DOOR FRONT AND REAR	$92.06	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153200	RUN - DOOR GLASS	$146.79	To Order
	LR153201	RUN - DOOR GLASS	$148.95	To Order
	LR153202	RUN - DOOR GLASS	$146.79	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR164965	WEATHERSTRIP - DOOR BELT	$48.16	To Order
	LR164966	WEATHERSTRIP - DOOR BELT	$51.30	To Order
	LR164967	WEATHERSTRIP - DOOR BELT	$48.16	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR153188	WEATHERSTRIP - DOOR OPENING	$122.07	To Order
	LR153189	WEATHERSTRIP - DOOR OPENING	$122.07	To Order
	LR153190	WEATHERSTRIP - DOOR OPENING	$146.12	To Order

...and 13 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR161142	SEAL - DOOR FRONT AND REAR	$96.17	To Order
	LR161143	SEAL - DOOR FRONT AND REAR	$104.51	To Order

View All

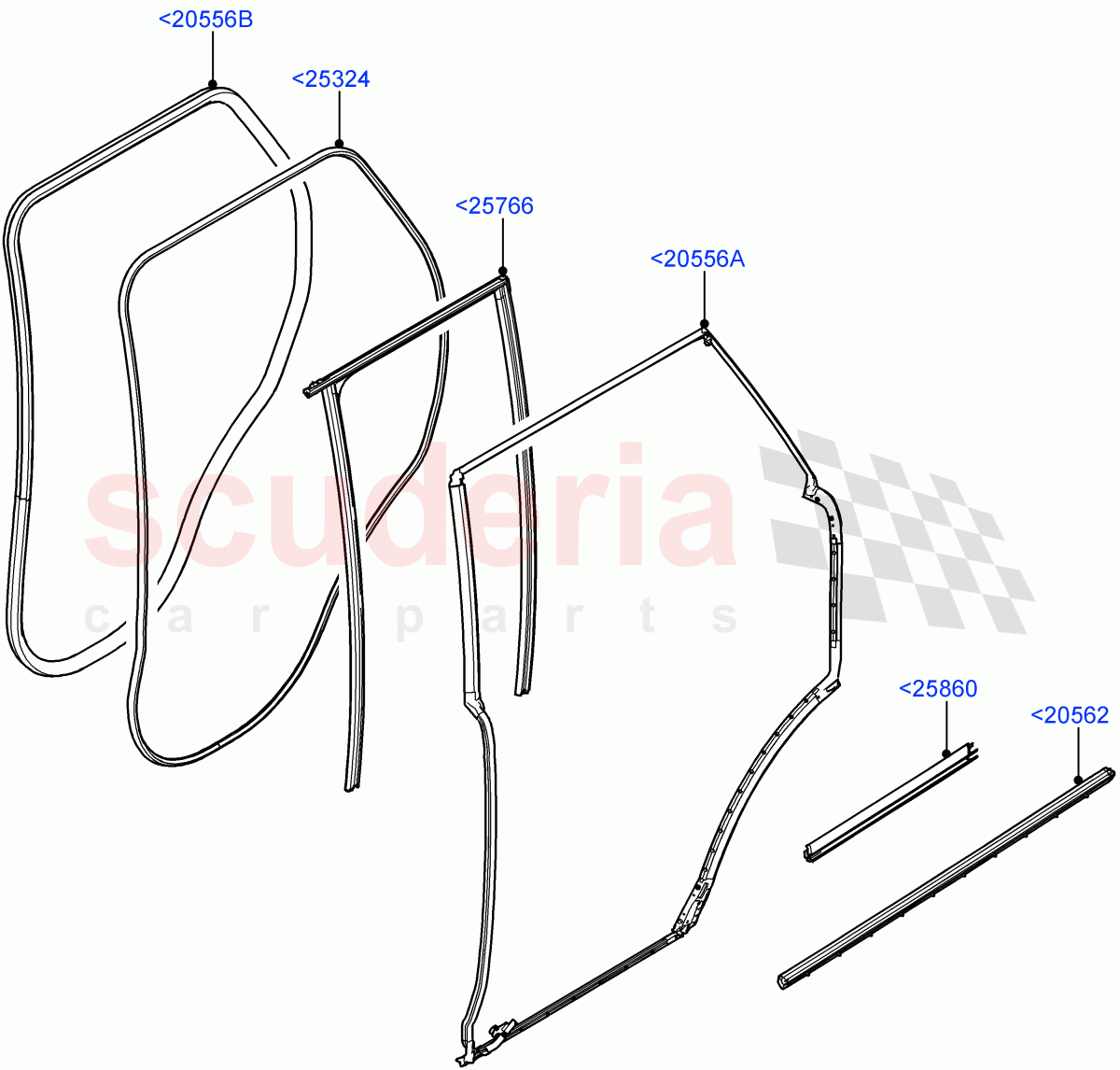

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<20556A	LR153188	WEATHERSTRIP - DOOR OPENING	LR153188 WEATHERSTRIP - DOOR OPENING Soft Door Close, Standard Wheelbase / RH / To: NA000675	$122.07	1
<20556A	LR153189	WEATHERSTRIP - DOOR OPENING	LR153189 WEATHERSTRIP - DOOR OPENING Less Side Door Power, Long Wheelbase / RH / To: NA000675	$122.07	1
<20556A	LR153190	WEATHERSTRIP - DOOR OPENING	LR153190 WEATHERSTRIP - DOOR OPENING Soft Dr Close w/Pwr Rr Opn/Cls, Standard Wheelbase / RH / To: NA000675	$146.12	1
<20556A	LR153191	WEATHERSTRIP - DOOR OPENING	LR153191 WEATHERSTRIP - DOOR OPENING Long Wheelbase, Soft Dr Close w/Pwr Rr Opn/Cls / RH / To: NA000675	$146.12	1
<20556A	LR153192	WEATHERSTRIP - DOOR OPENING	LR153192 WEATHERSTRIP - DOOR OPENING Less Side Door Power, Standard Wheelbase / LH / To: NA000675	$122.07	1
<20556A	LR153193	WEATHERSTRIP - DOOR OPENING	LR153193 WEATHERSTRIP - DOOR OPENING Long Wheelbase, Soft Door Close / LH / To: NA000675	$122.07	1
<20556A	LR153194	WEATHERSTRIP - DOOR OPENING	LR153194 WEATHERSTRIP - DOOR OPENING Soft Dr Close w/Pwr Rr Opn/Cls, Standard Wheelbase / LH / To: NA000675	$146.12	1
<20556A	LR153195	WEATHERSTRIP - DOOR OPENING	LR153195 WEATHERSTRIP - DOOR OPENING Long Wheelbase, Soft Dr Close w/Pwr Rr Opn/Cls / LH / To: NA000675	$146.12	1
<20556A	LR174390	Seal	LR174390 Seal Less Side Door Power, Standard Wheelbase / RH / From: NA000676	$115.05	1
<20556A	LR174391	Seal	LR174391 Seal Less Side Door Power, Long Wheelbase / RH / From: NA000676	$115.05	1
<20556A	LR174392	Seal	LR174392 Seal Soft Dr Close w/Pwr Rr Opn/Cls, Standard Wheelbase / RH / From: NA000676	$137.73	1
<20556A	LR174393	Seal	LR174393 Seal Long Wheelbase, Soft Dr Close w/Pwr Rr Opn/Cls / RH / From: NA000676	$137.73	1
<20556A	LR174394	Seal	LR174394 Seal Soft Door Close, Standard Wheelbase / LH / From: NA000676	$115.05	1
<20556A	LR174395	Seal	LR174395 Seal Less Side Door Power, Long Wheelbase / LH / From: NA000676	$115.05	1
<20556A	LR174397	Seal	LR174397 Seal Long Wheelbase, Soft Dr Close w/Pwr Rr Opn/Cls / LH / From: NA000676	$137.73	1
<20556A	LR174396	Seal	LR174396 Seal Soft Dr Close w/Pwr Rr Opn/Cls, Standard Wheelbase / LH / From: NA000676	$137.73	1
<20556B	LR161142	SEAL - DOOR FRONT AND REAR	LR161142 SEAL - DOOR FRONT AND REAR Standard Wheelbase / RH/LH, Secondary	$96.17	2
<20556B	LR161143	SEAL - DOOR FRONT AND REAR	LR161143 SEAL - DOOR FRONT AND REAR Long Wheelbase / RH/LH, Secondary	$104.51	2
<20562	LR153198	MOULDING - DOOR WINDOW FRAME	LR153198 MOULDING - DOOR WINDOW FRAME Standard Wheelbase / LH, Outer / To: NA000675	$56.54	1
<20562	LR153199	MOULDING - DOOR WINDOW FRAME	LR153199 MOULDING - DOOR WINDOW FRAME Long Wheelbase / LH, Outer / To: NA000675	$59.70	1
<20562	LR153196	MOULDING - DOOR WINDOW FRAME	LR153196 MOULDING - DOOR WINDOW FRAME Standard Wheelbase / RH, Outer / To: NA000675	$56.54	1
<20562	LR153197	MOULDING - DOOR WINDOW FRAME	LR153197 MOULDING - DOOR WINDOW FRAME Long Wheelbase / RH, Outer / To: NA000675	$59.70	1
<20562	LR174398	Weatherstrip - Door Belt	LR174398 Weatherstrip - Door Belt Standard Wheelbase / RH, Outer / From: NA000676	$53.28	1
<20562	LR174399	Weatherstrip - Door Belt	LR174399 Weatherstrip - Door Belt Long Wheelbase / RH, Outer / From: NA000676	$56.24	1
<20562	LR174400	Weatherstrip - Door Belt	LR174400 Weatherstrip - Door Belt Standard Wheelbase / LH, Outer / From: NA000676	$53.28	1
<20562	LR174401	Weatherstrip - Door Belt	LR174401 Weatherstrip - Door Belt Long Wheelbase / LH, Outer / From: NA000676	$56.24	1
<25324	LR161140	SEAL - DOOR FRONT AND REAR	LR161140 SEAL - DOOR FRONT AND REAR Standard Wheelbase / Primary Seal, RH/LH	$93.45	2
<25324	LR161141	SEAL - DOOR FRONT AND REAR	LR161141 SEAL - DOOR FRONT AND REAR Long Wheelbase / Primary Seal, RH/LH	$92.06	2
<25766	LR153200	RUN - DOOR GLASS	LR153200 RUN - DOOR GLASS Standard Wheelbase / RH / To: NA000675	$146.79	1
<25766	LR153201	RUN - DOOR GLASS	LR153201 RUN - DOOR GLASS Long Wheelbase / RH / To: NA000675	$148.95	1
<25766	LR153202	RUN - DOOR GLASS	LR153202 RUN - DOOR GLASS Standard Wheelbase / LH / To: NA000675	$146.79	1
<25766	LR153203	RUN - DOOR GLASS	LR153203 RUN - DOOR GLASS Long Wheelbase / LH / To: NA000675	$143.93	1
<25766	LR174068	Run - Door Glass	LR174068 Run - Door Glass Standard Wheelbase / RH / From: NA000676	$135.76	1
<25766	LR174070	Run - Door Glass	LR174070 Run - Door Glass Long Wheelbase / RH / From: NA000676	$137.76	1
<25766	LR174071	Run - Door Glass	LR174071 Run - Door Glass Standard Wheelbase / LH / From: NA000676	$135.76	1
<25766	LR174073	Run - Door Glass	LR174073 Run - Door Glass Long Wheelbase / LH / From: NA000676	$137.76	1
<25860	LR164965	WEATHERSTRIP - DOOR BELT	LR164965 WEATHERSTRIP - DOOR BELT Standard Wheelbase / RH, Inner	$48.16	1
<25860	LR164966	WEATHERSTRIP - DOOR BELT	LR164966 WEATHERSTRIP - DOOR BELT Long Wheelbase / RH, Inner	$51.30	1
<25860	LR164967	WEATHERSTRIP - DOOR BELT	LR164967 WEATHERSTRIP - DOOR BELT Standard Wheelbase / LH, Inner	$48.16	1
<25860	LR164968	WEATHERSTRIP - DOOR BELT	LR164968 WEATHERSTRIP - DOOR BELT Long Wheelbase / LH, Inner	$51.30	1
