Splash And Heat Shields (Middle And Rear Section) of Land Rover Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10]

View All

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] - Splash And Heat Shields (Middle And Rear Section)

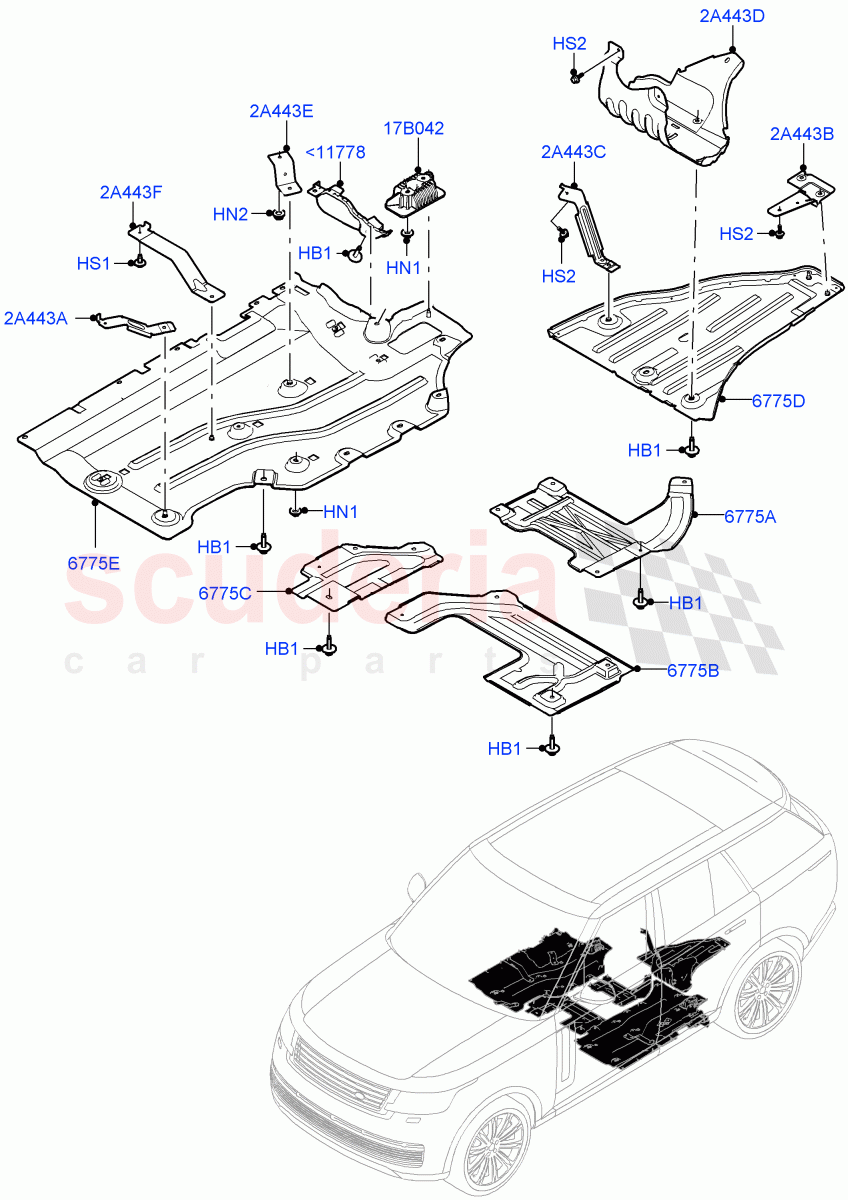

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR158254	BOLT	Enquire	To Order
	LR158254	BOLT	Enquire	To Order
	LR158254	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500310	NUT AND WASHER - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500350	NUT - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	KYG500380	SCREW AND WASHER - HEX HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122583	SCREW	Enquire	To Order
	LR122583	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153593	SHIELD - TRANSMISSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153595	SHIELD - TRANSMISSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151510	SHIELD - REAR FLOOR PAN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151501	SHIELD - FLOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151492	SHIELD - UNDERBODY - SIDE SILL	Enquire	To Order
	LR151493	SHIELD - UNDERBODY - SIDE SILL	Enquire	To Order
	LR151494	SHIELD - UNDERBODY - SIDE SILL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR151489	DEFLECTOR - AIR	Enquire	To Order
	LR151490	DEFLECTOR - AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153567	PAD - JACKING LOCATION	Enquire	To Order
	LR153568	PAD - JACKING LOCATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151511	BRACKET - SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153517	BRACKET - SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153516	BRACKET - SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153519	BRACKET - SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151498	BRACKET - FUEL TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151497	BRACKET - FUEL TANK	Enquire	To Order
	LR151496	BRACKET - FUEL TANK	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<11778	LR151489	DEFLECTOR - AIR	LR151489 DEFLECTOR - AIR ULEV70 Emission / RH	-	1	Enquire
<11778	LR151490	DEFLECTOR - AIR	LR151490 DEFLECTOR - AIR SULEV Requirements / LH	-	1	Enquire
HB1	LR158254	BOLT	LR158254 BOLT M6 X 24MM, Shield, Side	-	8	Enquire
HB1	LR158254	BOLT	LR158254 BOLT Air Deflector, M6 X 24MM	-	4	Enquire
HB1	LR158254	BOLT	LR158254 BOLT M6 X 24MM, Rear, Shield	-	5	Enquire
HN1	RYH500310	NUT AND WASHER - HEX.	RYH500310 NUT AND WASHER - HEX. Hexagonal Head, M6, Nut And Washer, Pad	-	4	Enquire
HN2	RYH500350	NUT - SPECIAL	RYH500350 NUT - SPECIAL M8	-	2	Enquire
HS1	KYG500380	SCREW AND WASHER - HEX HEAD	KYG500380 SCREW AND WASHER - HEX HEAD Hexagonal Head, M6 X 13.5MM	-	2	Enquire
HS2	LR122583	SCREW	LR122583 SCREW Center Rear, Hexagonal Head, M6 X 16	-	3	Enquire
HS2	LR122583	SCREW	LR122583 SCREW Hexagonal Head, M6 X 16, Rear	-	1	Enquire
2A443A	LR151511	BRACKET - SHIELD	LR151511 BRACKET - SHIELD 4.4 V8 Turbo Petrol (NC10) / Support	-	1	Enquire
2A443B	LR153517	BRACKET - SUPPORT	LR153517 BRACKET - SUPPORT 3.0L AJ20P6 Petrol High, Beijing 6 Petrol Emission / Support	-	1	Enquire
2A443C	LR153516	BRACKET - SUPPORT	LR153516 BRACKET - SUPPORT 3.0L AJ20P6 Petrol High, EU6D - Final (Petrol) Emission / Support	-	1	Enquire
2A443D	LR153519	BRACKET - SUPPORT	LR153519 BRACKET - SUPPORT Support	-	1	Enquire
2A443E	LR151498	BRACKET - FUEL TANK	LR151498 BRACKET - FUEL TANK 4.4 V8 Turbo Petrol (NC10) / RH/LH, Support	-	2	Enquire
2A443F	LR151497	BRACKET - FUEL TANK	LR151497 BRACKET - FUEL TANK 3.0L AJ20D6 Diesel High, Long Wheelbase / LH, Support	-	1	Enquire
2A443F	LR151496	BRACKET - FUEL TANK	LR151496 BRACKET - FUEL TANK 3.0L AJ20D6 Diesel High, Long Wheelbase / RH, Support	-	1	Enquire
17B042	LR153567	PAD - JACKING LOCATION	LR153567 PAD - JACKING LOCATION RH	-	1	Enquire
17B042	LR153568	PAD - JACKING LOCATION	LR153568 PAD - JACKING LOCATION LH	-	1	Enquire
6775A	LR153593	SHIELD - TRANSMISSION	LR153593 SHIELD - TRANSMISSION 4.4 V8 Turbo Petrol (NC10), Beijing 6 Petrol Emission	-	1	Enquire
6775B	LR153595	SHIELD - TRANSMISSION	LR153595 SHIELD - TRANSMISSION 3.0L AJ20D6 Diesel High, SULEV Requirements	-	1	Enquire
6775C	LR151510	SHIELD - REAR FLOOR PAN	LR151510 SHIELD - REAR FLOOR PAN 4.4 V8 Turbo Petrol (NC10), SULEV Requirements	-	1	Enquire
6775D	LR151501	SHIELD - FLOOR	LR151501 SHIELD - FLOOR 3.0L AJ20D6 Diesel High, Beijing 6 Petrol Emission	-	1	Enquire
6775E	LR151492	SHIELD - UNDERBODY - SIDE SILL	LR151492 SHIELD - UNDERBODY - SIDE SILL 3.0L AJ20P6 Petrol High, Standard Wheelbase / RH	-	1	Enquire
6775E	LR151493	SHIELD - UNDERBODY - SIDE SILL	LR151493 SHIELD - UNDERBODY - SIDE SILL 3.0L AJ20P6 Petrol High, Long Wheelbase / RH	-	1	Enquire
6775E	LR151494	SHIELD - UNDERBODY - SIDE SILL	LR151494 SHIELD - UNDERBODY - SIDE SILL 3.0L AJ20P6 Petrol High, Standard Wheelbase / LH	-	1	Enquire
6775E	LR151495	SHIELD - UNDERBODY - SIDE SILL	LR151495 SHIELD - UNDERBODY - SIDE SILL 4.4 V8 Turbo Petrol (NC10), Long Wheelbase / LH	-	1	Enquire
