Windscreen Washer (Changsu (China)) ((V) Fromeg000001)

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Windscreen Washer (Changsu (China)) ((V) FROMEG000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR007064 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
LR027687 GROMMET - WINDSHIELD WASHER PUMP Enquire To Order
Photo Part No Description Price (each) Stock
DMJ500020 GROMMET - WATER RESERVOIR Enquire To Order
Photo Part No Description Price (each) Stock
LR006025 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR029523 SCREW - PAN - TORX Enquire To Order
Photo Part No Description Price (each) Stock
FYP106392 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR050779 JET - WINDSHIELD WASHER Enquire To Order
LR050780 JET - WINDSHIELD WASHER Enquire To Order
Photo Part No Description Price (each) Stock
LR025760 RESERVOIR - WINDSHIELD WASHER Enquire To Order
LR025755 WINDSHIELD WASHER Enquire To Order
Photo Part No Description Price (each) Stock
LR051421 HOSE - REAR WASHER Enquire To Order
LR076069 HOSE - REAR WASHER Enquire To Order
Photo Part No Description Price (each) Stock
LR025834 HOSE - REAR WASHER Enquire To Order
Photo Part No Description Price (each) Stock
LR013950 MOTOR AND PUMP - HEADLAMP WASHER (NH) Enquire To Order
Photo Part No Description Price (each) Stock
LR027685 MOTOR AND PUMP - FRONT/REAR WASHER Enquire To Order
LR077377 MOTOR AND PUMP - FRONT/REAR WASHER Enquire To Order
LR083803 MOTOR AND PUMP - FRONT/REAR WASHER Enquire To Order
Photo Part No Description Price (each) Stock
LR013951 MOTOR AND PUMP - FRONT/REAR WASHER Enquire To Order
Photo Part No Description Price (each) Stock
LR002266 CAP - FILLER Enquire To Order
Photo Part No Description Price (each) Stock
DMI500010 SENSOR - WASHER FLUID LEVEL Enquire To Order
LR111378 SENSOR - WASHER FLUID LEVEL Enquire To Order
Photo Part No Description Price (each) Stock
DMS500010 FILTER - WATER Enquire To Order
Photo Part No Description Price (each) Stock
LR085631 HOSE - WINDSHIELD WASHER Enquire To Order
Photo Part No Description Price (each) Stock
LR025825 HOSE - FILLER PIPE Enquire To Order
LR079194 HOSE - FILLER PIPE Enquire To Order
LR084365 HOSE - FILLER PIPE Enquire To Order
Photo Part No Description Price (each) Stock
LR024205 HOSE - WINDSHIELD WASHER Enquire To Order
Photo Part No Description Price (each) Stock
LR024204 HOSE - WINDSHIELD WASHER Enquire To Order
View All

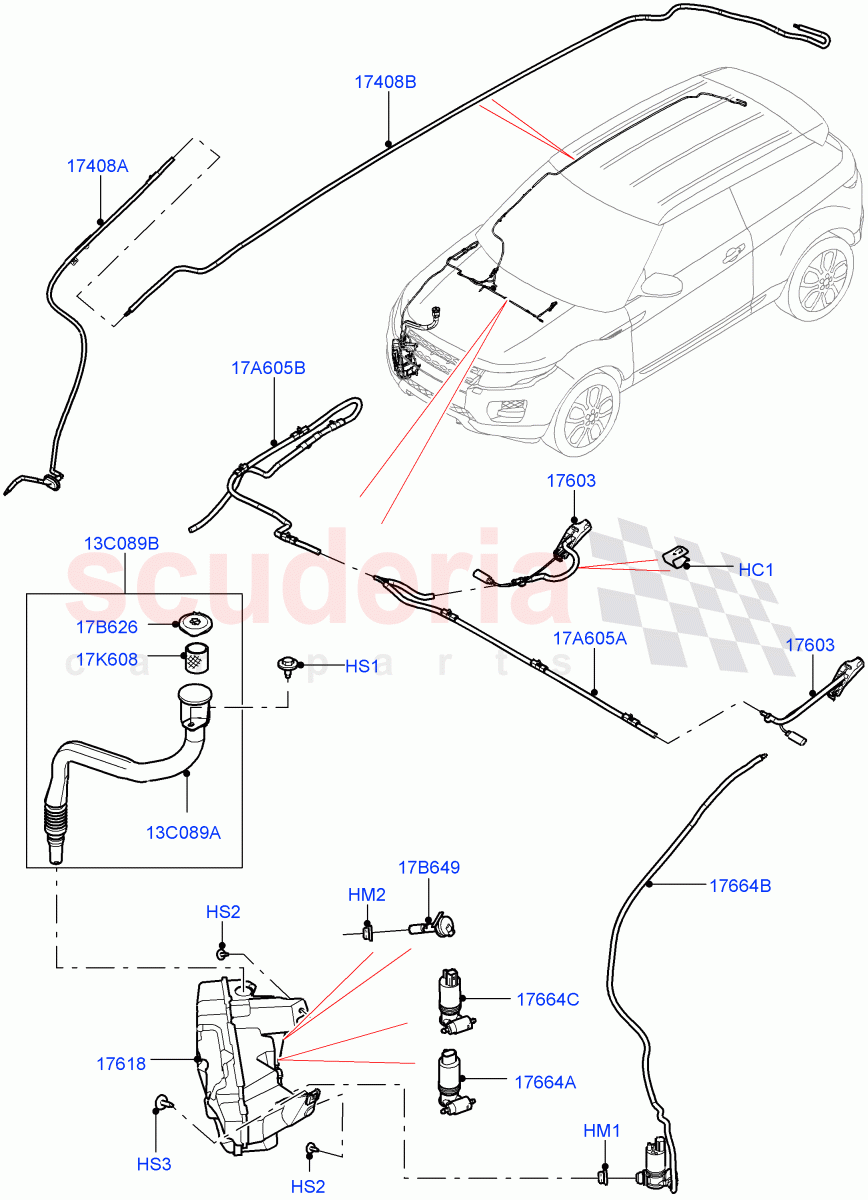

Windscreen Washer (Changsu (China)) ((V) FROMEG000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR007064
CLIP
With Heated Washer Jet / 8 x 8 x 4MM / From: EG000001 		- 2 Enquire
HM1 LR027687
GROMMET - WINDSHIELD WASHER PUMP
Windshield Washer Motor / From: EG000001 		- 1 Enquire
HM2 DMJ500020
GROMMET - WATER RESERVOIR
With Headlamp Power Wash / With Low Level Sensor / From: EG000001 		- 1 Enquire
HS1 LR006025
BOLT
Bolt And Washer, M6 X 15 Hex / From: EG000001 		- 4 Enquire
HS2 LR029523
SCREW - PAN - TORX
M6 X 14MM / From: EG000001 		- 2 Enquire
HS3 FYP106392
SCREW
M6 / From: EG000001 		- 1 Enquire
13C089A LR085631
HOSE - WINDSHIELD WASHER
From: HG149558 		- 1 Enquire
13C089B LR025825
HOSE - FILLER PIPE
From: EG000001 / To: GG131807 		- 1 Enquire
13C089B LR079194
HOSE - FILLER PIPE
From: GG131808 / To: GG149557 		- 1 Enquire
13C089B LR084365
HOSE - FILLER PIPE
From: HG149558 		- 1 Enquire
17A605A LR024205
HOSE - WINDSHIELD WASHER
Less Heated Washer Jet / From: EG000001 		- 1 Enquire
17A605B LR024204
HOSE - WINDSHIELD WASHER
Less Heated Washer Jet / From: EG000001 		- 1 Enquire
17B626 LR002266
CAP - FILLER
From: EG000001 		- 1 Enquire
17B649 DMI500010
SENSOR - WASHER FLUID LEVEL
With Headlamp Power Wash / Low Level / From: EG000001 / To: HG161787 		- 1 Enquire
17B649 LR111378
SENSOR - WASHER FLUID LEVEL
With Headlamp Power Wash / Low Level / From: HG161788 		- 1 Enquire
17K608 DMS500010
FILTER - WATER
From: EG000001 		- 1 Enquire
17408A LR051421
HOSE - REAR WASHER
From: EG000001 / To: FG118176 		- 1 Enquire
17408A LR076069
HOSE - REAR WASHER
From: FG118177 		- 1 Enquire
17408B LR025834
HOSE - REAR WASHER
From: EG000001 		- 1 Enquire
17603 LR050779
JET - WINDSHIELD WASHER
With Heated Washer Jet / From: EG000001 		- 2 Enquire
17603 LR050780
JET - WINDSHIELD WASHER
Less Heated Washer Jet / From: EG000001 		- 2 Enquire
17618 LR025760
RESERVOIR - WINDSHIELD WASHER
With Headlamp Power Wash / From: EG000001 		- 1 Enquire
17618 LR025755
WINDSHIELD WASHER
Less Headlamp Washer / From: EG000001 		- 1 Enquire
17664A LR013950
MOTOR AND PUMP - HEADLAMP WASHER (NH)
With Headlamp Power Wash / From: EG000001 		- 1 Enquire
17664B LR027685
MOTOR AND PUMP - FRONT/REAR WASHER
With Front And Rear Wiper/Washer, With Hose / From: EG000001 / To: FG118607 		- 1 Enquire
17664B LR077377
MOTOR AND PUMP - FRONT/REAR WASHER
With Front And Rear Wiper/Washer, With Hose / From: FG118608 / To: GG132032 		- 1 Enquire
17664B LR083803
MOTOR AND PUMP - FRONT/REAR WASHER
With Front And Rear Wiper/Washer, With Hose / From: GG132033 		- 1 Enquire
17664C LR013951
MOTOR AND PUMP - FRONT/REAR WASHER
Less Hose, With Front And Rear Wiper/Washer / From: EG000001 		- 1 Enquire
