Front Doors, Hinges & Weatherstrips (Weatherstrips And Seals) (3 Door, Halewood (UK), 5 Door) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Front Doors, Hinges & Weatherstrips (Weatherstrips And Seals) (3 Door, Halewood (UK), 5 Door)

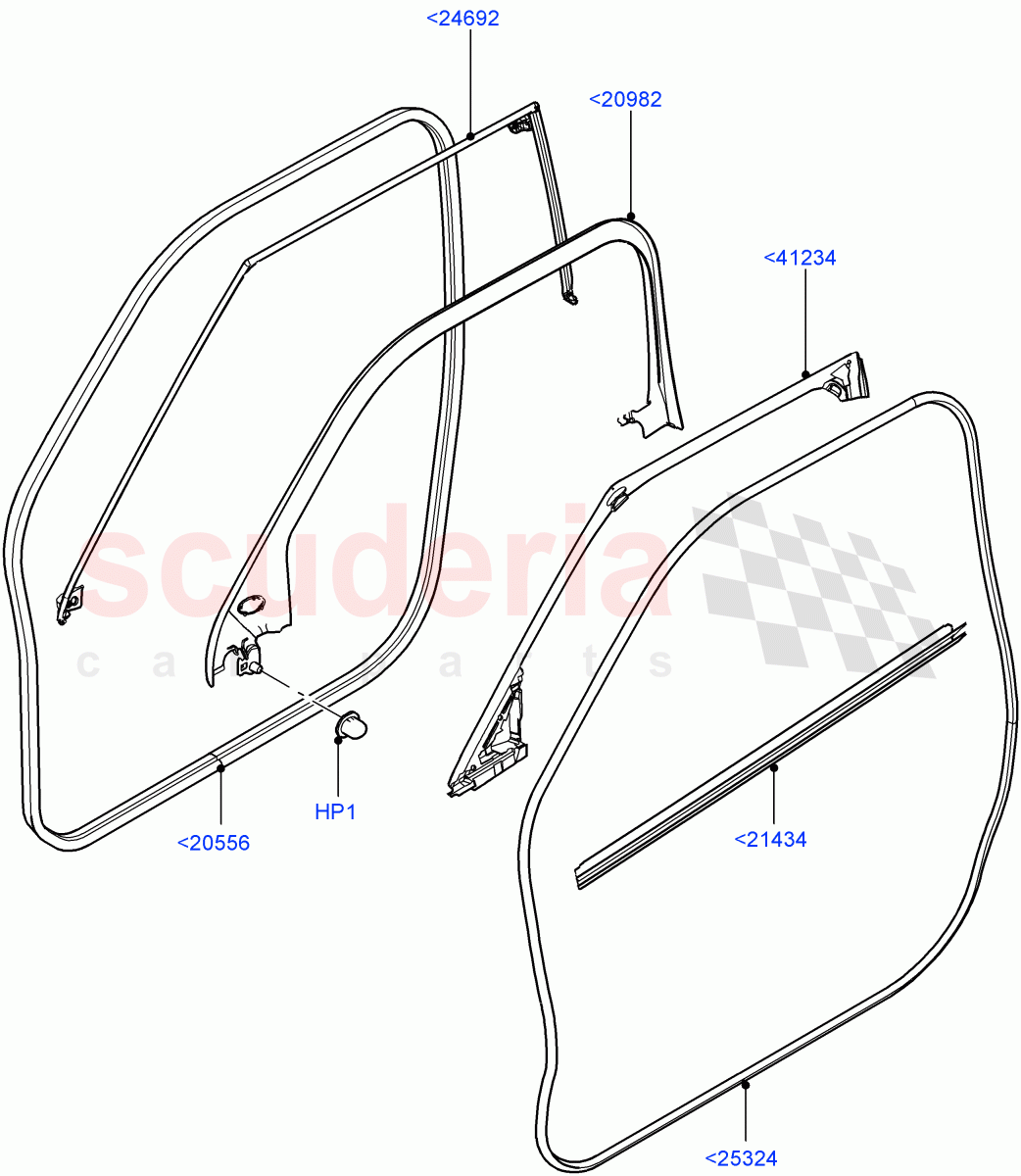

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR028936	PLUG - DOOR TRIM PANEL	$1.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027223	SEAL - DOOR FRONT AND REAR	$113.55	To Order
	LR033103	SEAL - DOOR FRONT AND REAR	$106.31	To Order
	LR048307	SEAL - DOOR FRONT AND REAR	$113.55	To Order

Photo	Part No	Description	Price (each)	Stock
	LR026453	MOULDING - DOOR WINDOW FRAME	$47.91	To Order
	LR026456	MOULDING - DOOR WINDOW FRAME	$47.91	To Order
	LR026454	MOULDING - DOOR WINDOW FRAME	$47.91	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR027346	WEATHERSTRIP - DOOR BELT	$62.29	To Order
	LR027348	WEATHERSTRIP - DOOR BELT	$62.29	To Order
	LR027347	WEATHERSTRIP - DOOR BELT	$58.31	To Order

...and 9 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR026449	SEAL - DOOR FRONT AND REAR	$50.29	To Order
	LR026451	SEAL - DOOR FRONT AND REAR	$79.03	To Order
	LR026450	SEAL - DOOR FRONT AND REAR	$50.29	To Order

...and 9 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR026445	SEAL - DOOR FRONT AND REAR	$89.20	To Order
	LR026447	SEAL - DOOR FRONT AND REAR	$99.71	IN STOCK
	LR026447	SEAL - DOOR FRONT AND REAR	$99.71	IN STOCK

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR027336	INSULATOR - DOOR OUTER PANEL	$43.11	To Order
	LR027338	INSULATOR - DOOR OUTER PANEL	$97.67	To Order
	LR027337	INSULATOR - DOOR OUTER PANEL	$43.11	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<20556	LR027223	SEAL - DOOR FRONT AND REAR	LR027223 SEAL - DOOR FRONT AND REAR 5 Door / On Body / To: DH752233	$113.55	2
<20556	LR033103	SEAL - DOOR FRONT AND REAR	LR033103 SEAL - DOOR FRONT AND REAR 3 Door / On Body	$106.31	2
<20556	LR048307	SEAL - DOOR FRONT AND REAR	LR048307 SEAL - DOOR FRONT AND REAR 5 Door / On Body / From: DH752234	$113.55	2
<20982	LR026453	MOULDING - DOOR WINDOW FRAME	LR026453 MOULDING - DOOR WINDOW FRAME 5 Door / RH, Inner	$47.91	1
<20982	LR026456	MOULDING - DOOR WINDOW FRAME	LR026456 MOULDING - DOOR WINDOW FRAME 3 Door / LH, Inner	$47.91	1
<20982	LR026454	MOULDING - DOOR WINDOW FRAME	LR026454 MOULDING - DOOR WINDOW FRAME 5 Door / LH, Inner	$47.91	1
<20982	LR026455	MOULDING - DOOR WINDOW FRAME	LR026455 MOULDING - DOOR WINDOW FRAME 3 Door / RH, Inner	$57.46	1
<21434	LR027346	WEATHERSTRIP - DOOR BELT	LR027346 WEATHERSTRIP - DOOR BELT 5 Door / RH, Inner / To: DH764617	$62.29	1
<21434	LR027348	WEATHERSTRIP - DOOR BELT	LR027348 WEATHERSTRIP - DOOR BELT 3 Door / RH, Inner / To: DH771220	$62.29	1
<21434	LR027347	WEATHERSTRIP - DOOR BELT	LR027347 WEATHERSTRIP - DOOR BELT 5 Door / LH, Inner / To: DH764617	$58.31	1
<21434	LR027349	WEATHERSTRIP - DOOR BELT	LR027349 WEATHERSTRIP - DOOR BELT 3 Door / LH, Inner / To: DH773904	$62.29	1
<21434	LR048290	WEATHERSTRIP - DOOR BELT	LR048290 WEATHERSTRIP - DOOR BELT 5 Door / RH, Inner / From: DH764618 / To: HH171245	$52.20	1
<21434	LR048291	WEATHERSTRIP - DOOR BELT	LR048291 WEATHERSTRIP - DOOR BELT 3 Door / RH, Inner / From: DH771221 / To: HH184327	$61.08	1
<21434	LR048292	WEATHERSTRIP - DOOR BELT	LR048292 WEATHERSTRIP - DOOR BELT 5 Door / LH, Inner / From: DH764618 / To: GH152461	$51.45	1
<21434	LR048293	WEATHERSTRIP - DOOR BELT	LR048293 WEATHERSTRIP - DOOR BELT 3 Door / LH, Inner / From: DH773905 / To: HH173974	$62.29	1
<21434	LR092055	WEATHERSTRIP - DOOR BELT	LR092055 WEATHERSTRIP - DOOR BELT 5 Door / LH, Inner / From: GH152462	$45.26	1
<21434	LR092054	WEATHERSTRIP - DOOR BELT	LR092054 WEATHERSTRIP - DOOR BELT 5 Door / RH, Inner / From: HH171246	$48.37	1
<21434	LR092053	WEATHERSTRIP - DOOR BELT	LR092053 WEATHERSTRIP - DOOR BELT 3 Door / RH, Inner / From: HH184328	$46.96	1
<21434	LR092052	WEATHERSTRIP - DOOR BELT	LR092052 WEATHERSTRIP - DOOR BELT 3 Door / LH, Inner / From: HH173975	$45.29	1
<24692	LR026449	SEAL - DOOR FRONT AND REAR	LR026449 SEAL - DOOR FRONT AND REAR 5 Door / RH, Drip Rail / To: CH607950	$50.29	1
<24692	LR026451	SEAL - DOOR FRONT AND REAR	LR026451 SEAL - DOOR FRONT AND REAR 3 Door / RH, Drip Rail / To: CH613200	$79.03	1
<24692	LR026450	SEAL - DOOR FRONT AND REAR	LR026450 SEAL - DOOR FRONT AND REAR 5 Door / LH, Drip Rail / To: CH607950	$50.29	1
<24692	LR026452	SEAL - DOOR FRONT AND REAR	LR026452 SEAL - DOOR FRONT AND REAR 3 Door / LH, Drip Rail / To: CH614950	$79.03	1
<24692	LR033099	SEAL - DOOR FRONT AND REAR	LR033099 SEAL - DOOR FRONT AND REAR 5 Door / RH, Drip Rail / From: CH607951 / To: DH823641	$48.35	1
<24692	LR033100	SEAL - DOOR FRONT AND REAR	LR033100 SEAL - DOOR FRONT AND REAR 3 Door / RH, Drip Rail / From: CH613201 / To: DH823641	$70.44	1
<24692	LR033101	SEAL - DOOR FRONT AND REAR	LR033101 SEAL - DOOR FRONT AND REAR 5 Door / LH, Drip Rail / From: CH607951 / To: DH823641	$50.29	1
<24692	LR033102	SEAL - DOOR FRONT AND REAR	LR033102 SEAL - DOOR FRONT AND REAR 3 Door / LH, Drip Rail / From: CH614951 / To: DH823641	$68.68	1
<24692	LR052646	SEAL - DOOR FRONT AND REAR	LR052646 SEAL - DOOR FRONT AND REAR 5 Door / RH, Drip Rail / From: DH823642	$67.55	1
<24692	LR052647	SEAL - DOOR FRONT AND REAR	LR052647 SEAL - DOOR FRONT AND REAR 3 Door / RH, Drip Rail / From: DH823642	$84.70	1
<24692	LR052648	SEAL - DOOR FRONT AND REAR	LR052648 SEAL - DOOR FRONT AND REAR 5 Door / LH, Drip Rail / From: DH823642	$65.60	1
<24692	LR052649	SEAL - DOOR FRONT AND REAR	LR052649 SEAL - DOOR FRONT AND REAR 3 Door / LH, Drip Rail / From: DH823642	$84.70	1
<25324	LR026445	SEAL - DOOR FRONT AND REAR	LR026445 SEAL - DOOR FRONT AND REAR 5 Door / RH, On Door	$89.20	1
<25324	LR026447	SEAL - DOOR FRONT AND REAR IN STOCK	LR026447 SEAL - DOOR FRONT AND REAR 3 Door / RH, On Door IN STOCK	$99.71	1
<25324	LR026447	SEAL - DOOR FRONT AND REAR IN STOCK	LR026447 SEAL - DOOR FRONT AND REAR 5 Door / LH, On Door IN STOCK	$99.71	1
<25324	LR026448	SEAL - DOOR FRONT AND REAR IN STOCK	LR026448 SEAL - DOOR FRONT AND REAR 3 Door / LH, On Door IN STOCK	$99.71	1
<41234	LR027336	INSULATOR - DOOR OUTER PANEL	LR027336 INSULATOR - DOOR OUTER PANEL 5 Door / RH, Door Upper	$43.11	1
<41234	LR027338	INSULATOR - DOOR OUTER PANEL	LR027338 INSULATOR - DOOR OUTER PANEL 3 Door / RH, Door Upper	$97.67	1
<41234	LR027337	INSULATOR - DOOR OUTER PANEL	LR027337 INSULATOR - DOOR OUTER PANEL 5 Door / LH, Door Upper	$43.11	1
<41234	LR027339	INSULATOR - DOOR OUTER PANEL	LR027339 INSULATOR - DOOR OUTER PANEL 3 Door / LH, Door Upper	$97.67	1
HP1	LR028936	PLUG - DOOR TRIM PANEL	LR028936 PLUG - DOOR TRIM PANEL 25 X 19 X 0.9MM	$1.36	1

Front Doors, Hinges & Weatherstrips (Weatherstrips And Seals) (3 Door, Halewood (Uk), 5 Door)

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Front Doors, Hinges & Weatherstrips (Weatherstrips And Seals) (3 Door, Halewood (UK), 5 Door)
