Radiator Grille And Front Bumper (Changsu (China)) ((V) FROMGG134738) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Radiator Grille And Front Bumper (Changsu (China)) ((V) FROMGG134738)

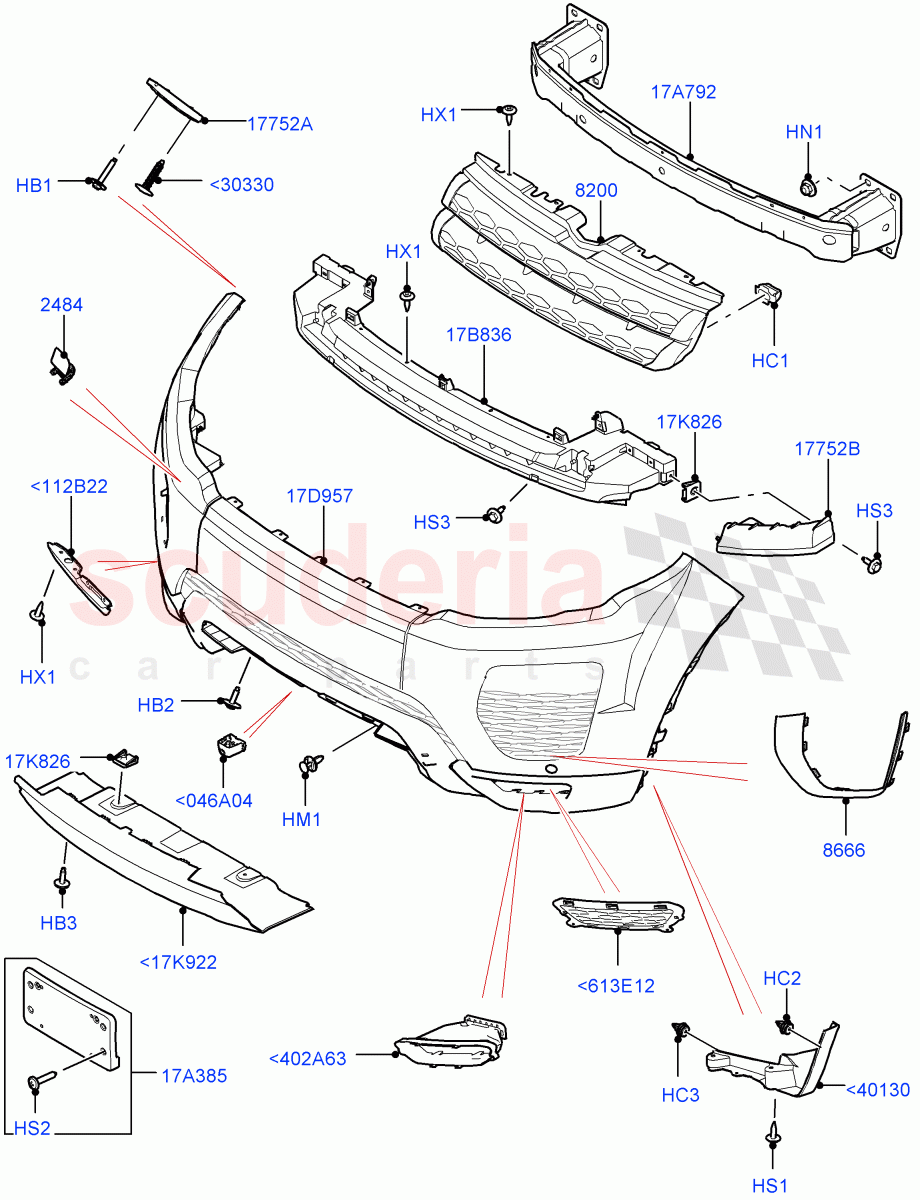

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG500910	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500850	BOLT AND WASHER - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR028941	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018173	CLIP - RETAINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027255	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013135	CLIP - TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ANR2224	HARDWARE - MISCELLANEOUS	Enquire	To Order
	RZM500100	PIN - TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500480	NUT AND WASHER - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CYP100791	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DYP000040	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006025	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYQ500070	PIN - RETAINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036197	CAP - POWERWASH JET	Enquire	To Order
	LR036198	CAP - POWERWASH JET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074252	GRILLE - RADIATOR	Enquire	To Order
	LR069714	GRILLE - RADIATOR	Enquire	To Order
	LR069715	GRILLE - RADIATOR	Enquire	To Order

...and 7 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR071770	MOULDING - BUMPER BAR	Enquire	To Order
	LR071771	MOULDING - BUMPER BAR	Enquire	To Order
	LR071775	MOULDING - BUMPER BAR	Enquire	To Order

...and 11 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR034122	PIN - TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR084849	BRACKET - BUMPER MOUNTING	Enquire	To Order
	LR084851	BRACKET - BUMPER MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034210	BRACKET - BUMPER MOUNTING	Enquire	To Order
	LR034222	BRACKET - BUMPER MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036189	BRACKET - BUMPER MOUNTING	Enquire	To Order
	LR036193	BRACKET - BUMPER MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048313	BRACKET - LICENSE PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR078487	REINFORCEMENT - BUMPER BAR BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038530	MOUNTING BRACKET - FRONT BUMPER	Enquire	To Order
	LR036195	MOUNTING BRACKET - FRONT BUMPER	Enquire	To Order
	LR094157	MOUNTING BRACKET - FRONT BUMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR079533	BUMPER - FRONT	Enquire	To Order
	LR079535	BUMPER - FRONT	Enquire	To Order
	LR079537	BUMPER - FRONT	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR006719	RETAINER - NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR084850	BEZEL - CAMERA	Enquire	To Order
	LR079532	BEZEL - CAMERA	Enquire	To Order
	LR071831	BEZEL - CAMERA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071802	DEFLECTOR - AIR	Enquire	To Order
	LR071805	DEFLECTOR - AIR	Enquire	To Order
	LR071800	DEFLECTOR - AIR	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR110342	COVER - TOW HOOK	Enquire	To Order
	LR071795	COVER - TOW HOOK	Enquire	To Order
	LR071796	COVER - TOW HOOK	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR084847	DUCT - BRAKE CALIPER COOLING	Enquire	To Order
	LR084848	DUCT - BRAKE CALIPER COOLING	Enquire	To Order
	LR071858	DUCT - BRAKE CALIPER COOLING	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR074208	BEZEL - FOG LAMP	Enquire	To Order
	LR079666	BRACKET - FOG LAMP	Enquire	To Order
	LR079667	BRACKET - FOG LAMP	Enquire	To Order

...and 3 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<17K922	LR110342	COVER - TOW HOOK	LR110342 COVER - TOW HOOK Bumper Lower Valance - Black, Tow Eye Cover - Black / Towing Eye / From: GG134738	-	1	Enquire
<17K922	LR071795	COVER - TOW HOOK	LR071795 COVER - TOW HOOK Rear Bmp Lwr Valance - Dark Silver, Tow Eye Cover - Dark Techno Silver / Towing Eye / From: GG134738	-	1	Enquire
<17K922	LR071796	COVER - TOW HOOK	LR071796 COVER - TOW HOOK Rear Bmp Lower Valance - Anthracite, Tow Eye Cover - Anthracite / Towing Eye / From: GG134738	-	1	Enquire
<17K922	LR079014	COVER - TOW HOOK	LR079014 COVER - TOW HOOK Rear Bmp Lwr Valance - White Silver, Tow Eye Cover - White Techno Silver / Towing Eye / From: GG134738	-	1	Enquire
<046A04	LR084850	BEZEL - CAMERA	LR084850 BEZEL - CAMERA Surround Camera System / From: HG149559	-	1	Enquire
<046A04	LR079532	BEZEL - CAMERA	LR079532 BEZEL - CAMERA Surround Camera System / From: GG134738 / To: HG149558	-	1	Enquire
<046A04	LR071831	BEZEL - CAMERA	LR071831 BEZEL - CAMERA Surround Camera System / From: EG000001 / To: GG134737	-	1	Enquire
<112B22	LR071802	DEFLECTOR - AIR	LR071802 DEFLECTOR - AIR Non Sport/Dynamic / RH / From: GG134738	-	1	Enquire
<112B22	LR071805	DEFLECTOR - AIR	LR071805 DEFLECTOR - AIR Non Sport/Dynamic / LH / From: GG134738	-	1	Enquire
<112B22	LR071800	DEFLECTOR - AIR	LR071800 DEFLECTOR - AIR Sport/Dynamic / RH / From: GG134738 / To: HG161787	-	1	Enquire
<112B22	LR071803	DEFLECTOR - AIR	LR071803 DEFLECTOR - AIR Sport/Dynamic / LH / From: GG134738 / To: HG161787	-	1	Enquire
<112B22	LR083891	DEFLECTOR - AIR	LR083891 DEFLECTOR - AIR Sport/Dynamic / RH / From: HG161788	-	1	Enquire
<112B22	LR083892	DEFLECTOR - AIR	LR083892 DEFLECTOR - AIR Sport/Dynamic / LH / From: HG161788	-	1	Enquire
<402A63	LR084847	DUCT - BRAKE CALIPER COOLING	LR084847 DUCT - BRAKE CALIPER COOLING RH / From: HG161788	-	1	Enquire
<402A63	LR084848	DUCT - BRAKE CALIPER COOLING	LR084848 DUCT - BRAKE CALIPER COOLING LH / From: HG161788	-	1	Enquire
<402A63	LR071858	DUCT - BRAKE CALIPER COOLING	LR071858 DUCT - BRAKE CALIPER COOLING RH / From: GG134738 / To: HG149558	-	1	Enquire
<402A63	LR079761	DUCT - BRAKE CALIPER COOLING	LR079761 DUCT - BRAKE CALIPER COOLING RH / From: HG149559 / To: HG161787	-	1	Enquire
<402A63	LR071859	DUCT - BRAKE CALIPER COOLING	LR071859 DUCT - BRAKE CALIPER COOLING LH / From: GG134738 / To: HG149558	-	1	Enquire
<402A63	LR079770	DUCT - BRAKE CALIPER COOLING	LR079770 DUCT - BRAKE CALIPER COOLING LH / From: HG149559 / To: HG161787	-	1	Enquire
<613E12	LR074208	BEZEL - FOG LAMP	LR074208 BEZEL - FOG LAMP Non Sport/Dynamic / RH / From: GG134738 / To: GG137632	-	1	Enquire
<613E12	LR079666	BRACKET - FOG LAMP	LR079666 BRACKET - FOG LAMP Sport/Dynamic / RH / From: GG134738	-	1	Enquire
<613E12	LR079667	BRACKET - FOG LAMP	LR079667 BRACKET - FOG LAMP Sport/Dynamic / LH / From: GG134738	-	1	Enquire
<613E12	LR074224	BEZEL - FOG LAMP	LR074224 BEZEL - FOG LAMP Non Sport/Dynamic / LH / From: GG134738 / To: GG137632	-	1	Enquire
<613E12	LR079491	BEZEL - FOG LAMP	LR079491 BEZEL - FOG LAMP Non Sport/Dynamic / RH / From: GG137633	-	1	Enquire
<613E12	LR079364	BEZEL - FOG LAMP	LR079364 BEZEL - FOG LAMP Non Sport/Dynamic / LH / From: GG137633	-	1	Enquire
<30330	LR034122	PIN - TRIM	LR034122 PIN - TRIM Trim Pin 7 - 7.3 X 2.7 - 2 / From: GG134738	-	2	Enquire
<40130	LR084849	BRACKET - BUMPER MOUNTING	LR084849 BRACKET - BUMPER MOUNTING RH / From: GG134738	-	1	Enquire
<40130	LR084851	BRACKET - BUMPER MOUNTING	LR084851 BRACKET - BUMPER MOUNTING LH / From: GG134738	-	1	Enquire
HB1	RYG500910	BOLT	RYG500910 BOLT Bolt And Washer, Hexagonal Head, M6 x 35MM / From: GG134738	-	4	Enquire
HB2	RYG500850	BOLT AND WASHER - HEX.HEAD	RYG500850 BOLT AND WASHER - HEX.HEAD M6 X 20MM / From: GG134738	-	3	Enquire
HB3	LR028941	BOLT	LR028941 BOLT M6 x 18MM / From: GG134738	-	2	Enquire
HC1	LR018173	CLIP - RETAINING	LR018173 CLIP - RETAINING Front Grille / From: GG134738	-	4	Enquire
HC2	LR027255	CLIP	LR027255 CLIP Trim Pin 8 X 2.9 - 3.1 + 2.3 Special Plastic, Wheelarch / From: GG134738	-	2	Enquire
HC3	LR013135	CLIP - TRIM	LR013135 CLIP - TRIM 8.5 X 0.8 - 2.2, Wheelarch / From: GG134738	-	2	Enquire
HM1	ANR2224	HARDWARE - MISCELLANEOUS	ANR2224 HARDWARE - MISCELLANEOUS 8 X 20MM, Pin / From: GG134738 / To: GG139421	-	2	Enquire
HM1	RZM500100	PIN - TRIM	RZM500100 PIN - TRIM 7.15 X 1.5 - 25 Plastic / From: GG139422	-	2	Enquire
HN1	RYH500480	NUT AND WASHER - HEX.	RYH500480 NUT AND WASHER - HEX. M10 / From: GG134738	-	8	Enquire
HS1	CYP100791	SCREW	CYP100791 SCREW M5 / From: GG134738	-	10	Enquire
HS2	DYP000040	SCREW	DYP000040 SCREW M5 / From: GG134738	-	4	Enquire
HS3	LR006025	BOLT	LR006025 BOLT Bolt And Washer, M6 X 15 Hex / From: GG134738	-	9	Enquire
HX1	RYQ500070	PIN - RETAINING	RYQ500070 PIN - RETAINING 6.3 X 22MM, Push Pin / From: GG134738	-	2	Enquire
17A385	LR048313	BRACKET - LICENSE PLATE	LR048313 BRACKET - LICENSE PLATE From: GG134738	-	1	Enquire
17A792	LR078487	REINFORCEMENT - BUMPER BAR BRACKET	LR078487 REINFORCEMENT - BUMPER BAR BRACKET Bumper / From: GG134738	-	1	Enquire
17B836	LR038530	MOUNTING BRACKET - FRONT BUMPER	LR038530 MOUNTING BRACKET - FRONT BUMPER With Headlamp Power Wash / Contains Headlamp Washer Brackets / From: GG134738 / To: HG150633	-	1	Enquire
17B836	LR036195	MOUNTING BRACKET - FRONT BUMPER	LR036195 MOUNTING BRACKET - FRONT BUMPER Less Headlamp Washer / From: GG134738	-	1	Enquire
17B836	LR094157	MOUNTING BRACKET - FRONT BUMPER	LR094157 MOUNTING BRACKET - FRONT BUMPER With Headlamp Power Wash / Contains Headlamp Washer Brackets / From: HG150634	-	1	Enquire
17D957	LR079533	BUMPER - FRONT	LR079533 BUMPER - FRONT Front Bumper Guards - Silver, Less Camera System, Non Sport/Dynamic, With Front Parking Aid, With Headlamp Power Wash / Includes Headlamp Power Wash Caps / From: GG134738	-	1	Enquire
17D957	LR079535	BUMPER - FRONT	LR079535 BUMPER - FRONT Frt Bumper Guards-Dark Tech Silver, Non Sport/Dynamic, Surround Camera System, With Front Parking Aid, With Headlamp Power Wash / Includes Headlamp Power Wash Caps / From: GG134738	-	1	Enquire
17D957	LR079537	BUMPER - FRONT	LR079537 BUMPER - FRONT Less Camera System, Less Headlamp Washer, Sport/Dynamic, With Front Parking Aid / From: GG134738	-	1	Enquire
17D957	LR079540	BUMPER - FRONT	LR079540 BUMPER - FRONT Front Bumper Guards - Silver, Less Headlamp Washer, Sport/Dynamic, Surround Camera System, With Front Parking Aid / From: GG134738	-	1	Enquire
17D957	LR079538	BUMPER - FRONT	LR079538 BUMPER - FRONT Rear View Camera-Fixed, Sport/Dynamic, With Front Parking Aid, With Headlamp Power Wash / Includes Headlamp Power Wash Caps / From: HG161788	-	1	Enquire
17K826	LR006719	RETAINER - NUT	LR006719 RETAINER - NUT Nut "U" Spring,	-	4	Enquire
2484	LR036197	CAP - POWERWASH JET	LR036197 CAP - POWERWASH JET With Headlamp Power Wash / RH / From: GG134738	-	1	Enquire
2484	LR036198	CAP - POWERWASH JET	LR036198 CAP - POWERWASH JET With Headlamp Power Wash / LH / From: GG134738	-	1	Enquire
8200	LR074252	GRILLE - RADIATOR	LR074252 GRILLE - RADIATOR Grille - Narvik Black / Atlas Surrn, Less Bonnet Scoop, With Speed Control / For Badge Please Refer To The Proper Section / From: GG134738	-	1	Enquire
8200	LR069714	GRILLE - RADIATOR	LR069714 GRILLE - RADIATOR With Brunel Grille, With Speed Control / For Badge Please Refer To The Proper Section / From: GG134738	-	1	Enquire
8200	LR069715	GRILLE - RADIATOR	LR069715 GRILLE - RADIATOR Grille - Brunel With Atlas Surround, With Speed Control / For Badge Please Refer To The Proper Section / From: GG134738	-	1	Enquire
8200	LR083133	GRILLE - RADIATOR	LR083133 GRILLE - RADIATOR With Santorini Grille, With Speed Control / For Badge Please Refer To The Proper Section / From: GG134738	-	1	Enquire
8200	LR083147	GRILLE - RADIATOR	LR083147 GRILLE - RADIATOR Grille - Narvik Black / Atlas Surrn, Hood Scoop - Black, With Speed Control / For Badge Please Refer To The Proper Section / From: GG134738	-	1	Enquire
8200	LR079530	GRILLE - RADIATOR	LR079530 GRILLE - RADIATOR With Adaptive Speed Control, With Santorini Grille / For Badge Please Refer To The Proper Section / From: GG134738	-	1	Enquire
8200	LR079531	GRILLE - RADIATOR	LR079531 GRILLE - RADIATOR Grille - Narvik Black / Atlas Surrn, With Adaptive Speed Control / For Badge Please Refer To The Proper Section / From: GG134738	-	1	Enquire
8200	LR083605	GRILLE - RADIATOR	LR083605 GRILLE - RADIATOR With Adaptive Speed Control, With Black Grille / For Badge Please Refer To The Proper Section / From: GG134738	-	1	Enquire
8200	LR083604	GRILLE - RADIATOR	LR083604 GRILLE - RADIATOR With Black Grille, With Speed Control / For Badge Please Refer To The Proper Section / From: GG134738	-	1	Enquire
8200	LR106469	GRILLE - RADIATOR	LR106469 GRILLE - RADIATOR With Graphite Grille / For Badge Please Refer To The Proper Section / From: HG161788	-	1	Enquire
8666	LR071770	MOULDING - BUMPER BAR	LR071770 MOULDING - BUMPER BAR Fog Lamp Bezel - Brunel / RH / From: GG134738 / To: HG149557	-	1	Enquire
8666	LR071771	MOULDING - BUMPER BAR	LR071771 MOULDING - BUMPER BAR Fog Lamp Bezel - Black Style 2 / RH / From: GG134738 / To: HG149557	-	1	Enquire
8666	LR071775	MOULDING - BUMPER BAR	LR071775 MOULDING - BUMPER BAR With Black Fog Lamp Bezel / RH / From: GG134738 / To: HG149557	-	1	Enquire
8666	LR071776	MOULDING - BUMPER BAR	LR071776 MOULDING - BUMPER BAR Fog Lamp Bezel - Brunel / LH / From: GG134738 / To: HG149557	-	1	Enquire
8666	LR071780	MOULDING - BUMPER BAR	LR071780 MOULDING - BUMPER BAR With Black Fog Lamp Bezel / LH / From: GG134738 / To: HG149557	-	1	Enquire
8666	LR071778	MOULDING - BUMPER BAR	LR071778 MOULDING - BUMPER BAR Fog Lamp Bezel - Black Style 2 / LH / From: GG134738 / To: HG149557	-	1	Enquire
8666	LR079375	MOULDING - BUMPER BAR	LR079375 MOULDING - BUMPER BAR Fog Lamp Bezel - Black Blade / LH / From: HG149558	-	1	Enquire
8666	LR079386	MOULDING - BUMPER BAR	LR079386 MOULDING - BUMPER BAR Fog Lamp Bezel - Brunel Blade / RH / From: HG149558	-	1	Enquire
8666	LR079387	MOULDING - BUMPER BAR	LR079387 MOULDING - BUMPER BAR Fog Lamp Bezel - Black Blade / RH / From: HG149558	-	1	Enquire
8666	LR079389	MOULDING - BUMPER BAR	LR079389 MOULDING - BUMPER BAR With Black Fog Lamp Bezel / RH / From: HG149558	-	1	Enquire
8666	LR079374	MOULDING - BUMPER BAR	LR079374 MOULDING - BUMPER BAR Fog Lamp Bezel - Brunel Blade / LH / From: HG149558	-	1	Enquire
8666	LR079380	MOULDING - BUMPER BAR	LR079380 MOULDING - BUMPER BAR With Black Fog Lamp Bezel / LH / From: HG149558	-	1	Enquire
8666	LR104879	MOULDING - BUMPER BAR	LR104879 MOULDING - BUMPER BAR Fog Lamp Bezel - Graphite / RH / From: HG161788	-	1	Enquire
8666	LR104880	MOULDING - BUMPER BAR	LR104880 MOULDING - BUMPER BAR Fog Lamp Bezel - Graphite / LH / From: HG161788	-	1	Enquire
17752A	LR034210	BRACKET - BUMPER MOUNTING	LR034210 BRACKET - BUMPER MOUNTING RH / From: GG134738	-	1	Enquire
17752A	LR034222	BRACKET - BUMPER MOUNTING	LR034222 BRACKET - BUMPER MOUNTING LH / From: GG134738	-	1	Enquire
17752B	LR036189	BRACKET - BUMPER MOUNTING	LR036189 BRACKET - BUMPER MOUNTING RH / From: GG134738	-	1	Enquire
17752B	LR036193	BRACKET - BUMPER MOUNTING	LR036193 BRACKET - BUMPER MOUNTING LH / From: GG134738	-	1	Enquire
