Find Your Part

Radiator Grille And Front Bumper (Halewood (UK), Less Sales Badge, Sport/Dynamic) ((V) TOFH999999) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Radiator Grille And Front Bumper (Halewood (UK), Less Sales Badge, Sport/Dynamic) ((V) TOFH999999)

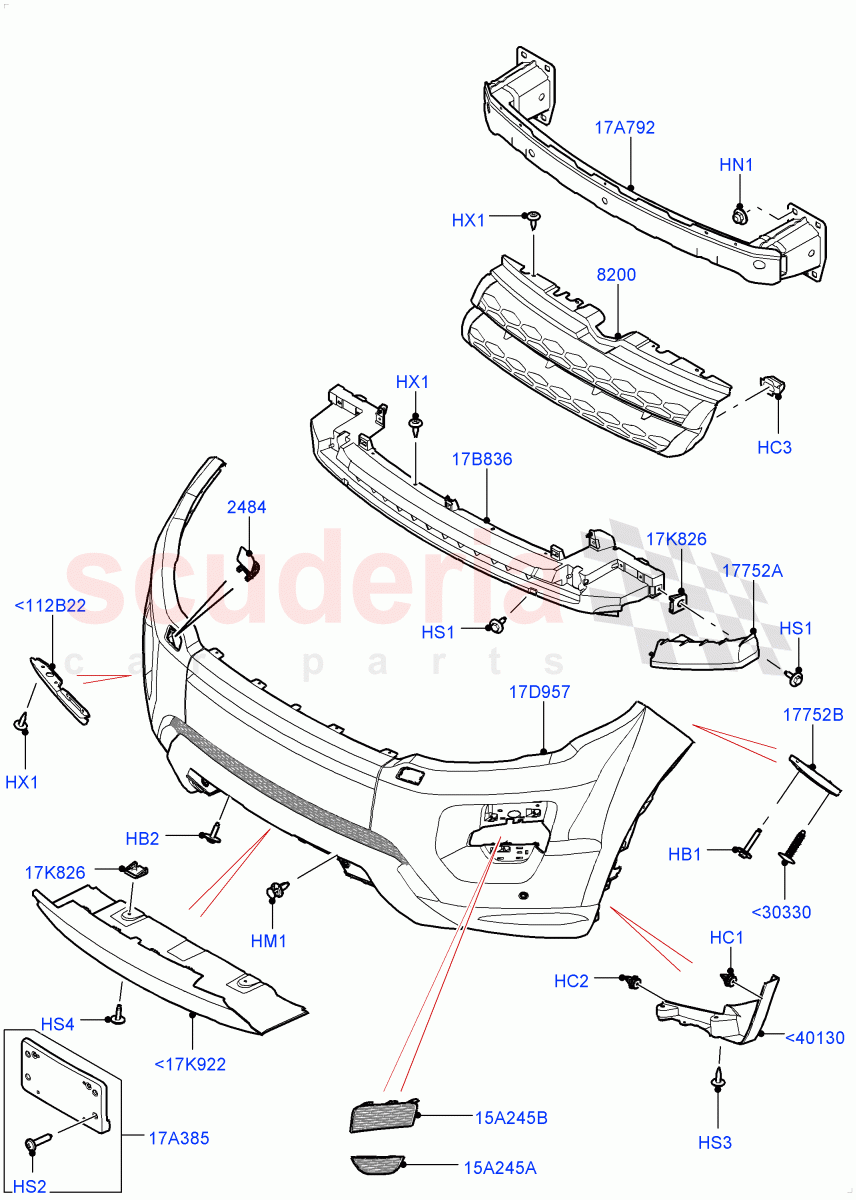

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG500910	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500850	BOLT AND WASHER - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027255	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013135	CLIP - TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018173	CLIP - RETAINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ANR2224	HARDWARE - MISCELLANEOUS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500480	NUT AND WASHER - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006025	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DYP000040	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CYP100791	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR083229	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYQ500070	PIN - RETAINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR026534	CAP - POWERWASH JET	Enquire	To Order
	LR027246	CAP - POWERWASH JET	Enquire	To Order
	LR036197	CAP - POWERWASH JET	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR039820	GRILLE - RADIATOR	Enquire	To Order
	LR044694	GRILLE - RADIATOR	Enquire	To Order
	LR036721	GRILLE - RADIATOR	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR034122	PIN - TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR028550	BRACKET - BUMPER MOUNTING	Enquire	To Order
	LR028551	BRACKET - BUMPER MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR026531	BRACKET - BUMPER MOUNTING	Enquire	To Order
	LR026530	BRACKET - BUMPER MOUNTING	Enquire	To Order
	LR036189	BRACKET - BUMPER MOUNTING	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR026503	BRACKET - BUMPER MOUNTING	Enquire	To Order
	LR026525	BRACKET - BUMPER MOUNTING	Enquire	To Order
	LR034210	BRACKET - BUMPER MOUNTING	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR026555	BRACKET - LICENSE PLATE	Enquire	To Order
	LR026556	BRACKET - LICENSE PLATE	Enquire	To Order
	LR048313	BRACKET - LICENSE PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR026497	REINFORCEMENT - BUMPER BAR BRACKET	Enquire	To Order
	LR044571	REINFORCEMENT - BUMPER BAR BRACKET	Enquire	To Order
	LR053187	REINFORCEMENT - BUMPER BAR BRACKET	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR026532	MOUNTING BRACKET - FRONT BUMPER	Enquire	To Order
	LR026533	MOUNTING BRACKET - FRONT BUMPER	Enquire	To Order
	LR036196	MOUNTING BRACKET - FRONT BUMPER	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR028340	BUMPER - FRONT	Enquire	To Order
	LR028345	BUMPER - FRONT	Enquire	To Order
	LR028346	BUMPER - FRONT	Enquire	To Order

...and 29 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR006719	RETAINER - NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027864	DEFLECTOR - AIR	Enquire	To Order
	LR027865	DEFLECTOR - AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR028187	COVER - TOW HOOK	Enquire	To Order
	LR032309	COVER - TOW HOOK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027867	BEZEL - FOG LAMP	Enquire	To Order
	LR027866	BEZEL - FOG LAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR026544	BRACKET- FOG LAMP	Enquire	To Order
	LR026543	BEZEL - FOG LAMP	Enquire	To Order
	LR035093	BEZEL - FOG LAMP	Enquire	To Order

...and 3 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<17K922	LR028187	COVER - TOW HOOK	LR028187 COVER - TOW HOOK Towing Eye / From: CH648390	-	1	Enquire
<17K922	LR032309	COVER - TOW HOOK	LR032309 COVER - TOW HOOK Towing Eye / To: CH648389	-	1	Enquire
<112B22	LR027864	DEFLECTOR - AIR	LR027864 DEFLECTOR - AIR RH	-	1	Enquire
<112B22	LR027865	DEFLECTOR - AIR	LR027865 DEFLECTOR - AIR LH	-	1	Enquire
<30330	LR034122	PIN - TRIM	LR034122 PIN - TRIM Trim Pin 7 - 7.3 X 2.7 - 2	-	2	Enquire
<40130	LR028550	BRACKET - BUMPER MOUNTING	LR028550 BRACKET - BUMPER MOUNTING RH	-	1	Enquire
<40130	LR028551	BRACKET - BUMPER MOUNTING	LR028551 BRACKET - BUMPER MOUNTING LH	-	1	Enquire
HB1	RYG500910	BOLT	RYG500910 BOLT Bolt And Washer, Hexagonal Head, M6 x 35MM	-	4	Enquire
HB2	RYG500850	BOLT AND WASHER - HEX.HEAD	RYG500850 BOLT AND WASHER - HEX.HEAD M6 X 20MM	-	3	Enquire
HC1	LR027255	CLIP	LR027255 CLIP Trim Pin 8 X 2.9 - 3.1 + 2.3 Special Plastic, Wheelarch	-	4	Enquire
HC2	LR013135	CLIP - TRIM	LR013135 CLIP - TRIM 8.5 X 0.8 - 2.2, Wheelarch	-	2	Enquire
HC3	LR018173	CLIP - RETAINING	LR018173 CLIP - RETAINING Front Grille	-	4	Enquire
HM1	ANR2224	HARDWARE - MISCELLANEOUS	ANR2224 HARDWARE - MISCELLANEOUS 8 X 20MM, Pin / To: GH146432	-	2	Enquire
HN1	RYH500480	NUT AND WASHER - HEX.	RYH500480 NUT AND WASHER - HEX. M10	-	8	Enquire
HS1	LR006025	BOLT	LR006025 BOLT Bolt And Washer, M6 X 15 Hex	-	9	Enquire
HS2	DYP000040	SCREW	DYP000040 SCREW M5, With Plinth - Licence Plate	-	4	Enquire
HS3	CYP100791	SCREW	CYP100791 SCREW M5	-	10	Enquire
HS4	LR083229	SCREW	LR083229 SCREW M6 X 14MM	-	2	Enquire
HX1	RYQ500070	PIN - RETAINING	RYQ500070 PIN - RETAINING 6.3 X 22MM, Push Pin	-	18	Enquire
15A245A	LR027867	BEZEL - FOG LAMP	LR027867 BEZEL - FOG LAMP LH, Lower	-	1	Enquire
15A245A	LR027866	BEZEL - FOG LAMP	LR027866 BEZEL - FOG LAMP RH, Lower	-	1	Enquire
15A245B	LR026544	BRACKET- FOG LAMP	LR026544 BRACKET- FOG LAMP Fog Lamp Bezel - Dark Atlas Blade / RH, Upper / To: CH614250	-	1	Enquire
15A245B	LR026543	BEZEL - FOG LAMP	LR026543 BEZEL - FOG LAMP Fog Lamp Bezel - Dark Atlas Blade / LH, Upper / To: CH614250	-	1	Enquire
15A245B	LR035093	BEZEL - FOG LAMP	LR035093 BEZEL - FOG LAMP Fog Lamp Bezel - Brunel Blade / RH, Upper / From: CH614251 / To: DH849179	-	1	Enquire
15A245B	LR035094	BEZEL - FOG LAMP	LR035094 BEZEL - FOG LAMP Fog Lamp Bezel - Brunel Blade / LH, Upper / From: CH614251 / To: DH849179	-	1	Enquire
15A245B	LR057397	BEZEL - FOG LAMP	LR057397 BEZEL - FOG LAMP Fog Lamp Bezel / LH, Upper / From: DH849180	-	1	Enquire
15A245B	LR057396	BEZEL - FOG LAMP	LR057396 BEZEL - FOG LAMP Fog Lamp Bezel / RH, Upper / From: DH849180	-	1	Enquire
17A385	LR026555	BRACKET - LICENSE PLATE	LR026555 BRACKET - LICENSE PLATE Front Number Plate Plinth NAS	-	1	Enquire
17A385	LR026556	BRACKET - LICENSE PLATE	LR026556 BRACKET - LICENSE PLATE Front Number Plate Plinth - Japan	-	1	Enquire
17A385	LR048313	BRACKET - LICENSE PLATE	LR048313 BRACKET - LICENSE PLATE Front Number Plate Plinth-China	-	1	Enquire
17A792	LR026497	REINFORCEMENT - BUMPER BAR BRACKET	LR026497 REINFORCEMENT - BUMPER BAR BRACKET Bumper / To: DH781436	-	1	Enquire
17A792	LR044571	REINFORCEMENT - BUMPER BAR BRACKET	LR044571 REINFORCEMENT - BUMPER BAR BRACKET Bumper / From: DH781437 / To: DH791436	-	1	Enquire
17A792	LR053187	REINFORCEMENT - BUMPER BAR BRACKET	LR053187 REINFORCEMENT - BUMPER BAR BRACKET Bumper / From: DH791437 / To: DH999999	-	1	Enquire
17A792	LR053188	REINFORCEMENT - BUMPER BAR BRACKET	LR053188 REINFORCEMENT - BUMPER BAR BRACKET Bumper / From: EH000001 / To: EH001010	-	1	Enquire
17A792	LR055992	REINFORCEMENT - BUMPER BAR BRACKET	LR055992 REINFORCEMENT - BUMPER BAR BRACKET Bumper / From: EH001011	-	1	Enquire
17A792	LR055991	REINFORCEMENT - BUMPER BAR BRACKET	LR055991 REINFORCEMENT - BUMPER BAR BRACKET Bumper / From: EH000001 / To: EH001010	-	1	Enquire
17B836	LR026532	MOUNTING BRACKET - FRONT BUMPER	LR026532 MOUNTING BRACKET - FRONT BUMPER Less Headlamp Washer / To: CH642500	-	1	Enquire
17B836	LR026533	MOUNTING BRACKET - FRONT BUMPER	LR026533 MOUNTING BRACKET - FRONT BUMPER With Headlamp Power Wash / Contains Headlamp Washer Brackets / To: CH642500	-	1	Enquire
17B836	LR036196	MOUNTING BRACKET - FRONT BUMPER	LR036196 MOUNTING BRACKET - FRONT BUMPER With Headlamp Power Wash / Contains Headlamp Washer Brackets / From: CH642501 / To: CH692467	-	1	Enquire
17B836	LR036195	MOUNTING BRACKET - FRONT BUMPER	LR036195 MOUNTING BRACKET - FRONT BUMPER Less Headlamp Washer / From: CH642501	-	1	Enquire
17B836	LR038530	MOUNTING BRACKET - FRONT BUMPER	LR038530 MOUNTING BRACKET - FRONT BUMPER With Headlamp Power Wash / Contains Headlamp Washer Brackets / From: CH692468 / To: GH163555	-	1	Enquire
17D957	LR028340	BUMPER - FRONT	LR028340 BUMPER - FRONT Less Camera System, Less Headlamp Washer, With Front Parking Aid / To: CH653199	-	1	Enquire
17D957	LR028345	BUMPER - FRONT	LR028345 BUMPER - FRONT Less Camera System, With Front Parking Aid, With Headlamp Power Wash / To: CH653199	-	1	Enquire
17D957	LR028346	BUMPER - FRONT	LR028346 BUMPER - FRONT Surround Camera System, With Front Parking Aid, With Headlamp Power Wash / To: CH653199	-	1	Enquire
17D957	LR028347	BUMPER - FRONT	LR028347 BUMPER - FRONT Less Headlamp Washer, Surround Camera System, With Front Parking Aid / To: CH653199	-	1	Enquire
17D957	LR032837	BUMPER - FRONT	LR032837 BUMPER - FRONT Less Camera System, Less Front Parking Aid, Less Headlamp Washer / From: CH631090 / To: CH653649	-	1	Enquire
17D957	LR032838	BUMPER - FRONT	LR032838 BUMPER - FRONT Less Camera System, Less Front Parking Aid, With Headlamp Power Wash / From: CH631090 / To: CH653649	-	1	Enquire
17D957	LR038562	BUMPER - FRONT	LR038562 BUMPER - FRONT Less Camera System, Less Headlamp Washer, With Front Parking Aid / From: CH653200 / To: CH706039	-	1	Enquire
17D957	LR038563	BUMPER - FRONT	LR038563 BUMPER - FRONT Less Camera System, With Front Parking Aid, With Headlamp Power Wash / From: CH653200 / To: CH775069	-	1	Enquire
17D957	LR038559	BUMPER - FRONT	LR038559 BUMPER - FRONT Less Camera System, Less Front Parking Aid, Less Headlamp Washer / From: CH653650 / To: CH706039	-	1	Enquire
17D957	LR038561	BUMPER - FRONT	LR038561 BUMPER - FRONT Less Camera System, Less Front Parking Aid, With Headlamp Power Wash / From: CH653650 / To: CH706039	-	1	Enquire
17D957	LR038565	BUMPER - FRONT	LR038565 BUMPER - FRONT Surround Camera System, With Front Parking Aid, With Headlamp Power Wash / From: CH653200 / To: CH706039	-	1	Enquire
17D957	LR038567	BUMPER - FRONT	LR038567 BUMPER - FRONT Less Headlamp Washer, Surround Camera System, With Front Parking Aid / From: CH653200 / To: CH706039	-	1	Enquire
17D957	LR048540	BUMPER - FRONT	LR048540 BUMPER - FRONT Less Camera System, Less Front Parking Aid, Less Headlamp Washer / From: CH706040 / To: EH892285	-	1	Enquire
17D957	LR048541	BUMPER - FRONT	LR048541 BUMPER - FRONT Less Camera System, Less Front Parking Aid, With Headlamp Power Wash / From: CH706040 / To: EH892285	-	1	Enquire
17D957	LR048542	BUMPER - FRONT	LR048542 BUMPER - FRONT Less Camera System, Less Headlamp Washer, With Front Parking Aid / From: CH706040 / To: EH892285	-	1	Enquire
17D957	LR048543	BUMPER - FRONT	LR048543 BUMPER - FRONT Rear View Camera-Fixed, With Front Parking Aid, With Headlamp Power Wash / From: CH775070 / To: EH892285	-	1	Enquire
17D957	LR048544	BUMPER - FRONT	LR048544 BUMPER - FRONT Surround Camera System, With Front Parking Aid, With Headlamp Power Wash / From: CH706040 / To: DH999999	-	1	Enquire
17D957	LR048545	BUMPER - FRONT	LR048545 BUMPER - FRONT Less Headlamp Washer, Surround Camera System, With Front Parking Aid / From: CH706040 / To: DH999999	-	1	Enquire
17D957	LR048688	BUMPER - FRONT	LR048688 BUMPER - FRONT Surround Camera System, With Front Parking Aid, With Headlamp Power Wash / From: EH000001 / To: EH892285	-	1	Enquire
17D957	LR048689	BUMPER - FRONT	LR048689 BUMPER - FRONT Less Headlamp Washer, Surround Camera System, With Front Parking Aid / From: EH000001 / To: EH892285	-	1	Enquire
17D957	LR064616	BUMPER - FRONT	LR064616 BUMPER - FRONT Less Camera System, Less Front Parking Aid, Less Headlamp Washer / From: EH892286 / To: FH033712	-	1	Enquire
17D957	LR064617	BUMPER - FRONT	LR064617 BUMPER - FRONT Less Camera System, Less Front Parking Aid, With Headlamp Power Wash / From: EH892286 / To: FH033712	-	1	Enquire
17D957	LR064618	BUMPER - FRONT	LR064618 BUMPER - FRONT Less Camera System, Less Headlamp Washer, With Front Parking Aid / From: EH892286 / To: FH033712	-	1	Enquire
17D957	LR064619	BUMPER - FRONT	LR064619 BUMPER - FRONT Rear View Camera-Fixed, With Front Parking Aid, With Headlamp Power Wash / From: EH892286 / To: EH999999	-	1	Enquire
17D957	LR064622	BUMPER - FRONT	LR064622 BUMPER - FRONT Surround Camera System, With Front Parking Aid, With Headlamp Power Wash / From: EH892286 / To: FH021457	-	1	Enquire
17D957	LR064623	BUMPER - FRONT	LR064623 BUMPER - FRONT Less Headlamp Washer, Surround Camera System, With Front Parking Aid / From: EH892286 / To: FH021457	-	1	Enquire
17D957	LR072577	BUMPER - FRONT	LR072577 BUMPER - FRONT Less Camera System, Less Front Parking Aid, Less Headlamp Washer / From: FH033713	-	1	Enquire
17D957	LR072578	BUMPER - FRONT	LR072578 BUMPER - FRONT Less Camera System, Less Front Parking Aid, With Headlamp Power Wash / From: FH033713	-	1	Enquire
17D957	LR072579	BUMPER - FRONT	LR072579 BUMPER - FRONT Less Camera System, Less Headlamp Washer, With Front Parking Aid / From: FH033713	-	1	Enquire
17D957	LR072583	BUMPER - FRONT	LR072583 BUMPER - FRONT Surround Camera System, With Front Parking Aid, With Headlamp Power Wash / From: FH021458	-	1	Enquire
17D957	LR072584	BUMPER - FRONT	LR072584 BUMPER - FRONT Less Headlamp Washer, Surround Camera System, With Front Parking Aid / From: FH021458	-	1	Enquire
17D957	LR072260	BUMPER - FRONT	LR072260 BUMPER - FRONT Rear View Camera-Fixed, With Front Parking Aid, With Headlamp Power Wash / From: FH000001	-	1	Enquire
17K826	LR006719	RETAINER - NUT	LR006719 RETAINER - NUT Nut "U" Spring,	-	10	Enquire
2484	LR026534	CAP - POWERWASH JET	LR026534 CAP - POWERWASH JET With Headlamp Power Wash / RH / To: CH705461	-	1	Enquire
2484	LR027246	CAP - POWERWASH JET	LR027246 CAP - POWERWASH JET With Headlamp Power Wash / LH / To: CH705461	-	1	Enquire
2484	LR036197	CAP - POWERWASH JET	LR036197 CAP - POWERWASH JET With Headlamp Power Wash / RH / From: CH705462	-	1	Enquire
2484	LR036198	CAP - POWERWASH JET	LR036198 CAP - POWERWASH JET With Headlamp Power Wash / LH / From: CH705462	-	1	Enquire
8200	LR039820	GRILLE - RADIATOR	LR039820 GRILLE - RADIATOR With Black Grille, With Speed Control / From: CH648862 / To: CH999999	-	1	Enquire
8200	LR044694	GRILLE - RADIATOR	LR044694 GRILLE - RADIATOR With Black Grille, With Speed Control / For Badge Please Refer To The Proper Section / From: DH000001 / To: DH999999	-	1	Enquire
8200	LR036721	GRILLE - RADIATOR	LR036721 GRILLE - RADIATOR With Black Grille, With Speed Control / From: CH624191 / To: CH648861	-	1	Enquire
8200	LR026554	GRILLE - RADIATOR	LR026554 GRILLE - RADIATOR With Black Grille, With Speed Control / To: CH624190	-	1	Enquire
8200	LR053211	GRILLE - RADIATOR	LR053211 GRILLE - RADIATOR With Black Grille, With Speed Control / For Badge Please Refer To The Proper Section / From: EH000001 / To: FH986575	-	1	Enquire
8200	LR048563	GRILLE - RADIATOR	LR048563 GRILLE - RADIATOR With Adaptive Speed Control / For Badge Please Refer To The Proper Section / From: EH000001 / To: FH999999	-	1	Enquire
8200	LR068864	GRILLE - RADIATOR	LR068864 GRILLE - RADIATOR With Black Grille, With Speed Control / For Badge Please Refer To The Proper Section / From: FH986576 / To: FH993464	-	1	Enquire
8200	LR076024	GRILLE - RADIATOR	LR076024 GRILLE - RADIATOR With Black Grille, With Speed Control / For Badge Please Refer To The Proper Section / From: FH993465	-	1	Enquire
17752A	LR026531	BRACKET - BUMPER MOUNTING	LR026531 BRACKET - BUMPER MOUNTING RH / To: CH642627	-	1	Enquire
17752A	LR026530	BRACKET - BUMPER MOUNTING	LR026530 BRACKET - BUMPER MOUNTING LH / To: CH642627	-	1	Enquire
17752A	LR036189	BRACKET - BUMPER MOUNTING	LR036189 BRACKET - BUMPER MOUNTING RH / From: CH642628	-	1	Enquire
17752A	LR036193	BRACKET - BUMPER MOUNTING	LR036193 BRACKET - BUMPER MOUNTING LH / From: CH642628	-	1	Enquire
17752B	LR026503	BRACKET - BUMPER MOUNTING	LR026503 BRACKET - BUMPER MOUNTING RH / To: CH607099	-	1	Enquire
17752B	LR026525	BRACKET - BUMPER MOUNTING	LR026525 BRACKET - BUMPER MOUNTING LH / To: CH607099	-	1	Enquire
17752B	LR034210	BRACKET - BUMPER MOUNTING	LR034210 BRACKET - BUMPER MOUNTING RH / From: CH607100	-	1	Enquire
17752B	LR034222	BRACKET - BUMPER MOUNTING	LR034222 BRACKET - BUMPER MOUNTING LH / From: CH607100	-	1	Enquire
