Radiator Grille And Front Bumper (Halewood (UK), Autobiography Sales Badge, Autobiography Pack) ((V) FROMFH000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Radiator Grille And Front Bumper (Halewood (UK), Autobiography Sales Badge, Autobiography Pack)...

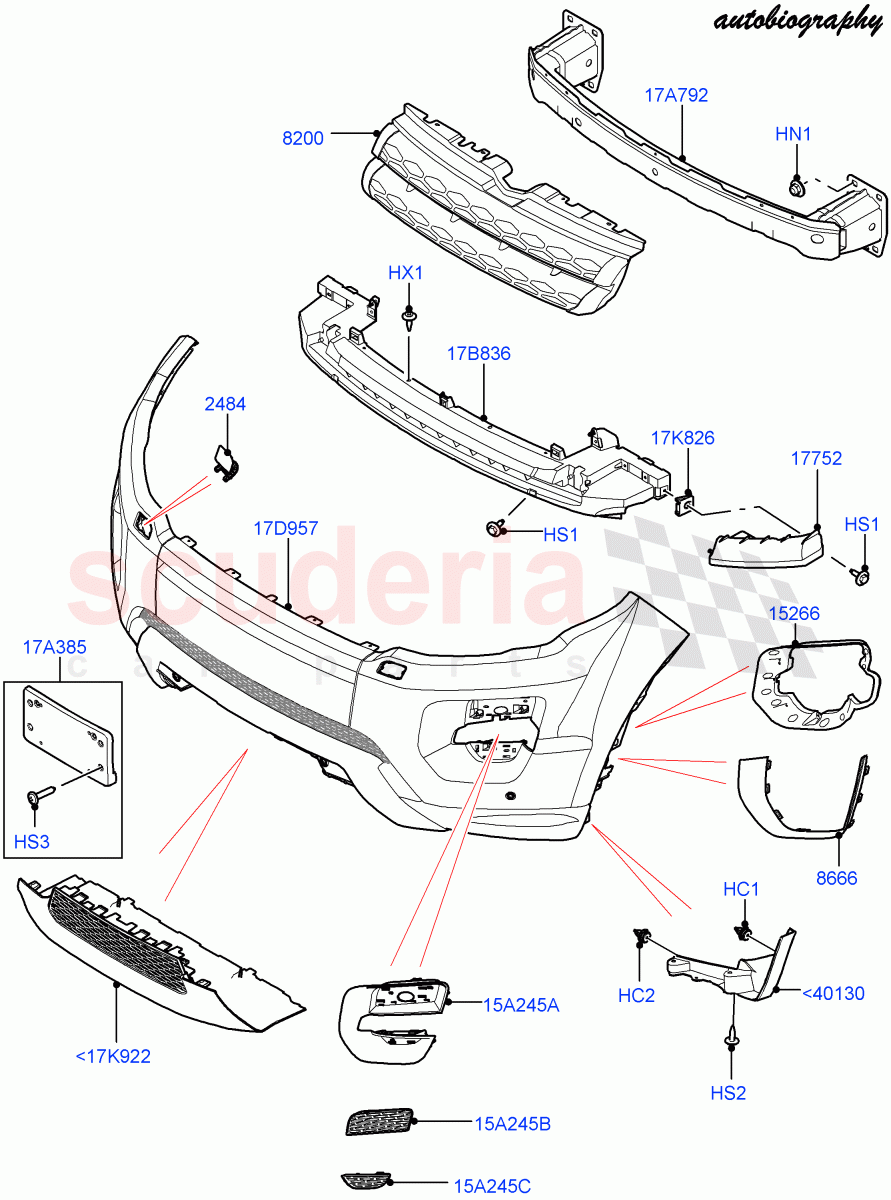

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR027255	CLIP	Enquire	To Order
	LR027255	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013135	CLIP - TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500480	NUT AND WASHER - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006025	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CYP100791	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DYP000040	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYQ500070	PIN - RETAINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036197	CAP - POWERWASH JET	Enquire	To Order
	LR036198	CAP - POWERWASH JET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR066107	GRILLE - RADIATOR	Enquire	To Order
	LR078326	GRILLE - RADIATOR	Enquire	To Order
	LR048563	GRILLE - RADIATOR	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR084552	MOULDING - BUMPER BAR	Enquire	To Order
	LR084551	MOULDING - BUMPER BAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061542	BRACKET - FOG LAMP	Enquire	To Order
	LR061543	BRACKET - FOG LAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036189	BRACKET - BUMPER MOUNTING	Enquire	To Order
	LR036193	BRACKET - BUMPER MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR028550	BRACKET - BUMPER MOUNTING	Enquire	To Order
	LR079897	BRACKET - BUMPER MOUNTING	Enquire	To Order
	LR084849	BRACKET - BUMPER MOUNTING	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR048313	BRACKET - LICENSE PLATE	Enquire	To Order
	LR026555	BRACKET - LICENSE PLATE	Enquire	To Order
	LR026556	BRACKET - LICENSE PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR055992	REINFORCEMENT - BUMPER BAR BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038530	MOUNTING BRACKET - FRONT BUMPER	Enquire	To Order
	LR094157	MOUNTING BRACKET - FRONT BUMPER	Enquire	To Order
	LR036195	MOUNTING BRACKET - FRONT BUMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR059625	BUMPER - FRONT	Enquire	To Order
	LR059627	BUMPER - FRONT	Enquire	To Order
	LR059631	BUMPER - FRONT	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR006719	RETAINER - NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR059639	COVER - TOW HOOK	Enquire	To Order
	LR083606	COVER - TOW HOOK	Enquire	To Order
	LR083606	COVER - TOW HOOK	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR061538	BEZEL - FOG LAMP	Enquire	To Order
	LR061540	BEZEL - FOG LAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR059621	BEZEL - FOG LAMP	Enquire	To Order
	LR059622	BEZEL - FOG LAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061539	BEZEL - FOG LAMP	Enquire	To Order
	LR061541	BEZEL - FOG LAMP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<17K922	LR059639	COVER - TOW HOOK	LR059639 COVER - TOW HOOK Towing Eye / From: FH000001 / To: FH999999	-	1	Enquire
<17K922	LR083606	COVER - TOW HOOK	LR083606 COVER - TOW HOOK Tow Eye Cover - Silver / Towing Eye / From: GH000001 / To: HH999999	-	1	Enquire
<17K922	LR083606	COVER - TOW HOOK	LR083606 COVER - TOW HOOK Rear Bmpr Lwr Vl-Fr Indus/Rr Narvik / Towing Eye / From: JH000001 / To: JH287360	-	1	Enquire
<17K922	LR110340	COVER - TOW HOOK	LR110340 COVER - TOW HOOK Rear Bmpr Lwr Vl-Fr Indus/Rr Narvik / Towing Eye / From: JH287361	-	1	Enquire
<17K922	LR083607	COVER - TOW HOOK	LR083607 COVER - TOW HOOK Tow Eye Cover - Grey / Towing Eye / From: GH000001 / To: HH999999	-	1	Enquire
<17K922	LR083607	COVER - TOW HOOK	LR083607 COVER - TOW HOOK Rr Bmpr Lwr Vlc-Fr Corris/Rr Narvik / Towing Eye / From: JH000001	-	1	Enquire
<17K922	LR110342	COVER - TOW HOOK	LR110342 COVER - TOW HOOK Tow Eye Cover - Black / Towing Eye / From: GH000001 / To: HH999999	-	1	Enquire
<17K922	LR110342	COVER - TOW HOOK	LR110342 COVER - TOW HOOK Bumper Lower Valance - Black / Towing Eye / From: JH000001	-	1	Enquire
<40130	LR028550	BRACKET - BUMPER MOUNTING	LR028550 BRACKET - BUMPER MOUNTING RH / From: FH000001 / To: GH097397	-	1	Enquire
<40130	LR079897	BRACKET - BUMPER MOUNTING	LR079897 BRACKET - BUMPER MOUNTING RH / From: GH097398 / To: GH126307	-	1	Enquire
<40130	LR084849	BRACKET - BUMPER MOUNTING	LR084849 BRACKET - BUMPER MOUNTING RH / From: GH126308	-	1	Enquire
<40130	LR028551	BRACKET - BUMPER MOUNTING	LR028551 BRACKET - BUMPER MOUNTING LH / From: FH000001 / To: GH097397	-	1	Enquire
<40130	LR079898	BRACKET - BUMPER MOUNTING	LR079898 BRACKET - BUMPER MOUNTING LH / From: GH097398 / To: GH126307	-	1	Enquire
<40130	LR084851	BRACKET - BUMPER MOUNTING	LR084851 BRACKET - BUMPER MOUNTING LH / From: GH126308	-	1	Enquire
HC1	LR027255	CLIP	LR027255 CLIP Trim Pin 8 X 2.9 - 3.1 + 2.3 Special Plastic, Wheelarch / From: FH000001	-	4	Enquire
HC1	LR027255	CLIP	LR027255 CLIP Trim Pin 8 X 2.9 - 3.1 + 2.3 Special Plastic, Wheelarch / From: GH000001	-	1	Enquire
HC2	LR013135	CLIP - TRIM	LR013135 CLIP - TRIM 8.5 X 0.8 - 2.2, Wheelarch / From: FH000001	-	2	Enquire
HN1	RYH500480	NUT AND WASHER - HEX.	RYH500480 NUT AND WASHER - HEX. M10 / From: FH000001	-	8	Enquire
HS1	LR006025	BOLT	LR006025 BOLT Bolt And Washer, M6 X 15 Hex / From: FH000001	-	9	Enquire
HS2	CYP100791	SCREW	CYP100791 SCREW M5 / From: FH000001	-	10	Enquire
HS3	DYP000040	SCREW	DYP000040 SCREW M5, With Plinth - Licence Plate / From: FH000001	-	4	Enquire
HX1	RYQ500070	PIN - RETAINING	RYQ500070 PIN - RETAINING 6.3 X 22MM, Push Pin / From: FH000001	-	2	Enquire
15A245A	LR061538	BEZEL - FOG LAMP	LR061538 BEZEL - FOG LAMP Front Bumper - Autobiography / RH / From: FH000001	-	1	Enquire
15A245A	LR061540	BEZEL - FOG LAMP	LR061540 BEZEL - FOG LAMP Front Bumper - Autobiography / LH / From: FH000001	-	1	Enquire
15A245B	LR059621	BEZEL - FOG LAMP	LR059621 BEZEL - FOG LAMP RH / From: FH000001	-	1	Enquire
15A245B	LR059622	BEZEL - FOG LAMP	LR059622 BEZEL - FOG LAMP LH / From: FH000001	-	1	Enquire
15A245C	LR061539	BEZEL - FOG LAMP	LR061539 BEZEL - FOG LAMP RH / From: FH000001	-	1	Enquire
15A245C	LR061541	BEZEL - FOG LAMP	LR061541 BEZEL - FOG LAMP LH / From: FH000001	-	1	Enquire
17A385	LR048313	BRACKET - LICENSE PLATE	LR048313 BRACKET - LICENSE PLATE Front Number Plate Plinth-China / From: FH000001	-	1	Enquire
17A385	LR026555	BRACKET - LICENSE PLATE	LR026555 BRACKET - LICENSE PLATE Front Number Plate Plinth NAS / From: FH000001	-	1	Enquire
17A385	LR026556	BRACKET - LICENSE PLATE	LR026556 BRACKET - LICENSE PLATE Front Number Plate Plinth - Japan / From: FH000001	-	1	Enquire
17A792	LR055992	REINFORCEMENT - BUMPER BAR BRACKET	LR055992 REINFORCEMENT - BUMPER BAR BRACKET Bumper / From: FH000001	-	1	Enquire
17B836	LR038530	MOUNTING BRACKET - FRONT BUMPER	LR038530 MOUNTING BRACKET - FRONT BUMPER With Headlamp Power Wash / Contains Headlamp Washer Brackets / From: FH000001 / To: GH163555	-	1	Enquire
17B836	LR094157	MOUNTING BRACKET - FRONT BUMPER	LR094157 MOUNTING BRACKET - FRONT BUMPER With Headlamp Power Wash / Contains Headlamp Washer Brackets / From: GH163556	-	1	Enquire
17B836	LR036195	MOUNTING BRACKET - FRONT BUMPER	LR036195 MOUNTING BRACKET - FRONT BUMPER Less Headlamp Washer / From: FH000001	-	1	Enquire
17D957	LR059625	BUMPER - FRONT	LR059625 BUMPER - FRONT Less Headlamp Washer, Rear View Camera-Fixed / Primed / From: FH000001	-	1	Enquire
17D957	LR059627	BUMPER - FRONT	LR059627 BUMPER - FRONT Less Camera System, With Headlamp Power Wash / Primed / From: FH000001	-	1	Enquire
17D957	LR059631	BUMPER - FRONT	LR059631 BUMPER - FRONT Front Bumper - Autobiography, Less Headlamp Washer, Surround Camera System / Primed / From: FH000001	-	1	Enquire
17D957	LR059632	BUMPER - FRONT	LR059632 BUMPER - FRONT Front Bumper - Autobiography, Surround Camera System, With Headlamp Power Wash / Primed / From: FH000001	-	1	Enquire
17D957	LR088365	BUMPER - FRONT	LR088365 BUMPER - FRONT Less Headlamp Washer, Sport/Dynamic, Surround Camera System / Primed / From: GH000001	-	1	Enquire
17D957	LR079538	BUMPER - FRONT	LR079538 BUMPER - FRONT Sport/Dynamic, Surround Camera System, With Headlamp Power Wash / Includes Headlamp Power Wash Caps, Primed / From: FH000001	-	1	Enquire
17K826	LR006719	RETAINER - NUT	LR006719 RETAINER - NUT Nut "U" Spring,	-	1	Enquire
2484	LR036197	CAP - POWERWASH JET	LR036197 CAP - POWERWASH JET With Headlamp Power Wash / RH / From: FH000001	-	1	Enquire
2484	LR036198	CAP - POWERWASH JET	LR036198 CAP - POWERWASH JET With Headlamp Power Wash / LH / From: FH000001	-	1	Enquire
8200	LR066107	GRILLE - RADIATOR	LR066107 GRILLE - RADIATOR Atlas Grille Bright Chrome Surround, With Speed Control / From: FH000001 / To: FH033262	-	1	Enquire
8200	LR078326	GRILLE - RADIATOR	LR078326 GRILLE - RADIATOR Atlas Grille Bright Chrome Surround, With Speed Control / From: FH033263 / To: FH999999	-	1	Enquire
8200	LR048563	GRILLE - RADIATOR	LR048563 GRILLE - RADIATOR With Adaptive Speed Control / For Badge Please Refer To The Proper Section / From: EH000001 / To: FH999999	-	1	Enquire
8200	LR087754	GRILLE - RADIATOR	LR087754 GRILLE - RADIATOR Santorini Grill/Dorchester Grey Srd / For Badge Please Refer To The Proper Section / From: HH000001	-	1	Enquire
8200	LR085932	GRILLE - RADIATOR	LR085932 GRILLE - RADIATOR Atlas Grille Bright Chrome Surround, With Speed Control / From: GH000001 / To: GH999999	-	1	Enquire
8200	LR085932	GRILLE - RADIATOR	LR085932 GRILLE - RADIATOR Atlas Grille Bright Chrome Surround / From: HH000001	-	1	Enquire
8200	LR079531	GRILLE - RADIATOR	LR079531 GRILLE - RADIATOR Grille - Narvik Black / Atlas Surrn, With Adaptive Speed Control / For Badge Please Refer To The Proper Section / From: GH000001 / To: GH999999	-	1	Enquire
8200	LR079531	GRILLE - RADIATOR	LR079531 GRILLE - RADIATOR Adaptive Speed Control+Queue Assist, Grille - Narvik Black / Atlas Surrn / For Badge Please Refer To The Proper Section / From: HH000001	-	1	Enquire
8666	LR084552	MOULDING - BUMPER BAR	LR084552 MOULDING - BUMPER BAR Less Headlamp Washer, Sport/Dynamic, Surround Camera System / LH / From: GH000001	-	1	Enquire
8666	LR084551	MOULDING - BUMPER BAR	LR084551 MOULDING - BUMPER BAR Less Headlamp Washer, Sport/Dynamic, Surround Camera System / RH / From: GH000001	-	1	Enquire
15266	LR061542	BRACKET - FOG LAMP	LR061542 BRACKET - FOG LAMP Front Bumper - Autobiography / RH / From: FH000001	-	1	Enquire
15266	LR061543	BRACKET - FOG LAMP	LR061543 BRACKET - FOG LAMP Front Bumper - Autobiography / LH / From: FH000001	-	1	Enquire
17752	LR036189	BRACKET - BUMPER MOUNTING	LR036189 BRACKET - BUMPER MOUNTING RH / From: FH000001	-	1	Enquire
17752	LR036193	BRACKET - BUMPER MOUNTING	LR036193 BRACKET - BUMPER MOUNTING LH / From: FH000001	-	1	Enquire
