Find Your Part

Engine Mounting (2.0L I4 High DOHC AJ200 Petrol, Halewood (UK), 2.0L I4 Mid DOHC AJ200 Petrol) ((V) FROMJH000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Engine Mounting (2.0L I4 High DOHC AJ200 Petrol, Halewood (UK), 2.0L I4 Mid DOHC AJ200 Petrol) ((V)...

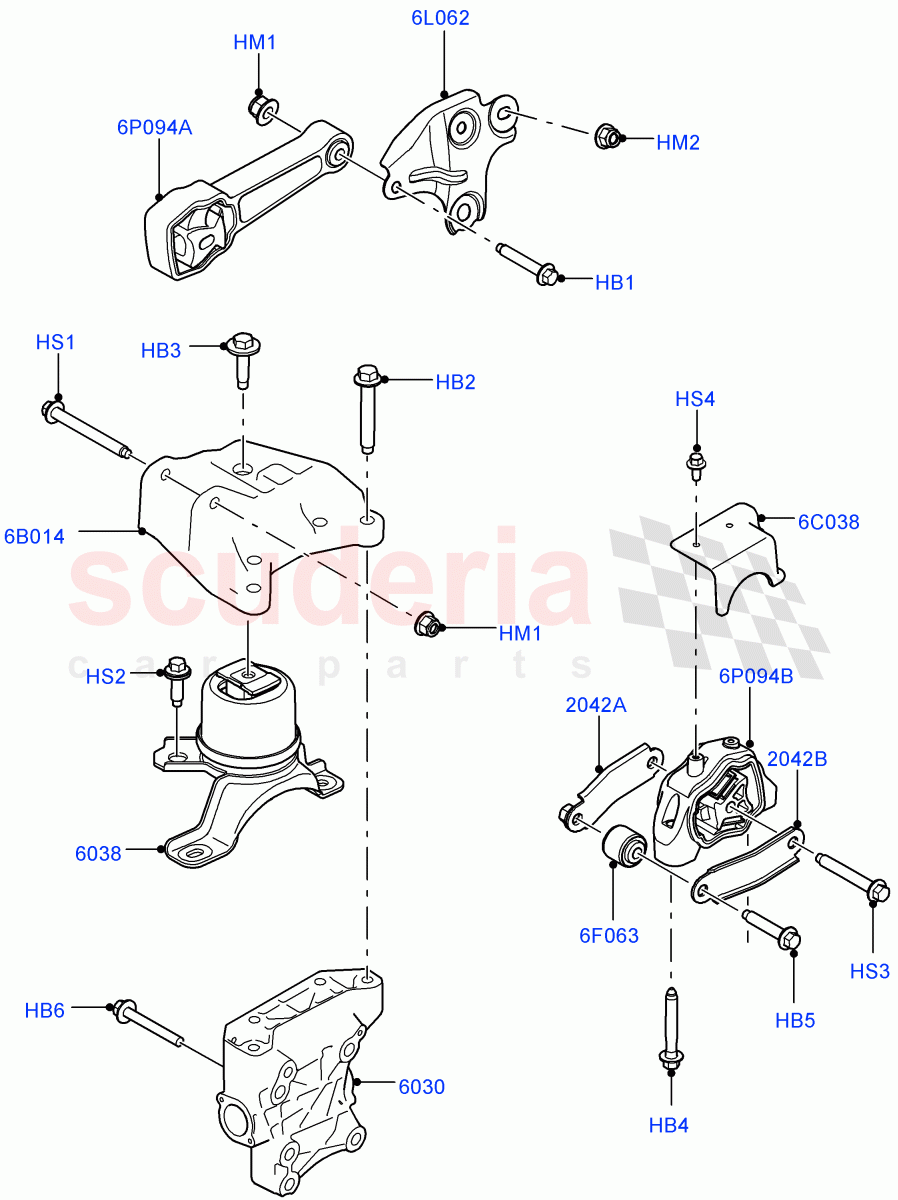

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR000039	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072005	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090632	BOLT - FLANGED HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000094	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR080289	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071928	BOLT AND WASHER - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FY112056	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FY112046	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500570	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG501260	SCREW AND WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR045673	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500190	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072044	SUPPORT - ENGINE MOUNTING - FRONT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090559	BRACKET - ENGINE FRONT SUPPORT	Enquire	To Order
	LR024730	INSULATOR - ENGINE SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000596	INSULATOR - ENGINE COMPARTMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000598	INSULATOR - ENGINE COMPARTMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095899	BRACKET - ENGINE FRONT SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR084277	HEAT SHIELD - ENGINE INSULATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000520	INSULATOR - STABILIZER BAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR078721	BRACKET - ENGINE SUPPORT	Enquire	To Order
	LR117091	BRACKET - ENGINE SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000597	INSULATOR - ENGINE COMPARTMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR032311	INSULATOR - ENGINE SUPPORT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR000039	BOLT	LR000039 BOLT Hexagonal Head, M12 x 65MM / From: JH000001	-	1	Enquire
HB2	LR072005	BOLT	LR072005 BOLT M14 X 65mm / From: JH000001	-	4	Enquire
HB3	LR090632	BOLT - FLANGED HEX.	LR090632 BOLT - FLANGED HEX. Bolt And Washer, Insulator, M12 x 40MM, Support / From: JH000001	-	1	Enquire
HB4	LR000094	BOLT - HEX.HEAD	LR000094 BOLT - HEX.HEAD Insulator, Lower, M12 x 75MM / From: JH000001	-	2	Enquire
HB5	LR080289	BOLT	LR080289 BOLT Bushing, M12 X 60MM / From: JH000001	-	1	Enquire
HB6	LR071928	BOLT AND WASHER - HEX.HEAD	LR071928 BOLT AND WASHER - HEX.HEAD M12 x 75MM, Support, To Engine / From: JH000001	-	5	Enquire
HM1	FY112056	NUT - HEX.	FY112056 NUT - HEX. Hex Nut Type, M12 / From: JH000001	-	1	Enquire
HM2	FY112046	NUT - HEX.	FY112046 NUT - HEX. M12, Nut, To Body / From: JH000001	-	3	Enquire
HS1	RYG500570	SCREW	RYG500570 SCREW Insulator, M12 X 110MM, Upper / From: JH000001	-	1	Enquire
HS2	RYG501260	SCREW AND WASHER	RYG501260 SCREW AND WASHER Insulator, M12X1.75, To Body / From: JH000001	-	3	Enquire
HS3	LR045673	SCREW	LR045673 SCREW Insulator, Lower, M12 x 85MM, Rear / From: JH000001	-	1	Enquire
HS4	RYP500190	SCREW	RYP500190 SCREW Heat Shield, Hexagonal Head, M6 x 12MM / From: JH000001	-	2	Enquire
6B014	LR095899	BRACKET - ENGINE FRONT SUPPORT	LR095899 BRACKET - ENGINE FRONT SUPPORT Engine Front / From: JH000001	-	1	Enquire
6C038	LR084277	HEAT SHIELD - ENGINE INSULATOR	LR084277 HEAT SHIELD - ENGINE INSULATOR From: JH000001	-	1	Enquire
6F063	LR000520	INSULATOR - STABILIZER BAR	LR000520 INSULATOR - STABILIZER BAR Bushing / From: JH000001	-	1	Enquire
6L062	LR078721	BRACKET - ENGINE SUPPORT	LR078721 BRACKET - ENGINE SUPPORT From: JH000001 / To: JH315035	-	1	Enquire
6L062	LR117091	BRACKET - ENGINE SUPPORT	LR117091 BRACKET - ENGINE SUPPORT From: JH315036	-	1	Enquire
6P094A	LR000597	INSULATOR - ENGINE COMPARTMENT	LR000597 INSULATOR - ENGINE COMPARTMENT Upper / From: JH000001	-	1	Enquire
6P094B	LR032311	INSULATOR - ENGINE SUPPORT	LR032311 INSULATOR - ENGINE SUPPORT Lower / From: JH000001	-	1	Enquire
2042A	LR000596	INSULATOR - ENGINE COMPARTMENT	LR000596 INSULATOR - ENGINE COMPARTMENT RH, Insulator / From: JH000001	-	1	Enquire
2042B	LR000598	INSULATOR - ENGINE COMPARTMENT	LR000598 INSULATOR - ENGINE COMPARTMENT LH, Insulator / From: JH000001	-	1	Enquire
6030	LR072044	SUPPORT - ENGINE MOUNTING - FRONT	LR072044 SUPPORT - ENGINE MOUNTING - FRONT RH / From: JH000001	-	1	Enquire
6038	LR090559	BRACKET - ENGINE FRONT SUPPORT	LR090559 BRACKET - ENGINE FRONT SUPPORT 2 Door Convertible / Engine Mounting / From: JH000001	-	1	Enquire
6038	LR024730	INSULATOR - ENGINE SUPPORT	LR024730 INSULATOR - ENGINE SUPPORT 3 Door / Engine Mounting / From: JH000001	-	1	Enquire
