Convertible Roof (2 Door Convertible, Halewood (Uk))

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Convertible Roof (2 Door Convertible, Halewood (UK))

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR037087 BOLT AND WASHER - HEX.HEAD Enquire To Order
Photo Part No Description Price (each) Stock
BYH500040 NUT AND WASHER - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
LR081714 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR090381 SCREW AND WASHER Enquire To Order
LR106155 SCREW AND WASHER Enquire To Order
Photo Part No Description Price (each) Stock
LR081712 SCREW Enquire To Order
LR106721 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR081732 COVER - ROOF - VINYL Enquire To Order
Photo Part No Description Price (each) Stock
LR079474 ROOF - FOLDING Enquire To Order
LR092820 ROOF - FOLDING Enquire To Order
LR113630 ROOF - FOLDING Enquire To Order
Photo Part No Description Price (each) Stock
LR081733 HEADLINING - ROOF Enquire To Order
Photo Part No Description Price (each) Stock
LR081740 TENSION BOW - ROOF Enquire To Order
Photo Part No Description Price (each) Stock
LR081508 WIRE - CONVERTIBLE ROOF SYSTEM Enquire To Order
Photo Part No Description Price (each) Stock
LR081735 MOTOR - HEADER PANEL Enquire To Order
Photo Part No Description Price (each) Stock
LR081510 MOTOR - ROOF Enquire To Order
LR090195 MOTOR - ROOF Enquire To Order
LR092641 MOTOR - ROOF Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR081716 SEAL - CANTRAIL Enquire To Order
LR081717 SEAL - CANTRAIL Enquire To Order
Photo Part No Description Price (each) Stock
LR081718 SEAL - CANTRAIL Enquire To Order
LR081719 SEAL - CANTRAIL Enquire To Order
Photo Part No Description Price (each) Stock
LR081720 SEAL - CANTRAIL Enquire To Order
LR081721 SEAL - CANTRAIL Enquire To Order
Photo Part No Description Price (each) Stock
LR081723 SEAL - "D" POST Enquire To Order
LR081722 SEAL - "D" POST Enquire To Order
Photo Part No Description Price (each) Stock
LR069757 COVER - ROOF FLAP MECHANISM Enquire To Order
LR069760 COVER - ROOF FLAP MECHANISM Enquire To Order
Photo Part No Description Price (each) Stock
LR081738 ACCESS COVER - HEADER PANEL Enquire To Order
Photo Part No Description Price (each) Stock
LR081724 LATCH - ROOF Enquire To Order
LR081725 LATCH - ROOF Enquire To Order
Photo Part No Description Price (each) Stock
LR081736 PANEL - ROOF Enquire To Order
Photo Part No Description Price (each) Stock
LR081730 TRIM - CANTRAIL Enquire To Order
LR081731 TRIM - CANTRAIL Enquire To Order
Photo Part No Description Price (each) Stock
LR081728 TRIM - CANTRAIL Enquire To Order
LR081729 TRIM - CANTRAIL Enquire To Order
View All

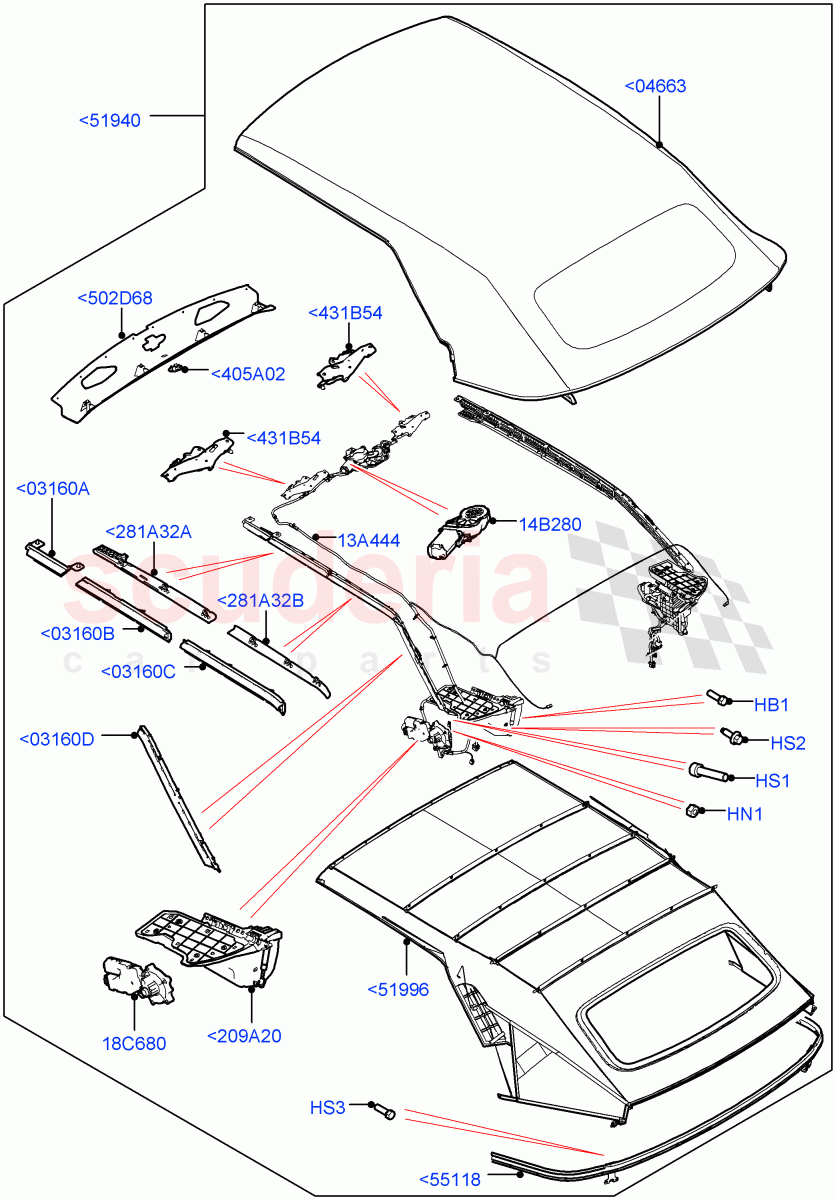

Convertible Roof (2 Door Convertible, Halewood (UK)) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<209A20 LR069757
COVER - ROOF FLAP MECHANISM
RH 		- 1 Enquire
<209A20 LR069760
COVER - ROOF FLAP MECHANISM
LH 		- 1 Enquire
<281A32A LR081730
TRIM - CANTRAIL
RH 		- 1 Enquire
<281A32A LR081731
TRIM - CANTRAIL
LH 		- 1 Enquire
<281A32B LR081728
TRIM - CANTRAIL
RH 		- 1 Enquire
<281A32B LR081729
TRIM - CANTRAIL
LH 		- 1 Enquire
<405A02 LR081738
ACCESS COVER - HEADER PANEL
Blanking 		- 1 Enquire
<431B54 LR081724
LATCH - ROOF
RH 		- 1 Enquire
<431B54 LR081725
LATCH - ROOF
LH 		- 1 Enquire
<502D68 LR081736
PANEL - ROOF
Front 		- 1 Enquire
<03160A LR081716
SEAL - CANTRAIL
RH 		- 1 Enquire
<03160A LR081717
SEAL - CANTRAIL
LH 		- 1 Enquire
<03160B LR081718
SEAL - CANTRAIL
RH 		- 1 Enquire
<03160B LR081719
SEAL - CANTRAIL
LH 		- 1 Enquire
<03160C LR081720
SEAL - CANTRAIL
RH 		- 1 Enquire
<03160C LR081721
SEAL - CANTRAIL
LH 		- 1 Enquire
<03160D LR081723
SEAL - "D" POST
LH 		- 1 Enquire
<03160D LR081722
SEAL - "D" POST
RH 		- 1 Enquire
<04663 LR081732
COVER - ROOF - VINYL
Outer 		- 1 Enquire
<51940 LR079474
ROOF - FOLDING
Roof assembly / To: HH184086 		- 1 Enquire
<51940 LR092820
ROOF - FOLDING
Roof assembly / From: HH184087 / To: KH335344 		- 1 Enquire
<51940 LR113630
ROOF - FOLDING
Roof assembly / From: KH335345 		- 1 Enquire
<51996 LR081733
HEADLINING - ROOF
Inner 		- 1 Enquire
<55118 LR081740
TENSION BOW - ROOF 		- 1 Enquire
HB1 LR037087
BOLT AND WASHER - HEX.HEAD
Fixes Roof Assembly, Hexagonal Head, M8 X 30MM 		- 4 Enquire
HN1 BYH500040
NUT AND WASHER - HEX.
M8 		- 2 Enquire
HS1 LR081714
BOLT
Roof Adjuster Screw 		- 1 Enquire
HS2 LR090381
SCREW AND WASHER
Hexagonal Head, M6 X 20MM / To: HH999999 		- 10 Enquire
HS2 LR106155
SCREW AND WASHER
Hexagonal Head, M6 X 20MM / From: JH000001 		- 10 Enquire
HS3 LR081712
SCREW
M6 X 16MM / To: HH999999 		- 15 Enquire
HS3 LR106721
SCREW
M6 X 16MM / From: JH000001 		- 15 Enquire
13A444 LR081508
WIRE - CONVERTIBLE ROOF SYSTEM 		- 1 Enquire
14B280 LR081735
MOTOR - HEADER PANEL
Center Location, Front 		- 1 Enquire
18C680 LR081510
MOTOR - ROOF
RH/LH / To: GH152461 		- 1 Enquire
18C680 LR090195
MOTOR - ROOF
RH/LH / From: GH152462 / To: HH202558 		- 1 Enquire
18C680 LR092641
MOTOR - ROOF
RH/LH / From: HH202559 / To: KH335345 		- 1 Enquire
18C680 LR118280
MOTOR - ROOF
RH/LH / From: KH335345 		- 1 Enquire
