Front Door Glass & Window Controls (Changsu (China)) ((V) FROMEG000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Front Door Glass & Window Controls (Changsu (China)) ((V) FROMEG000001)

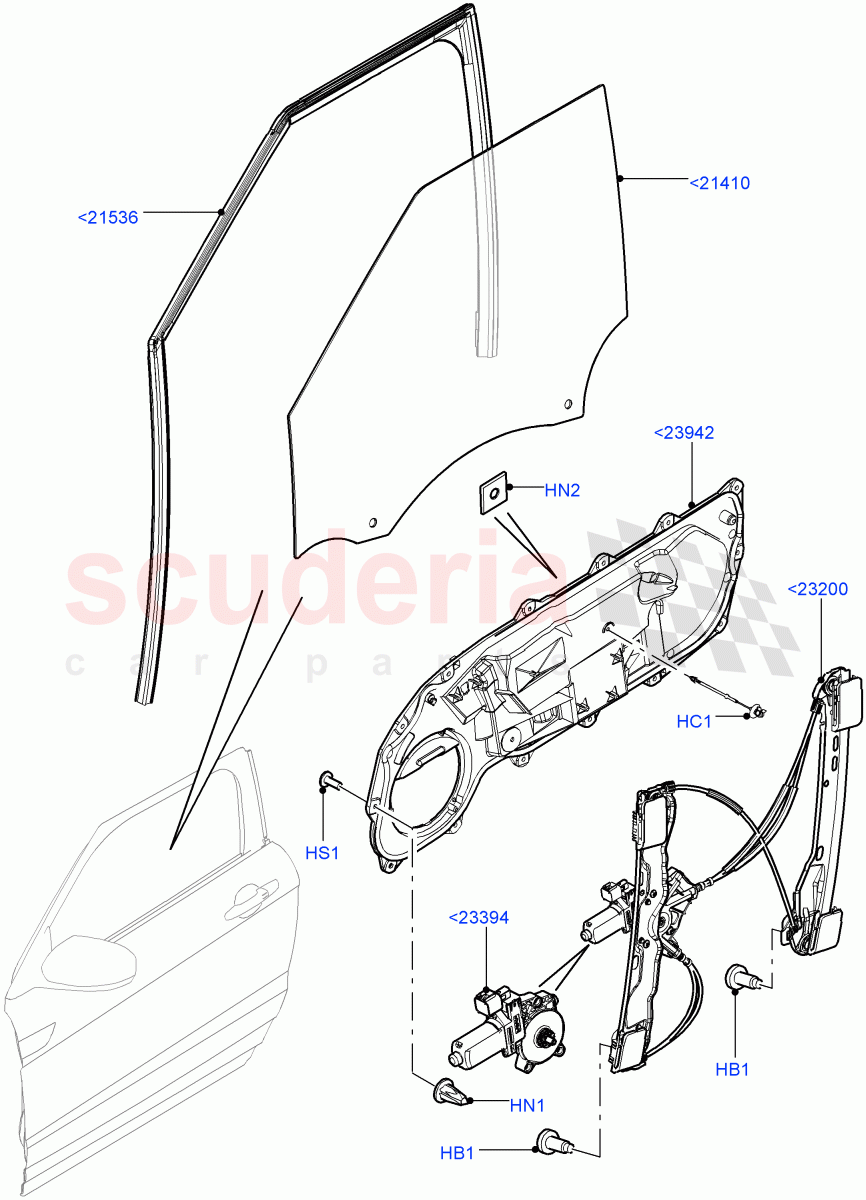

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	XYG500160	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR028083	CLIP - CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114151	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR031438	NUT - SQUARE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	VYP500060	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044525	GLASS - DOOR DROP	Enquire	To Order
	LR044526	GLASS - DRIVER DOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027342	RUN - DOOR GLASS	Enquire	To Order
	LR027343	RUN - DOOR GLASS	Enquire	To Order
	LR079516	RUN - DOOR GLASS	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR067998	REGULATOR - WINDOW	Enquire	To Order
	LR067999	REGULATOR - WINDOW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR031660	MOTOR - WINDOW OPERATING	Enquire	To Order
	LR031661	MOTOR - WINDOW OPERATING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048303	PANEL - DOOR TRIM	Enquire	To Order
	LR048305	PANEL - DOOR TRIM	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<21410	LR044525	GLASS - DOOR DROP	LR044525 GLASS - DOOR DROP RH / From: EG000001	-	1	Enquire
<21410	LR044526	GLASS - DRIVER DOOR	LR044526 GLASS - DRIVER DOOR LH / From: EG000001	-	1	Enquire
<21536	LR027342	RUN - DOOR GLASS	LR027342 RUN - DOOR GLASS RH / From: EG000001 / To: GG134737	-	1	Enquire
<21536	LR027343	RUN - DOOR GLASS	LR027343 RUN - DOOR GLASS LH / From: EG000001 / To: GG134737	-	1	Enquire
<21536	LR079516	RUN - DOOR GLASS	LR079516 RUN - DOOR GLASS RH / From: GG134738	-	1	Enquire
<21536	LR079518	RUN - DOOR GLASS	LR079518 RUN - DOOR GLASS LH / From: GG134738	-	1	Enquire
<23200	LR067998	REGULATOR - WINDOW	LR067998 REGULATOR - WINDOW RH / From: EG000001	-	1	Enquire
<23200	LR067999	REGULATOR - WINDOW	LR067999 REGULATOR - WINDOW LH / From: EG000001	-	1	Enquire
<23394	LR031660	MOTOR - WINDOW OPERATING	LR031660 MOTOR - WINDOW OPERATING RH / From: EG000001	-	1	Enquire
<23394	LR031661	MOTOR - WINDOW OPERATING	LR031661 MOTOR - WINDOW OPERATING LH / From: EG000001	-	1	Enquire
<23942	LR048303	PANEL - DOOR TRIM	LR048303 PANEL - DOOR TRIM RH / From: EG000001	-	1	Enquire
<23942	LR048305	PANEL - DOOR TRIM	LR048305 PANEL - DOOR TRIM LH / From: EG000001	-	1	Enquire
HB1	XYG500160	BOLT	XYG500160 BOLT M6 x 12MM, Torx / From: EG000001	-	4	Enquire
HC1	LR028083	CLIP - CABLE	LR028083 CLIP - CABLE Cable Tie, Clip 6 X 6.5 X 1.9 - 2.1 / From: EG000001	-	2	Enquire
HN1	LR114151	NUT	LR114151 NUT 5 X 8 X 8 X 0.8-1.2 / From: EG000001	-	24	Enquire
HN2	LR031438	NUT - SQUARE	LR031438 NUT - SQUARE M6 / From: EG000001	-	4	Enquire
HS1	VYP500060	SCREW	VYP500060 SCREW 4.8 X 16MM, Torx / From: EG000001	-	26	Enquire
