Windscreen Washer (Halewood (Uk))

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Windscreen Washer (Halewood (UK))

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR007064 CLIP $1.12 To Order
Photo Part No Description Price (each) Stock
LR027687 GROMMET - WINDSHIELD WASHER PUMP $3.75 To Order
Photo Part No Description Price (each) Stock
DMJ500020 GROMMET - WATER RESERVOIR $4.47 To Order
Photo Part No Description Price (each) Stock
LR006025 BOLT $1.32 IN STOCK
Photo Part No Description Price (each) Stock
LR029523 SCREW - PAN - TORX $1.09 To Order
Photo Part No Description Price (each) Stock
FYP106392 SCREW $2.09 To Order
Photo Part No Description Price (each) Stock
LR025142 JET - WINDSHIELD WASHER $15.65 To Order
LR025143 JET - WINDSHIELD WASHER $24.45 To Order
LR050779 JET - WINDSHIELD WASHER $27.22 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR025755 WINDSHIELD WASHER $47.02 To Order
LR025760 RESERVOIR - WINDSHIELD WASHER $63.93 To Order
Photo Part No Description Price (each) Stock
LR025827 HOSE - REAR WASHER $23.97 To Order
LR025826 HOSE - REAR WASHER $23.97 To Order
LR051421 HOSE - REAR WASHER $17.46 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR025833 HOSE - REAR WASHER $23.97 To Order
LR025834 HOSE - REAR WASHER $23.97 To Order
Photo Part No Description Price (each) Stock
LR013950 MOTOR AND PUMP - HEADLAMP WASHER (NH) $39.02 To Order
Photo Part No Description Price (each) Stock
LR027685 MOTOR AND PUMP - FRONT/REAR WASHER $58.88 To Order
LR077377 MOTOR AND PUMP - FRONT/REAR WASHER $58.17 To Order
LR083803 MOTOR AND PUMP - FRONT/REAR WASHER $39.98 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR002266 CAP - FILLER $3.93 To Order
Photo Part No Description Price (each) Stock
DMI500010 SENSOR - WASHER FLUID LEVEL $11.87 To Order
LR142260 SENSOR - WASHER FLUID LEVEL $24.14 To Order
LR142260 SENSOR - WASHER FLUID LEVEL $24.14 To Order
Photo Part No Description Price (each) Stock
DMS500010 FILTER - WATER $7.00 To Order
Photo Part No Description Price (each) Stock
LR085631 HOSE - WINDSHIELD WASHER $27.95 To Order
Photo Part No Description Price (each) Stock
LR025825 HOSE - FILLER PIPE $33.13 To Order
LR079194 HOSE - FILLER PIPE $67.95 To Order
LR084365 HOSE - FILLER PIPE $62.54 To Order
Photo Part No Description Price (each) Stock
LR024205 HOSE - WINDSHIELD WASHER $23.38 To Order
Photo Part No Description Price (each) Stock
LR024204 HOSE - WINDSHIELD WASHER $15.59 To Order
View All

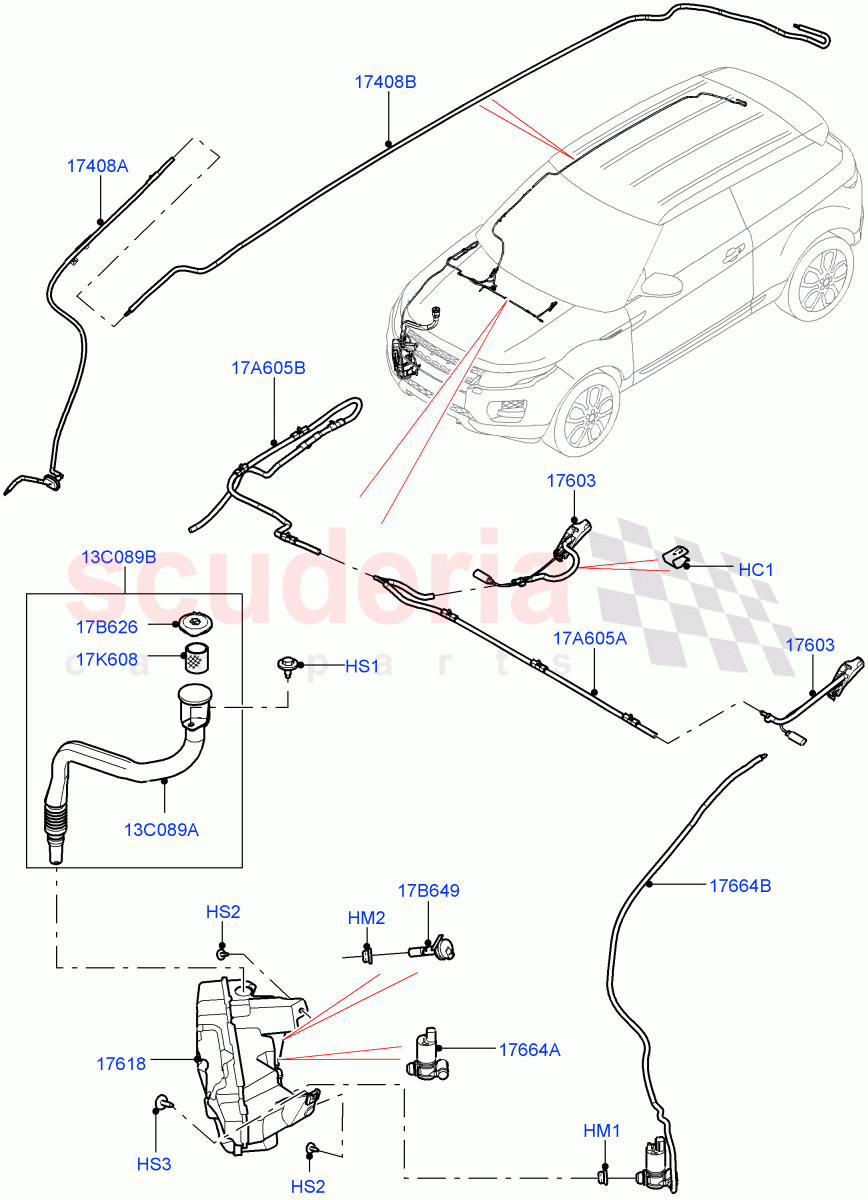

Windscreen Washer (Halewood (UK)) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR007064
CLIP
With Heated Washer Jet / 8 x 8 x 4MM 		$1.12 2
HM1 LR027687
GROMMET - WINDSHIELD WASHER PUMP
Windshield Washer Motor 		$3.75 1
HM2 DMJ500020
GROMMET - WATER RESERVOIR
With Low Level Sensor 		$4.47 1
HS1 LR006025
BOLT
Bolt And Washer, M6 X 15 Hex
IN STOCK 		$1.32 4
HS2 LR029523
SCREW - PAN - TORX
M6 X 14MM 		$1.09 2
HS3 FYP106392
SCREW
M6 		$2.09 1
13C089A LR085631
HOSE - WINDSHIELD WASHER
From: HH000001 		$27.95 1
13C089B LR025825
HOSE - FILLER PIPE
To: GH120528 		$33.13 1
13C089B LR079194
HOSE - FILLER PIPE
From: GH120529 / To: GH999999 		$67.95 1
13C089B LR084365
HOSE - FILLER PIPE
From: HH000001 		$62.54 1
17A605A LR024205
HOSE - WINDSHIELD WASHER
Less Heated Washer Jet 		$23.38 1
17A605B LR024204
HOSE - WINDSHIELD WASHER
Less Heated Washer Jet 		$15.59 1
17B626 LR002266
CAP - FILLER 		$3.93 1
17B649 DMI500010
SENSOR - WASHER FLUID LEVEL
Low Level / To: JH306733 		$11.87 1
17B649 LR142260
SENSOR - WASHER FLUID LEVEL
With Headlamp Power Wash / Low Level / From: JH306734 / To: JH307733 		$24.14 1
17B649 LR142260
SENSOR - WASHER FLUID LEVEL
With Headlamp Power Wash / Low Level / From: JH307734 		$24.14 1
17K608 DMS500010
FILTER - WATER 		$7.00 1
17408A LR025827
HOSE - REAR WASHER
5 Door, RHD / To: HH999999 		$23.97 1
17408A LR025826
HOSE - REAR WASHER
LHD / To: DH999999 		$23.97 1
17408A LR051421
HOSE - REAR WASHER
LHD / From: EH000001 / To: GH125983 		$17.46 1
17408A LR076069
HOSE - REAR WASHER
3 Door, LHD / From: GH125984 		$45.42 1
17408A LR106974
HOSE - REAR WASHER
3 Door, RHD / From: JH000001 		$31.32 1
17408B LR025833
HOSE - REAR WASHER
3 Door, RHD 		$23.97 1
17408B LR025834
HOSE - REAR WASHER
5 Door, LHD 		$23.97 1
17603 LR025142
JET - WINDSHIELD WASHER
With Heated Washer Jet / To: DH839664 		$15.65 2
17603 LR025143
JET - WINDSHIELD WASHER
Less Heated Washer Jet / To: DH839664 		$24.45 2
17603 LR050779
JET - WINDSHIELD WASHER
With Heated Washer Jet / From: DH839665 		$27.22 2
17603 LR050780
JET - WINDSHIELD WASHER
Less Heated Washer Jet / From: DH839665 		$12.29 2
17618 LR025755
WINDSHIELD WASHER
Less Headlamp Washer 		$47.02 1
17618 LR025760
RESERVOIR - WINDSHIELD WASHER
With Headlamp Power Wash 		$63.93 1
17664A LR013950
MOTOR AND PUMP - HEADLAMP WASHER (NH)
With Headlamp Power Wash 		$39.02 1
17664B LR027685
MOTOR AND PUMP - FRONT/REAR WASHER
To: FH062050 		$58.88 1
17664B LR077377
MOTOR AND PUMP - FRONT/REAR WASHER
From: FH062051 / To: GH106830 		$58.17 1
17664B LR083803
MOTOR AND PUMP - FRONT/REAR WASHER
5 Door / From: GH106831 		$39.98 1
17664B LR069727
MOTOR AND PUMP
2 Door Convertible / From: GH125984 		$82.78 1
