Exterior Rear View Mirror (5 Door, Halewood (Uk), 3 Door) ((V) Todh999999)

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Exterior Rear View Mirror (5 Door, Halewood (UK), 3 Door) ((V) TODH999999)

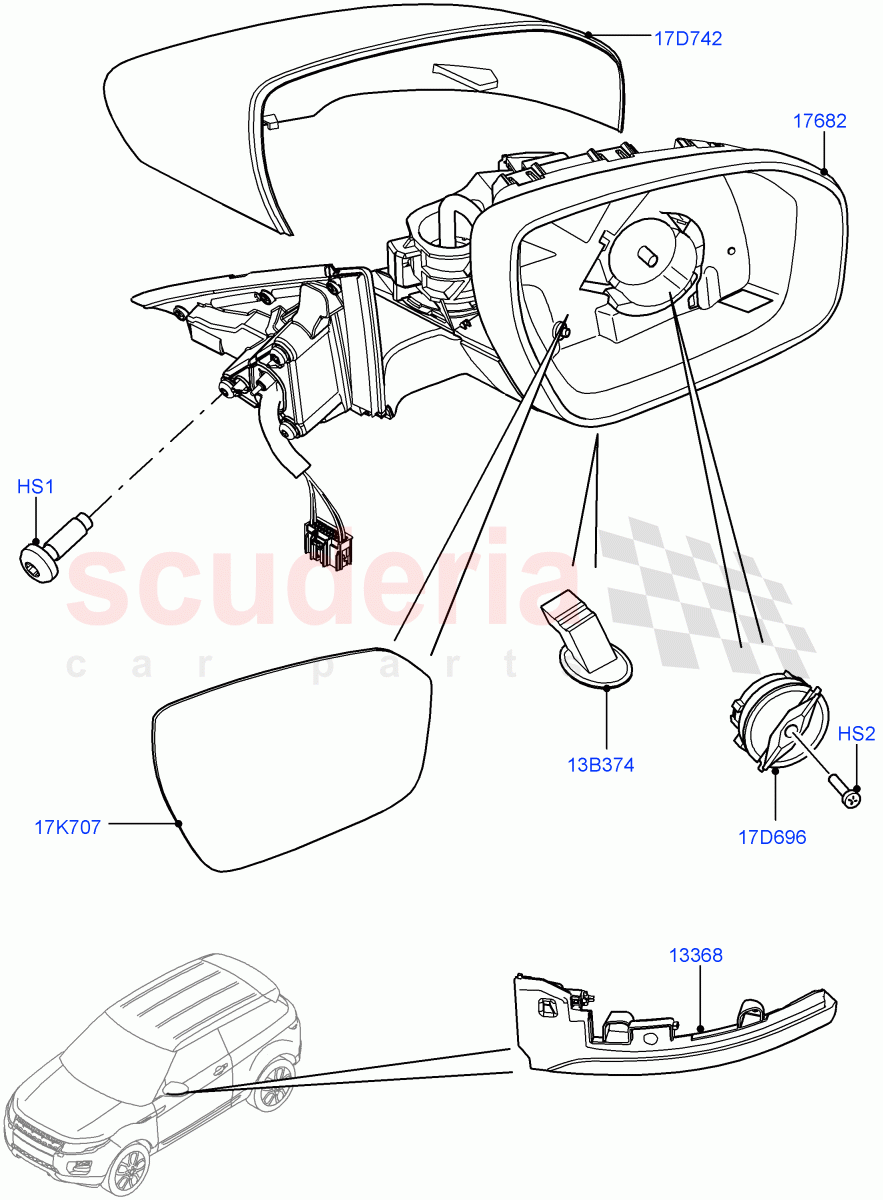

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR025172 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR011865 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR027945 LAMP - SIDE FLASHER Enquire To Order
LR027946 LAMP - SIDE FLASHER Enquire To Order
Photo Part No Description Price (each) Stock
LR025561 MIRROR - REAR VIEW - OUTER Enquire To Order
LR025559 MIRROR - REAR VIEW - OUTER Enquire To Order
LR025557 MIRROR - REAR VIEW - OUTER Enquire To Order
...and 21 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR027948 LAMP - EXTERIOR MIRROR Enquire To Order
LR027949 LAMP - EXTERIOR MIRROR Enquire To Order
Photo Part No Description Price (each) Stock
CRP500031 MOTOR - EXTERIOR REAR VIEW MIRROR Enquire To Order
CRP500041 MOTOR - EXTERIOR REAR VIEW MIRROR Enquire To Order
LR015050 MOTOR - EXTERIOR REAR VIEW MIRROR Enquire To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR025170 COVER - MIRROR HOUSING Enquire To Order
LR025171 COVER - MIRROR HOUSING Enquire To Order
Photo Part No Description Price (each) Stock
LR025225 GLASS - REAR VIEW OUTER MIRROR Enquire To Order
LR025209 GLASS - REAR VIEW OUTER MIRROR Enquire To Order
LR025210 GLASS - REAR VIEW OUTER MIRROR Enquire To Order
...and 11 more part variants. See table on right for more details.
View All
Exterior Rear View Mirror (5 Door, Halewood (UK), 3 Door) ((V) TODH999999) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 LR025172
SCREW
M6 X 16MM / To: DH999999 		- 3 Enquire
HS2 LR011865
SCREW
M3 X 25MM / To: DH999999 		- 1 Enquire
13B374 LR027948
LAMP - EXTERIOR MIRROR
Approach Lights / RH / To: DH999999 		- 1 Enquire
13B374 LR027949
LAMP - EXTERIOR MIRROR
Approach Lights / LH / To: DH999999 		- 1 Enquire
17D696 CRP500031
MOTOR - EXTERIOR REAR VIEW MIRROR
Dual Power Heated Exterior Mirrors / RH, 3 Pin Connector, Less Memory / To: DH999999 		- 1 Enquire
17D696 CRP500041
MOTOR - EXTERIOR REAR VIEW MIRROR
Power/Heated/Memory Fold Back Mir / RH, 8 Pin Connector, With Memory / To: DH999999 		- 1 Enquire
17D696 LR015050
MOTOR - EXTERIOR REAR VIEW MIRROR
Dual Power Heated Exterior Mirrors / LH, 3 Pin Connector, Less Memory / To: DH999999 		- 1 Enquire
17D696 LR015051
MOTOR - EXTERIOR REAR VIEW MIRROR
Power/Heated/Memory Fold Back Mir / LH, 8 Pin Connector, With Memory / From: DH756451 / To: DH999999 		- 1 Enquire
17D696 LR025207
MOTOR - EXTERIOR REAR VIEW MIRROR
Power/Heated/Memory Fold Back Mir / LH, 8 Pin Connector, With Memory / To: DH756450 		- 1 Enquire
17D742 LR025170
COVER - MIRROR HOUSING
RH, Primed / To: DH999999 		- 1 Enquire
17D742 LR025171
COVER - MIRROR HOUSING
LH, Primed / To: DH999999 		- 1 Enquire
17K707 LR025225
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex Mirror, Dual Power Heated Exterior Mirrors, English Exp (Mena) Owner Handbook, Less Auxillary Lights, Less Blind Spot Information System, Less Proximity Mirrors / RH, (+) ROW / To: DH999999 		- 1 Enquire
17K707 LR025209
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex Mirror, Dual Power Heated Exterior Mirrors, English Exp (Mena) Owner Handbook, Less Auxillary Lights, Less Blind Spot Information System, Less Proximity Mirrors / LH, (+) ROW, (+)Japan / To: DH999999 		- 1 Enquire
17K707 LR025210
GLASS - REAR VIEW OUTER MIRROR
1 Flat / 1 1400MM Convex - NAS, Approach Lights, English NAS Owner Handbook, LHD, Less Blind Spot Information System, Less Proximity Mirrors, Power/Heated/Memory Fold Back Mir, USA Label / RH, (+) Korea, (+)"NAS" / To: DH999999 		- 1 Enquire
17K707 LR025212
GLASS - REAR VIEW OUTER MIRROR
1 Flat/1 Convex Glass - Canada, Approach Lights, Japanese Literature Pack, LHD, Less Blind Spot Information System, Less Proximity Mirrors, Power/Heated/Memory Fold Back Mir, USA Label / LH, (+) Korea, (+)"Canada", (+)"NAS" / To: DH999999 		- 1 Enquire
17K707 LR025213
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex (SAS) Glass, Arabic/English Owner Handbook, Dual Power Heated Exterior Mirrors, LHD, Less Auxillary Lights, Less Blind Spot Information System, Less Proximity Mirrors, With English Language Label / RH, (+)"Gulf" / To: DH999999 		- 1 Enquire
17K707 LR025214
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex (SAS) Glass, Arabic/English Owner Handbook, Dual Power Heated Exterior Mirrors, LHD, Less Auxillary Lights, Less Blind Spot Information System, Less Proximity Mirrors, With English Language Label / LH, (+)"Gulf" / To: DH999999 		- 1 Enquire
17K707 LR025215
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex Glass With Script, Approach Lights, Japanese Literature Pack, Less Blind Spot Information System, Less Proximity Mirrors, Power/Heated/Memory Fold Back Mir, RHD, With ROW Language Label / LH / To: DH999999 		- 1 Enquire
17K707 LR025218
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex Mirror, Approach Lights, Less Proximity Mirrors, Owner Handbook Pack Group, Power/Heated/Memory Fold Back Mir, With Blind Spot Monitoring / LH, (+) ROW, (+)"Gulf" / To: DH999999 		- 1 Enquire
17K707 LR025219
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex Glass With Script, Approach Lights, English NAS (Canada) Owner Handbook, Less Proximity Mirrors, Power/Heated/Memory Fold Back Mir, USA Label, With Blind Spot Monitoring / RH, (+)"NAS" / To: DH999999 		- 1 Enquire
17K707 LR025220
GLASS - REAR VIEW OUTER MIRROR
1 Flat / 1 1400MM Convex - NAS, Approach Lights, English NAS Owner Handbook, LHD, Less Proximity Mirrors, Power/Heated/Memory Fold Back Mir, USA Label, With Blind Spot Monitoring / LH, (+)"Canada", (+)"NAS" / To: DH999999 		- 1 Enquire
17K707 LR025221
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex (SAS) Glass, Approach Lights, Arabic/English Owner Handbook, LHD, Less Proximity Mirrors, Power/Heated/Memory Fold Back Mir, With Blind Spot Monitoring, With English Language Label / RH, (+)"Gulf" / To: DH999999 		- 1 Enquire
17K707 LR025223
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex (SAS) Glass, Approach Lights, Arabic/English Owner Handbook, LHD, Less Proximity Mirrors, Power/Heated/Memory Fold Back Mir, With Blind Spot Monitoring, With English Language Label / LH, (+)"Gulf" / To: DH999999 		- 1 Enquire
17K707 LR025224
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex Glass With Script, Approach Lights, Arabic/English Owner Handbook, Less Proximity Mirrors, Power/Heated/Memory Fold Back Mir, RHD, With Blind Spot Monitoring / LH / To: DH999999 		- 1 Enquire
17K707 LR025217
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex Mirror, Approach Lights, Less Proximity Mirrors, Owner Handbook Pack Group, Power/Heated/Memory Fold Back Mir, With Blind Spot Monitoring / RH, (+) ROW, (+)"Gulf" / To: DH999999 		- 1 Enquire
13368 LR027945
LAMP - SIDE FLASHER
RH / To: DH999999 		- 1 Enquire
13368 LR027946
LAMP - SIDE FLASHER
LH / To: DH999999 		- 1 Enquire
17682 LR025561
MIRROR - REAR VIEW - OUTER
2 1400MM Convex Mirror, Approach Lights, Power/Heated/Memory Fold Back Mir, Proximity Mirror Camera, RHD, With Blind Spot Monitoring / RH / To: DH999999 		- 1 Enquire
17682 LR025559
MIRROR - REAR VIEW - OUTER
2 1400MM Convex Mirror, Approach Lights, Power/Heated/Memory Fold Back Mir, Proximity Mirror Camera, RHD, With Blind Spot Monitoring / LH / To: DH999999 		- 1 Enquire
17682 LR025557
MIRROR - REAR VIEW - OUTER
Approach Lights, LHD, Power/Heated/Memory Fold Back Mir, Proximity Mirror Camera, With Blind Spot Monitoring / RH / To: DH999999 		- 1 Enquire
17682 LR025556
MIRROR - REAR VIEW - OUTER
Approach Lights, Dual Power Heated Fold Back Mirror, LHD, Proximity Mirror Camera, With Blind Spot Monitoring / LH / To: DH999999 		- 1 Enquire
17682 LR025173
MIRROR - REAR VIEW - OUTER
2 1400MM Convex Mirror, Dual Power Heated Exterior Mirrors, Less Auxillary Lights, Less Blind Spot Information System, Less Proximity Mirrors, RHD / RH / To: DH999999 		- 1 Enquire
17682 LR025178
MIRROR - REAR VIEW - OUTER
2 1400MM Convex Mirror, Dual Power Heated Exterior Mirrors, Less Auxillary Lights, Less Blind Spot Information System, Less Proximity Mirrors, RHD / LH / To: DH999999 		- 1 Enquire
17682 LR025179
MIRROR - REAR VIEW - OUTER
Dual Power Heated Exterior Mirrors, LHD, Less Auxillary Lights, Less Blind Spot Information System, Less Proximity Mirrors / RH / To: DH999999 		- 1 Enquire
17682 LR025180
MIRROR - REAR VIEW - OUTER
Dual Power Heated Exterior Mirrors, LHD, Less Auxillary Lights, Less Blind Spot Information System, Less Proximity Mirrors / LH / To: DH999999 		- 1 Enquire
17682 LR025183
MIRROR - REAR VIEW - OUTER
2 1400MM Convex Mirror, Approach Lights, Dual Power Heated Fold Back Mirror, LHD, Less Blind Spot Information System, Less Proximity Mirrors / RH / To: DH999999 		- 1 Enquire
17682 LR025184
MIRROR - REAR VIEW - OUTER
2 1400MM Convex Mirror, Approach Lights, Dual Power Heated Fold Back Mirror, LHD, Less Blind Spot Information System, Less Proximity Mirrors / LH / To: DH999999 		- 1 Enquire
17682 LR025185
MIRROR - REAR VIEW - OUTER
2 1400MM Convex Mirror, Approach Lights, Less Blind Spot Information System, Less Proximity Mirrors, Power/Heated/Memory Fold Back Mir, RHD / RH / To: DH999999 		- 1 Enquire
17682 LR025186
MIRROR - REAR VIEW - OUTER
2 1400MM Convex Mirror, Approach Lights, Less Blind Spot Information System, Less Proximity Mirrors, Power/Heated/Memory Fold Back Mir, RHD / LH / To: DH999999 		- 1 Enquire
17682 LR025187
MIRROR - REAR VIEW - OUTER
Approach Lights, LHD, Less Blind Spot Information System, Less Proximity Mirrors, Power/Heated/Memory Fold Back Mir / RH / To: DH999999 		- 1 Enquire
17682 LR025188
MIRROR - REAR VIEW - OUTER
Approach Lights, LHD, Less Blind Spot Information System, Less Proximity Mirrors, Power/Heated/Memory Fold Back Mir / LH / To: DH999999 		- 1 Enquire
17682 LR025189
MIRROR - REAR VIEW - OUTER
2 1400MM Convex Mirror, Approach Lights, Less Proximity Mirrors, Power/Heated/Memory Fold Back Mir, RHD, With Blind Spot Monitoring / RH / To: DH999999 		- 1 Enquire
17682 LR025190
MIRROR - REAR VIEW - OUTER
2 1400MM Convex Mirror, Approach Lights, Less Proximity Mirrors, Power/Heated/Memory Fold Back Mir, RHD, With Blind Spot Monitoring / LH / To: DH999999 		- 1 Enquire
17682 LR025191
MIRROR - REAR VIEW - OUTER
Approach Lights, LHD, Less Proximity Mirrors, Power/Heated/Memory Fold Back Mir, With Blind Spot Monitoring / RH / To: DH999999 		- 1 Enquire
17682 LR025192
MIRROR - REAR VIEW - OUTER
Approach Lights, LHD, Less Proximity Mirrors, Power/Heated/Memory Fold Back Mir, With Blind Spot Monitoring / LH / To: DH999999 		- 1 Enquire
17682 LR025193
MIRROR - REAR VIEW - OUTER
2 1400MM Convex Mirror, Approach Lights, Dual Power Heated Fold Back Mirror, Less Blind Spot Information System, Proximity Mirror Camera, RHD / RH / To: DH999999 		- 1 Enquire
17682 LR025194
MIRROR - REAR VIEW - OUTER
2 1400MM Convex Mirror, Approach Lights, Dual Power Heated Fold Back Mirror, Less Blind Spot Information System, Proximity Mirror Camera, RHD / LH / To: DH999999 		- 1 Enquire
17682 LR025195
MIRROR - REAR VIEW - OUTER
Approach Lights, LHD, Less Blind Spot Information System, Power/Heated/Memory Fold Back Mir, Proximity Mirror Camera / RH / To: DH999999 		- 1 Enquire
17682 LR025196
MIRROR - REAR VIEW - OUTER
Approach Lights, Dual Power Heated Fold Back Mirror, LHD, Less Blind Spot Information System, Proximity Mirror Camera / LH / To: DH999999 		- 1 Enquire
17682 LR025181
MIRROR - REAR VIEW - OUTER
2 1400MM Convex Mirror, Approach Lights, Dual Power Heated Fold Back Mirror, Less Blind Spot Information System, Less Proximity Mirrors, RHD / RH / To: DH999999 		- 1 Enquire
17682 LR025182
MIRROR - REAR VIEW - OUTER
2 1400MM Convex Mirror, Approach Lights, Dual Power Heated Fold Back Mirror, Less Blind Spot Information System, Less Proximity Mirrors, RHD / LH / To: DH999999 		- 1 Enquire
