Engine Mounting (2.2L Cr Di 16V Diesel, Halewood (Uk))

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Engine Mounting (2.2L CR DI 16V Diesel, Halewood (UK))

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR000039 BOLT $1.61 To Order
Photo Part No Description Price (each) Stock
RYG500530 BOLT $4.65 To Order
Photo Part No Description Price (each) Stock
LR024744 BOLT $4.20 To Order
Photo Part No Description Price (each) Stock
LR024747 BOLT $3.24 To Order
Photo Part No Description Price (each) Stock
LR000094 BOLT - HEX.HEAD $1.11 IN STOCK
Photo Part No Description Price (each) Stock
LR023351 BOLT $2.42 To Order
LR045671 BOLT $2.42 To Order
LR080289 BOLT $3.39 To Order
Photo Part No Description Price (each) Stock
LR116322 BOLT $7.36 To Order
Photo Part No Description Price (each) Stock
LR005487 BOLT $5.92 To Order
Photo Part No Description Price (each) Stock
LR002923 BOLT $10.85 To Order
Photo Part No Description Price (each) Stock
FY112046 NUT - HEX. $0.53 To Order
Photo Part No Description Price (each) Stock
FY112056 NUT - HEX. $1.86 IN STOCK
Photo Part No Description Price (each) Stock
RYG501260 SCREW AND WASHER $1.36 To Order
Photo Part No Description Price (each) Stock
LR023352 BOLT $4.84 To Order
LR045673 SCREW $4.12 To Order
Photo Part No Description Price (each) Stock
LR001216 SUPPORT - ENGINE MOUNTING - FRONT $131.35 To Order
Photo Part No Description Price (each) Stock
LR024729 BRACKET - ENGINE FRONT SUPPORT $164.78 To Order
LR024729 BRACKET - ENGINE FRONT SUPPORT $164.78 To Order
Photo Part No Description Price (each) Stock
LR000596 INSULATOR - ENGINE COMPARTMENT $5.31 To Order
Photo Part No Description Price (each) Stock
LR000598 INSULATOR - ENGINE COMPARTMENT $5.24 To Order
Photo Part No Description Price (each) Stock
LR024735 BRACKET - ENGINE FRONT SUPPORT $78.08 To Order
LR047370 BRACKET - ENGINE FRONT SUPPORT $252.91 To Order
Photo Part No Description Price (each) Stock
LR000520 INSULATOR - STABILIZER BAR $86.11 To Order
Photo Part No Description Price (each) Stock
LR024733 BRACKET - ENGINE SUPPORT $12.55 To Order
LR072594 BRACKET - ENGINE SUPPORT $41.74 To Order
Photo Part No Description Price (each) Stock
LR000597 INSULATOR - ENGINE COMPARTMENT $83.98 To Order
Photo Part No Description Price (each) Stock
LR039527 INSULATOR - ENGINE SUPPORT $92.71 IN STOCK
LR039527 INSULATOR - ENGINE SUPPORT $92.71 IN STOCK
LR039527 INSULATOR - ENGINE SUPPORT $92.71 IN STOCK
...and 2 more part variants. See table on right for more details.
View All

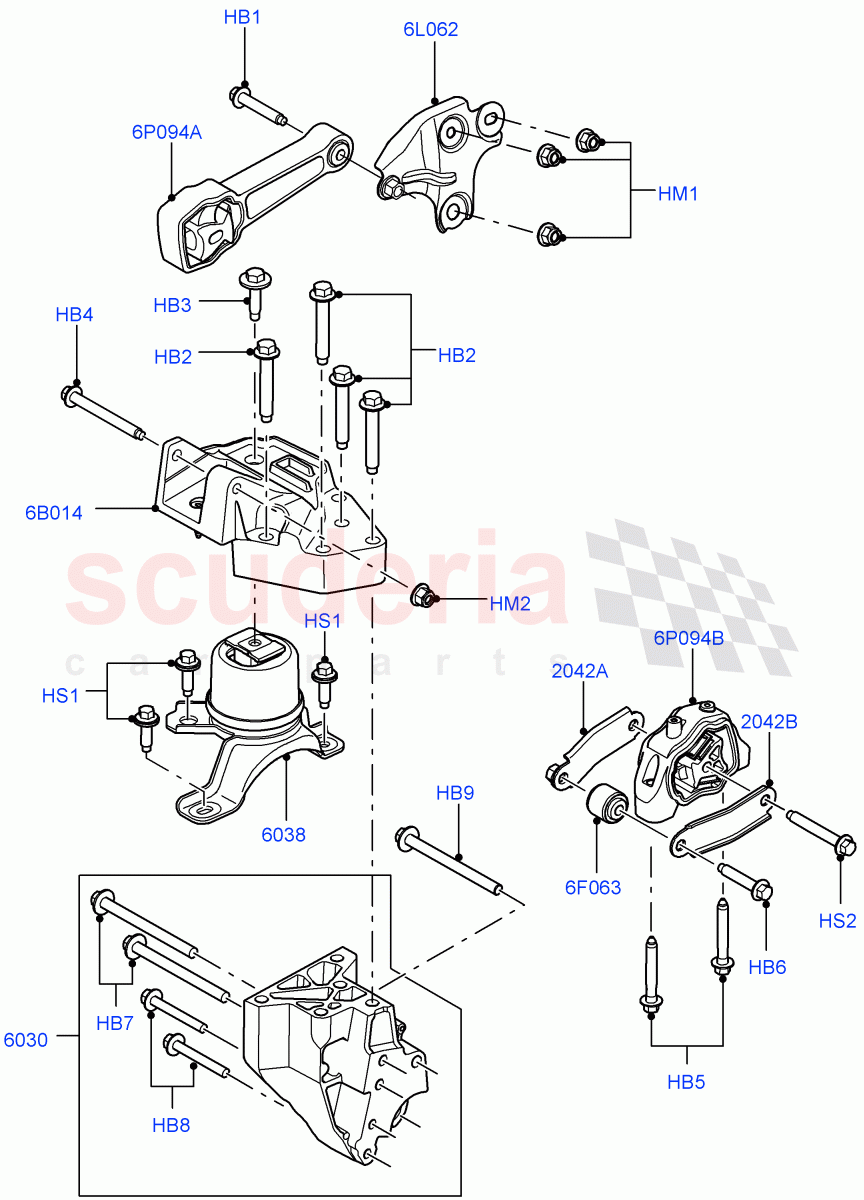

Engine Mounting (2.2L CR DI 16V Diesel, Halewood (UK)) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR000039
BOLT
Hexagonal Head, M12 x 65MM 		$1.61 1
HB2 RYG500530
BOLT
M14 X 80MM 		$4.65 5
HB3 LR024744
BOLT
Bolt And Washer, M12 x 40MM 		$4.20 1
HB4 LR024747
BOLT
Hexagonal Head, M12 X 112 		$3.24 1
HB5 LR000094
BOLT - HEX.HEAD
M12 x 75MM
IN STOCK 		$1.11 2
HB6 LR023351
BOLT
M12 x 65MM / To: DH799549 		$2.42 1
HB6 LR045671
BOLT
M12 x 65MM / From: DH799550 / To: GH136432 		$2.42 1
HB6 LR080289
BOLT
M12 X 60MM / From: GH136433 		$3.39 1
HB7 LR116322
BOLT
Hexagonal Head, M10 X 105 		$7.36 2
HB8 LR005487
BOLT
M10 x 94MM 		$5.92 2
HB9 LR002923
BOLT
Hexagonal Head, M12 X 145 		$10.85 1
HM1 FY112046
NUT - HEX.
M12, Nut 		$0.53 4
HM2 FY112056
NUT - HEX.
Hex Nut Type, M12
IN STOCK 		$1.86 1
HS1 RYG501260
SCREW AND WASHER
M12X1.75 		$1.36 3
HS2 LR023352
BOLT
M12 x 85MM / To: DH799549 		$4.84 1
HS2 LR045673
SCREW
M12 x 85MM / From: DH799550 		$4.12 1
6B014 LR024735
BRACKET - ENGINE FRONT SUPPORT
To: DH999999 		$78.08 1
6B014 LR047370
BRACKET - ENGINE FRONT SUPPORT
2.2L CR DI 16V Diesel / From: EH000001 		$252.91 1
6F063 LR000520
INSULATOR - STABILIZER BAR
Bushing 		$86.11 1
6L062 LR024733
BRACKET - ENGINE SUPPORT
To: FH045397 		$12.55 1
6L062 LR072594
BRACKET - ENGINE SUPPORT
From: FH045398 / To: FH999999 		$41.74 1
6P094A LR000597
INSULATOR - ENGINE COMPARTMENT
Upper 		$83.98 1
6P094B LR039527
INSULATOR - ENGINE SUPPORT
Lower / To: CH630577
IN STOCK 		$92.71 1
6P094B LR039527
INSULATOR - ENGINE SUPPORT
6 Speed Auto AWF21 AWD / Lower / From: CH630578 / To: CH667375
IN STOCK 		$92.71 1
6P094B LR039527
INSULATOR - ENGINE SUPPORT
6 Speed Manual Trans M66 - AWD / Lower / From: CH667376
IN STOCK 		$92.71 1
6P094B LR032311
INSULATOR - ENGINE SUPPORT
6 Speed Manual Trans-JLR M66 2WD / Lower / From: CH630578 		$96.29 1
6P094B LR039527
INSULATOR - ENGINE SUPPORT
9 Speed Auto AWD / Lower / From: EH000001
IN STOCK 		$92.71 1
2042A LR000596
INSULATOR - ENGINE COMPARTMENT
RH, Insulator 		$5.31 1
2042B LR000598
INSULATOR - ENGINE COMPARTMENT
LH, Insulator 		$5.24 1
6030 LR001216
SUPPORT - ENGINE MOUNTING - FRONT
2.2L CR DI 16V Diesel / RH 		$131.35 1
6038 LR024729
BRACKET - ENGINE FRONT SUPPORT
Engine Mounting / To: GH125983 		$164.78 1
6038 LR024729
BRACKET - ENGINE FRONT SUPPORT
3 Door / Engine Mounting / From: GH125984 		$164.78 1
