Rear Door Trim Installation (Itatiaia (Brazil)) ((V) FROMGT000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] - Rear Door Trim Installation (Itatiaia (Brazil)) ((V) FROMGT000001)

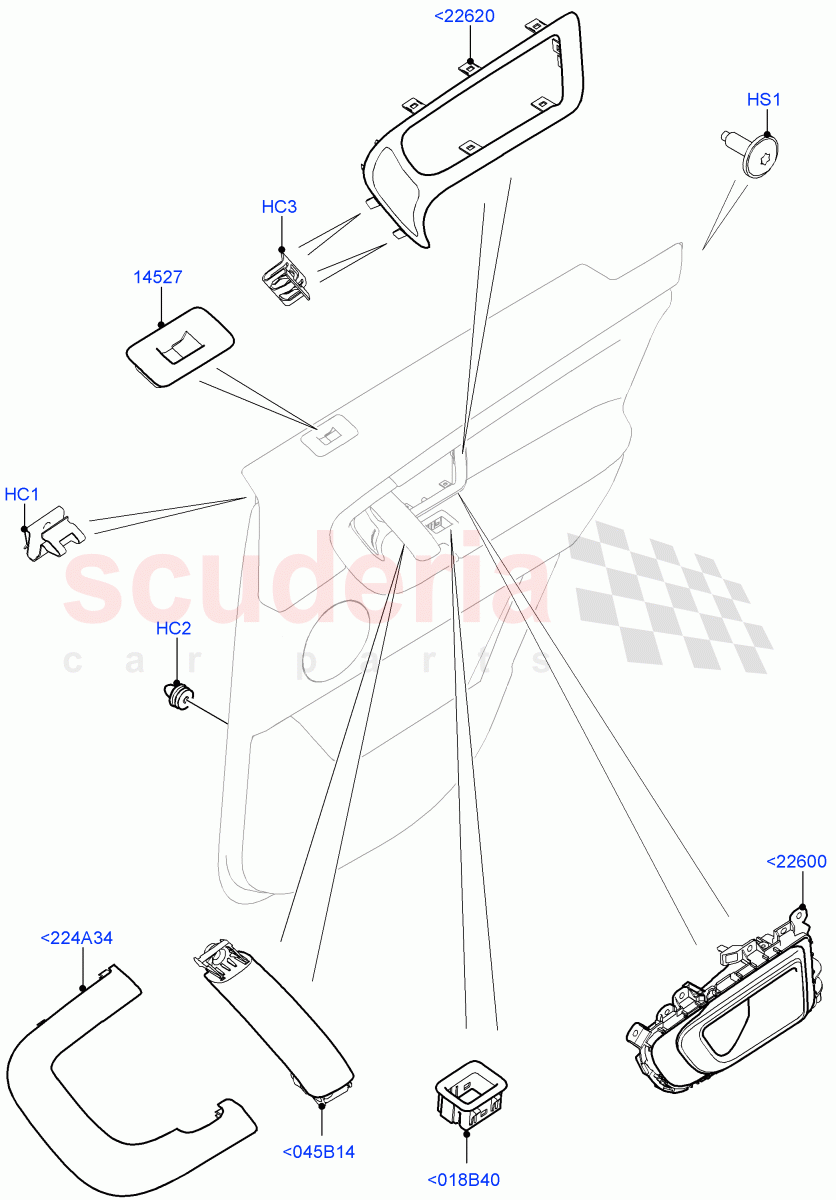

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR001790	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013135	CLIP - TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR077426	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003493	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR064090	HOUSING - SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR059559	HANDLE - DOOR - INNER	Enquire	To Order
	LR059560	HANDLE - DOOR - INNER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR066441	ESCUTCHEON - DOOR INSIDE HANDLE	Enquire	To Order
	LR066442	ESCUTCHEON - DOOR INSIDE HANDLE	Enquire	To Order
	LR066444	ESCUTCHEON - DOOR INSIDE HANDLE	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR063726	BEZEL - SWITCH	Enquire	To Order
	LR063727	BEZEL - SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR076128	HANDLE - DOOR PULL	Enquire	To Order
	LR076150	HANDLE - DOOR PULL	Enquire	To Order
	LR076151	HANDLE - DOOR PULL	Enquire	To Order

...and 13 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR076647	COVER - DOOR INNER PANEL	Enquire	To Order
	LR076648	COVER - DOOR INNER PANEL	Enquire	To Order
	LR076649	COVER - DOOR INNER PANEL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<018B40	LR063726	BEZEL - SWITCH	LR063726 BEZEL - SWITCH RH / From: GT000001	-	1	Enquire
<018B40	LR063727	BEZEL - SWITCH	LR063727 BEZEL - SWITCH LH / From: GT000001	-	1	Enquire
<045B14	LR076128	HANDLE - DOOR PULL	LR076128 HANDLE - DOOR PULL PVC/Painted Door Trim Panel / RH / From: GT000001	-	1	Enquire
<045B14	LR076150	HANDLE - DOOR PULL	LR076150 HANDLE - DOOR PULL I/P Facia Contrast - Cirrus/Lunar, PVC Door Trim Panel / RH / From: GT000001	-	1	Enquire
<045B14	LR076151	HANDLE - DOOR PULL	LR076151 HANDLE - DOOR PULL I/P Facia Contrast - Ebony Black, PVC Door Trim Panel / RH / From: GT000001	-	1	Enquire
<045B14	LR063696	HANDLE - DOOR PULL	LR063696 HANDLE - DOOR PULL I/P Facia Contrast - Ebony/Ivory, Windsor Door Trim Panel / RH / From: GT000001	-	1	Enquire
<045B14	LR076153	HANDLE - DOOR PULL	LR076153 HANDLE - DOOR PULL Ebony Black/Ebony Black Interior, I/P Facia Contrast - Ebony Black, Windsor Door Trim Panel / RH / From: GT000001	-	1	Enquire
<045B14	LR076154	HANDLE - DOOR PULL	LR076154 HANDLE - DOOR PULL I/P Facia Contrast - Lunar/Glacia, Windsor Door Trim Panel / RH / From: GT000001	-	1	Enquire
<045B14	LR076157	HANDLE - DOOR PULL	LR076157 HANDLE - DOOR PULL I/P Facia Contrast - Ebony Black, Tan, Windsor Door Trim Panel / RH / From: GT000001	-	1	Enquire
<045B14	LR076171	HANDLE - DOOR PULL	LR076171 HANDLE - DOOR PULL PVC/Painted Door Trim Panel / LH / From: GT000001	-	1	Enquire
<045B14	LR076160	HANDLE - DOOR PULL	LR076160 HANDLE - DOOR PULL I/P Facia Contrast - Cirrus/Lunar, PVC Door Trim Panel / LH / From: GT000001	-	1	Enquire
<045B14	LR076161	HANDLE - DOOR PULL	LR076161 HANDLE - DOOR PULL I/P Facia Contrast - Ebony Black, PVC Door Trim Panel / LH / From: GT000001	-	1	Enquire
<045B14	LR063707	HANDLE - DOOR PULL	LR063707 HANDLE - DOOR PULL I/P Facia Contrast - Ebony/Ivory, Windsor Door Trim Panel / LH / From: GT000001	-	1	Enquire
<045B14	LR076163	HANDLE - DOOR PULL	LR076163 HANDLE - DOOR PULL Ebony Black/Ebony Black Interior, I/P Facia Contrast - Ebony Black, Windsor Door Trim Panel / LH / From: GT000001	-	1	Enquire
<045B14	LR076164	HANDLE - DOOR PULL	LR076164 HANDLE - DOOR PULL I/P Facia Contrast - Lunar/Glacia, Windsor Door Trim Panel / LH / From: GT000001	-	1	Enquire
<045B14	LR076166	HANDLE - DOOR PULL	LR076166 HANDLE - DOOR PULL I/P Facia Contrast - Ebony Black, Tan, Windsor Door Trim Panel / LH / From: GT000001	-	1	Enquire
<045B14	LR076165	HANDLE - DOOR PULL	LR076165 HANDLE - DOOR PULL I/P Facia Cntr-Ebony Black/Almond, Velour Trim / LH / From: GT000001	-	1	Enquire
<045B14	LR076156	HANDLE - DOOR PULL	LR076156 HANDLE - DOOR PULL I/P Facia Cntr-Ebony Black/Almond, Velour Trim / RH / From: GT000001	-	1	Enquire
<224A34	LR076647	COVER - DOOR INNER PANEL	LR076647 COVER - DOOR INNER PANEL PVC/Painted Door Trim Panel / RH / From: GT000001	-	1	Enquire
<224A34	LR076648	COVER - DOOR INNER PANEL	LR076648 COVER - DOOR INNER PANEL PVC Door Trim Panel / RH / From: GT000001	-	1	Enquire
<224A34	LR076649	COVER - DOOR INNER PANEL	LR076649 COVER - DOOR INNER PANEL PVC/Painted Door Trim Panel / LH / From: GT000001	-	1	Enquire
<224A34	LR076651	COVER - DOOR INNER PANEL	LR076651 COVER - DOOR INNER PANEL PVC Door Trim Panel / LH / From: GT000001	-	1	Enquire
<22600	LR059559	HANDLE - DOOR - INNER	LR059559 HANDLE - DOOR - INNER RH / From: GT000001	-	2	Enquire
<22600	LR059560	HANDLE - DOOR - INNER	LR059560 HANDLE - DOOR - INNER LH / From: GT000001	-	2	Enquire
<22620	LR066441	ESCUTCHEON - DOOR INSIDE HANDLE	LR066441 ESCUTCHEON - DOOR INSIDE HANDLE Midline Sound System / RH / From: GT000001 / To: GT999999	-	1	Enquire
<22620	LR066442	ESCUTCHEON - DOOR INSIDE HANDLE	LR066442 ESCUTCHEON - DOOR INSIDE HANDLE Premium Audio 1280 W / RH / From: GT000001	-	1	Enquire
<22620	LR066444	ESCUTCHEON - DOOR INSIDE HANDLE	LR066444 ESCUTCHEON - DOOR INSIDE HANDLE Midline Sound System / LH / From: GT000001 / To: GT999999	-	1	Enquire
<22620	LR066445	ESCUTCHEON - DOOR INSIDE HANDLE	LR066445 ESCUTCHEON - DOOR INSIDE HANDLE Premium Audio 1280 W / LH / From: GT000001	-	1	Enquire
<22620	LR066444	ESCUTCHEON - DOOR INSIDE HANDLE	LR066444 ESCUTCHEON - DOOR INSIDE HANDLE Standard Audio (Base) / LH / From: HT000001	-	1	Enquire
<22620	LR066441	ESCUTCHEON - DOOR INSIDE HANDLE	LR066441 ESCUTCHEON - DOOR INSIDE HANDLE Standard Audio (Base) / RH / From: HT000001	-	1	Enquire
<22620	LR094056	ESCUTCHEON - DOOR INSIDE HANDLE	LR094056 ESCUTCHEON - DOOR INSIDE HANDLE Midline Sound System / RH / From: HT000001	-	1	Enquire
<22620	LR094057	ESCUTCHEON - DOOR INSIDE HANDLE	LR094057 ESCUTCHEON - DOOR INSIDE HANDLE Midline Sound System / LH / From: HT000001	-	1	Enquire
HC1	LR001790	CLIP	LR001790 CLIP Support / From: GT000001	-	10	Enquire
HC2	LR013135	CLIP - TRIM	LR013135 CLIP - TRIM 8.5 X 0.8 - 2.2, Front / Rear / From: GT000001	-	20	Enquire
HC3	LR077426	CLIP	LR077426 CLIP Support / From: GT000001	-	2	Enquire
HS1	LR003493	SCREW	LR003493 SCREW 4.2 x 22MM / From: GT000001	-	2	Enquire
14527	LR064090	HOUSING - SWITCH	LR064090 HOUSING - SWITCH RH/LH / From: GT000001	-	2	Enquire
