Instrument Panel (Lower, External) (Halewood (Uk)) ((V) Fromlh000001)

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI]

Find Your Part

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] - Instrument Panel (Lower, External) (Halewood (UK)) ((V) FROMLH000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR044894 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
LR027039 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
LR006214 NUT Enquire To Order
Photo Part No Description Price (each) Stock
LR036724 NUT - SPRING Enquire To Order
Photo Part No Description Price (each) Stock
PYP500140 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR006452 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR028425 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR127352 FINISHER - INSTRUMENT Enquire To Order
LR127353 FINISHER - INSTRUMENT Enquire To Order
Photo Part No Description Price (each) Stock
LR115272 PANEL - INSTRUMENT - LOWER Enquire To Order
LR115273 PANEL - INSTRUMENT - LOWER Enquire To Order
LR137040 PANEL - INSTRUMENT - LOWER Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR127365 FINISHER - INSTRUMENT PANEL CENTRE Enquire To Order
LR127371 FINISHER - INSTRUMENT PANEL CENTRE Enquire To Order
LR140093 FINISHER - INSTRUMENT PANEL CENTRE Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR127379 PANEL - INSTRUMENT PANEL SIDE Enquire To Order
LR127745 PANEL - INSTRUMENT PANEL SIDE Enquire To Order
LR139122 PANEL - INSTRUMENT PANEL SIDE Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR117728 COVER - INSTRUMENT PANEL Enquire To Order
LR134920 COVER - INSTRUMENT PANEL Enquire To Order
LR134777 COVER - INSTRUMENT PANEL Enquire To Order
Photo Part No Description Price (each) Stock
LR059776 COVER - ADDITIONAL FUSE BOX Enquire To Order
LR059777 COVER - ADDITIONAL FUSE BOX Enquire To Order
Photo Part No Description Price (each) Stock
LR117762 BRACKET - GLOVE COMPARTMENT Enquire To Order
LR117763 BRACKET - GLOVE COMPARTMENT Enquire To Order
Photo Part No Description Price (each) Stock
LR127304 MOULDING - INSTRUMENT PANEL Enquire To Order
LR127303 MOULDING - INSTRUMENT PANEL Enquire To Order
LR139061 MOULDING - INSTRUMENT PANEL Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR127321 MOULDING - INSTRUMENT PANEL Enquire To Order
Photo Part No Description Price (each) Stock
LR127324 MOULDING - INSTRUMENT PANEL Enquire To Order
Photo Part No Description Price (each) Stock
LR127280 MAT - ANTISLIP - RUBBER Enquire To Order
LR127281 MAT - ANTISLIP - RUBBER Enquire To Order
Photo Part No Description Price (each) Stock
LR127334 BEZEL - INSTRUMENT PANEL Enquire To Order
Photo Part No Description Price (each) Stock
LR127952 COMPARTMENT - STOWAGE Enquire To Order
LR127953 COMPARTMENT - STOWAGE Enquire To Order
LR127954 COMPARTMENT - STOWAGE Enquire To Order
...and 3 more part variants. See table on right for more details.
View All

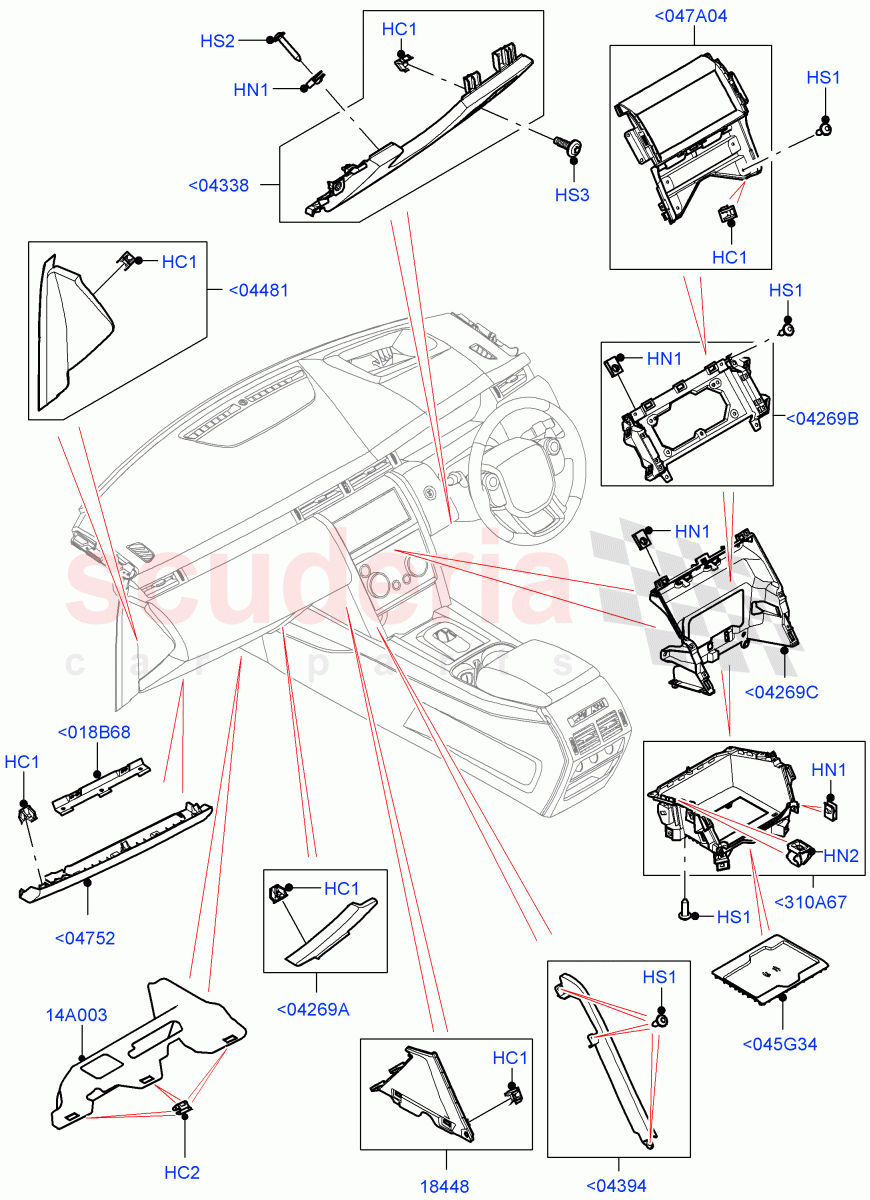

Instrument Panel (Lower, External) (Halewood (UK)) ((V) FROMLH000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<018B68 LR117762
BRACKET - GLOVE COMPARTMENT
With Head Impact Crash Criteria / RH / From: LH000001 		- 1 Enquire
<018B68 LR117763
BRACKET - GLOVE COMPARTMENT
With Head Impact Crash Criteria / LH / From: LH000001 		- 1 Enquire
<045G34 LR127280
MAT - ANTISLIP - RUBBER
Less CE Device Charging / From: LH000001 		- 1 Enquire
<045G34 LR127281
MAT - ANTISLIP - RUBBER
Telephone Charging Cradle - Rear / From: LH000001 		- 1 Enquire
<047A04 LR127334
BEZEL - INSTRUMENT PANEL
From: LH000001 		- 1 Enquire
<310A67 LR127952
COMPARTMENT - STOWAGE
LHD, Less CE Device Charging / From: LH000001 		- 1 Enquire
<310A67 LR127953
COMPARTMENT - STOWAGE
Less CE Device Charging, RHD / From: LH000001 		- 1 Enquire
<310A67 LR127954
COMPARTMENT - STOWAGE
LHD, Telephone Charging Cradle - Rear / From: LH000001 / To: LH999999 		- 1 Enquire
<310A67 LR127955
COMPARTMENT - STOWAGE
RHD, Telephone Charging Cradle - Rear / From: LH000001 / To: LH999999 		- 1 Enquire
<310A67 LR127954
COMPARTMENT - STOWAGE
LHD, Telephone Charging Cradle - Rear / From: MH000001 		- 1 Enquire
<310A67 LR127955
COMPARTMENT - STOWAGE
RHD, Wireless Charger w/Booster - 5 Freq / From: MH000001 		- 1 Enquire
<04269A LR127304
MOULDING - INSTRUMENT PANEL
LH, Centre Finisher / From: LH000001 / To: NH910980 		- 1 Enquire
<04269A LR127303
MOULDING - INSTRUMENT PANEL
RH, Centre Finisher / From: LH000001 / To: NH910980 		- 1 Enquire
<04269A LR139061
MOULDING - INSTRUMENT PANEL
LH, Centre Finisher / From: NH910981 		- 1 Enquire
<04269A LR139060
MOULDING - INSTRUMENT PANEL
RH, Centre Finisher / From: NH910981 		- 1 Enquire
<04269B LR127321
MOULDING - INSTRUMENT PANEL
For Navigation Screen / From: LH000001 		- 1 Enquire
<04269C LR127324
MOULDING - INSTRUMENT PANEL
Centre Stack Bracket / From: LH000001 		- 1 Enquire
<04338 LR115272
PANEL - INSTRUMENT - LOWER
RHD / From: LH000001 / To: LH834776 		- 1 Enquire
<04338 LR115273
PANEL - INSTRUMENT - LOWER
LHD / From: LH000001 / To: LH833932 		- 1 Enquire
<04338 LR137040
PANEL - INSTRUMENT - LOWER
LHD / From: LH833933 		- 1 Enquire
<04338 LR137041
PANEL - INSTRUMENT - LOWER
RHD / From: LH834777 		- 1 Enquire
<04394 LR127365
FINISHER - INSTRUMENT PANEL CENTRE
RH / From: LH000001 / To: LH873982 		- 1 Enquire
<04394 LR127371
FINISHER - INSTRUMENT PANEL CENTRE
LH / From: LH000001 / To: LH873982 		- 1 Enquire
<04394 LR140093
FINISHER - INSTRUMENT PANEL CENTRE
RH / From: LH873983 		- 1 Enquire
<04394 LR140094
FINISHER - INSTRUMENT PANEL CENTRE
LH / From: LH873983 		- 1 Enquire
<04481 LR127379
PANEL - INSTRUMENT PANEL SIDE
RH / From: LH000001 / To: NH910980 		- 1 Enquire
<04481 LR127745
PANEL - INSTRUMENT PANEL SIDE
LH / From: LH000001 / To: NH910980 		- 1 Enquire
<04481 LR139122
PANEL - INSTRUMENT PANEL SIDE
RH / From: NH910981 		- 1 Enquire
<04481 LR139124
PANEL - INSTRUMENT PANEL SIDE
LH / From: NH910981 		- 1 Enquire
<04752 LR117728
COVER - INSTRUMENT PANEL
Electric Engine Battery-PHEV, LHD, Less 3rd Row Rear Seat, Seatbelt - Standard EU / LH / From: LH000001 		- 1 Enquire
<04752 LR134920
COVER - INSTRUMENT PANEL
StBlt ELR Without Rear Pretensioner / LH / From: LH000001 		- 1 Enquire
<04752 LR134777
COVER - INSTRUMENT PANEL
RH / From: LH000001 		- 1 Enquire
HC1 LR044894
CLIP
0.8 - 2.5 / From: LH000001 		- - Enquire
HC2 LR027039
CLIP
Clip 21 X 13 / From: LH000001 		- - Enquire
HN1 LR006214
NUT
4.2 X 2.25 - 3 / From: LH000001 		- 2 Enquire
HN2 LR036724
NUT - SPRING
M4.2 / From: LH000001 		- 2 Enquire
HS1 PYP500140
SCREW
4.2 x 13MM, Torx / From: LH000001 		- 4 Enquire
HS2 LR006452
SCREW
4.2 x 25MM / From: LH000001 		- 4 Enquire
HS3 LR028425
SCREW
M6 X 1.4 X 17 / From: LH000001 		- 3 Enquire
14A003 LR059776
COVER - ADDITIONAL FUSE BOX
LHD / Ebony Black / From: LH000001 		- 1 Enquire
14A003 LR059777
COVER - ADDITIONAL FUSE BOX
RHD / Ebony Black / From: LH000001 		- 1 Enquire
18448 LR127352
FINISHER - INSTRUMENT
RH / From: LH000001 		- 1 Enquire
18448 LR127353
FINISHER - INSTRUMENT
LH / From: LH000001 		- 1 Enquire
