Instrument Panel (External, Lower) (Changsu (China)) ((V) Fromfg000001, (V) Tokg446856)

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI]

Find Your Part

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] - Instrument Panel (External, Lower) (Changsu (China)) ((V) FROMFG000001, (V) TOKG446856)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR044894 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
LR027039 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
LR006214 NUT Enquire To Order
Photo Part No Description Price (each) Stock
PYP500140 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR027849 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR006211 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR028417 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR028425 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR026105 BEZEL - GLOVE BOX MOUNTING Enquire To Order
Photo Part No Description Price (each) Stock
LR059802 PLUG - BLANKING Enquire To Order
Photo Part No Description Price (each) Stock
LR059832 FINISHER - INSTRUMENT Enquire To Order
LR059833 FINISHER - INSTRUMENT Enquire To Order
Photo Part No Description Price (each) Stock
LR077136 FINISHER - INSTRUMENT PANEL CENTRE Enquire To Order
LR077137 FINISHER - INSTRUMENT PANEL CENTRE Enquire To Order
LR073622 FINISHER - INSTRUMENT PANEL CENTRE Enquire To Order
...and 17 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR060605 MOULDING - INSTRUMENT PANEL Enquire To Order
LR060606 MOULDING - INSTRUMENT PANEL Enquire To Order
Photo Part No Description Price (each) Stock
LR083786 SUPPORT - BEZEL Enquire To Order
Photo Part No Description Price (each) Stock
LR059776 COVER - ADDITIONAL FUSE BOX Enquire To Order
Photo Part No Description Price (each) Stock
LR072291 PANEL - INSTRUMENT - LOWER Enquire To Order
LR072294 PANEL - INSTRUMENT - LOWER Enquire To Order
LR072295 PANEL - INSTRUMENT - LOWER Enquire To Order
Photo Part No Description Price (each) Stock
LR072476 PANEL - INSTRUMENT - LOWER Enquire To Order
LR085566 PANEL - INSTRUMENT - LOWER Enquire To Order
Photo Part No Description Price (each) Stock
LR059844 MAT - RUBBER - INSTR. PANEL SHELF Enquire To Order
Photo Part No Description Price (each) Stock
LR094282 BEZEL - INSTRUMENT PANEL Enquire To Order
View All

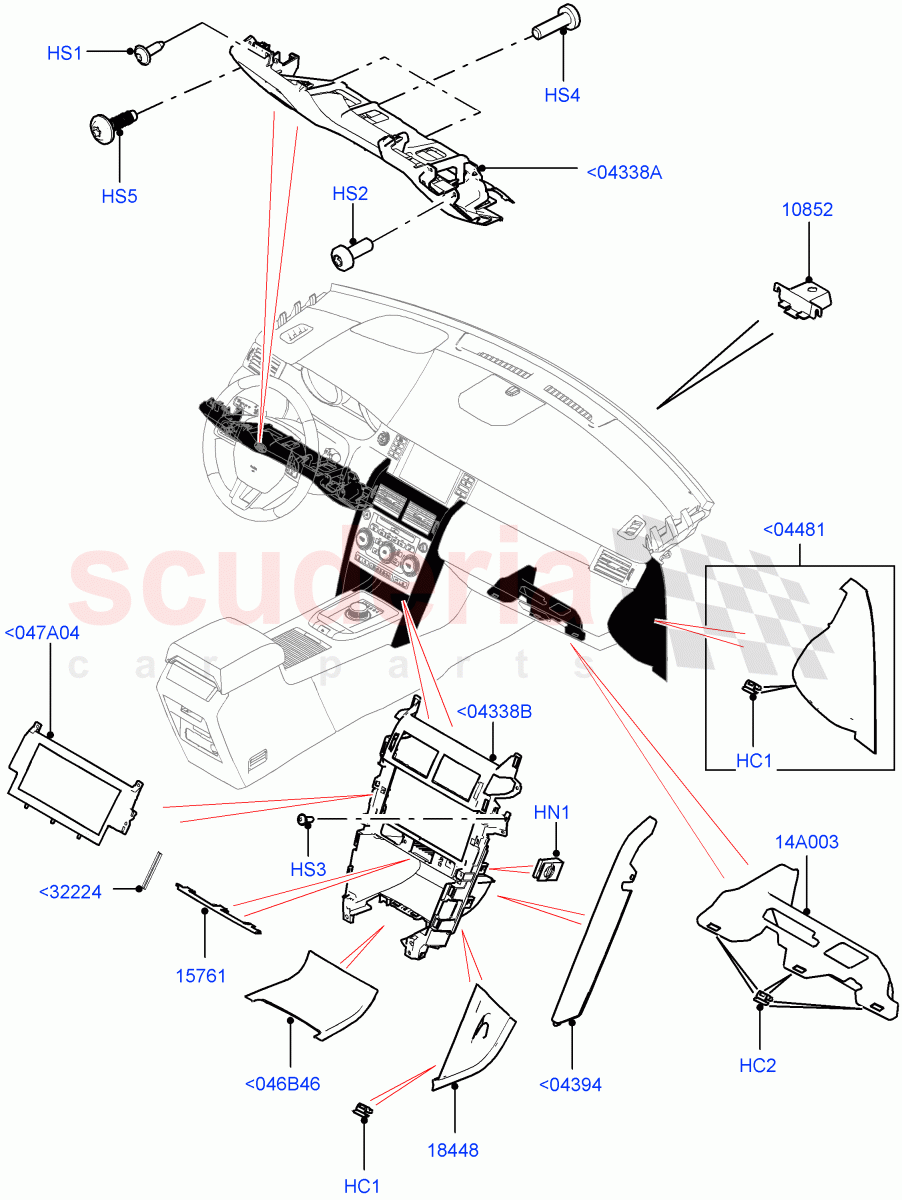

Instrument Panel (External, Lower) (Changsu (China)) ((V) FROMFG000001, (V) TOKG446856) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<046B46 LR059844
MAT - RUBBER - INSTR. PANEL SHELF
From: FG000001 		- 1 Enquire
<047A04 LR094282
BEZEL - INSTRUMENT PANEL
MFD Single View Screen / From: HG347884 		- 1 Enquire
<04338A LR072291
PANEL - INSTRUMENT - LOWER
I/P Facia Contrast - Lunar/Glacia / From: FG000001 		- 1 Enquire
<04338A LR072294
PANEL - INSTRUMENT - LOWER
I/P Facia Contrast - Ebony Black / From: FG000001 		- 1 Enquire
<04338A LR072295
PANEL - INSTRUMENT - LOWER
I/P Facia Cntr-Ebony Black/Almond / From: FG000001 		- 1 Enquire
<04338B LR072476
PANEL - INSTRUMENT - LOWER
MFD Dual View Screen / From: FG000001 		- 1 Enquire
<04338B LR085566
PANEL - INSTRUMENT - LOWER
MFD Single View Screen / From: HG347884 		- 1 Enquire
<04394 LR077136
FINISHER - INSTRUMENT PANEL CENTRE
I/P Insert - Aluminium Silver / RH / From: FG000001 / To: HG347883 		- 1 Enquire
<04394 LR077137
FINISHER - INSTRUMENT PANEL CENTRE
I/P Insert - Aluminium Steel Grey / RH / From: FG000001 / To: HG347883 		- 1 Enquire
<04394 LR073622
FINISHER - INSTRUMENT PANEL CENTRE
I/P Insert - Ebony / RH / From: FG000001 		- 1 Enquire
<04394 LR077141
FINISHER - INSTRUMENT PANEL CENTRE
I/P Insert - Aluminium Silver / LH / From: FG000001 / To: HG347883 		- 1 Enquire
<04394 LR077140
FINISHER - INSTRUMENT PANEL CENTRE
I/P Insert - Aluminium Steel Grey / LH / From: FG000001 / To: HG347883 		- 1 Enquire
<04394 LR073460
FINISHER - INSTRUMENT PANEL CENTRE
I/P Insert - Ebony / LH / From: FG000001 		- 1 Enquire
<04394 LR088588
FINISHER - INSTRUMENT PANEL CENTRE
HLDF Screen, I/P Insert - Aluminium Silver / RH / From: HG347884 		- 1 Enquire
<04394 LR088589
FINISHER - INSTRUMENT PANEL CENTRE
HLDF Screen, I/P Insert - Aluminium Steel Grey / RH / From: HG347884 		- 1 Enquire
<04394 LR088592
FINISHER - INSTRUMENT PANEL CENTRE
HLDF Screen, I/P Insert - Aluminium Silver / LH / From: HG347884 		- 1 Enquire
<04394 LR088593
FINISHER - INSTRUMENT PANEL CENTRE
HLDF Screen, I/P Insert - Aluminium Steel Grey / LH / From: HG347884 		- 1 Enquire
<04394 LR088586
FINISHER - INSTRUMENT PANEL CENTRE
HLDF Screen, I/P Insert - Aluminium Grey / RH / From: HG347884 		- 1 Enquire
<04394 LR088594
FINISHER - INSTRUMENT PANEL CENTRE
HLDF Screen, I/P Insert - Aluminium Grey / LH / From: HG347884 		- 1 Enquire
<04394 LR083767
FINISHER - INSTRUMENT PANEL CENTRE
HLDF Dual View Screen 10.2", I/P Insert - Aluminium Silver / RH / From: HG347884 		- 1 Enquire
<04394 LR083768
FINISHER - INSTRUMENT PANEL CENTRE
I/P Insert - Aluminium Steel Grey, MFD Single View Screen / RH / From: HG347884 		- 1 Enquire
<04394 LR083769
FINISHER - INSTRUMENT PANEL CENTRE
I/P Insert - Aluminium Silver, MFD Single View Screen / LH / From: HG347884 		- 1 Enquire
<04394 LR083770
FINISHER - INSTRUMENT PANEL CENTRE
HLDF Dual View Screen 10.2", I/P Insert - Aluminium Steel Grey / LH / From: HG347884 		- 1 Enquire
<04394 LR085567
FINISHER - INSTRUMENT PANEL CENTRE
HLDF Standard Screen 10.2", I/P Insert - Aluminium Grey / RH / From: HG347884 		- 1 Enquire
<04394 LR085568
FINISHER - INSTRUMENT PANEL CENTRE
I/P Insert - Aluminium Grey, MFD Single View Screen / LH / From: HG347884 		- 1 Enquire
<04394 LR088590
FINISHER - INSTRUMENT PANEL CENTRE
I/P Insert - Aluminium Red / RH / From: KG422269 		- 1 Enquire
<04394 LR088587
FINISHER - INSTRUMENT PANEL CENTRE
I/P Insert - Aluminium Red / LH / From: KG422269 		- 1 Enquire
<04481 LR060605
MOULDING - INSTRUMENT PANEL
RH / From: FG000001 		- 1 Enquire
<04481 LR060606
MOULDING - INSTRUMENT PANEL
LH / From: FG000001 		- 1 Enquire
<32224 LR083786
SUPPORT - BEZEL
HLDF Dual View Screen 10.2" / From: HG347884 		- 2 Enquire
HC1 LR044894
CLIP
0.8 - 2.5 / From: FG000001 		- 1 Enquire
HC2 LR027039
CLIP
Clip 21 X 13 / From: FG000001 		- 14 Enquire
HN1 LR006214
NUT
4.2 X 2.25 - 3 / From: FG000001 		- 1 Enquire
HS1 PYP500140
SCREW
4.2 x 13MM, Torx / From: FG000001 		- 1 Enquire
HS2 LR027849
SCREW
M6 X 16MM / From: FG000001 		- 1 Enquire
HS3 LR006211
SCREW
4.2 x 16MM, Torx / From: FG000001 		- 1 Enquire
HS4 LR028417
SCREW
M6 X 20MM / From: FG000001 		- 1 Enquire
HS5 LR028425
SCREW
M6 X 1.4 X 17 / From: FG000001 		- 1 Enquire
14A003 LR059776
COVER - ADDITIONAL FUSE BOX
Ebony Black / From: FG000001 		- 1 Enquire
10852 LR026105
BEZEL - GLOVE BOX MOUNTING
With Footwell Lights / From: FG000001 		- 1 Enquire
15761 LR059802
PLUG - BLANKING
Ambient Lighting-High Line Interior / From: FG000001 		- 1 Enquire
18448 LR059832
FINISHER - INSTRUMENT
RH / From: FG000001 		- 1 Enquire
18448 LR059833
FINISHER - INSTRUMENT
LH / From: FG000001 		- 1 Enquire
