Front Door Trim Installation (Halewood (UK)) ((V) FROMLH000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] - Front Door Trim Installation (Halewood (UK)) ((V) FROMLH000001)

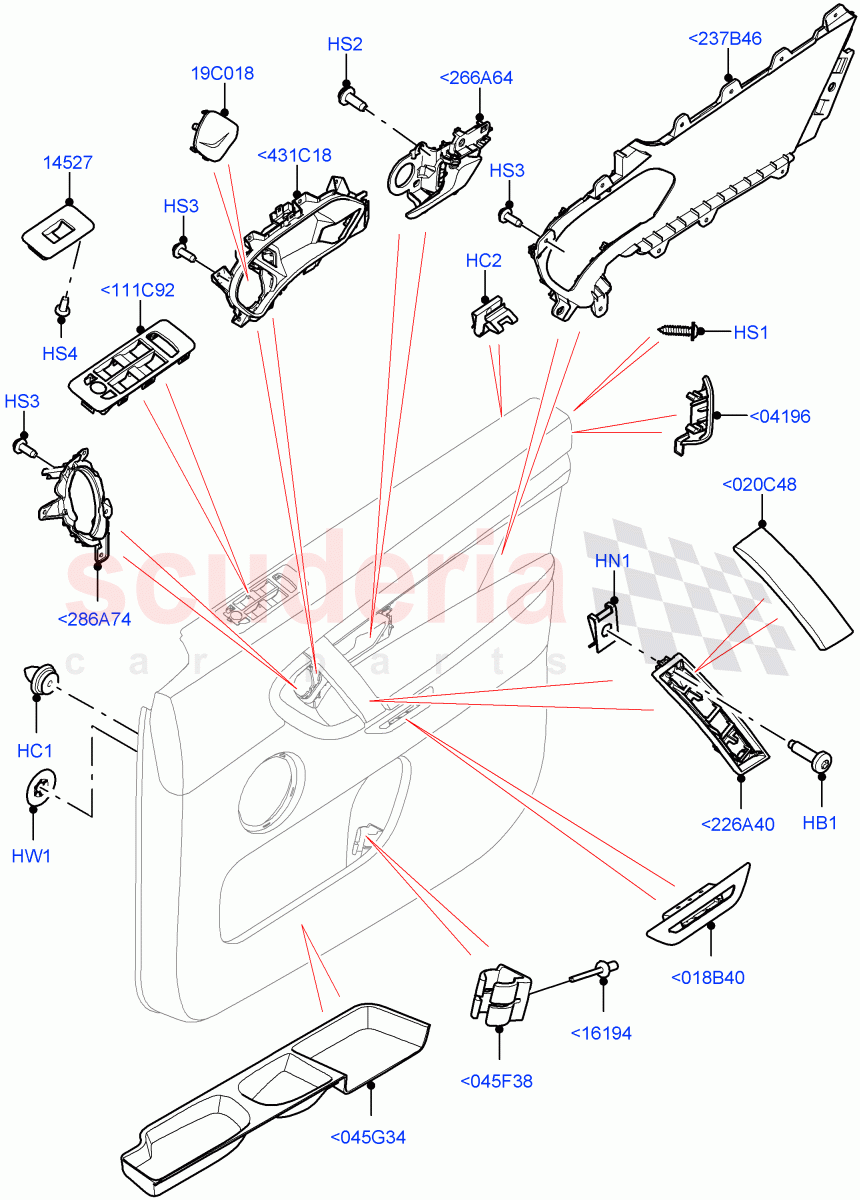

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR123630	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090382	CLIP - LANTERN	Enquire	To Order
	LR109136	CLIP - LANTERN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091469	CLIP - DOOR INNER PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123718	NUT	Enquire	To Order
	LR139130	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007312	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135539	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135540	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135541	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135533	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR064090	HOUSING - SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133208	COVER - DOOR TRIM	Enquire	To Order
	LR126979	COVER - DOOR TRIM	Enquire	To Order
	LR126980	COVER - DOOR TRIM	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	AFU1075	RIVET - PLASTIC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR138337	COVER - SPEAKER	Enquire	To Order
	LR138338	COVER - SPEAKER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126950	COVER - DOOR SWITCH	Enquire	To Order
	LR126948	COVER - DOOR SWITCH	Enquire	To Order
	LR126948	COVER - DOOR SWITCH	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR126913	COVER - GRAB HANDLE	Enquire	To Order
	LR126915	COVER - GRAB HANDLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR106341	BRACKET - SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126963	MAT - DOOR POCKET	Enquire	To Order
	LR126962	MAT - DOOR POCKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135833	COVER - DOOR SWITCH	Enquire	To Order
	LR135834	COVER - DOOR SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126918	HANDLE - DOOR PULL	Enquire	To Order
	LR126920	HANDLE - DOOR PULL	Enquire	To Order
	LR126924	HANDLE - DOOR PULL	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR127366	FINISHER - DOOR	Enquire	To Order
	LR127368	FINISHER - DOOR	Enquire	To Order
	LR127372	FINISHER - DOOR	Enquire	To Order

...and 7 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR126652	HANDLE - DOOR - INNER	Enquire	To Order
	LR126653	HANDLE - DOOR - INNER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR127017	BRACKET - SPEAKER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126941	COVER - DOOR INSIDE HANDLE	Enquire	To Order
	LR126944	COVER - DOOR INSIDE HANDLE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<018B40	LR126950	COVER - DOOR SWITCH	LR126950 COVER - DOOR SWITCH Driver/Pass Elec Fr Seat Adj/Memory / LH, Memory Switch Bezel / From: LH000001 / To: LH999999	-	1	Enquire
<018B40	LR126948	COVER - DOOR SWITCH	LR126948 COVER - DOOR SWITCH Driver/Pass Elec Fr Seat Adj/Memory / RH, Memory Switch Bezel / From: LH000001 / To: LH999999	-	1	Enquire
<018B40	LR126948	COVER - DOOR SWITCH	LR126948 COVER - DOOR SWITCH Electric Front Seat Adj Drv Memory, RHD / RH, Memory Switch Bezel / From: MH000001	-	1	Enquire
<018B40	LR126950	COVER - DOOR SWITCH	LR126950 COVER - DOOR SWITCH Electric Front Seat Adj Drv Memory, LHD / LH, Memory Switch Bezel / From: MH000001	-	1	Enquire
<020C48	LR126913	COVER - GRAB HANDLE	LR126913 COVER - GRAB HANDLE RH / From: LH000001	-	1	Enquire
<020C48	LR126915	COVER - GRAB HANDLE	LR126915 COVER - GRAB HANDLE LH / From: LH000001	-	1	Enquire
<045F38	LR106341	BRACKET - SUPPORT	LR106341 BRACKET - SUPPORT With Signal Flare Warning Bracket / From: LH000001	-	1	Enquire
<045G34	LR126963	MAT - DOOR POCKET	LR126963 MAT - DOOR POCKET LH, Door Pocket / From: LH000001	-	1	Enquire
<045G34	LR126962	MAT - DOOR POCKET	LR126962 MAT - DOOR POCKET RH, Door Pocket / From: LH000001	-	1	Enquire
<111C92	LR135833	COVER - DOOR SWITCH	LR135833 COVER - DOOR SWITCH Dual Power Heated Exterior Mirrors / For Drivers Side / From: LH000001	-	1	Enquire
<111C92	LR135834	COVER - DOOR SWITCH	LR135834 COVER - DOOR SWITCH Dual Pwr/Htd/Fldo/E'Chro/Pudd Lamp / For Drivers Side / From: LH000001	-	1	Enquire
<226A40	LR126918	HANDLE - DOOR PULL	LR126918 HANDLE - DOOR PULL Door Armrest-Triton Grain, Light Oyster/Ebony / RH / From: LH000001	-	1	Enquire
<226A40	LR126920	HANDLE - DOOR PULL	LR126920 HANDLE - DOOR PULL Oyster Beige, PVC Door Armrest / RH / From: LH000001	-	1	Enquire
<226A40	LR126924	HANDLE - DOOR PULL	LR126924 HANDLE - DOOR PULL Leather Door Armrest, Light Oyster/Ebony / RH / From: LH000001	-	1	Enquire
<226A40	LR126927	HANDLE - DOOR PULL	LR126927 HANDLE - DOOR PULL Door Armrest-Triton Grain, Light Oyster/Ebony / LH / From: LH000001	-	1	Enquire
<226A40	LR126928	HANDLE - DOOR PULL	LR126928 HANDLE - DOOR PULL Ebony Black/Ebony Black Interior, PVC Door Armrest / LH / From: LH000001	-	1	Enquire
<226A40	LR126929	HANDLE - DOOR PULL	LR126929 HANDLE - DOOR PULL Leather Door Armrest, Light Oyster/Ebony / LH / From: LH000001	-	1	Enquire
<226A40	LR126930	HANDLE - DOOR PULL	LR126930 HANDLE - DOOR PULL Ebony Black/Ebony Black Interior, Leather Door Armrest / LH / From: LH000001	-	1	Enquire
<226A40	LR126925	HANDLE - DOOR PULL	LR126925 HANDLE - DOOR PULL Acorn/Ebony, Leather Door Armrest / RH / From: LH000001	-	1	Enquire
<237B46	LR127366	FINISHER - DOOR	LR127366 FINISHER - DOOR Interior Veneer - Gloss Black / RH / From: LH000001	-	1	Enquire
<237B46	LR127368	FINISHER - DOOR	LR127368 FINISHER - DOOR Interior Veneer-Gloss Charcoal Oak / RH / From: LH000001	-	1	Enquire
<237B46	LR127372	FINISHER - DOOR	LR127372 FINISHER - DOOR Interior Veneer - Brown Oak Veneer / RH / From: LH000001	-	1	Enquire
<237B46	LR127373	FINISHER - DOOR	LR127373 FINISHER - DOOR Interior Trim - Titanium Mesh / RH / From: LH000001	-	1	Enquire
<237B46	LR127374	FINISHER - DOOR	LR127374 FINISHER - DOOR Interior Veneer - Gloss Black / LH / From: LH000001	-	1	Enquire
<237B46	LR127375	FINISHER - DOOR	LR127375 FINISHER - DOOR Interior Veneer-Gloss Charcoal Oak / LH / From: LH000001	-	1	Enquire
<237B46	LR127376	FINISHER - DOOR	LR127376 FINISHER - DOOR Interior Veneer - Brown Oak Veneer / LH / From: LH000001	-	1	Enquire
<237B46	LR127377	FINISHER - DOOR	LR127377 FINISHER - DOOR Interior Trim - Titanium Mesh / LH / From: LH000001	-	1	Enquire
<237B46	LR139731	FINISHER - DOOR	LR139731 FINISHER - DOOR Finisher - Shadow Aluminium / LH / From: MH000001	-	1	Enquire
<237B46	LR139733	FINISHER - DOOR	LR139733 FINISHER - DOOR Finisher - Shadow Aluminium / RH / From: MH000001	-	1	Enquire
<266A64	LR126652	HANDLE - DOOR - INNER	LR126652 HANDLE - DOOR - INNER RH / From: LH000001	-	1	Enquire
<266A64	LR126653	HANDLE - DOOR - INNER	LR126653 HANDLE - DOOR - INNER LH / From: LH000001	-	1	Enquire
<286A74	LR127017	BRACKET - SPEAKER	LR127017 BRACKET - SPEAKER Hi Line Audio System - 600 W / RH / From: LH000001	-	1	Enquire
<431C18	LR126941	COVER - DOOR INSIDE HANDLE	LR126941 COVER - DOOR INSIDE HANDLE RH / From: LH000001	-	1	Enquire
<431C18	LR126944	COVER - DOOR INSIDE HANDLE	LR126944 COVER - DOOR INSIDE HANDLE LH / From: LH000001	-	1	Enquire
<04196	LR133208	COVER - DOOR TRIM	LR133208 COVER - DOOR TRIM Oyster Beige / LH / From: LH000001	-	1	Enquire
<04196	LR126979	COVER - DOOR TRIM	LR126979 COVER - DOOR TRIM Light Oyster/Ebony / LH / From: LH000001	-	1	Enquire
<04196	LR126980	COVER - DOOR TRIM	LR126980 COVER - DOOR TRIM Acorn / LH / From: LH000001	-	1	Enquire
<04196	LR126967	COVER - DOOR TRIM	LR126967 COVER - DOOR TRIM Oyster Beige / RH / From: LH000001	-	1	Enquire
<04196	LR126969	COVER - DOOR TRIM	LR126969 COVER - DOOR TRIM Ebony Black/Ebony Black Interior / RH / From: LH000001	-	1	Enquire
<04196	LR126971	COVER - DOOR TRIM	LR126971 COVER - DOOR TRIM Acorn / RH / From: LH000001	-	1	Enquire
<16194	AFU1075	RIVET - PLASTIC	AFU1075 RIVET - PLASTIC With Signal Flare Warning Bracket / From: LH000001	-	1	Enquire
HB1	LR123630	BOLT	LR123630 BOLT M6 X 20MM, Torx, Used With Interior Handle / From: LH000001	-	4	Enquire
HC1	LR090382	CLIP - LANTERN	LR090382 CLIP - LANTERN Lantern Clip - Door Casing To BIW / From: LH000001 / To: LH830147	-	22	Enquire
HC1	LR109136	CLIP - LANTERN	LR109136 CLIP - LANTERN 8.5 x 0.7-1.6 + 2.5 Plastic, Lantern Clip - Door Casing To BIW / From: LH830148	-	22	Enquire
HC2	LR091469	CLIP - DOOR INNER PANEL	LR091469 CLIP - DOOR INNER PANEL 0.7-1.2+4.5X26+2.5, Support / From: LH000001	-	10	Enquire
HN1	LR123718	NUT	LR123718 NUT Nut "U" Spring, Used With Interior Handle / From: LH000001 / To: LH855929	-	4	Enquire
HN1	LR139130	NUT	LR139130 NUT M6 X 0.5-4 / From: LH855930	-	4	Enquire
HS1	LR007312	SCREW	LR007312 SCREW 4.2 X 19MM / From: LH000001	-	2	Enquire
HS2	LR135539	SCREW	LR135539 SCREW M5 X 1.8 X 14 / From: LH000001	-	8	Enquire
HS3	LR135540	SCREW	LR135540 SCREW M4 X 1.46 X 12 / From: LH000001	-	-	Enquire
HS4	LR135541	SCREW	LR135541 SCREW M4 x 10MM, Passengers Door / From: LH000001	-	1	Enquire
HW1	LR135533	WASHER	LR135533 WASHER Starlock / From: LH000001	-	8	Enquire
19C018	LR138337	COVER - SPEAKER	LR138337 COVER - SPEAKER Standard Audio (Base) / RH / From: LH000001	-	1	Enquire
19C018	LR138338	COVER - SPEAKER	LR138338 COVER - SPEAKER Standard Audio (Base) / LH / From: LH000001	-	1	Enquire
14527	LR064090	HOUSING - SWITCH	LR064090 HOUSING - SWITCH Passengers Door / From: LH000001	-	1	Enquire
