Console - Floor (External Components) (Itatiaia (Brazil), Full Floor Console With Armrest) ((V) FROMGT000001, (V) TOKT999999) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] - Console - Floor (External Components) (Itatiaia (Brazil), Full Floor Console With Armrest) ((V)...

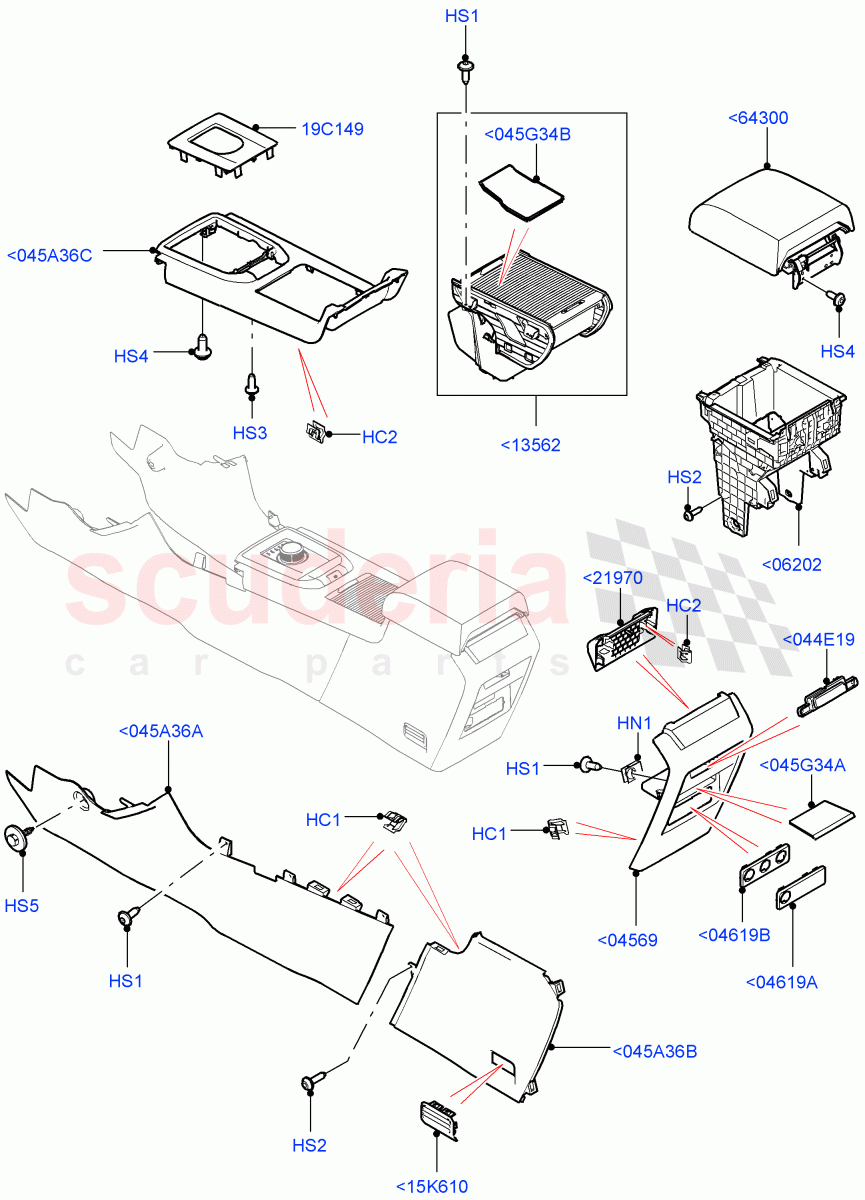

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR044894	CLIP	Enquire	To Order
	LR044894	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004023	CLIP	Enquire	To Order
	LR004023	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006214	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PYP500140	SCREW	Enquire	To Order
	PYP500140	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500730	SCREW	Enquire	To Order
	RYP500730	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000695	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003016	SCREW AND WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060685	PANEL - CONSOLE - END FINISHER	Enquire	To Order
	LR060687	PANEL - CONSOLE - END FINISHER	Enquire	To Order
	LR060688	PANEL - CONSOLE - END FINISHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060738	COMPARTMENT - REAR STOWAGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060724	HOLDER - CUP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062157	LEVER - LOAD COMPARTMENT GAP HIDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060741	ARMREST - CONSOLE LID	Enquire	To Order
	LR076389	ARMREST - CONSOLE LID	Enquire	To Order
	LR060744	ARMREST - CONSOLE LID	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR076842	BEZEL - CENTRE CONSOLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060739	INTAGLIO - CONSOLE CENTRE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR076856	BEZEL - USB PORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR076857	BEZEL - USB PORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FHE500012PVJ	COVER - CONSOLE FIXING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060726	PANEL - CONSOLE SIDE	Enquire	To Order
	LR060728	PANEL - CONSOLE SIDE	Enquire	To Order
	LR060729	PANEL - CONSOLE SIDE	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR060700	PANEL - CONSOLE SIDE	Enquire	To Order
	LR060702	PANEL - CONSOLE SIDE	Enquire	To Order
	LR060703	PANEL - CONSOLE SIDE	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR072473	PANEL - CONSOLE - CENTRE FINISHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062156	MAT - CONSOLE STOWAGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060695	MAT - CONSOLE STOWAGE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<15K610	FHE500012PVJ	COVER - CONSOLE FIXING	FHE500012PVJ COVER - CONSOLE FIXING From: GT000001	-	2	Enquire
<044E19	LR060739	INTAGLIO - CONSOLE CENTRE	LR060739 INTAGLIO - CONSOLE CENTRE From: GT000001	-	1	Enquire
<045A36A	LR060726	PANEL - CONSOLE SIDE	LR060726 PANEL - CONSOLE SIDE I/P Facia Contrast - Cirrus/Lunar / RH, Front / From: GT000001	-	1	Enquire
<045A36A	LR060728	PANEL - CONSOLE SIDE	LR060728 PANEL - CONSOLE SIDE I/P Facia Contrast - Ebony Black / RH, Front / From: GT000001	-	1	Enquire
<045A36A	LR060729	PANEL - CONSOLE SIDE	LR060729 PANEL - CONSOLE SIDE I/P Facia Cntr-Ebony Black/Almond / RH, Front / From: GT000001	-	1	Enquire
<045A36A	LR060731	PANEL - CONSOLE SIDE	LR060731 PANEL - CONSOLE SIDE I/P Facia Contrast - Cirrus/Lunar / LH, Front / From: GT000001	-	1	Enquire
<045A36A	LR060733	PANEL - CONSOLE SIDE	LR060733 PANEL - CONSOLE SIDE I/P Facia Contrast - Ebony Black / LH, Front / From: GT000001	-	1	Enquire
<045A36A	LR060734	PANEL - CONSOLE SIDE	LR060734 PANEL - CONSOLE SIDE I/P Facia Cntr-Ebony Black/Almond / LH, Front / From: GT000001	-	1	Enquire
<045A36B	LR060700	PANEL - CONSOLE SIDE	LR060700 PANEL - CONSOLE SIDE I/P Facia Contrast - Cirrus/Lunar / RH, Rear / From: GT000001	-	1	Enquire
<045A36B	LR060702	PANEL - CONSOLE SIDE	LR060702 PANEL - CONSOLE SIDE I/P Facia Contrast - Ebony Black / RH, Rear / From: GT000001	-	1	Enquire
<045A36B	LR060703	PANEL - CONSOLE SIDE	LR060703 PANEL - CONSOLE SIDE I/P Facia Cntr-Ebony Black/Almond / RH, Rear / From: GT000001	-	1	Enquire
<045A36B	LR060708	PANEL - CONSOLE SIDE	LR060708 PANEL - CONSOLE SIDE I/P Facia Contrast - Cirrus/Lunar / LH, Rear / From: GT000001	-	1	Enquire
<045A36B	LR060710	PANEL - CONSOLE SIDE	LR060710 PANEL - CONSOLE SIDE I/P Facia Contrast - Ebony Black / LH, Rear / From: GT000001	-	1	Enquire
<045A36B	LR060711	PANEL - CONSOLE SIDE	LR060711 PANEL - CONSOLE SIDE I/P Facia Cntr-Ebony Black/Almond / LH, Rear / From: GT000001	-	1	Enquire
<045A36C	LR072473	PANEL - CONSOLE - CENTRE FINISHER	LR072473 PANEL - CONSOLE - CENTRE FINISHER From: GT000001	-	1	Enquire
<045G34A	LR062156	MAT - CONSOLE STOWAGE	LR062156 MAT - CONSOLE STOWAGE From: GT000001	-	1	Enquire
<045G34B	LR060695	MAT - CONSOLE STOWAGE	LR060695 MAT - CONSOLE STOWAGE From: GT000001	-	1	Enquire
<04569	LR060685	PANEL - CONSOLE - END FINISHER	LR060685 PANEL - CONSOLE - END FINISHER I/P Facia Contrast - Cirrus/Lunar / From: GT000001	-	1	Enquire
<04569	LR060687	PANEL - CONSOLE - END FINISHER	LR060687 PANEL - CONSOLE - END FINISHER I/P Facia Contrast - Ebony Black / From: GT000001	-	1	Enquire
<04569	LR060688	PANEL - CONSOLE - END FINISHER	LR060688 PANEL - CONSOLE - END FINISHER I/P Facia Cntr-Ebony Black/Almond / From: GT000001	-	1	Enquire
<04619A	LR076856	BEZEL - USB PORT	LR076856 BEZEL - USB PORT Less Power Point Plug / With 1 Socket / From: GT000001	-	1	Enquire
<04619B	LR076857	BEZEL - USB PORT	LR076857 BEZEL - USB PORT USB Power Socket Row 2 / With 3 Sockets / From: GT000001	-	1	Enquire
<06202	LR060738	COMPARTMENT - REAR STOWAGE	LR060738 COMPARTMENT - REAR STOWAGE From: GT000001	-	1	Enquire
<13562	LR060724	HOLDER - CUP	LR060724 HOLDER - CUP From: GT000001	-	1	Enquire
<21970	LR062157	LEVER - LOAD COMPARTMENT GAP HIDER	LR062157 LEVER - LOAD COMPARTMENT GAP HIDER From: GT000001	-	1	Enquire
<64300	LR060741	ARMREST - CONSOLE LID	LR060741 ARMREST - CONSOLE LID Console Top Plate-Premium Leather, I/P Facia Contrast - Cirrus/Lunar / From: GT000001	-	1	Enquire
<64300	LR076389	ARMREST - CONSOLE LID	LR076389 ARMREST - CONSOLE LID Console Top Plate-Premium Leather, Ebony Black/Ebony Black Interior, I/P Facia Contrast - Ebony Black / From: GT000001	-	1	Enquire
<64300	LR060744	ARMREST - CONSOLE LID	LR060744 ARMREST - CONSOLE LID Console Top Plate-Premium Leather, I/P Facia Contrast - Ebony Black, Tan / From: GT000001	-	1	Enquire
<64300	LR067255	ARMREST - CONSOLE LID	LR067255 ARMREST - CONSOLE LID Console Top Plate-Strata Grain Lthr, I/P Facia Contrast - Cirrus/Lunar / From: GT000001	-	1	Enquire
<64300	LR067258	ARMREST - CONSOLE LID	LR067258 ARMREST - CONSOLE LID Console Top Plate-Strata Grain Lthr, I/P Facia Cntr-Ebony Black/Almond / From: GT000001	-	1	Enquire
<64300	LR067256	ARMREST - CONSOLE LID	LR067256 ARMREST - CONSOLE LID Console Top Plate-Strata Grain Lthr, Ebony Black/Ebony Black Interior, I/P Facia Contrast - Ebony Black / From: GT000001	-	1	Enquire
HC1	LR044894	CLIP	LR044894 CLIP 0.8 - 2.5 / From: GT000001	-	6	Enquire
HC1	LR044894	CLIP	LR044894 CLIP 0.8 - 2.5, Fixes Side Panel, Rear / From: GT000001	-	8	Enquire
HC2	LR004023	CLIP	LR004023 CLIP 1.4 M, Fixes Top Panel, Push On / From: GT000001	-	8	Enquire
HC2	LR004023	CLIP	LR004023 CLIP 1.4 M, Fixes Lever, Push On / From: GT000001	-	4	Enquire
HN1	LR006214	NUT	LR006214 NUT 4.2 X 2.25 - 3 / From: GT000001	-	4	Enquire
HS1	PYP500140	SCREW	PYP500140 SCREW 4.2 x 13MM, Torx / From: GT000001	-	4	Enquire
HS1	PYP500140	SCREW	PYP500140 SCREW 4.2 x 13MM, Fixes Side Panel, Front, Torx / From: GT000001	-	3	Enquire
HS2	RYP500730	SCREW	RYP500730 SCREW 4 x 14MM, Fixes Side Panel, Rear, Torx / From: GT000001	-	1	Enquire
HS2	RYP500730	SCREW	RYP500730 SCREW 4 x 14MM, Fixes Stowage, Torx / From: GT000001	-	12	Enquire
HS3	LR000695	SCREW	LR000695 SCREW M4 x 10MM / From: GT000001	-	6	Enquire
HS4	RYP500700	SCREW	RYP500700 SCREW M5 X 12MM, Torx / From: GT000001	-	7	Enquire
HS5	LR003016	SCREW AND WASHER	LR003016 SCREW AND WASHER 17.0MM, 4.2 / From: GT000001	-	1	Enquire
19C149	LR076842	BEZEL - CENTRE CONSOLE	LR076842 BEZEL - CENTRE CONSOLE From: GT000001	-	1	Enquire
