Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] - Instrument Panel (Upper, External) (Halewood (UK)) ((V) TOKH999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR044894 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
QYP500050 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR000053 NUT - FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
LR006214 NUT Enquire To Order
Photo Part No Description Price (each) Stock
PYP500140 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR006211 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR007312 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR028425 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR027849 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR028417 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR002884 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
RYP500770 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR001090 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR059790 GRILLE - SPEAKER Enquire To Order
LR059792 GRILLE - SPEAKER Enquire To Order
LR072466 GRILLE - SPEAKER Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR059681 PANEL - INSTRUMENT - UPPER Enquire To Order
LR059682 PANEL - INSTRUMENT - UPPER Enquire To Order
LR059683 PANEL - INSTRUMENT - UPPER Enquire To Order
...and 37 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR102725 CHUTE - AIR BAG Enquire To Order
Photo Part No Description Price (each) Stock
LR059799 RETAINER Enquire To Order
Photo Part No Description Price (each) Stock
LR066132 BRACKET - INSTRUMENT PANEL Enquire To Order
LR066133 BRACKET - INSTRUMENT PANEL Enquire To Order
Photo Part No Description Price (each) Stock
LR028912 RETAINER - INSTRUMENT PANEL Enquire To Order
Photo Part No Description Price (each) Stock
LR095702 SEAL - WINDSCREEN Enquire To Order
View All

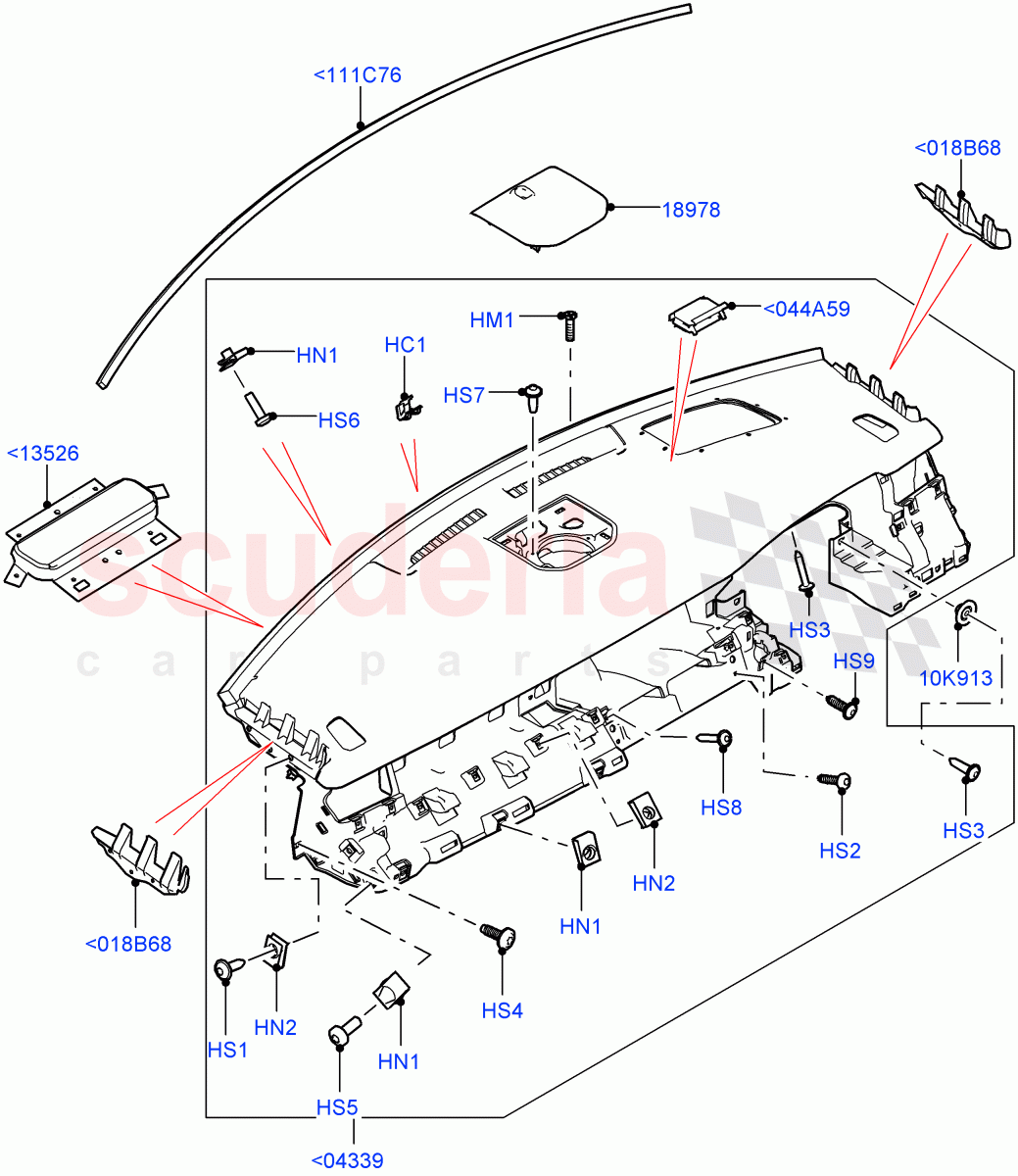

Instrument Panel (Upper, External) (Halewood (UK)) ((V) TOKH999999) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<018B68 LR066132
BRACKET - INSTRUMENT PANEL
RH 		- 1 Enquire
<018B68 LR066133
BRACKET - INSTRUMENT PANEL
LH 		- 1 Enquire
<044A59 LR028912
RETAINER - INSTRUMENT PANEL 		- 2 Enquire
<111C76 LR095702
SEAL - WINDSCREEN 		- 1 Enquire
<04339 LR059681
PANEL - INSTRUMENT - UPPER
I/P Facia Contrast - Lunar/Glacia, LHD, Less Head Up Display / To: FH506374 		- 1 Enquire
<04339 LR059682
PANEL - INSTRUMENT - UPPER
I/P Facia Contrast - Ebony/Ivory, LHD, Less Head Up Display / To: FH506374 		- 1 Enquire
<04339 LR059683
PANEL - INSTRUMENT - UPPER
I/P Facia Contrast - Cirrus/Lunar, Less Head Up Display, RHD / To: FH506374 		- 1 Enquire
<04339 LR059684
PANEL - INSTRUMENT - UPPER
I/P Facia Contrast - Ebony/Ivory, Less Head Up Display, RHD / To: FH506374 		- 1 Enquire
<04339 LR059686
PANEL - INSTRUMENT - UPPER
Head Up Display, I/P Facia Contrast - Lunar/Glacia, LHD / To: FH532776 		- 1 Enquire
<04339 LR059687
PANEL - INSTRUMENT - UPPER
Head Up Display, I/P Facia Contrast - Ebony/Lunar, LHD / To: FH532776 		- 1 Enquire
<04339 LR059688
PANEL - INSTRUMENT - UPPER
Head Up Display, I/P Facia Contrast - Lunar/Glacia, RHD / To: FH506375 		- 1 Enquire
<04339 LR059690
PANEL - INSTRUMENT - UPPER
Head Up Display, I/P Facia Cntr-Ebony Black/Almond, RHD / To: FH506375 		- 1 Enquire
<04339 LR076715
PANEL - INSTRUMENT - UPPER
Head Up Display, I/P Facia Contrast - Lunar/Glacia, RHD / From: FH506376 / To: FH532776 		- 1 Enquire
<04339 LR076717
PANEL - INSTRUMENT - UPPER
Head Up Display, I/P Facia Cntr-Ebony Black/Almond, RHD / From: FH506376 / To: FH532776 		- 1 Enquire
<04339 LR076718
PANEL - INSTRUMENT - UPPER
I/P Facia Contrast - Lunar/Glacia, LHD, Less Head Up Display / From: FH506375 / To: GH594486 		- 1 Enquire
<04339 LR076719
PANEL - INSTRUMENT - UPPER
I/P Facia Contrast - Ebony/Cirrus, LHD, Less Head Up Display / From: FH506375 / To: GH594486 		- 1 Enquire
<04339 LR076722
PANEL - INSTRUMENT - UPPER
I/P Facia Contrast - Cirrus/Lunar, Less Head Up Display, RHD / From: FH506375 / To: GH594486 		- 1 Enquire
<04339 LR076723
PANEL - INSTRUMENT - UPPER
I/P Facia Contrast - Ebony/Ivory, Less Head Up Display, RHD / From: FH506375 / To: GH594486 		- 1 Enquire
<04339 LR077471
PANEL - INSTRUMENT - UPPER
I/P Facia Contrast - Lunar/Glacia, LHD, Less Head Up Display / From: GH594487 / To: GH612813 		- 1 Enquire
<04339 LR077472
PANEL - INSTRUMENT - UPPER
I/P Facia Contrast - Ebony/Ivory, LHD, Less Head Up Display / From: GH594487 / To: GH612813 		- 1 Enquire
<04339 LR077470
PANEL - INSTRUMENT - UPPER
I/P Facia Contrast - Cirrus/Lunar, Less Head Up Display, RHD / From: GH594487 / To: GH612813 		- 1 Enquire
<04339 LR077468
PANEL - INSTRUMENT - UPPER
I/P Facia Cntr-Ebony Black/Almond, Less Head Up Display, RHD / From: GH594487 / To: GH612813 		- 1 Enquire
<04339 LR076725
PANEL - INSTRUMENT - UPPER
Head Up Display, I/P Facia Contrast - Lunar/Glacia, LHD / From: FH532777 / To: GH594565 		- 1 Enquire
<04339 LR076726
PANEL - INSTRUMENT - UPPER
Head Up Display, I/P Facia Contrast - Ebony/Cirrus, LHD / From: FH532777 / To: GH594565 		- 1 Enquire
<04339 LR077452
PANEL - INSTRUMENT - UPPER
Head Up Display, I/P Facia Contrast - Cirrus/Lunar, RHD / From: FH532777 / To: GH612813 		- 1 Enquire
<04339 LR077453
PANEL - INSTRUMENT - UPPER
Head Up Display, I/P Facia Contrast - Ebony/Ivory, RHD / From: FH532777 / To: GH612813 		- 1 Enquire
<04339 LR079141
PANEL - INSTRUMENT - UPPER
I/P Facia Contrast - Lunar/Glacia, LHD, Less Head Up Display / From: GH612814 / To: GH999999 		- 1 Enquire
<04339 LR079142
PANEL - INSTRUMENT - UPPER
I/P Facia Contrast - Ebony/Ivory, LHD, Less Head Up Display / From: GH612814 / To: GH999999 		- 1 Enquire
<04339 LR079143
PANEL - INSTRUMENT - UPPER
I/P Facia Contrast - Cirrus/Lunar, Less Head Up Display, RHD / From: GH612814 / To: GH999999 		- 1 Enquire
<04339 LR079144
PANEL - INSTRUMENT - UPPER
I/P Facia Cntr-Ebony Black/Almond, Less Head Up Display, RHD / From: GH612814 / To: GH999999 		- 1 Enquire
<04339 LR077454
PANEL - INSTRUMENT - UPPER
Head Up Display, I/P Facia Contrast - Lunar/Glacia, LHD / From: GH594566 / To: GH612813 		- 1 Enquire
<04339 LR077455
PANEL - INSTRUMENT - UPPER
Head Up Display, I/P Facia Contrast - Ebony/Cirrus, LHD / From: GH594566 / To: GH612813 		- 1 Enquire
<04339 LR079145
PANEL - INSTRUMENT - UPPER
Head Up Display, I/P Facia Contrast - Lunar/Glacia, LHD / From: GH612814 / To: GH999999 		- 1 Enquire
<04339 LR079146
PANEL - INSTRUMENT - UPPER
Head Up Display, I/P Facia Contrast - Ebony/Cirrus, LHD / From: GH612814 / To: GH999999 		- 1 Enquire
<04339 LR079147
PANEL - INSTRUMENT - UPPER
Head Up Display, I/P Facia Contrast - Lunar/Glacia, RHD / From: GH612814 / To: GH999999 		- 1 Enquire
<04339 LR079148
PANEL - INSTRUMENT - UPPER
Head Up Display, I/P Facia Contrast - Ebony Black, RHD / From: GH612814 / To: GH999999 		- 1 Enquire
<04339 LR083773
PANEL - INSTRUMENT - UPPER
I/P Facia Contrast - Cirrus/Lunar, Less Head Up Display, RHD / From: HH000001 		- 1 Enquire
<04339 LR083774
PANEL - INSTRUMENT - UPPER
I/P Facia Contrast - Ebony/Cirrus, Less Head Up Display, RHD / From: HH000001 		- 1 Enquire
<04339 LR083775
PANEL - INSTRUMENT - UPPER
Head Up Display, I/P Facia Contrast - Cirrus/Lunar, LHD / From: HH000001 		- 1 Enquire
<04339 LR083776
PANEL - INSTRUMENT - UPPER
Head Up Display, I/P Facia Contrast - Ebony/Cirrus, LHD / From: HH000001 		- 1 Enquire
<04339 LR083777
PANEL - INSTRUMENT - UPPER
Head Up Display, I/P Facia Contrast - Lunar/Glacia, RHD / From: HH000001 		- 1 Enquire
<04339 LR083778
PANEL - INSTRUMENT - UPPER
Head Up Display, I/P Facia Contrast - Ebony/Ivory, RHD / From: HH000001 		- 1 Enquire
<04339 LR083771
PANEL - INSTRUMENT - UPPER
I/P Facia Contrast - Lunar/Glacia, LHD, Less Head Up Display / From: HH000001 		- 1 Enquire
<04339 LR083772
PANEL - INSTRUMENT - UPPER
I/P Facia Contrast - Ebony/Ivory, LHD, Less Head Up Display / From: HH000001 		- 1 Enquire
<13526 LR102725
CHUTE - AIR BAG 		- 1 Enquire
HC1 LR044894
CLIP
0.8 - 2.5 		- 1 Enquire
HM1 QYP500050
SCREW
4 x 14MM, Screw Type 		- 1 Enquire
HN1 LR000053
NUT - FLANGED
M6 		- 1 Enquire
HN2 LR006214
NUT
4.2 X 2.25 - 3 		- 1 Enquire
HS1 PYP500140
SCREW
4.2 x 13MM, Torx 		- 6 Enquire
HS2 LR006211
SCREW
4.2 x 16MM, Torx 		- 1 Enquire
HS3 LR007312
SCREW
4.2 X 19MM 		- 2 Enquire
HS4 LR028425
SCREW
M6 X 1.4 X 17 		- 1 Enquire
HS5 LR027849
SCREW
M6 X 16MM 		- 1 Enquire
HS6 LR028417
SCREW
M6 X 20MM 		- 1 Enquire
HS7 LR002884
SCREW
M4 x 10MM 		- 1 Enquire
HS8 RYP500770
SCREW
5 X 16MM, Torx 		- 1 Enquire
HS9 LR001090
SCREW
3.5 x 16MM, Torx 		- 1 Enquire
10K913 LR059799
RETAINER 		- 2 Enquire
18978 LR059790
GRILLE - SPEAKER
I/P Facia Contrast - Cirrus/Lunar / To: FH503862 		- 1 Enquire
18978 LR059792
GRILLE - SPEAKER
I/P Facia Contrast - Ebony Black / To: FH503862 		- 1 Enquire
18978 LR072466
GRILLE - SPEAKER
I/P Facia Contrast - Cirrus/Lunar / From: FH503863 		- 1 Enquire
18978 LR072467
GRILLE - SPEAKER
I/P Facia Cntr-Ebony Black/Almond / From: FH503863 		- 1 Enquire
