Instrument Panel (Upper, Internal Components) (Changsu (China)) ((V) Fromkg446857)

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI]

Find Your Part

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] - Instrument Panel (Upper, Internal Components) (Changsu (China)) ((V) FROMKG446857)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR006032 BOLT AND WASHER - HEX.HEAD Enquire To Order
Photo Part No Description Price (each) Stock
LR114228 BOLT AND WASHER - HEX.HEAD Enquire To Order
Photo Part No Description Price (each) Stock
RYH500420 NUT AND WASHER - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
LR032351 PLUG - RUBBER Enquire To Order
Photo Part No Description Price (each) Stock
RYG500980 SCREW AND WASHER Enquire To Order
Photo Part No Description Price (each) Stock
LR030395 SCREW AND WASHER Enquire To Order
Photo Part No Description Price (each) Stock
LR115136 MOULDING - INSTRUMENT PANEL Enquire To Order
Photo Part No Description Price (each) Stock
LR117784 BRACKET - INSTRUMENT PANEL Enquire To Order
Photo Part No Description Price (each) Stock
LR117787 BRACKET - ENERGY ABSORBER Enquire To Order
Photo Part No Description Price (each) Stock
LR125869 BRACKET - INSTRUMENT PANEL Enquire To Order
LR125870 BRACKET - INSTRUMENT PANEL Enquire To Order
Photo Part No Description Price (each) Stock
LR123439 REINFORCEMENT - INSTRUMENT PANEL Enquire To Order
View All

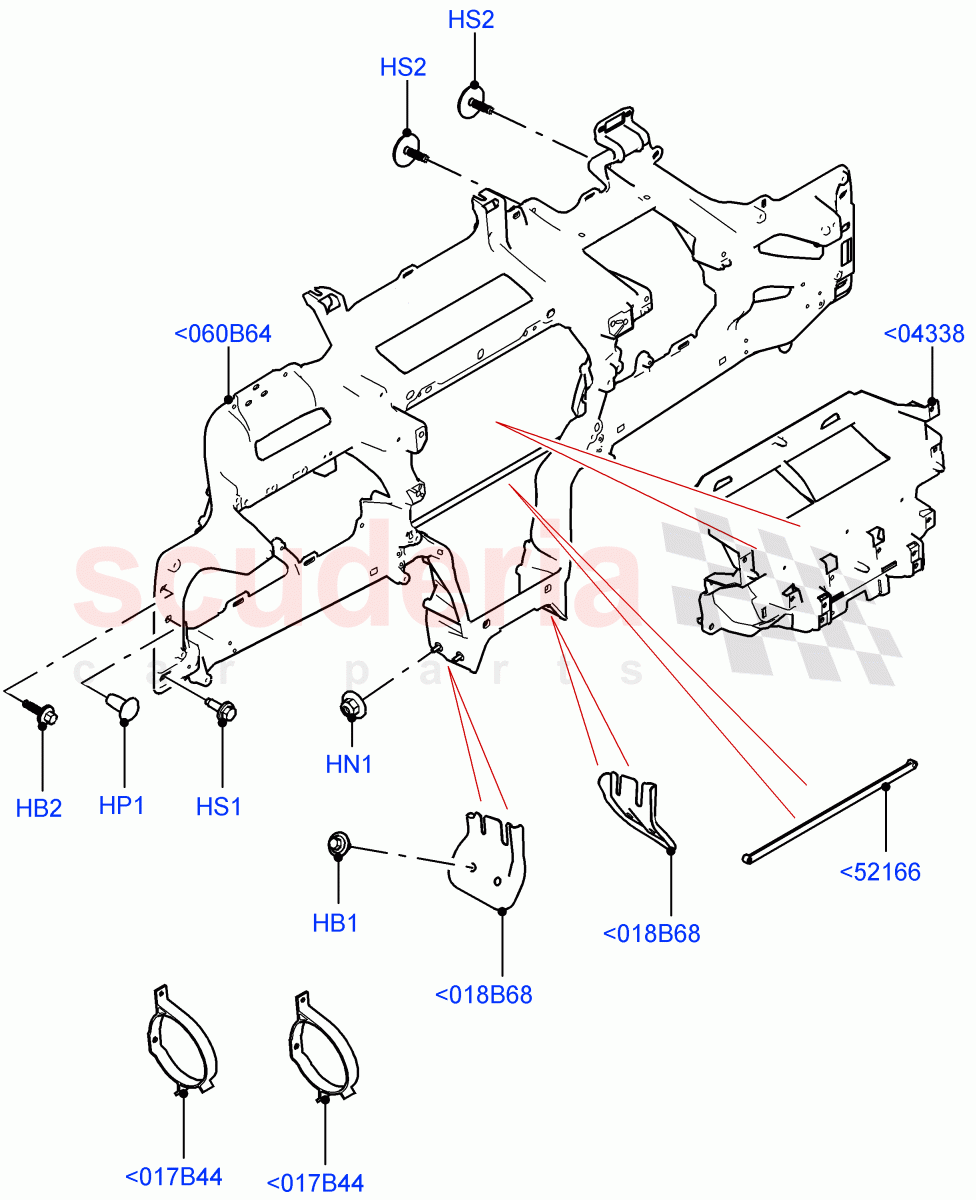

Instrument Panel (Upper, Internal Components) (Changsu (China)) ((V) FROMKG446857) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<017B44 LR117787
BRACKET - ENERGY ABSORBER
With Head Impact Crash Criteria / From: KG446857 		- 2 Enquire
<018B68 LR125869
BRACKET - INSTRUMENT PANEL
RH / From: KG446857 		- 1 Enquire
<018B68 LR125870
BRACKET - INSTRUMENT PANEL
LH / From: KG446857 		- 1 Enquire
<060B64 LR123439
REINFORCEMENT - INSTRUMENT PANEL
From: KG446857 		- 1 Enquire
<04338 LR115136
MOULDING - INSTRUMENT PANEL
From: KG446857 		- 1 Enquire
<52166 LR117784
BRACKET - INSTRUMENT PANEL
From: KG446857 		- 1 Enquire
HB1 LR006032
BOLT AND WASHER - HEX.HEAD
Bolt And Washer, M8 X 17MM / From: KG446857 		- 4 Enquire
HB2 LR114228
BOLT AND WASHER - HEX.HEAD
M8 x 27MM / From: KG446857 		- 2 Enquire
HN1 RYH500420
NUT AND WASHER - HEX.
Hexagonal Head, M6, Nut And Washer / From: KG446857 		- 4 Enquire
HP1 LR032351
PLUG - RUBBER
13 X 3.5, Rubber / From: KG446857 		- 2 Enquire
HS1 RYG500980
SCREW AND WASHER
M8 x 24MM / From: KG446857 		- 2 Enquire
HS2 LR030395
SCREW AND WASHER
M8 x 28MM / From: KG446857 		- 2 Enquire
