Instrument Panel (External, Upper) (Changsu (China)) ((V) Fromkg446857)

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI]

Find Your Part

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] - Instrument Panel (External, Upper) (Changsu (China)) ((V) FROMKG446857)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR115207 CLIP $4.46 To Order
Photo Part No Description Price (each) Stock
LR006214 NUT $0.45 IN STOCK
Photo Part No Description Price (each) Stock
RYH500420 NUT AND WASHER - HEX. $0.43 IN STOCK
Photo Part No Description Price (each) Stock
PYP500140 SCREW $0.74 IN STOCK
Photo Part No Description Price (each) Stock
LR028425 SCREW $1.05 IN STOCK
Photo Part No Description Price (each) Stock
LR127328 DUCT - HEATER OUTLET $119.87 To Order
Photo Part No Description Price (each) Stock
LR127672 PANEL - INSTRUMENT - UPPER $1,568.56 To Order
LR127677 PANEL - INSTRUMENT - UPPER $1,853.77 To Order
Photo Part No Description Price (each) Stock
LR127305 GRILLE - SPEAKER $124.83 To Order
Photo Part No Description Price (each) Stock
LR059799 RETAINER $20.61 To Order
Photo Part No Description Price (each) Stock
LR129326 BRACKET - AIR DUCT SUPPORT $13.26 To Order
Photo Part No Description Price (each) Stock
LR127726 BRACKET - INSTRUMENT PANEL $23.96 To Order
LR127727 BRACKET - INSTRUMENT PANEL $25.16 To Order
Photo Part No Description Price (each) Stock
LR028912 RETAINER - INSTRUMENT PANEL $3.36 To Order
Photo Part No Description Price (each) Stock
LR134714 SEAL - WINDSCREEN $80.82 To Order
View All

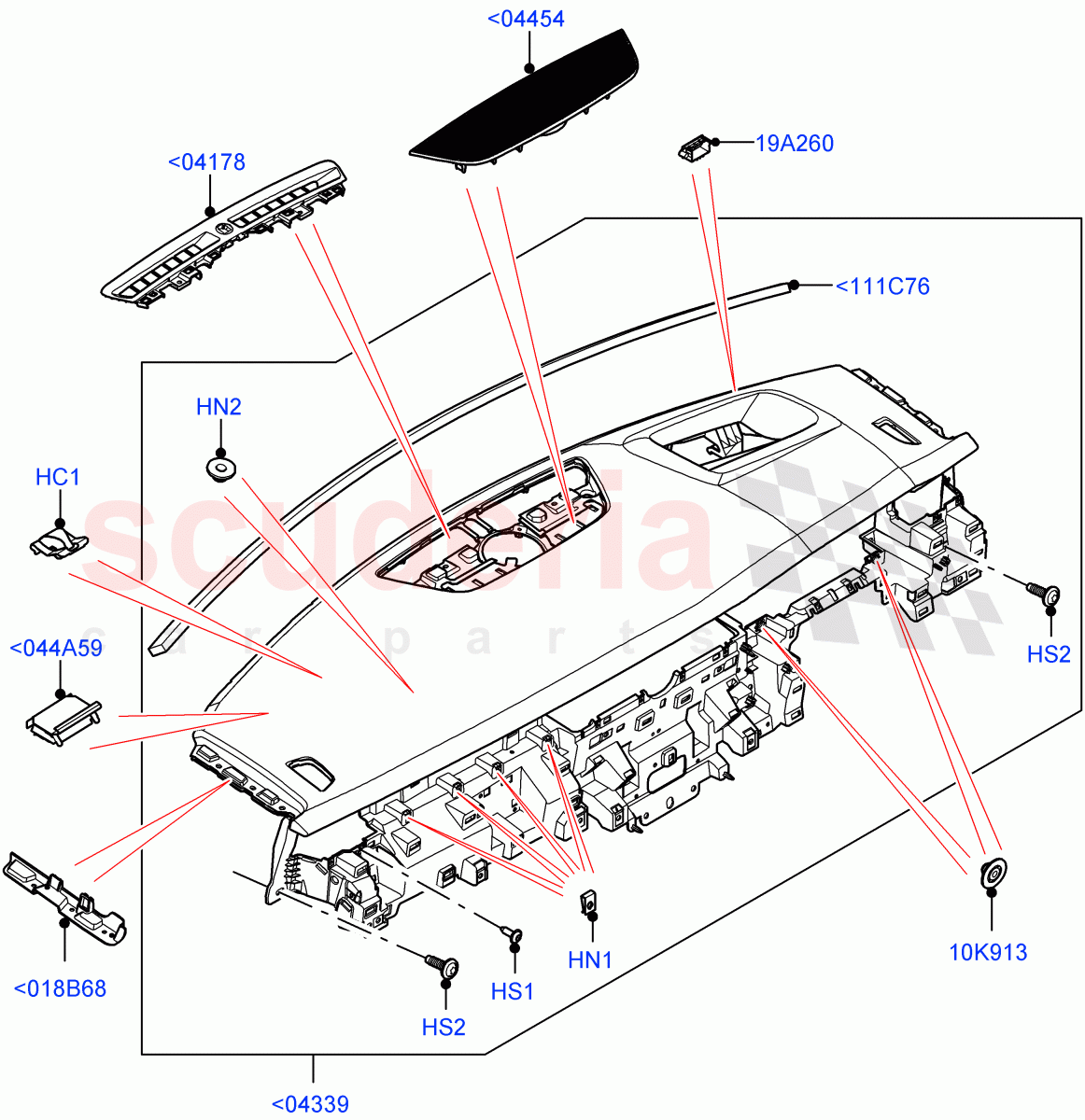

Instrument Panel (External, Upper) (Changsu (China)) ((V) FROMKG446857) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<018B68 LR127726
BRACKET - INSTRUMENT PANEL
RH / From: KG446857 		$23.96 1
<018B68 LR127727
BRACKET - INSTRUMENT PANEL
LH / From: KG446857 		$25.16 1
<044A59 LR028912
RETAINER - INSTRUMENT PANEL 		$3.36 2
<111C76 LR134714
SEAL - WINDSCREEN
From: KG446857 		$80.82 1
<04178 LR127328
DUCT - HEATER OUTLET
From: KG446857 		$119.87 1
<04339 LR127672
PANEL - INSTRUMENT - UPPER
LHD, Less Head Up Display / From: KG446857 		$1,568.56 1
<04339 LR127677
PANEL - INSTRUMENT - UPPER
Head Up Display, LHD / From: KG446857 		$1,853.77 1
<04454 LR127305
GRILLE - SPEAKER
From: KG446857 		$124.83 1
HC1 LR115207
CLIP
From: KG446857 		$4.46 1
HN1 LR006214
NUT
4.2 X 2.25 - 3 / From: KG446857
IN STOCK 		$0.45 -
HN2 RYH500420
NUT AND WASHER - HEX.
Hexagonal Head, M6, Nut And Washer / From: KG446857
IN STOCK 		$0.43 8
HS1 PYP500140
SCREW
4.2 x 13MM, Torx / From: KG446857
IN STOCK 		$0.74 -
HS2 LR028425
SCREW
M6 X 1.4 X 17 / From: KG446857
IN STOCK 		$1.05 5
10K913 LR059799
RETAINER 		$20.61 2
19A260 LR129326
BRACKET - AIR DUCT SUPPORT
From: KG446857 		$13.26 1
