Instrument Panel (Upper, Internal Components) (Halewood (Uk)) ((V) Tokh999999)

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI]

Find Your Part

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] - Instrument Panel (Upper, Internal Components) (Halewood (UK)) ((V) TOKH999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR049472 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
RYG500440 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR044894 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
LR000053 NUT - FLANGED Enquire To Order
LR000053 NUT - FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
LR006214 NUT Enquire To Order
LR006214 NUT Enquire To Order
Photo Part No Description Price (each) Stock
LR000070 PLUG - BLANKING Enquire To Order
Photo Part No Description Price (each) Stock
LR032351 PLUG - RUBBER Enquire To Order
Photo Part No Description Price (each) Stock
LR025172 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
RYG501150 SCREW AND WASHER Enquire To Order
Photo Part No Description Price (each) Stock
LR030395 SCREW AND WASHER Enquire To Order
Photo Part No Description Price (each) Stock
LR028425 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR006211 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR065261 MOULDING - INSTRUMENT PANEL Enquire To Order
LR065262 MOULDING - INSTRUMENT PANEL Enquire To Order
LR065263 MOULDING - INSTRUMENT PANEL Enquire To Order
...and 7 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR096514 BRACKET - INSTRUMENT PANEL Enquire To Order
Photo Part No Description Price (each) Stock
LR060592 BRACKET - ENERGY ABSORBER Enquire To Order
Photo Part No Description Price (each) Stock
LR059692 MOULDING - INSTRUMENT PANEL Enquire To Order
Photo Part No Description Price (each) Stock
LR055530 REINFORCEMENT - INSTRUMENT PANEL Enquire To Order
LR055531 REINFORCEMENT - INSTRUMENT PANEL Enquire To Order
LR055533 REINFORCEMENT - INSTRUMENT PANEL Enquire To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR059787 BRACKET - SUPPORT Enquire To Order
LR059788 BRACKET - SUPPORT Enquire To Order
LR113836 BRACKET - SUPPORT Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR068111 BRACKET - SUPPORT Enquire To Order
LR073097 BRACKET - SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
LR062491 BRACKET - INSTRUMENT PANEL Enquire To Order
Photo Part No Description Price (each) Stock
LR059835 BRACKET - INSTRUMENT PANEL Enquire To Order
LR073035 BRACKET - INSTRUMENT PANEL Enquire To Order
LR079030 BRACKET - INSTRUMENT PANEL Enquire To Order
View All

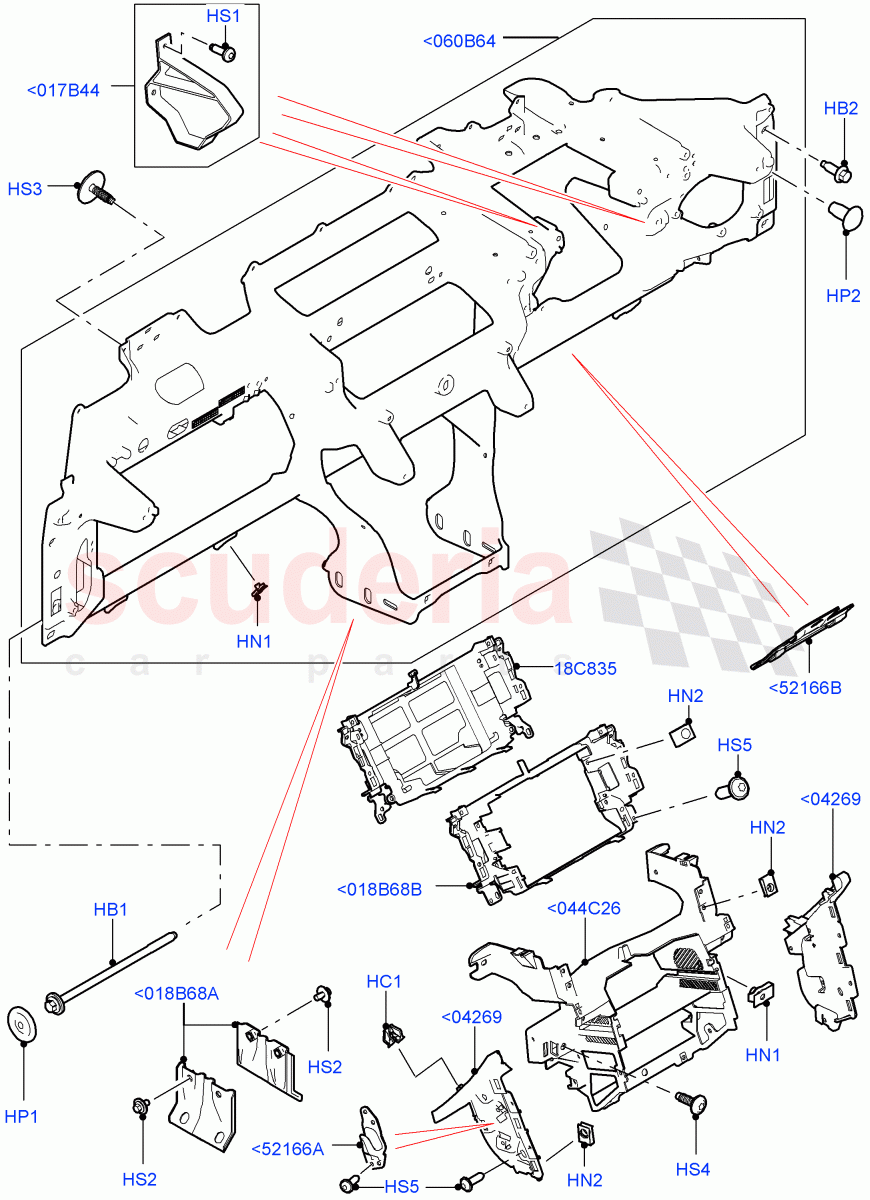

Instrument Panel (Upper, Internal Components) (Halewood (UK)) ((V) TOKH999999) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<017B44 LR060592
BRACKET - ENERGY ABSORBER
(+)"CDN/MEX/USA" 		- 2 Enquire
<018B68A LR062491
BRACKET - INSTRUMENT PANEL 		- 2 Enquire
<018B68B LR059835
BRACKET - INSTRUMENT PANEL
To: FH506071 		- 1 Enquire
<018B68B LR073035
BRACKET - INSTRUMENT PANEL
From: FH506072 / To: GH566173 		- 1 Enquire
<018B68B LR079030
BRACKET - INSTRUMENT PANEL
HLDF Screen / From: GH566174 		- 1 Enquire
<044C26 LR059692
MOULDING - INSTRUMENT PANEL 		- 1 Enquire
<060B64 LR055530
REINFORCEMENT - INSTRUMENT PANEL
LHD, Less Head Up Display / To: KH826321 		- 1 Enquire
<060B64 LR055531
REINFORCEMENT - INSTRUMENT PANEL
Less Head Up Display, RHD / To: KH826321 		- 1 Enquire
<060B64 LR055533
REINFORCEMENT - INSTRUMENT PANEL
Head Up Display, RHD / To: KH826321 		- 1 Enquire
<060B64 LR055532
REINFORCEMENT - INSTRUMENT PANEL
Head Up Display, LHD / To: KH826321 		- 1 Enquire
<060B64 LR138418
REINFORCEMENT - INSTRUMENT PANEL
Less Head Up Display / From: FG000001 		- 1 Enquire
<060B64 LR138419
REINFORCEMENT - INSTRUMENT PANEL
Less Head Up Display, RHD / From: KH826322 		- 1 Enquire
<060B64 LR138420
REINFORCEMENT - INSTRUMENT PANEL
Head Up Display, LHD / From: KH826322 		- 1 Enquire
<060B64 LR138422
REINFORCEMENT - INSTRUMENT PANEL
Head Up Display, RHD / From: KH826322 		- 1 Enquire
<04269 LR065261
MOULDING - INSTRUMENT PANEL
I/P Facia Contrast - Lunar/Glacia / LH 		- 1 Enquire
<04269 LR065262
MOULDING - INSTRUMENT PANEL
I/P Facia Contrast - Ebony/Cirrus / LH 		- 1 Enquire
<04269 LR065263
MOULDING - INSTRUMENT PANEL
I/P Facia Contrast - Ebony/Ivory / LH 		- 1 Enquire
<04269 LR065264
MOULDING - INSTRUMENT PANEL
I/P Facia Cntr-Ebony Black/Almond / LH 		- 1 Enquire
<04269 LR059830
MOULDING - INSTRUMENT PANEL
I/P Facia Contrast - Ebony Black / LH 		- 1 Enquire
<04269 LR059828
MOULDING - INSTRUMENT PANEL
I/P Facia Contrast - Ebony/Lunar / RH 		- 1 Enquire
<04269 LR065257
MOULDING - INSTRUMENT PANEL
I/P Facia Contrast - Lunar/Glacia / RH 		- 1 Enquire
<04269 LR065258
MOULDING - INSTRUMENT PANEL
I/P Facia Contrast - Cirrus/Lunar / RH 		- 1 Enquire
<04269 LR065259
MOULDING - INSTRUMENT PANEL
I/P Facia Contrast - Ebony/Ivory / RH 		- 1 Enquire
<04269 LR065260
MOULDING - INSTRUMENT PANEL
I/P Facia Cntr-Ebony Black/Almond / RH 		- 1 Enquire
<52166A LR059787
BRACKET - SUPPORT
RHD / To: JH764447 		- 1 Enquire
<52166A LR059788
BRACKET - SUPPORT
LHD / To: JH764447 		- 1 Enquire
<52166A LR113836
BRACKET - SUPPORT
RHD / From: JH764448 		- 1 Enquire
<52166A LR113837
BRACKET - SUPPORT
LHD / From: JH764448 		- 1 Enquire
<52166B LR068111
BRACKET - SUPPORT
To: FH503731 		- 1 Enquire
<52166B LR073097
BRACKET - SUPPORT
From: FH503732 		- 1 Enquire
HB1 LR049472
BOLT
M12 X 1.25 X 240 		- 2 Enquire
HB2 RYG500440
BOLT
Hexagonal Head, M8 X 20MM 		- 2 Enquire
HC1 LR044894
CLIP
0.8 - 2.5 		- 1 Enquire
HN1 LR000053
NUT - FLANGED
Fixes Reinforcement, M6 		- 4 Enquire
HN1 LR000053
NUT - FLANGED
Attaches Moulding, M6 		- 2 Enquire
HN2 LR006214
NUT
4.2 X 2.25 - 3, Attaches Moulding 		- 17 Enquire
HN2 LR006214
NUT
4.2 X 2.25 - 3, Mounting Bracket 		- 10 Enquire
HP1 LR000070
PLUG - BLANKING
40 x 0.7 - 3.0 		- 2 Enquire
HP2 LR032351
PLUG - RUBBER
13 X 3.5, Rubber 		- 2 Enquire
HS1 LR025172
SCREW
M6 X 16MM 		- 4 Enquire
HS2 RYG501150
SCREW AND WASHER
M8 Hex, M8 X 16MM 		- 8 Enquire
HS3 LR030395
SCREW AND WASHER
M8 x 28MM 		- 2 Enquire
HS4 LR028425
SCREW
M6 X 1.4 X 17 		- 4 Enquire
HS5 LR006211
SCREW
4.2 x 16MM, Torx 		- 2 Enquire
18C835 LR096514
BRACKET - INSTRUMENT PANEL
HLDF Standard Screen 10.2" / 10 Inch Screen / From: HH000001 		- 1 Enquire
