Back Door/Tailgate Trim Panels (Halewood (Uk))

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI]

Find Your Part

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] - Back Door/Tailgate Trim Panels (Halewood (UK))

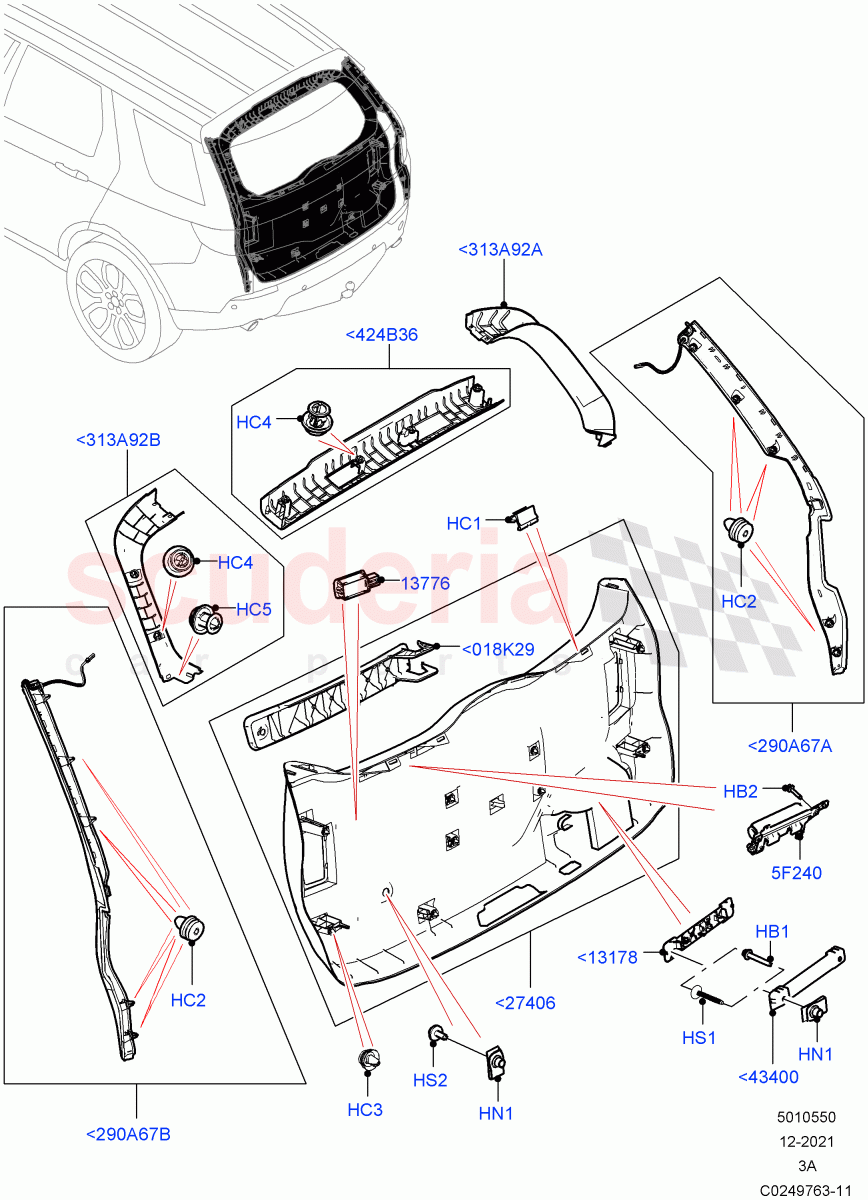

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR001080 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR140069 BOLT Enquire To Order
LR144171 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR001790 CLIP Enquire To Order
LR124681 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
LR013135 CLIP - TRIM Enquire To Order
Photo Part No Description Price (each) Stock
LR123788 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
LR146846 CLIP - LANTERN Enquire To Order
Photo Part No Description Price (each) Stock
LR109136 CLIP - LANTERN Enquire To Order
Photo Part No Description Price (each) Stock
LR000053 NUT - FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
LR061124 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
KYP500400 SCREW AND WASHER Enquire To Order
Photo Part No Description Price (each) Stock
LR034050 LAMP - INTERIOR Enquire To Order
Photo Part No Description Price (each) Stock
LR137725 DAMPER - DAMPING MASS Enquire To Order
LR139501 DAMPER - DAMPING MASS Enquire To Order
Photo Part No Description Price (each) Stock
LR061110 COVER - TAILGATE HANDLE Enquire To Order
LR033657 COVER - TAILGATE HANDLE Enquire To Order
LR075114 COVER - TAILGATE HANDLE Enquire To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR061119 PANEL - TAILGATE FINISH Enquire To Order
LR061120 PANEL - TAILGATE FINISH Enquire To Order
LR061121 PANEL - TAILGATE FINISH Enquire To Order
...and 9 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR061123 HANDLE - TAILGATE Enquire To Order
LR033638 HANDLE - TAILGATE Enquire To Order
LR075112 HANDLE - TAILGATE Enquire To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR127771 COVER WARNING TRIANGLE - TAILGATE Enquire To Order
Photo Part No Description Price (each) Stock
LR065254 PANEL - DOOR TRIM - UPPER Enquire To Order
LR065255 PANEL - DOOR TRIM - UPPER Enquire To Order
LR061118 PANEL - DOOR TRIM - UPPER Enquire To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR058521 MOULDING - TAILGATE Enquire To Order
LR075409 MOULDING - TAILGATE Enquire To Order
LR090575 MOULDING - TAILGATE Enquire To Order
Photo Part No Description Price (each) Stock
LR058522 MOULDING - TAILGATE Enquire To Order
LR075410 MOULDING - TAILGATE Enquire To Order
LR090574 MOULDING - TAILGATE Enquire To Order
Photo Part No Description Price (each) Stock
LR061114 COVER - HINGE Enquire To Order
LR065250 COVER - HINGE Enquire To Order
LR065251 COVER - HINGE Enquire To Order
...and 7 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR065252 COVER - HINGE Enquire To Order
LR065253 COVER - HINGE Enquire To Order
LR061116 COVER - HINGE Enquire To Order
...and 7 more part variants. See table on right for more details.
View All
Back Door/Tailgate Trim Panels (Halewood (UK)) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<018K29 LR127771
COVER WARNING TRIANGLE - TAILGATE
With Conventional Tailgate / From: LH000001 		- 1 Enquire
<290A67A LR058521
MOULDING - TAILGATE
Tailgate-Powered Upper / RH / To: FH518046 		- 1 Enquire
<290A67A LR075409
MOULDING - TAILGATE
Tailgate-Powered Upper / RH / From: FH518047 / To: HH689905 		- 1 Enquire
<290A67A LR090575
MOULDING - TAILGATE
Tailgate - Hands Free / RH / From: HH689906 		- 1 Enquire
<290A67B LR058522
MOULDING - TAILGATE
Tailgate-Powered Upper / LH / To: FH518046 		- 1 Enquire
<290A67B LR075410
MOULDING - TAILGATE
Tailgate-Powered Upper / LH / From: FH518047 / To: HH689905 		- 1 Enquire
<290A67B LR090574
MOULDING - TAILGATE
Tailgate - Hands Free / LH / From: HH689906 		- 1 Enquire
<313A92A LR061114
COVER - HINGE
Ebony Headliner / RH, Upper Tailgate / To: FH520234 		- 1 Enquire
<313A92A LR065250
COVER - HINGE
Cirrus Headliner / RH, Upper Tailgate / To: FH520234 		- 1 Enquire
<313A92A LR065251
COVER - HINGE
Ivory Headliner / RH, Upper Tailgate / To: FH520234 		- 1 Enquire
<313A92A LR076667
COVER - HINGE
Cirrus Headliner / RH, Upper Tailgate / From: FH520235 / To: KH999999 		- 1 Enquire
<313A92A LR076668
COVER - HINGE
Ivory Headliner / RH, Upper Tailgate / From: FH520235 / To: KH999999 		- 1 Enquire
<313A92A LR076669
COVER - HINGE
Ebony Headliner / RH, Upper Tailgate / From: FH520235 / To: KH999999 		- 1 Enquire
<313A92A LR127254
COVER - HINGE
Light Oyster Headliner / RH, Upper Tailgate / From: LH000001 / To: MH891499 		- 1 Enquire
<313A92A LR127257
COVER - HINGE
Ebony Headliner / RH, Upper Tailgate / From: LH000001 / To: MH891499 		- 1 Enquire
<313A92A LR146859
COVER - HINGE
Light Oyster Headliner / RH, Upper Tailgate / From: MH891500 		- 1 Enquire
<313A92A LR146860
COVER - HINGE
Ebony Headliner / RH, Upper Tailgate / From: MH891500 		- 1 Enquire
<313A92B LR065252
COVER - HINGE
Cirrus Headliner / LH, Upper Tailgate / To: FH520234 		- 1 Enquire
<313A92B LR065253
COVER - HINGE
Ivory Headliner / LH, Upper Tailgate / To: FH520234 		- 1 Enquire
<313A92B LR061116
COVER - HINGE
Ebony Headliner / LH, Upper Tailgate / To: FH520234 		- 1 Enquire
<313A92B LR076670
COVER - HINGE
Cirrus Headliner / LH, Upper Tailgate / From: FH520235 / To: KH999999 		- 1 Enquire
<313A92B LR076671
COVER - HINGE
Ivory Headliner / LH, Upper Tailgate / From: FH520235 / To: KH999999 		- 1 Enquire
<313A92B LR076673
COVER - HINGE
Ebony Headliner / LH, Upper Tailgate / From: FH520235 / To: KH999999 		- 1 Enquire
<313A92B LR127258
COVER - HINGE
Light Oyster Headliner / LH, Upper Tailgate / From: LH000001 / To: MH891499 		- 1 Enquire
<313A92B LR127259
COVER - HINGE
Ebony Headliner / LH, Upper Tailgate / From: LH000001 / To: MH891499 		- 1 Enquire
<313A92B LR146857
COVER - HINGE
Light Oyster Headliner / LH, Upper Tailgate / From: MH891500 		- 1 Enquire
<313A92B LR146858
COVER - HINGE
Ebony Headliner / LH, Upper Tailgate / From: MH891500 		- 1 Enquire
<424B36 LR065254
PANEL - DOOR TRIM - UPPER
Cirrus Headliner / Upper Tailgate / To: FH519932 		- 1 Enquire
<424B36 LR065255
PANEL - DOOR TRIM - UPPER
Ivory Headliner / Upper Tailgate / To: FH519932 		- 1 Enquire
<424B36 LR061118
PANEL - DOOR TRIM - UPPER
Ebony Headliner / Upper Tailgate / To: FH519932 		- 1 Enquire
<424B36 LR077095
PANEL - DOOR TRIM - UPPER
Cirrus Headliner / Upper Tailgate / From: FH519933 / To: KH999999 		- 1 Enquire
<424B36 LR077098
PANEL - DOOR TRIM - UPPER
Ivory Headliner / Upper Tailgate / From: FH519933 / To: KH999999 		- 1 Enquire
<424B36 LR077094
PANEL - DOOR TRIM - UPPER
Ebony Headliner / Upper Tailgate / From: FH519933 / To: KH999999 		- 1 Enquire
<424B36 LR127260
COVER - HINGE
Light Oyster Headliner / Upper Tailgate / From: LH000001 		- 1 Enquire
<424B36 LR127261
COVER - HINGE
Ebony Headliner / Upper Tailgate / From: LH000001 		- 1 Enquire
<13178 LR061110
COVER - TAILGATE HANDLE
I/P Facia Contrast - Cirrus/Lunar / Handle / To: FH517405 		- 1 Enquire
<13178 LR033657
COVER - TAILGATE HANDLE
I/P Facia Contrast - Ebony Black / Handle / To: FH517405 		- 1 Enquire
<13178 LR075114
COVER - TAILGATE HANDLE
I/P Facia Contrast - Cirrus/Lunar / Handle / From: FH517406 		- 1 Enquire
<13178 LR075113
COVER - TAILGATE HANDLE
I/P Facia Contrast - Ebony Black / Handle / From: FH517406 / To: KH999999 		- 1 Enquire
<13178 LR075113
COVER - TAILGATE HANDLE
Handle / From: LH000001 		- 1 Enquire
<27406 LR061119
PANEL - TAILGATE FINISH
I/P Facia Contrast - Lunar/Glacia, With Conventional Tailgate / To: FH532001 		- 1 Enquire
<27406 LR061120
PANEL - TAILGATE FINISH
I/P Facia Contrast - Ebony/Ivory, With Conventional Tailgate / To: FH532001 		- 1 Enquire
<27406 LR061121
PANEL - TAILGATE FINISH
I/P Facia Contrast - Cirrus/Lunar, Tailgate-Powered Upper / To: FH532001 		- 1 Enquire
<27406 LR061122
PANEL - TAILGATE FINISH
I/P Facia Contrast - Ebony Black, Tailgate-Powered Upper / To: FH532001 		- 1 Enquire
<27406 LR075424
PANEL - TAILGATE FINISH
I/P Facia Contrast - Lunar/Glacia, Tailgate-Powered Upper / From: FH532002 / To: KH999999 		- 1 Enquire
<27406 LR075425
PANEL - TAILGATE FINISH
I/P Facia Contrast - Ebony Black, Tailgate-Powered Upper / From: FH532002 / To: KH999999 		- 1 Enquire
<27406 LR077433
PANEL - TAILGATE FINISH
I/P Facia Contrast - Cirrus/Lunar, With Conventional Tailgate / From: FH532002 / To: KH999999 		- 1 Enquire
<27406 LR077432
PANEL - TAILGATE FINISH
I/P Facia Contrast - Ebony/Cirrus, With Conventional Tailgate / From: FH532002 / To: KH999999 		- 1 Enquire
<27406 LR127268
PANEL - TAILGATE FINISH
With Conventional Tailgate / From: LH000001 / To: MH896088 		- 1 Enquire
<27406 LR127269
PANEL - TAILGATE FINISH
Tailgate-Powered Upper / From: LH000001 / To: MH896088 		- 1 Enquire
<27406 LR159588
PANEL - TAILGATE FINISH
Tailgate-Powered Upper / From: MH896089 		- 1 Enquire
<27406 LR159587
PANEL - TAILGATE FINISH
With Conventional Tailgate / From: MH896089 		- 1 Enquire
<43400 LR061123
HANDLE - TAILGATE
I/P Facia Contrast - Cirrus/Lunar / To: FH517405 		- 1 Enquire
<43400 LR033638
HANDLE - TAILGATE
I/P Facia Contrast - Ebony Black / To: FH517405 		- 1 Enquire
<43400 LR075112
HANDLE - TAILGATE
I/P Facia Contrast - Cirrus/Lunar / From: FH517406 / To: KH999999 		- 1 Enquire
<43400 LR075109
HANDLE - TAILGATE
I/P Facia Contrast - Ebony Black / From: FH517406 / To: KH999999 		- 1 Enquire
<43400 LR075109
HANDLE - TAILGATE
From: LH000001 		- 1 Enquire
HB1 LR001080
BOLT
Hexagonal Head, M6 X 40MM / From: GH632957 		- 2 Enquire
HB2 LR140069
BOLT
Lower / From: LH867017 		- 2 Enquire
HB2 LR144171
SCREW
Upper / From: LH867017 		- 2 Enquire
HC1 LR001790
CLIP
Tailgate Panel / To: KH798238 		- 3 Enquire
HC1 LR124681
CLIP
Tailgate Panel / From: KH798239 		- 3 Enquire
HC2 LR013135
CLIP - TRIM
8.5 X 0.8 - 2.2 		- 5 Enquire
HC3 LR123788
CLIP
7.8 X 0.65+2.55 		- - Enquire
HC4 LR146846
CLIP - LANTERN
From: LH000001 		- - Enquire
HC5 LR109136
CLIP - LANTERN
8.5 x 0.7-1.6 + 2.5 Plastic / From: MH891500 		- 4 Enquire
HN1 LR000053
NUT - FLANGED
M6 		- 2 Enquire
HS1 LR061124
SCREW
5 X 37.5MM / To: GH632956 		- 2 Enquire
HS2 KYP500400
SCREW AND WASHER
Hexagonal Head, M6 X 16MM / From: LH000001 		- 1 Enquire
5F240 LR137725
DAMPER - DAMPING MASS
From: LH000001 / To: MH887603 		- 1 Enquire
5F240 LR139501
DAMPER - DAMPING MASS
From: MH887604 		- 1 Enquire
13776 LR034050
LAMP - INTERIOR
Ambient Lighting-High Line Interior / RH/LH / From: LH000001 		- 2 Enquire
