Load Compartment Trim (Floor) (Halewood (UK), Less 3rd Row Rear Seat, With 5 Seat Configuration) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] - Load Compartment Trim (Floor) (Halewood (UK), Less 3rd Row Rear Seat, With 5 Seat Configuration)

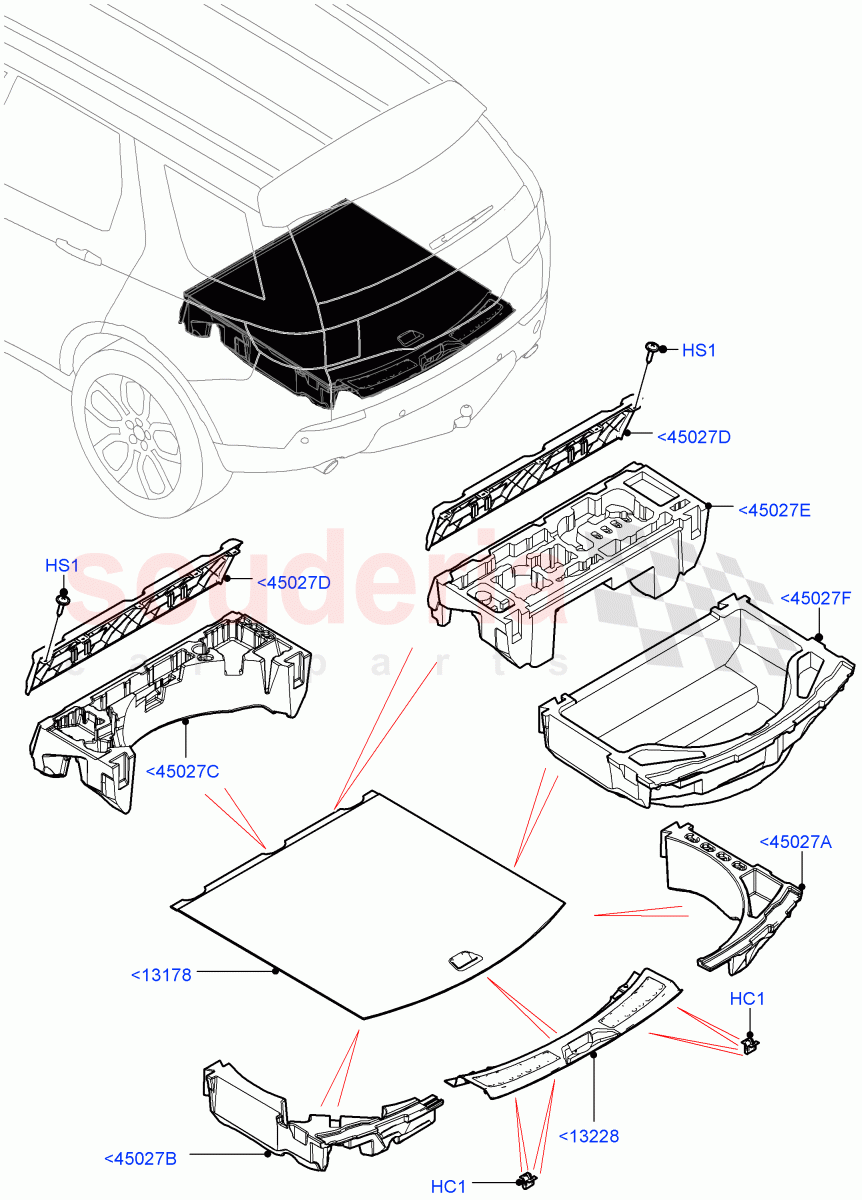

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR016993	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CYP100790	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR065265	COVER - SPARE WHEEL PANEL	Enquire	To Order
	LR065266	COVER - SPARE WHEEL PANEL	Enquire	To Order
	LR088599	COVER - SPARE WHEEL PANEL	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR060583	PANEL - SILL - INNER	Enquire	To Order
	LR060584	PANEL - SILL - INNER	Enquire	To Order
	LR060584	PANEL - SILL - INNER	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR060516	COVER - SPARE WHEEL PANEL	Enquire	To Order
	LR060516	COVER - SPARE WHEEL PANEL	Enquire	To Order
	LR138868	COVER - SPARE WHEEL PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060517	COVER - SPARE WHEEL PANEL	Enquire	To Order
	LR060517	COVER - SPARE WHEEL PANEL	Enquire	To Order
	LR138869	COVER - SPARE WHEEL PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060520	COVER - SPARE WHEEL PANEL	Enquire	To Order
	LR073459	COVER - SPARE WHEEL PANEL	Enquire	To Order
	LR060518	COVER - SPARE WHEEL PANEL	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR065825	COVER - SPARE WHEEL WELL PANEL	Enquire	To Order
	LR127292	COVER - SPARE WHEEL WELL PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR127306	COVER - SPARE WHEEL PANEL	Enquire	To Order
	LR127318	COVER - SPARE WHEEL PANEL	Enquire	To Order
	LR138853	COVER - SPARE WHEEL PANEL	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR127308	COVER - SPARE WHEEL PANEL	Enquire	To Order
	LR138867	COVER - SPARE WHEEL PANEL	Enquire	To Order
	LR148282	COVER - SPARE WHEEL PANEL	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<13178	LR065265	COVER - SPARE WHEEL PANEL	LR065265 COVER - SPARE WHEEL PANEL I/P Facia Contrast - Cirrus/Lunar / To: GH629559	-	1	Enquire
<13178	LR065266	COVER - SPARE WHEEL PANEL	LR065266 COVER - SPARE WHEEL PANEL I/P Facia Contrast - Ebony/Lunar / To: GH629559	-	1	Enquire
<13178	LR088599	COVER - SPARE WHEEL PANEL	LR088599 COVER - SPARE WHEEL PANEL I/P Facia Contrast - Cirrus/Lunar, With 60/40 Split - Folding Rr Seat / From: GH629560 / To: KH999999	-	1	Enquire
<13178	LR088602	COVER - SPARE WHEEL PANEL	LR088602 COVER - SPARE WHEEL PANEL I/P Facia Contrast - Ebony/Ivory, With 60/40 Split - Folding Rr Seat / From: GH629560 / To: KH999999	-	1	Enquire
<13178	LR065265	COVER - SPARE WHEEL PANEL	LR065265 COVER - SPARE WHEEL PANEL I/P Facia Contrast - Cirrus/Lunar, With 60/40 Manual Fold Thru Rr Seat / From: GH629560 / To: KH999999	-	1	Enquire
<13178	LR065266	COVER - SPARE WHEEL PANEL	LR065266 COVER - SPARE WHEEL PANEL I/P Facia Cntr-Ebony Black/Almond, With 60/40 Manual Fold Thru Rr Seat / From: GH629560 / To: KH999999	-	1	Enquire
<13178	LR065266	COVER - SPARE WHEEL PANEL	LR065266 COVER - SPARE WHEEL PANEL With 60/40 Manual Fold Thru Rr Seat / From: LH000001	-	1	Enquire
<13178	LR088602	COVER - SPARE WHEEL PANEL	LR088602 COVER - SPARE WHEEL PANEL With 60/40 Split - Folding Rr Seat / From: LH000001 / To: NH999999	-	1	Enquire
<13228	LR060583	PANEL - SILL - INNER	LR060583 PANEL - SILL - INNER I/P Facia Contrast - Cirrus/Lunar / To: KH999999	-	1	Enquire
<13228	LR060584	PANEL - SILL - INNER	LR060584 PANEL - SILL - INNER I/P Facia Cntr-Ebony Black/Almond / To: KH999999	-	1	Enquire
<13228	LR060584	PANEL - SILL - INNER	LR060584 PANEL - SILL - INNER Side Door Scuff Plates / From: LH000001	-	1	Enquire
<13228	VPLCS0582PVJ	PLATE - DOOR SCUFF	VPLCS0582PVJ PLATE - DOOR SCUFF Front Door Scuff Plates - R Dynamic / From: LH000001 / To: NH906275	-	1	Enquire
<13228	VPLCS0649PVJ	Plate - Door Scuff	VPLCS0649PVJ Plate - Door Scuff Front Scuff Plates - Illuminated / From: NH906276	-	1	Enquire
<45027A	LR060516	COVER - SPARE WHEEL PANEL	LR060516 COVER - SPARE WHEEL PANEL RH / To: KH999999	-	1	Enquire
<45027A	LR060516	COVER - SPARE WHEEL PANEL	LR060516 COVER - SPARE WHEEL PANEL 18" Full Size Spare Wheel, With 60/40 Manual Fold Thru Rr Seat / RH / From: LH000001 / To: LH858111	-	1	Enquire
<45027A	LR138868	COVER - SPARE WHEEL PANEL	LR138868 COVER - SPARE WHEEL PANEL 18" Full Size Spare Wheel, With 60/40 Split - Folding Rr Seat / RH / From: LH858112	-	1	Enquire
<45027B	LR060517	COVER - SPARE WHEEL PANEL	LR060517 COVER - SPARE WHEEL PANEL LH / To: KH999999	-	1	Enquire
<45027B	LR060517	COVER - SPARE WHEEL PANEL	LR060517 COVER - SPARE WHEEL PANEL 19" Full Size Spare Wheel, With 60/40 Manual Fold Thru Rr Seat / LH / From: LH000001 / To: LH858111	-	1	Enquire
<45027B	LR138869	COVER - SPARE WHEEL PANEL	LR138869 COVER - SPARE WHEEL PANEL 18" Full Size Spare Wheel, With 60/40 Split - Folding Rr Seat / LH / From: LH858112	-	1	Enquire
<45027C	LR060520	COVER - SPARE WHEEL PANEL	LR060520 COVER - SPARE WHEEL PANEL With 60/40 Split - Folding Rr Seat / To: FH510653	-	1	Enquire
<45027C	LR073459	COVER - SPARE WHEEL PANEL	LR073459 COVER - SPARE WHEEL PANEL With 60/40 Split - Folding Rr Seat / From: FH510654 / To: KH999999	-	1	Enquire
<45027C	LR060518	COVER - SPARE WHEEL PANEL	LR060518 COVER - SPARE WHEEL PANEL With 60/40 Manual Fold Thru Rr Seat / To: KH999999	-	1	Enquire
<45027C	LR060518	COVER - SPARE WHEEL PANEL	LR060518 COVER - SPARE WHEEL PANEL 19" Full Size Spare Wheel, With 60/40 Manual Fold Thru Rr Seat / From: LH000001	-	1	Enquire
<45027C	LR073459	COVER - SPARE WHEEL PANEL	LR073459 COVER - SPARE WHEEL PANEL 19" Full Size Spare Wheel, With 60/40 Split - Folding Rr Seat / From: LH000001 / To: LH858111	-	1	Enquire
<45027C	LR138865	COVER - SPARE WHEEL PANEL	LR138865 COVER - SPARE WHEEL PANEL Spare Wheel - Reduced Section Steel, With 60/40 Split - Folding Rr Seat / From: LH858112	-	1	Enquire
<45027D	LR065825	COVER - SPARE WHEEL WELL PANEL	LR065825 COVER - SPARE WHEEL WELL PANEL With 60/40 Manual Fold Thru Rr Seat / To: KH999999	-	1	Enquire
<45027D	LR127292	COVER - SPARE WHEEL WELL PANEL	LR127292 COVER - SPARE WHEEL WELL PANEL 20" Full Size Spare Wheel, With 60/40 Manual Fold Thru Rr Seat / From: LH000001	-	1	Enquire
<45027E	LR127306	COVER - SPARE WHEEL PANEL	LR127306 COVER - SPARE WHEEL PANEL Instant Mobility System - High, With 60/40 Manual Fold Thru Rr Seat / From: LH000001 / To: LH855240	-	1	Enquire
<45027E	LR127318	COVER - SPARE WHEEL PANEL	LR127318 COVER - SPARE WHEEL PANEL Instant Mobility System - High, With 60/40 Split - Folding Rr Seat / From: LH000001 / To: LH855240	-	1	Enquire
<45027E	LR138853	COVER - SPARE WHEEL PANEL	LR138853 COVER - SPARE WHEEL PANEL Instant Mobility System - High, With 60/40 Manual Fold Thru Rr Seat / From: LH855241	-	1	Enquire
<45027E	LR138854	COVER - SPARE WHEEL PANEL	LR138854 COVER - SPARE WHEEL PANEL Instant Mobility System - High, With 60/40 Split - Folding Rr Seat / From: LH855241	-	1	Enquire
<45027E	LR138864	COVER - SPARE WHEEL PANEL	LR138864 COVER - SPARE WHEEL PANEL 18" Full Size Spare Wheel, With 60/40 Manual Fold Thru Rr Seat / From: LH858828	-	1	Enquire
<45027F	LR127308	COVER - SPARE WHEEL PANEL	LR127308 COVER - SPARE WHEEL PANEL Instant Mobility System - High / From: LH000001 / To: LH854495	-	1	Enquire
<45027F	LR138867	COVER - SPARE WHEEL PANEL	LR138867 COVER - SPARE WHEEL PANEL Instant Mobility System - High / From: LH854496 / To: LH882772	-	1	Enquire
<45027F	LR148282	COVER - SPARE WHEEL PANEL	LR148282 COVER - SPARE WHEEL PANEL Instant Mobility System - High, With 60/40 Manual Fold Thru Rr Seat / From: LH882773	-	1	Enquire
HC1	LR016993	CLIP	LR016993 CLIP 6 x 22MM	-	7	Enquire
HS1	CYP100790	SCREW	CYP100790 SCREW 20" Full Size Spare Wheel, With 60/40 Manual Fold Thru Rr Seat / 4.8 X 25MM, Cross Recess Drive / From: LH000001	-	5	Enquire
