Rear Brake Pipes (4 Wheel Anti-Lock Braking System) ((V) From7A000001)

Land Rover Defender (2007-2016)

Find Your Part

Land Rover Defender (2007-2016) - Rear Brake Pipes (4 Wheel Anti-Lock Braking System) ((V) FROM7A000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
BMK2466 CONNECTOR $9.83 To Order
Photo Part No Description Price (each) Stock
SGB501660 CONNECTOR $15.24 To Order
SGB501680 CONNECTOR $16.88 To Order
SGB501960 PIPE - BRAKE $177.69 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
SGB501650 CONNECTOR $15.24 To Order
SGB501670 CONNECTOR $15.24 To Order
SGB502000 PIPE - BRAKE $171.93 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
79127 CLIP - BRAKE PIPE $0.62 To Order
NTC9531 CLIP $1.16 To Order
Photo Part No Description Price (each) Stock
EJP7813 CLIP - HOSE $2.36 IN STOCK
Photo Part No Description Price (each) Stock
SHU100340 BRACKET - BRAKE PIPE $8.89 To Order
Photo Part No Description Price (each) Stock
SYP500070 BOLT - FLANGED HEX. $1.38 To Order
Photo Part No Description Price (each) Stock
SHB101370 HOSE - BRAKE $79.84 To Order
SHB101430 HOSE - BRAKE $79.84 To Order
Photo Part No Description Price (each) Stock
SGL100010 T-CONNECTOR $29.43 To Order
Photo Part No Description Price (each) Stock
SGI100040 BRACKET - BRAKE PIPE $4.04 To Order
Photo Part No Description Price (each) Stock
SN106127L BOLT $0.62 To Order
Photo Part No Description Price (each) Stock
SGB501770 TUBE - BRAKE $150.69 To Order
Photo Part No Description Price (each) Stock
SGB501780 TUBE - BRAKE $158.51 To Order
Photo Part No Description Price (each) Stock
NTC8242 CLIP - BRAKE PIPE $1.61 To Order
Photo Part No Description Price (each) Stock
577873 CLIP $23.69 To Order
Photo Part No Description Price (each) Stock
WC702101L WASHER $0.59 To Order
Photo Part No Description Price (each) Stock
SL510032 SCREW $1.30 To Order
Photo Part No Description Price (each) Stock
AAU7803 CLIP - BRAKE PIPE $3.77 To Order
View All

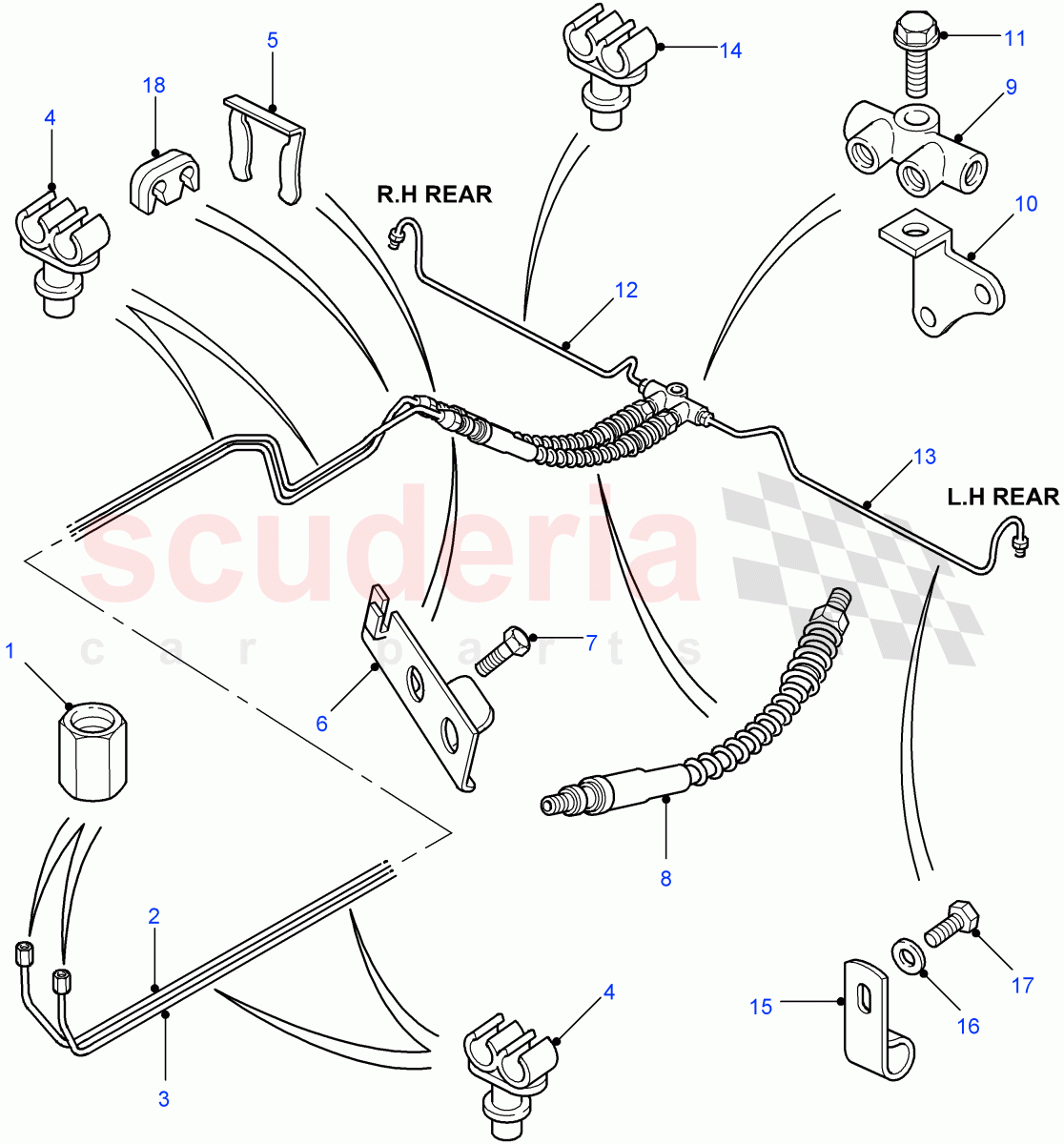

Rear Brake Pipes (4 Wheel Anti-Lock Braking System) ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 BMK2466
CONNECTOR 		$9.83 -
2 SGB501660
CONNECTOR
90" Wheelbase / RH, connector to rear jump hose / To: 7A753328 		$15.24 1
2 SGB501680
CONNECTOR
110" Wheelbase / RH, connector to rear jump hose / To: 7A753328 		$16.88 1
2 SGB501960
PIPE - BRAKE
90" Wheelbase / RH, connector to rear jump hose / From: 7A753329 		$177.69 1
2 SGB501970
PIPE - BRAKE
110" Wheelbase / RH, connector to rear jump hose / From: 7A753329 		$219.35 1
2 LR060122
PIPE - BRAKE
130" Wheelbase, With Engine Traction Control Brake / RH, connector to rear jump hose / From: FA000001 		$294.12 1
3 SGB501650
CONNECTOR
90" Wheelbase / LH, connector to rear jump hose / To: 7A753328 		$15.24 1
3 SGB501670
CONNECTOR
110" Wheelbase / LH, connector to rear jump hose / To: 7A753328 		$15.24 1
3 SGB502000
PIPE - BRAKE
90" Wheelbase / LH, connector to rear jump hose / From: 7A753329 		$171.93 1
3 SGB502010
PIPE - BRAKE
110" Wheelbase / LH, connector to rear jump hose / From: 7A753329 		$190.81 1
3 LR060123
PIPE - BRAKE
130" Wheelbase, With Engine Traction Control Brake / LH, connector to rear jump hose / From: FA000001 / To: FA461724 		$69.22 1
3 LR070782
PIPE - BRAKE
130" Wheelbase, With Engine Traction Control Brake / LH, connector to rear jump hose / From: FA461725 		$72.72 1
4 79127
CLIP - BRAKE PIPE
White 		$0.62 -
4 NTC9531
CLIP
Black 		$1.16 -
5 EJP7813
CLIP - HOSE
IN STOCK 		$2.36 2
6 SHU100340
BRACKET - BRAKE PIPE 		$8.89 1
7 SYP500070
BOLT - FLANGED HEX.
M6 x 30, Self Tapping 		$1.38 1
8 SHB101370
HOSE - BRAKE
Male Both Ends, Rear 		$79.84 1
8 SHB101430
HOSE - BRAKE
Rear 		$79.84 1
9 SGL100010
T-CONNECTOR
Rear 		$29.43 1
10 SGI100040
BRACKET - BRAKE PIPE
110" And 130" Wheelbase / T piece to axle 		$4.04 1
11 SN106127L
BOLT
M6 X 12MM 		$0.62 1
12 SGB501770
TUBE - BRAKE
RH, Rear 		$150.69 1
13 SGB501780
TUBE - BRAKE
LH, Rear 		$158.51 1
14 NTC8242
CLIP - BRAKE PIPE
90" Wheelbase 		$1.61 3
15 577873
CLIP
110" And 130" Wheelbase 		$23.69 3
16 WC702101L
WASHER
110" And 130" Wheelbase 		$0.59 3
17 SL510032
SCREW
110" And 130" Wheelbase 		$1.30 3
18 AAU7803
CLIP - BRAKE PIPE
Double 		$3.77 2
