Land Rover Defender (2007-2016) - Front Brake Pipes (RHD, 4 Wheel Anti-Lock Braking System) ((V) FROM7A000001, (V) TOAA999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
SGB501800 TUBE - BRAKE Enquire To Order
Photo Part No Description Price (each) Stock
SGB501790 TUBE Enquire To Order
Photo Part No Description Price (each) Stock
SHB500230 HOSE - BRAKE Enquire To Order
Photo Part No Description Price (each) Stock
WF110001L WASHER - LOCKING Enquire To Order
Photo Part No Description Price (each) Stock
CRC1487 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
NTC9543L CLIP - BRAKE PIPE Enquire To Order
Photo Part No Description Price (each) Stock
SGI100020 BRACKET - BRAKE PIPE Enquire To Order
Photo Part No Description Price (each) Stock
SGK100980 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
SGK100970 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
SGI100010 BRACKET - BRAKE PIPE Enquire To Order
Photo Part No Description Price (each) Stock
NTC9531 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
SGB501540 TUBE - BRAKE Enquire To Order
Photo Part No Description Price (each) Stock
SGB501550 TUBE - BRAKE Enquire To Order
Photo Part No Description Price (each) Stock
SGB111890 PIPE - BRAKE Enquire To Order
SGB501480 PIPE - BRAKE Enquire To Order
Photo Part No Description Price (each) Stock
SGB111900 PIPE - BRAKE Enquire To Order
SGB501460 PIPE - BRAKE Enquire To Order
Photo Part No Description Price (each) Stock
SGB501880 PIPE - BRAKE Enquire To Order
Photo Part No Description Price (each) Stock
SGB501890 PIPE - BRAKE Enquire To Order
Photo Part No Description Price (each) Stock
KYC500020 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
SGK100990 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
SYC500090 CLIP Enquire To Order
View All

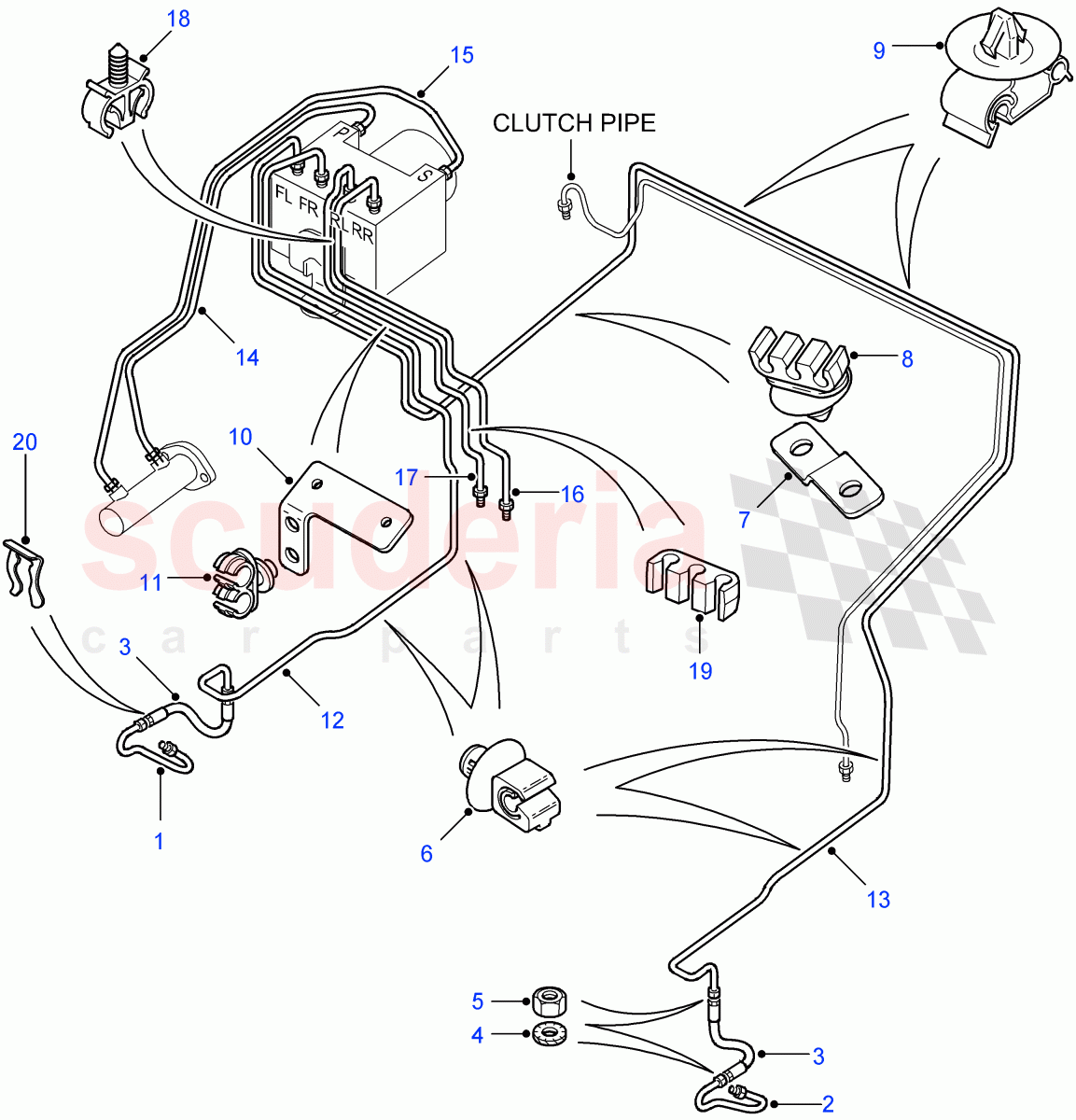

Front Brake Pipes (RHD, 4 Wheel Anti-Lock Braking System) ((V) FROM7A000001, (V) TOAA999999) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 SGB501800
TUBE - BRAKE
RH, jump hose to caliper 		- 1 Enquire
2 SGB501790
TUBE
LH, jump hose to caliper 		- 1 Enquire
3 SHB500230
HOSE - BRAKE 		- 2 Enquire
4 WF110001L
WASHER - LOCKING
10mm ID 		- 4 Enquire
5 CRC1487
NUT - HEX. 		- 4 Enquire
6 NTC9543L
CLIP - BRAKE PIPE 		- 4 Enquire
7 SGI100020
BRACKET - BRAKE PIPE 		- 1 Enquire
8 SGK100980
CLIP 		- 1 Enquire
9 SGK100970
CLIP 		- 2 Enquire
10 SGI100010
BRACKET - BRAKE PIPE 		- 1 Enquire
11 NTC9531
CLIP
2 Holes 		- 2 Enquire
12 SGB501540
TUBE - BRAKE
modulator to front hose 		- 1 Enquire
13 SGB501550
TUBE - BRAKE
modulator to front hose 		- 1 Enquire
14 SGB111890
PIPE - BRAKE
PRIMARY, valve to modulator / To: 7A735841 		- 1 Enquire
14 SGB501480
PIPE - BRAKE
PRIMARY, valve to modulator / From: 7A735842 		- 1 Enquire
15 SGB111900
PIPE - BRAKE
SECONDARY, valve to modulator / To: 7A735841 		- 1 Enquire
15 SGB501460
PIPE - BRAKE
SECONDARY, valve to modulator / From: 7A735842 		- 1 Enquire
16 SGB501880
PIPE - BRAKE
modulator to rear connector 		- 1 Enquire
17 SGB501890
PIPE - BRAKE
modulator to rear connector 		- 1 Enquire
18 KYC500020
CLIP 		- 1 Enquire
19 SGK100990
CLIP 		- 4 Enquire
20 SYC500090
CLIP 		- 2 Enquire
