Front Brake Discs And Calipers ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016)

View All

Land Rover Defender (2007-2016) - Front Brake Discs And Calipers ((V) FROM7A000001)

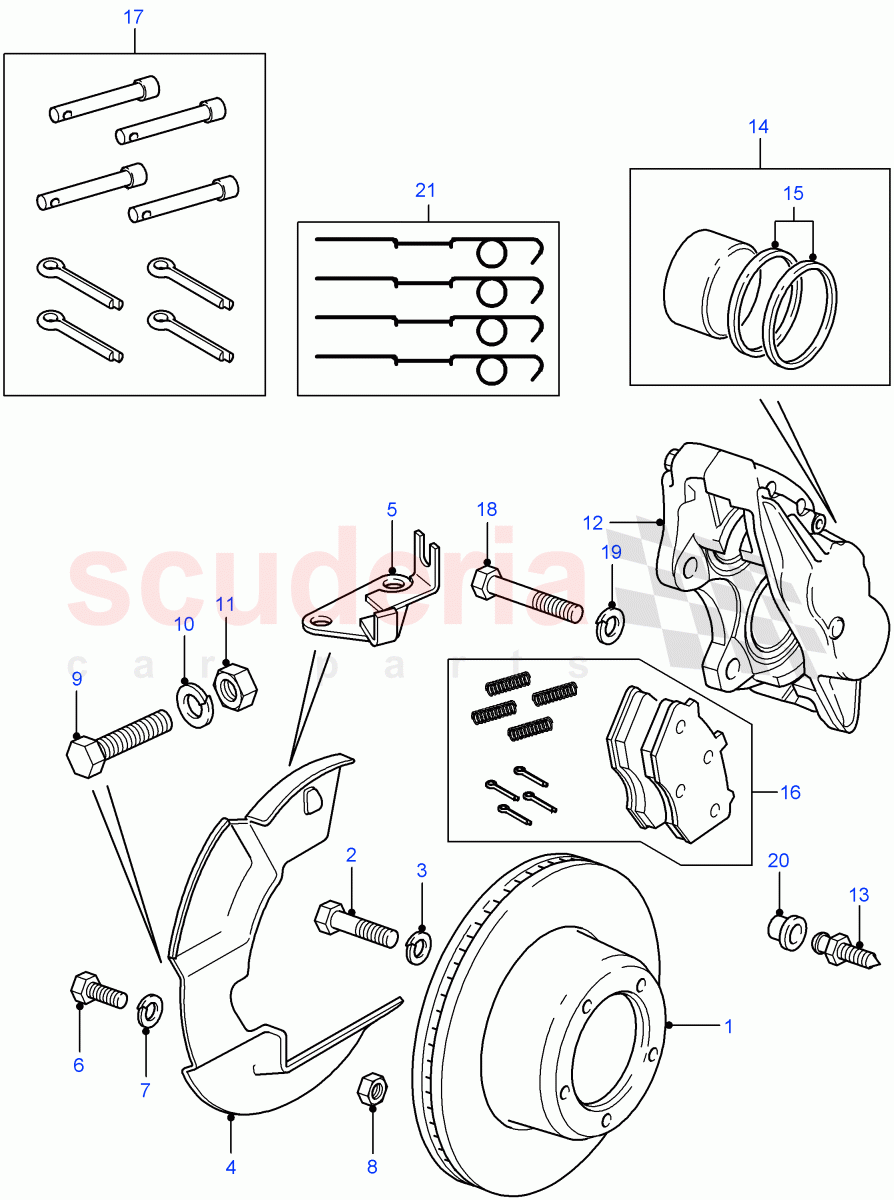

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FRC7329	DISC - BRAKE	Enquire	To Order
	FTC902	DISC - BRAKE	Enquire	To Order
	LR017951	DISC - BRAKE - SOLID	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR082331	BOLT	Enquire	To Order
	LR082331	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WL110001L	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FTC4838	SHIELD - BRAKE DISC SPLASH	Enquire	To Order
	FTC4839	SHIELD - BRAKE DISC SPLASH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SHU000040	BRACKET	Enquire	To Order
	SHU000050	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SH106121L	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WL106002	RESTRICTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	NH106045	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SH112505	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WL106002	RESTRICTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	NT112041L	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SEB500450	CALIPER - BRAKE - LESS PADS	Enquire	To Order
	SEB500440	CALIPER - BRAKE - LESS PADS	Enquire	To Order
	SEB500460	CALIPER - BRAKE - LESS PADS	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	SMG000010	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	STC1280	KIT - CALIPER REPAIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AEU2539	KIT - CALIPER SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SFP000260	PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RTC5001	KIT - CALIPER BRAKE PAD MTG PARTS	Enquire	To Order
	STC8575	KIT - CALIPER BRAKE PAD MTG PARTS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SYP500090	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WL112001L	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	594091	CAP - PROTECTIVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR009769	KIT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	FRC7329	DISC - BRAKE	FRC7329 DISC - BRAKE With Non-Ventilated Disc Brakes / To: 9A777776	-	2	Enquire
1	FTC902	DISC - BRAKE	FTC902 DISC - BRAKE With Ventilated Disc Brakes / To: 9A777776	-	2	Enquire
1	LR017951	DISC - BRAKE - SOLID	LR017951 DISC - BRAKE - SOLID With Non-Ventilated Disc Brakes / From: 9A777777	-	2	Enquire
1	LR017952	DISC - BRAKE - VENTED	LR017952 DISC - BRAKE - VENTED With Ventilated Disc Brakes / From: 9A777777	-	2	Enquire
2	LR082331	BOLT	LR082331 BOLT M10 / To: GA481815	-	10	Enquire
2	LR082331	BOLT	LR082331 BOLT M10 / From: GA481816	-	10	Enquire
3	WL110001L	WASHER	WL110001L WASHER M10	-	10	Enquire
4	FTC4838	SHIELD - BRAKE DISC SPLASH	FTC4838 SHIELD - BRAKE DISC SPLASH RH	-	1	Enquire
4	FTC4839	SHIELD - BRAKE DISC SPLASH	FTC4839 SHIELD - BRAKE DISC SPLASH LH	-	1	Enquire
5	SHU000040	BRACKET	SHU000040 BRACKET RH	-	1	Enquire
5	SHU000050	BRACKET	SHU000050 BRACKET LH	-	1	Enquire
6	SH106121L	SCREW	SH106121L SCREW Hexagonal Head, M6 X 12MM, shield disc to disc solid	-	2	Enquire
7	WL106002	RESTRICTOR	WL106002 RESTRICTOR M6, sprung	-	2	Enquire
8	NH106045	NUT - HEX.	NH106045 NUT - HEX. Hexagonal Head, M6, nyloc	-	2	Enquire
9	SH112505	SCREW	SH112505 SCREW Hexagonal Head, M12 x 50, Shouldered, To shield disc	-	2	Enquire
10	WL106002	RESTRICTOR	WL106002 RESTRICTOR M6, sprung	-	2	Enquire
11	NT112041L	NUT - HEX.	NT112041L NUT - HEX. M12	-	2	Enquire
12	SEB500450	CALIPER - BRAKE - LESS PADS	SEB500450 CALIPER - BRAKE - LESS PADS With Non-Ventilated Disc Brakes / LH, Less Pads, New	-	1	Enquire
12	SEB500440	CALIPER - BRAKE - LESS PADS	SEB500440 CALIPER - BRAKE - LESS PADS With Non-Ventilated Disc Brakes / RH, Less Pads, New	-	1	Enquire
12	SEB500460	CALIPER - BRAKE - LESS PADS	SEB500460 CALIPER - BRAKE - LESS PADS With Ventilated Disc Brakes / RH, Less Pads, New / To: EA999999	-	1	Enquire
12	SEB500470	CALIPER - BRAKE - LESS PADS	SEB500470 CALIPER - BRAKE - LESS PADS With Ventilated Disc Brakes / LH, Less Pads, New / To: EA999999	-	1	Enquire
12	LR061253	CALIPER - BRAKE - LESS PADS	LR061253 CALIPER - BRAKE - LESS PADS With Ventilated Disc Brakes / RH, Less Pads / From: FA000001	-	1	Enquire
12	LR061254	CALIPER - BRAKE - LESS PADS	LR061254 CALIPER - BRAKE - LESS PADS With Ventilated Disc Brakes / LH, Less Pads / From: FA000001	-	1	Enquire
13	SMG000010	SCREW	SMG000010 SCREW	-	2	Enquire
14	STC1280	KIT - CALIPER REPAIR	STC1280 KIT - CALIPER REPAIR Contains 4 Pistons	-	1	Enquire
15	AEU2539	KIT - CALIPER SEAL	AEU2539 KIT - CALIPER SEAL	-	1	Enquire
16	SFP000260	PAD	SFP000260 PAD	-	1	Enquire
17	RTC5001	KIT - CALIPER BRAKE PAD MTG PARTS	RTC5001 KIT - CALIPER BRAKE PAD MTG PARTS With Non-Ventilated Disc Brakes / Solid	-	1	Enquire
17	STC8575	KIT - CALIPER BRAKE PAD MTG PARTS	STC8575 KIT - CALIPER BRAKE PAD MTG PARTS With Ventilated Disc Brakes / Asbestos Free	-	1	Enquire
18	SYP500090	BOLT	SYP500090 BOLT Caliper assy to set pad, M12 x 35	-	4	Enquire
19	WL112001L	WASHER	WL112001L WASHER	-	4	Enquire
20	594091	CAP - PROTECTIVE	594091 CAP - PROTECTIVE	-	2	Enquire
21	LR009769	KIT	LR009769 KIT caliper repair	-	1	Enquire
