Front Brake Pipes (Less Brake Limiting Valve, Less Anti-Lock Braking System) ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016)

View All

Land Rover Defender (2007-2016) - Front Brake Pipes (Less Brake Limiting Valve, Less Anti-Lock Braking System) ((V) FROM7A000001)

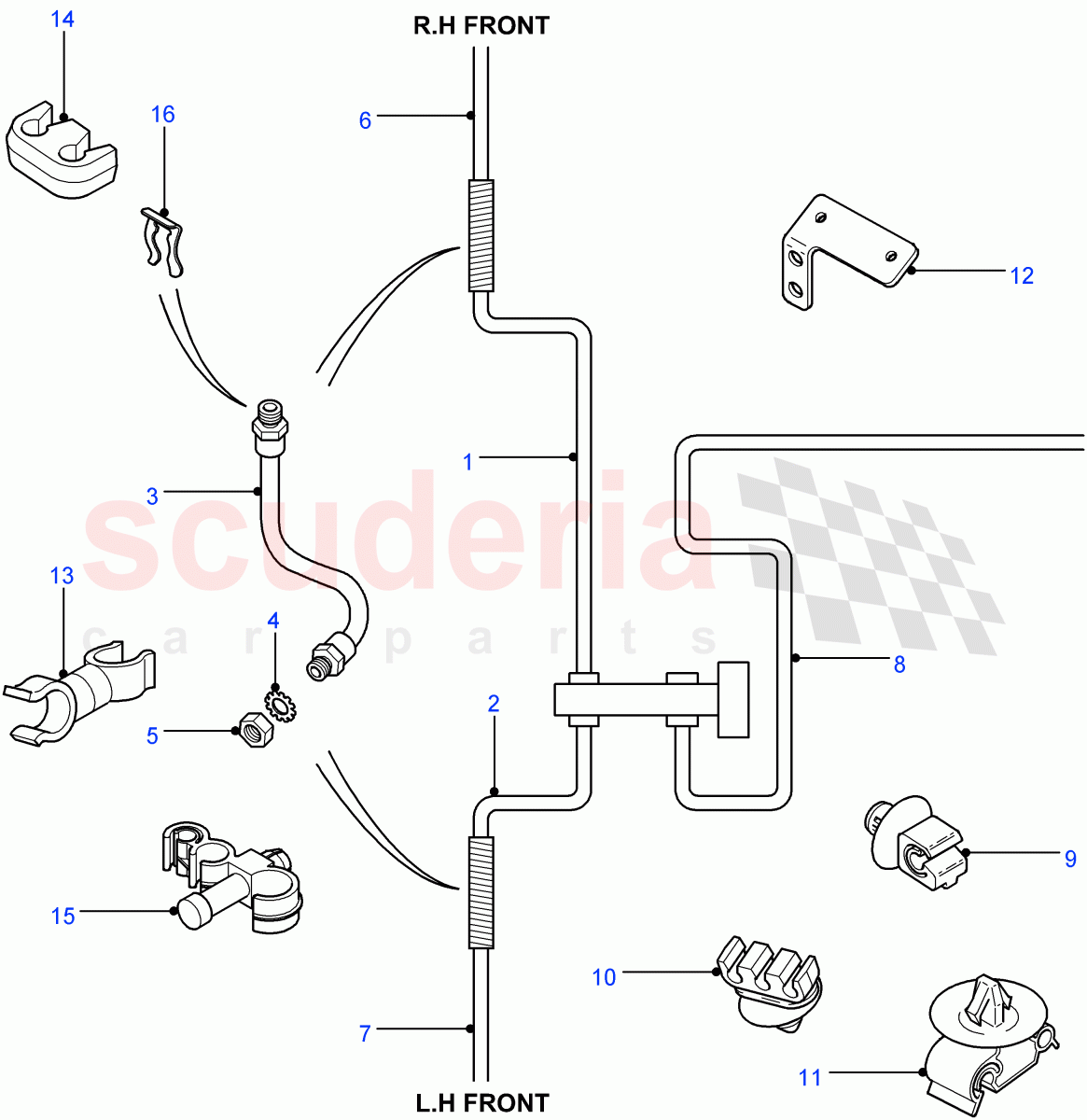

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	SGB501560	TUBE - BRAKE	Enquire	To Order
	SGB501570	TUBE - BRAKE	Enquire	To Order
	LR029631	TUBE - BRAKE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SGB501920	TUBE - BRAKE	Enquire	To Order
	SGB501810	TUBE	Enquire	To Order
	LR029630	TUBE - BRAKE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SHB500230	HOSE - BRAKE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WF110001L	WASHER - LOCKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CRC1487	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SGB501800	TUBE - BRAKE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SGB501790	TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SGB501900	PIPE - BRAKE	Enquire	To Order
	SGB501690	PIPE - BRAKE	Enquire	To Order
	LR029628	PIPE - BRAKE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	NTC9543L	CLIP - BRAKE PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SGK100980	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SGK100970	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SGI100020	BRACKET - BRAKE PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DCP3969L	CLIP - BRAKE PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AAU7803	CLIP - BRAKE PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SGK100890	CLIP - BRAKE PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SYC500090	CLIP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	SGB501560	TUBE - BRAKE	SGB501560 TUBE - BRAKE LHD / RH, master cylinder to jump hose / To: BA999999	-	1	Enquire
1	SGB501570	TUBE - BRAKE	SGB501570 TUBE - BRAKE RHD / RH, master cylinder to jump hose	-	1	Enquire
1	LR029631	TUBE - BRAKE	LR029631 TUBE - BRAKE LHD / RH, master cylinder to jump hose / From: CA000001	-	1	Enquire
2	SGB501920	TUBE - BRAKE	SGB501920 TUBE - BRAKE RHD / LH, master cylinder to jump hose / To: BA999999	-	1	Enquire
2	SGB501810	TUBE	SGB501810 TUBE LHD / LH, master cylinder to jump hose	-	1	Enquire
2	LR029630	TUBE - BRAKE	LR029630 TUBE - BRAKE RHD / LH, master cylinder to jump hose / From: CA000001	-	1	Enquire
3	SHB500230	HOSE - BRAKE	SHB500230 HOSE - BRAKE	-	2	Enquire
4	WF110001L	WASHER - LOCKING	WF110001L WASHER - LOCKING 10mm ID	-	4	Enquire
5	CRC1487	NUT - HEX.	CRC1487 NUT - HEX.	-	4	Enquire
6	SGB501800	TUBE - BRAKE	SGB501800 TUBE - BRAKE RH, jump hose to caliper	-	1	Enquire
7	SGB501790	TUBE	SGB501790 TUBE LH, jump hose to caliper	-	1	Enquire
8	SGB501900	PIPE - BRAKE	SGB501900 PIPE - BRAKE RHD / Master Cylinder To Rear Connector / To: BA999999	-	1	Enquire
8	SGB501690	PIPE - BRAKE	SGB501690 PIPE - BRAKE LHD / Master Cylinder To Rear Connector / To: BA999999	-	1	Enquire
8	LR029628	PIPE - BRAKE	LR029628 PIPE - BRAKE RHD / Master Cylinder To Rear Connector / From: CA000001	-	1	Enquire
8	LR029629	PIPE - BRAKE	LR029629 PIPE - BRAKE LHD / Master Cylinder To Rear Connector / From: CA000001	-	1	Enquire
9	NTC9543L	CLIP - BRAKE PIPE	NTC9543L CLIP - BRAKE PIPE	-	4	Enquire
10	SGK100980	CLIP	SGK100980 CLIP LHD	-	1	Enquire
11	SGK100970	CLIP	SGK100970 CLIP RHD	-	2	Enquire
12	SGI100020	BRACKET - BRAKE PIPE	SGI100020 BRACKET - BRAKE PIPE	-	1	Enquire
13	DCP3969L	CLIP - BRAKE PIPE	DCP3969L CLIP - BRAKE PIPE LHD / 4.7 x 4.7mm	-	1	Enquire
14	AAU7803	CLIP - BRAKE PIPE	AAU7803 CLIP - BRAKE PIPE LHD	-	3	Enquire
15	SGK100890	CLIP - BRAKE PIPE	SGK100890 CLIP - BRAKE PIPE 130" Wheelbase	-	1	Enquire
16	SYC500090	CLIP	SYC500090 CLIP	-	2	Enquire
