Name: Front Brake Pipes (LHD, 4 Wheel Anti-Lock Braking System) ((V) FROMBA000001)
Rating: 4.6 (1 reviews)

Front Brake Pipes (LHD, 4 Wheel Anti-Lock Braking System) ((V) FROMBA000001) of Land Rover Land Rover Defender (2007-2016)

View All

Land Rover Defender (2007-2016) - Front Brake Pipes (LHD, 4 Wheel Anti-Lock Braking System) ((V) FROMBA000001)

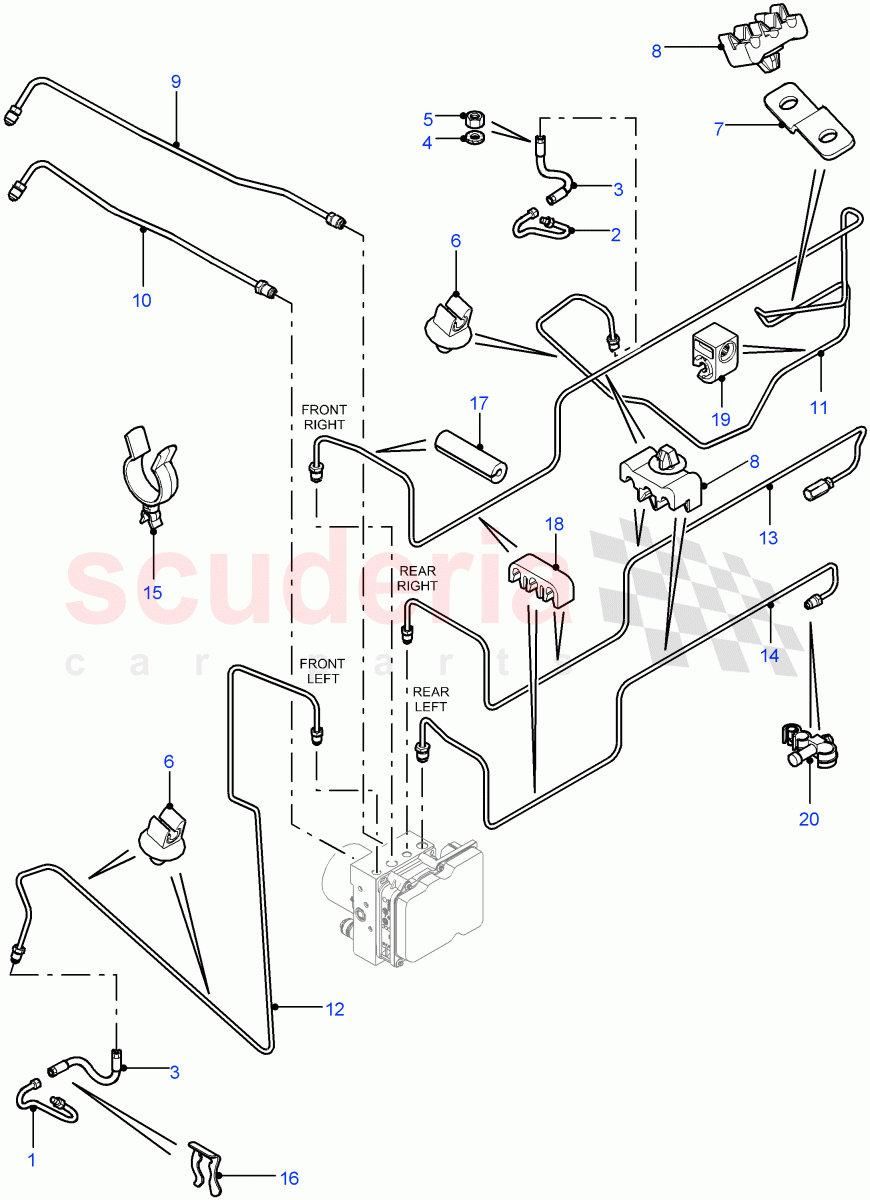

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	SGB501800	TUBE - BRAKE	$67.02	To Order

Photo	Part No	Description	Price (each)	Stock
	SGB501790	TUBE	$67.02	To Order

Photo	Part No	Description	Price (each)	Stock
	SHB500230	HOSE - BRAKE	$38.45	To Order

Photo	Part No	Description	Price (each)	Stock
	WF110001L	WASHER - LOCKING	$1.07	To Order

Photo	Part No	Description	Price (each)	Stock
	CRC1487	NUT - HEX.	$5.19	To Order

Photo	Part No	Description	Price (each)	Stock
	NTC9543L	CLIP - BRAKE PIPE	$3.61	To Order

Photo	Part No	Description	Price (each)	Stock
	SGI100020	BRACKET - BRAKE PIPE	$5.62	To Order

Photo	Part No	Description	Price (each)	Stock
	SGK100980	CLIP	$3.85	To Order

Photo	Part No	Description	Price (each)	Stock
	LR021887	PIPE - BRAKE	$15.48	To Order
	LR055944	PIPE - BRAKE	$34.37	To Order

Photo	Part No	Description	Price (each)	Stock
	LR021888	PIPE - BRAKE	$140.40	To Order
	LR055945	PIPE - BRAKE	$34.37	To Order
	LR070781	PIPE - BRAKE	$191.08	To Order

Photo	Part No	Description	Price (each)	Stock
	LR021880	TUBE - BRAKE	$224.91	To Order

Photo	Part No	Description	Price (each)	Stock
	LR021878	PIPE - BRAKE	$197.28	To Order

Photo	Part No	Description	Price (each)	Stock
	LR021882	PIPE - BRAKE	$190.47	To Order

Photo	Part No	Description	Price (each)	Stock
	LR021881	PIPE - BRAKE	$147.26	To Order

Photo	Part No	Description	Price (each)	Stock
	JYC10010	CLIP - BRAKE PIPE	$8.17	To Order

Photo	Part No	Description	Price (each)	Stock
	EJP7813	CLIP - HOSE	$2.36	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR024766	CLIP	$4.70	To Order
	LR033975	CLIP	$2.50	To Order

Photo	Part No	Description	Price (each)	Stock
	ADU8846L	CLIP - BRAKE PIPE	$1.59	To Order

Photo	Part No	Description	Price (each)	Stock
	SGK100570	CLIP	$3.85	To Order

Photo	Part No	Description	Price (each)	Stock
	LR055955	CLIP - BRAKE PIPE	$5.40	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	SGB501800	TUBE - BRAKE	SGB501800 TUBE - BRAKE RH, jump hose to caliper	$67.02	1
2	SGB501790	TUBE	SGB501790 TUBE LH, jump hose to caliper	$67.02	1
3	SHB500230	HOSE - BRAKE	SHB500230 HOSE - BRAKE Front	$38.45	2
4	WF110001L	WASHER - LOCKING	WF110001L WASHER - LOCKING 10mm ID	$1.07	4
5	CRC1487	NUT - HEX.	CRC1487 NUT - HEX.	$5.19	4
6	NTC9543L	CLIP - BRAKE PIPE	NTC9543L CLIP - BRAKE PIPE	$3.61	3
7	SGI100020	BRACKET - BRAKE PIPE	SGI100020 BRACKET - BRAKE PIPE	$5.62	1
8	SGK100980	CLIP	SGK100980 CLIP	$3.85	3
9	LR021887	PIPE - BRAKE	LR021887 PIPE - BRAKE Modulator To Brake Master Cylinder, PRIMARY / To: EA999999	$15.48	1
9	LR055944	PIPE - BRAKE	LR055944 PIPE - BRAKE Modulator To Brake Master Cylinder, PRIMARY / From: FA000001	$34.37	1
10	LR021888	PIPE - BRAKE	LR021888 PIPE - BRAKE Modulator To Brake Master Cylinder, SECONDARY / To: EA999999	$140.40	1
10	LR055945	PIPE - BRAKE	LR055945 PIPE - BRAKE Modulator To Brake Master Cylinder, SECONDARY / From: FA000001 / To: FA461724	$34.37	1
10	LR070781	PIPE - BRAKE	LR070781 PIPE - BRAKE Modulator To Brake Master Cylinder, SECONDARY / From: FA461725	$191.08	1
11	LR021880	TUBE - BRAKE	LR021880 TUBE - BRAKE Less Brake Limiting Valve / RH, Modulator To Brake Hose	$224.91	1
12	LR021878	PIPE - BRAKE	LR021878 PIPE - BRAKE Less Brake Limiting Valve / LH, Modulator To Brake Hose	$197.28	1
13	LR021882	PIPE - BRAKE	LR021882 PIPE - BRAKE Less Brake Limiting Valve / RH, Modulator To Rear Brake Pipe	$190.47	1
14	LR021881	PIPE - BRAKE	LR021881 PIPE - BRAKE Less Brake Limiting Valve / LH, Modulator To Rear Brake Pipe	$147.26	1
15	JYC10010	CLIP - BRAKE PIPE	JYC10010 CLIP - BRAKE PIPE Swivel Dual Type	$8.17	1
16	EJP7813	CLIP - HOSE IN STOCK	EJP7813 CLIP - HOSE IN STOCK	$2.36	2
17	LR024766	CLIP	LR024766 CLIP To: BA999999	$4.70	2
17	LR033975	CLIP	LR033975 CLIP From: CA000001	$2.50	2
18	ADU8846L	CLIP - BRAKE PIPE	ADU8846L CLIP - BRAKE PIPE	$1.59	2
19	SGK100570	CLIP	SGK100570 CLIP	$3.85	1
20	LR055955	CLIP - BRAKE PIPE	LR055955 CLIP - BRAKE PIPE 130" Wheelbase, With Engine Traction Control Brake / From: FA000001	$5.40	1
