Master Cylinder & Servo (4 Wheel Anti-Lock Braking System) ((V) From7A000001)

Land Rover Defender (2007-2016)

Find Your Part

Land Rover Defender (2007-2016) - Master Cylinder & Servo (4 Wheel Anti-Lock Braking System) ((V) FROM7A000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
SJC100421 MASTER CYLINDER $616.06 To Order
LR013017 CYLINDER - MASTER $509.38 To Order
Photo Part No Description Price (each) Stock
SJJ100351 KIT - BRAKE FLUID RESERVOIR $88.48 To Order
Photo Part No Description Price (each) Stock
SJL100200 FILLER CAP AND WARNING INDICATOR $30.78 To Order
Photo Part No Description Price (each) Stock
SJG100240 BOOSTER - BRAKE $599.06 To Order
Photo Part No Description Price (each) Stock
FY108046 NUT M8 FLANGED HEX HEAD $1.13 IN STOCK
Photo Part No Description Price (each) Stock
SQQ100000 GROMMET $23.11 To Order
Photo Part No Description Price (each) Stock
SQB500250 HOSE - VACUUM $22.77 To Order
SQB500310 HOSE - VACUUM $29.82 To Order
LR016775 HOSE - VACUUM $23.35 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
DYC101410L CLIP - HOSE $1.12 To Order
Photo Part No Description Price (each) Stock
568680 STRAP - CABLE $2.26 To Order
Photo Part No Description Price (each) Stock
WA108056 WASHER $0.88 IN STOCK
Photo Part No Description Price (each) Stock
SQV500130 CLIP - BRAKE PIPE $1.09 To Order
Photo Part No Description Price (each) Stock
SIH100010 ADAPTOR $247.47 To Order
Photo Part No Description Price (each) Stock
YBH10005 CLIP $7.05 To Order
View All

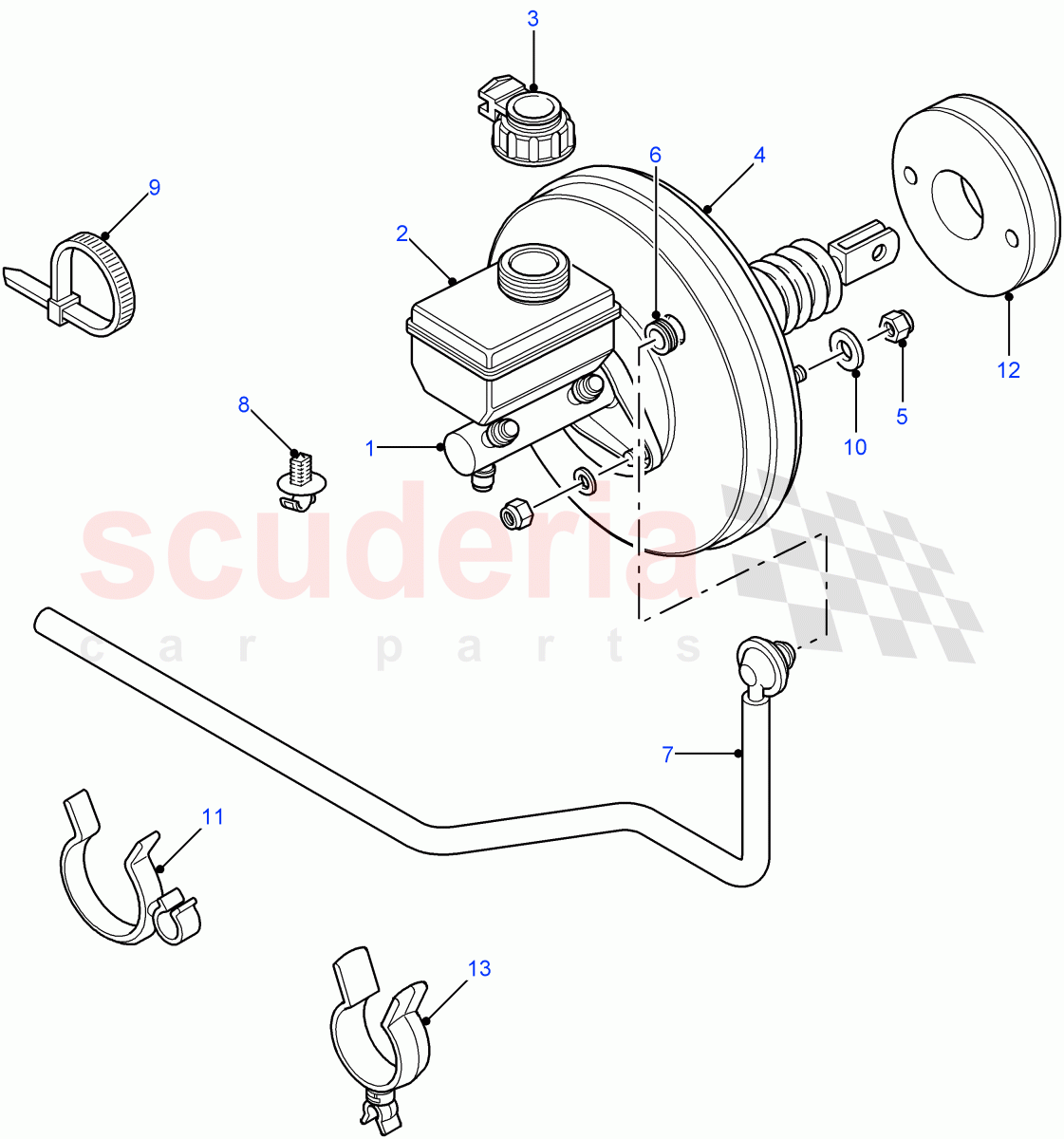

Master Cylinder & Servo (4 Wheel Anti-Lock Braking System) ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 SJC100421
MASTER CYLINDER
To: 8A999999 		$616.06 1
1 LR013017
CYLINDER - MASTER
From: 9A000001 		$509.38 1
2 SJJ100351
KIT - BRAKE FLUID RESERVOIR 		$88.48 1
3 SJL100200
FILLER CAP AND WARNING INDICATOR 		$30.78 1
4 SJG100240
BOOSTER - BRAKE 		$599.06 1
5 FY108046
NUT M8 FLANGED HEX HEAD
flange, M8, nyloc
IN STOCK 		$1.13 4
6 SQQ100000
GROMMET 		$23.11 1
7 SQB500250
HOSE - VACUUM
LHD / To: 9A888887 		$22.77 1
7 SQB500310
HOSE - VACUUM
RHD / To: 9A888887 		$29.82 1
7 LR016775
HOSE - VACUUM
LHD / From: 9A888888 / To: BA999999 		$23.35 1
7 LR029625
HOSE - VACUUM
RHD / From: CA000001 		$32.79 1
7 LR029624
HOSE - VACUUM
LHD / From: CA000001 		$32.79 1
7 LR016776
HOSE - VACUUM
RHD / From: 9A888888 / To: BA999999 		$28.39 1
8 DYC101410L
CLIP - HOSE 		$1.12 1
9 568680
STRAP - CABLE 		$2.26 3
10 WA108056
WASHER
8MM
IN STOCK 		$0.88 4
11 SQV500130
CLIP - BRAKE PIPE
Secures Vac Hose And Heat Sleeve 		$1.09 1
12 SIH100010
ADAPTOR 		$247.47 1
13 YBH10005
CLIP
To Secure The Brake Servo Vacuum Hose To The Expansion Tank Bottom Hose 		$7.05 2
